LIST PRICING

CREDIT APPLICATION SALES POLICIES

2 0 1 9

DORTRONICS SYSTEMS, Inc. 1668 Sag Harbor Turnpike Sag Harbor, NY 11963

EFFECTIVE 04/01/19

Phone: (800) 906-0137 Fax: (631) 726-8148 www.dortronics.com

PRICE LIST - MARCH 2019


	PAGE #
1000 SERIES ELECTROMAGNETIC LOCKS
#MM300 - MINI-MAGNETIC LOCKS - CABINETS/DRAWERS	2
#1000 - INDUSTRIAL MAGNETIC LOCKS & ACCESSORIES	2
#1100 - MAGNETIC LOCKS - OUTSWING DOORS/ DELAYED EGRESS	3

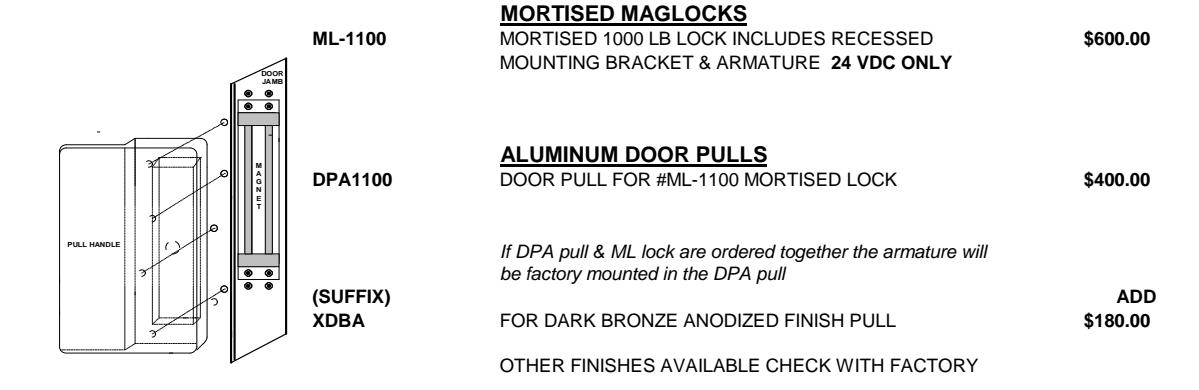

#ML1100 - MORTISED MAGNETIC LOCKS & PULLS	3
#TJ1100 - MAGNETIC LOCKS - INSWING DOORS/ DELAYED EGRESS	4
#1100 - MAGNETIC LOCK - OPTIONS & CUSTOM HOUSINGS #1100 - MAGNETIC LOCK - SPECIAL FINISHES	5 6
#1180 - MAGNETIC LOCK - FILLER PLATES	7
#1180 - MAGNETIC LOCK - FILLER PLATE-SPECIAL FINISHES	8
#1190 - MAGNETIC LOCK - ANGLE MOUNTING BRACKETS	9
#1190 - MAGNETIC LOCK - ANGLE MOUNTING BRACKET FINISHES	10
#1190 - MAGNETIC LOCK - Z-BRACKET SPACER BLOCKS	11
#1190 - ARMATURE MOUNTING BRACKETS-HERCULITE BRACKETS 3000 SERIES ELECTRIC STRIKES	12

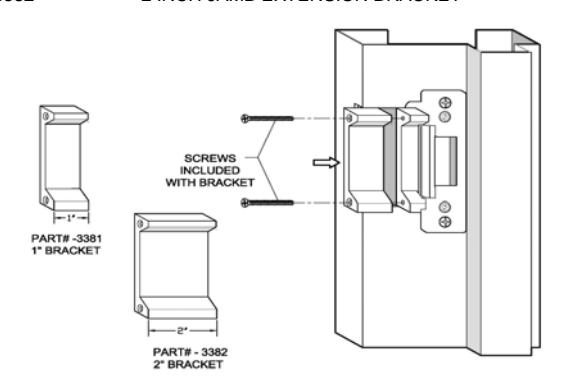

#3300 - ANSI STYLE STRIKES	13
#3400 - ELECTRIC DROP BOLTS	13
4000 SERIES POWER SUPPLIES & CONTROLLERS
#4000 - PLUG-IN POWER SUPPLIES	14

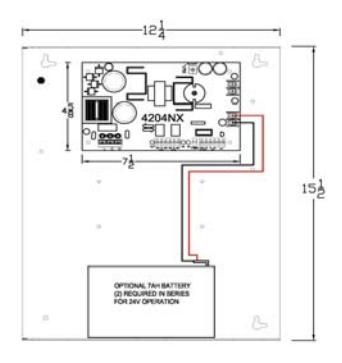

#4200 - POWER SUPPLIES	14

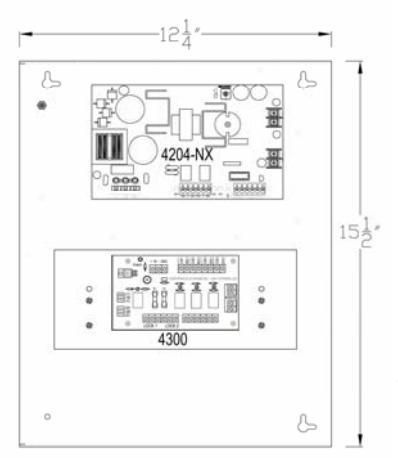

#4300 - ECONOMY MANTRAPS / INTERLOCKS 2 - DOORS	15

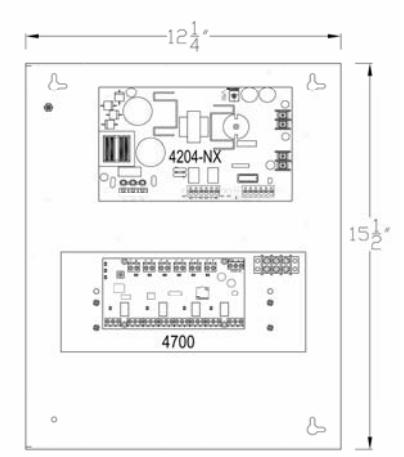

#4300- COMMUNICATING BATHROOM CONTROLLERS #4700 - PLC MANTRAPS / INTERLOCKS 2 - 4 DOORS	15 16

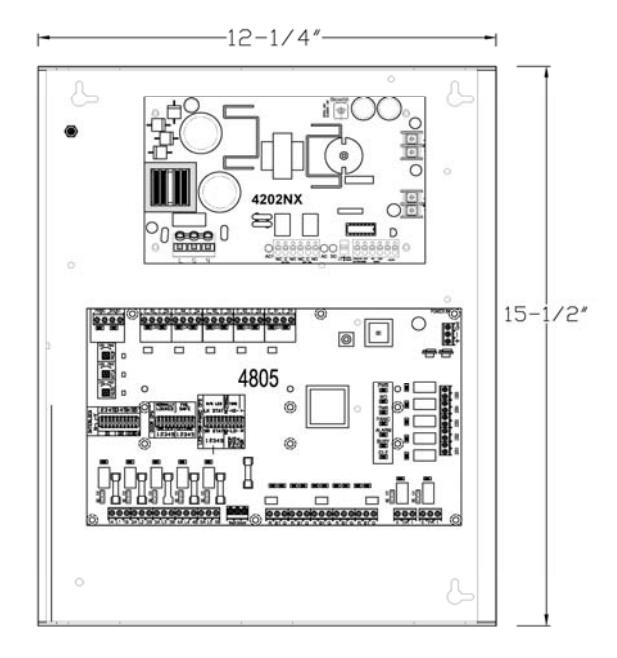

#4800 - FIELD PROGRAMMABLE INTERLOCKS	17

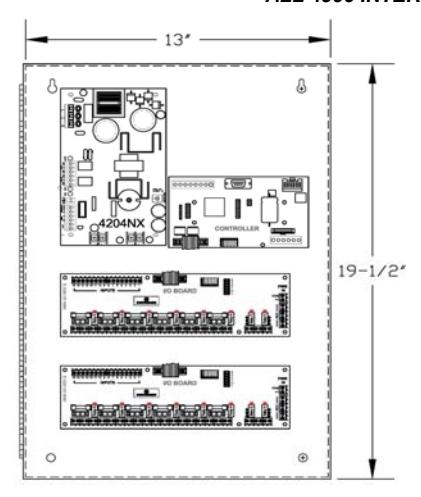

#4900 - PLC MANTRAPS / INTERLOCKS UP TO 120 DOORS	18
5000 SERIES ACTUATING CONTROLS
#5100 - MORTISE KEY SWITCHES	19
#5210 - PUSH BUTTON SWITCHES	20 & 21
#5230 - SNAP ACTION PUSH BUTTONS / UNDER DESK CONSOLES	22
#5240 - ELECTRIC KEY SWITCHES / UNDER DESK CONSOLES	23
#5276 - SWITCHES GUARDED / HEAVY DUTY & WATERPROOF	24 & 25
#5277 - PIEZO ELECTRIC SWITCHES	26
#5278 - TOUCHLESS ELECTRIC SWITCHES #5286 - PUSH PLATE SWITCHES	26 27, 28, 29
#5287 - HEAVY DUTY PUSH BUTTON SWITCHES	30
6000 SERIES ACCESSORIES
#6220 - DOOR CORDS	31
#6420 - PANIC EGRESS BARS	31
#6450 - LEVER TRIM DEVICE FOR PANIC EGRESS BARS	31
#6500 - EMERGENCY PULL STATIONS & ANTI TAMPER COVERS	32
#6612 - REX MOTION DETECTORS 7000 SERIES ANNUNCIATORS	32
#7101 - DELAYED EGRESS SYSTEM	33
#7201 - HI-INTENSITY LED INDICATORS & PIEZO SOUNDERS	34

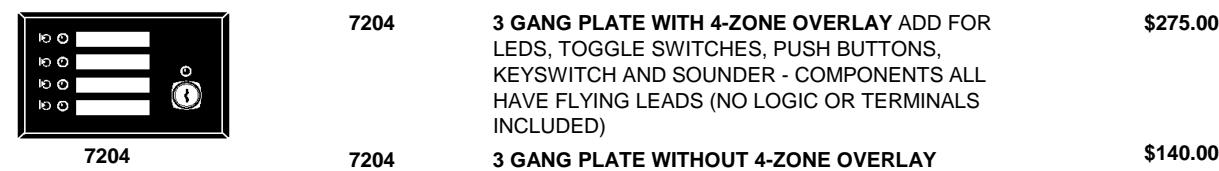

#7200 - MULTI-ZONE ANNUNCIATORS	35
#7281 - DOOR EXIT ALARM / ANNUNCIATORS	36
#7286 - DOOR PROP ALARM / ANNUNCIATORS	37
#7600 - MULTI-ZONE ANNUNCIATOR / CONTROLLERS	38

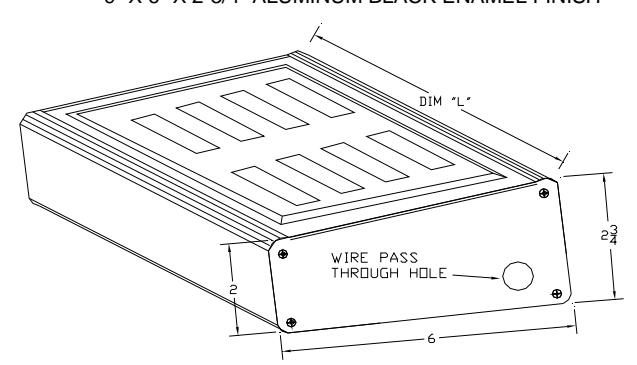

#7600 - ANNUNCIATOR PANEL & RACK SIZE INFORMATION	39
8000 SERIES ACCESS CONTROL SYSTEMS
#8100 - KEYPAD ACCESS CONTROL	40
REPAIR PARTS & MISCELLANEOUS
#1100 - ELECTROMAGNETIC LOCK PARTS	41
#5000 - ACTUATING CONTROL SWITCH PARTS ELECTRICAL BOXES & ACCESSORIES	42 42

CREDIT APPLICATION & SALES POLICIES	43 & 44

	PART #	DESCRIPTION	LIST PRICE
MINI SERIES		CABINET & DRAWER LOCKS

	MM-300	MINI-MITE LOCK 300 LB MINI-MITE LOCK 12/24 VDC (DUAL VOLTAGE) WITH STAINLESS STEEL HOUSING (3-1/4" x 2-1/4" x 1-3/4" OVERALL)	$220.00
MM-300	TJMM-300	FOR INSWING APPLICATIONS INCLUDES Z-BRACKET	$320.00
	MM-D1 MM-D2 MM-ZD1	ACCESSORY ARMATURE ANGLE BRACKET TJ BACK MOUNTING BRACKET MINI MITE Z- BRACKET NARROW MINI-MITE LOCK	$50.00 $50.00 $80.00
	MM-300N	300 LB NARROW LINE MINI-MITE LOCK (SPECIFY 12 OR 24 VDC) STAINLESS STEEL ENCLOSURE	$240.00
MM-ZD1	TJMM-300N	FOR INSWING APPLICATIONS INCLUDES Z-BRACKET	$340.00
	MM-N1	NARROW ANGLE BRACKET 1-1/2 x 1-1/2 x 6"	$40.00
	MM-N2	TJ BACK MOUNTING BRACKET	$40.00
MM-300N	MM-ZN1	NARROW MINI-MITE Z- BRACKET	$60.00
1000 SERIES		INDUSTRIAL ELECTROMAGNETIC LOCKS

	1000	INDUSTRIAL LOCK - OUTSWING DOORS 1200 LB LOCK 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE) FOR SURFACE MOUNTING ON OUTSWING DOORS STAINLESS STEEL HOUSING	$415.00
1000	TJ-1000	1200 LB LOCK 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE) FOR SURFACE MOUNTING ON INSWINGING DOORS INCLUDES ANGLE MOUNTING BRACKET AND ARMATURE "Z" BRACKET	$505.00
1095-00	1095-00	OPTIONAL MOUNTING BRACKET	$70.00
		USE FOR GATE OR SLIDING DOOR APPLICATIONS
1096-00 Z-BRACKET	1099-00	GATE/INSWING - CONVERSION KIT KIT INCLUDES 1095-00 ANGLE BRACKET & 1096-00 Z BRACKET FOR MOUNTING OF CONDUIT FITTED LOCKS OR TOP JAMB MOUNTING (IN-SWING DOORS) OF STANDARD INDUSTRIAL LOCK (KIT INCLUDED WITH TJ-1000)	$168.00
		1000 SERIES OPTIONS
	xD	ADD SPDT DOOR POSITION SWITCH (SINGLE)	$55.00
	xCF	ADD CONDUIT FITTING (FOR 1/2" RIGID CONDUIT) (THE 1000XCF COMES WITH 10' LEADS)	$20.00

FILLER PLATES & ANGLE BRACKETS pgs. 8-12

1000XCF

	PART #	DESCRIPTION	LIST PRICE
1100 SERIES		ELECTROMAGNETIC LOCKS
	1107	600LB DELAYED EGRESS ACTUATING LOCK NARROW 600 LB LOCK 12/24 VDC DUAL VOLTAGE ADD xD or xEDR OPTIONS ONLY - NO FINISHES	$400.00
	1110	1200 LB SINGLE MAGLOCK SINGLE DOOR 1200 LB LOCK 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE)	$435.00
	1115	600 LB. SPLIT ARMATURE MAGLOCK SPLIT ARMATURE DOUBLE LOCK 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE)	$475.00
	1120	1200 LB DOUBLE MAGLOCK DOUBLE DOOR 1200 LB 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE)	$870.00
	1150	1500 LB SINGLE MAGLOCK SINGLE DOOR 1500 LB 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE)	$560.00
	1152	1500 LB DOUBLE MAGLOCK DOUBLE DOOR 1500 LB 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE)	$1,120.00
	1155	750 LB. SPLIT ARMATURE MAGLOCK SPLIT ARMATURE DOUBLE LOCK 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE)	$595.00

1100 SERIES MORTISED LOCK APPLICATIONS

PART # DESCRIPTION LIST PRICE TJ1100 SERIES IN-SWINGING DOOR APPLICATIONS

600LB DELAYED EGRESS ACTUATING LOCK

TJ1107 NARROW 600 LB LOCK 12/24 VDC (DUAL VOLTAGE, INCLUDES Z-BRACKET FOR ARMATURE)

**ADD xD or xEDR OPTIONS ONLY - NO FINISHES**

1200 LB SINGLE MAGLOCK

TJ1110 SINGLE DOOR 1200 LB LOCK 12/24 VDC (DUAL VOLTAGE - FIELD SELECTABLE, INCLUDES TOP JAMB LOCK HOUSING w/ Z-BRACKET FOR ARMATURE)

$535.00

600 LB. SPLIT ARMATURE MAGLOCK

LOCK HOUSING w/ Z-BRACKET FOR ARMATURE)

TJ1115 SPLIT ARMATURE DOUBLE LOCK 12/24 (DUAL VOLTAGE - FIELD SELECTABLE, INCLUDES TOP JAMB

$615.00

$525.00

1200 LB DOUBLE MAGLOCK

TJ1120 DOUBLE DOOR 1200 LB 12/24 (DUAL VOLTAGE - FIELD SELECTABLE, INCLUDES TOP JAMB LOCK HOUSING

$1,070.00

w/ Z-BRACKET FOR ARMATURE) 1500 LB SINGLE MAGLOCK

TJ1150 SINGLE DOOR 1500 LB 12/24 (DUAL VOLTAGE - FIELD SELECTABLE, INCLUDES TOP JAMB LOCK HOUSING w/ Z-BRACKET FOR ARMATURE)

$685.00

1500 LB DOUBLE MAGLOCK

TJ1152 DOUBLE DOOR 1500 LB 12/24 (DUAL VOLTAGE - FIELD SELECTABLE, INCLUDES TOP JAMB LOCK HOUSING w/ Z-BRACKET FOR ARMATURE)

$1,370.00

750 LB. SPLIT ARMATURE MAGLOCK

TJ1155 SPLIT ARMATURE DOUBLE LOCK 12/24 (DUAL VOLTAGE - FIELD SELECTABLE, INCLUDES TOP JAMB LOCK HOUSING w/ Z-BRACKET FOR ARMATURE)

$815.00

TYPICAL Z-BRACKET FOR MOUNTING ARMATURE INCLUDED WITH EACH TOP JAMB LOCK SEE PAGE 41 FOR Z-BRACKET PRICING AS A SPARE PART ONLY

(ALL TJ LOCKS INCLUDE A Z-BRACKET)

1095-07 1107 SERIES INSWING - CONVERSION KIT

1107 INSWING KIT $215.00 KIT INCLUDES 1107302 ANGLE BRACKET & 1196-06 Z-BRACKET FOR TOP JAMB MOUNTING (IN-SWING DOORS) (KIT INCLUDED WITH TJ1107)

1095-07XEDR 1107xEDR SERIES INSWING - CONV. KIT

KIT INCLUDES 1107301 ANGLE BRACKET , 1196-06 Z-BRACKET W/SHIM & SPRING LOADED PLATE FOR TOP JAMB MOUNTING (KIT

INCLUDED WITH TJ1107xEDR)

$270.00

PART # DESCRIPTION LIST PRICE 1100 SERIES OPTIONAL MAGNETIC LOCK FEATURES (SUFFIX) 1100 SERIES OPTIONS (ADD TO LOCK): (ADD) xL ADD 1 LED (BICOLOR RED / GREEN) $40.00 xD ADD SPDT DOOR POSITION SWITCH (SINGLE) $50.00 x2D ADD 2 SPDT DOOR POSITION SWITCHES (1115/1120/1152/1155) $100.00 XDD ADD DPDT DOOR POSITION SWITCH (NOT AVAILABLE FOR 1000 SERIES) $100.00 xB ADD 1 MAGNETIC BOND SENSOR (NOT AVAILABLE FOR 1000,1115,1155 SERIES LOCKS) $100.00 x2B ADD 2 MAGNETIC BOND SENSORS DOUBLE(1120/1152) $200.00 xCF ADD CONDUIT FITTING (FOR 1/2" RIGID CONDUIT) $10.00 (1000XCF HAS 10' LEADS, NOT AVAILABLE FOR 1107 ) $20.00 xCT ADD COVER TAMPER SWITCH $60.00 xTS ADD TAMPER RESISTANT SCREWS/DRIVER $20.00 xEDR ADD ATTEMPTED EGRESS SWITCH & DOOR SWITCH w/ ARMATURE MOUNTING ASSEMBLY (FOR SINGLE DOOR w/ EDR SYSTEM-101) $225.00 ONLY AVAILABLE WITH 1107 & 1110 SERIES

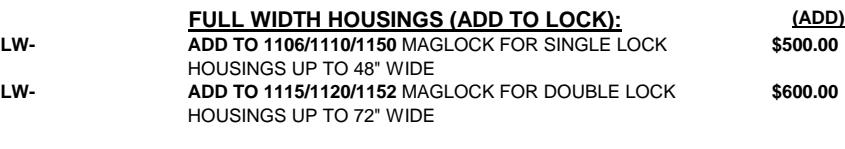

FULL HEIGHT HOUSINGS (ADD TO LOCK): (ADD) LV- ADD TO 1106/1110/1150 MAGLOCK - FOR SINGLE LOCK HOUSINGS UP TO 96" LONG $530.00 LV- ADD TO 1120/1152 MAGLOCK - FOR DOUBLE LOCK HOUSINGS UP TO 96" LONG $630.00

FOR OTHER CUSTOM LOCKS OR HOUSINGS (CALL FOR QUOTE)

FOR CUSTOM FINISHES (CALL FOR QUOTE)

	PART #	DESCRIPTION	LIST PRICE
1100 SERIES		OPTIONAL SPECIAL LOCK FINISHES

(SUFFIX)	ANODIZING (ADD TO LOCK PRICE):
xDBA	DARK BRONZE ANODIZE (US10D) -	(ADD)
	1107 SERIES ANODIZING NOT OFFERED	N/A
	ADD FOR 1110 , 1115 SINGLE SERIES	$60.00
	ADD FOR 1120 DOUBLE SERIES	$90.00
	ADD FOR 1150, 1155 SINGLE SERIES	$70.00
	ADD FOR 1152 DOUBLE SERIES	$100.00
	ADD FOR TJ1106 TOP JAMB JR.	$70.00
	ADD FOR TJ1110, TJ1115 TOP JAMB SINGLE	$75.00
	ADD FOR TJ1120 TOP JAMB DOUBLE	$120.00
	ADD FOR TJ1150, TJ1155 TOP JAMB SINGLE	$80.00
	ADD FOR TJ1152 TOP JAMB DOUBLE	$140.00

(SUFFIX) PLATING (ADD TO LOCK PRICE):

XUS26	POLISHED CHROME -
XUS26D	SATIN CHROME -
XUS3	POLISHED BRASS -	(ADD)
XUS4	SATIN BRASS -

1107 SERIES PLATING NOT OFFERED	N/A
ADD FOR 1110 , 1115 SINGLE SERIES	$370.00
ADD FOR 1120 DOUBLE SERIES	$500.00
ADD FOR 1150, 1155 SINGLE SERIES	$380.00
ADD FOR 1152 DOUBLE SERIES	$540.00
ADD FOR TJ1110,TJ1115 TOP JAMB SINGLE	$590.00
ADD FOR TJ1120 TOP JAMB DOUBLE	$800.00
ADD FOR TJ1150, TJ1155 TOP JAMB SINGLE	$610.00
ADD FOR TJ1152 TOP JAMB DOUBLE	$840.00

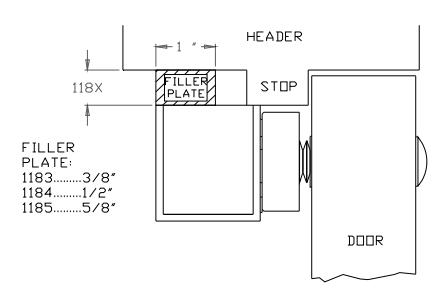

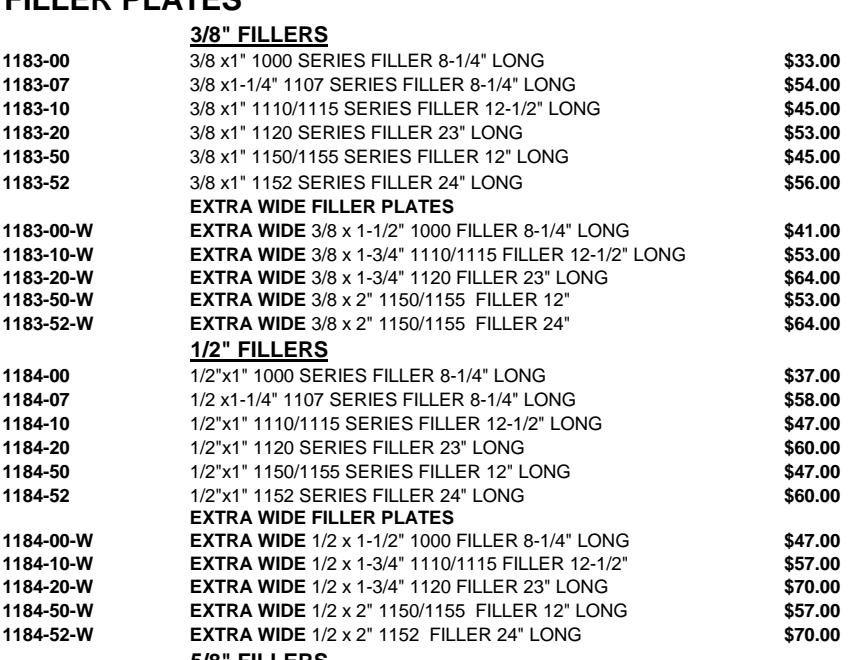

PART # DESCRIPTION LIST PRICE 1180 SERIES FILLER PLATES

5/8" FILLERS

1185-00 5/8"x1" 1000 SERIES FILLER 8-1/4" LONG $41.00 1185-07 5/8 x1-1/4" 1107 SERIES FILLER 8-1/4" LONG $62.00 1185-10 5/8"x1" 1110/1115 FILLER 12-1/2" LONG $49.00 1185-20 5/8"x1" 1120 SERIES FILLER 23" LONG $64.00 1185-50 5/8"x1" 1150/1155 SERIES FILLER 12" LONG $50.00 1185-52 5/8"x1" 1152 SERIES FILLER 24" LONG $64.00 EXTRA WIDE FILLER PLATES 1185-00-W EXTRA WIDE 5/8 x 1-1/2" 1000 FILLER 8-1/4" LONG $53.00

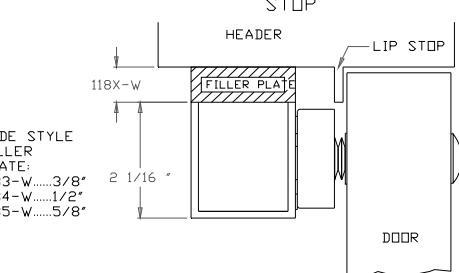

1185-10-W EXTRA WIDE 5/8 x 1-3/4" 1110 FILLER 12-1/2" LONG $61.00 1185-20-W EXTRA WIDE 5/8 x 1-3/4" 1120 FILLER 23" LONG $76.00 1185-50-W EXTRA WIDE 5/8 x 2" 1150 FILLER 12" LONG $61.00 1185-52-W EXTRA WIDE 5/8 x 2" 1152 FILLER 24" LONG $76.00

PART # DESCRIPTION LIST PRICE 1180 SERIES CUSTOM FINISHES - STANDARD FILLER PLATES

(SUFFIX) SPECIAL FINISHES ADD TO FILLER PLATES (ADD)

xDBA ADD FOR DARK BRONZE ANODIZED - $30.00

xUS26 ADD FOR POLISHED CHROME xUS26D ADD FOR SATIN CHROME xUS3 ADD FOR POLISHED BRASS xUS4 ADD FOR SATIN BRASS -

1107 FINISHES NOT OFFERED N/A 1110/1115 (SINGLE LOCK) FILLER PLATES $90.00 1150/1155 (SINGLE LOCK) FILLER PLATES $100.00 1120 (DOUBLE LOCK) FILLER PLATES $130.00 1152 (DOUBLE LOCK) FILLER PLATES $120.00

PART # DESCRIPTION LIST PRICE 1190 SERIES ANGLE BRACKETS


	1" x 1" ANGLE BRACKET
1191-00	1"X1" 1000 SERIES ANGLE 8-1/4" LONG	$42.00
1191-06	1"X1" 1107 SERIES ANGLE 8-1/4" LONG	$42.00
1191-10	1"X1" 1110/1115 SERIES ANGLE 12-1/2"LONG	$55.00
1191-20	1"X1" 1120 SERIES ANGLE 23" LONG	$75.00
1191-50	1"X1" 1150/1155 SERIES ANGLE 12"LONG	$55.00
1191-52	1"X1" 1152 SERIES ANGLE 24" LONG	$75.00
	1-1/2" x 1-1/2" ANGLE BRACKET
1192-00	1-1/2"X 2" 1000 SERIES ANGLE 8-1/4"LONG	$44.00
1192-06	1-1/2"X1-1/2" 1107 SERIES ANGL 8-1/4"LONG	$44.00
1192-10	1-1/2"X1-1/2" 1110/1115 SERIES ANGLE 12-1/2"LONG	$58.00
1192-20	1-1/2"X1-1/2" 1120 SERIES ANGLE 23" LONG	$75.00
1192-50	1-1/2"X1-1/2" 1150/1155 SERIES ANGLE 12"LONG	$58.00
1192-52	1-1/2"X1-1/2" 1152 SERIES ANGLE 24" LONG	$75.00
	DEPTH X HEIGHT
	2" x 1-1/2" ANGLE BRACKET

1193-00	2"X 2" 1000 SERIES ANGLE 8-1/4" LONG	$60.00
1193-06	2"X1-1/2" 1107 SERIES ANGLE 8-1/4" LONG	$60.00
1193-10 1193-20	2"X1-1/2" 1110/1115 SERIES ANGLE 12-1/2"LONG 2"X1-1/2" 1120 SERIES ANGLE 23" LONG	$77.00 $95.00
1193-50	2"X1-1/2" 1150/1155 SERIES ANGLE 12"LONG	$77.00
1193-52	2"X1-1/2" 1152 SERIES ANGLE 24" LONG	$95.00

	DEPTH X HEIGHT

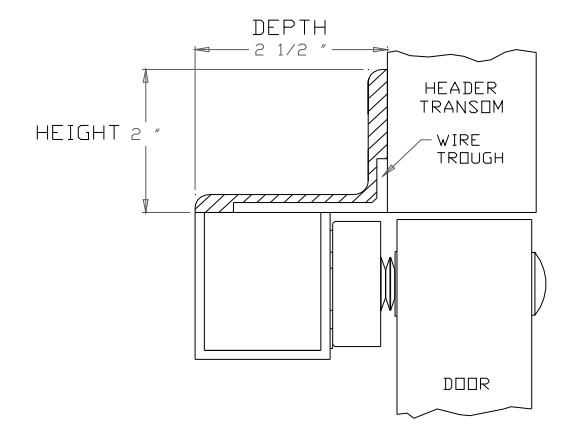

	2-1/2" x 2" ANGLE BRACKET
1194-00	2-3/8"X2" 1000 SERIES ANGLE 8-1/4" LONG	$65.00
1194-06	2-1/2"X2" 1107 SERIES ANGLE 8-1/4" LONG	$65.00
1194-10	2-1/2"X2" 1110/1115 SERIES ANGLE 12-1/2"LONG	$80.00
1194-20	2-1/2"X2" 1120 SERIES ANGLE 23" LONG	$100.00
1194-50	2-1/2"X2" 1150/1155 SERIES ANGLE 12"LONG	$80.00
1194-52	2-1/2"X2" 1152 SERIES ANGLE 24" LONG	$100.00

PART # DESCRIPTION LIST PRICE 1190 SERIES CUSTOM FINISHES - ANGLE BRACKETS

(SUFFIX)	SPECIAL FINISHES ADD TO ANGLE BRACKETS	(ADD)

xDBA ADD FOR DARK BRONZE ANODIZED - $30.00

ALL STANDARD ANGLE BRACKETS

xUS26 ADD FOR POLISHED CHROME xUS26D ADD FOR SATIN CHROME xUS3 ADD FOR POLISHED BRASS xUS4 ADD FOR SATIN BRASS -

1107 FINISHES NOT OFFERED N/A 1110/1115 (SINGLE LOCK) ANGLE BRACKETS $105.00 1150/1155 (SINGLE LOCK) ANGLE BRACKETS $120.00 1120 (DOUBLE LOCK) ANGLE BRACKETS $180.00 1152 (DOUBLE LOCK) ANGLE BRACKETS $190.00

PART # DESCRIPTION LIST PRICE

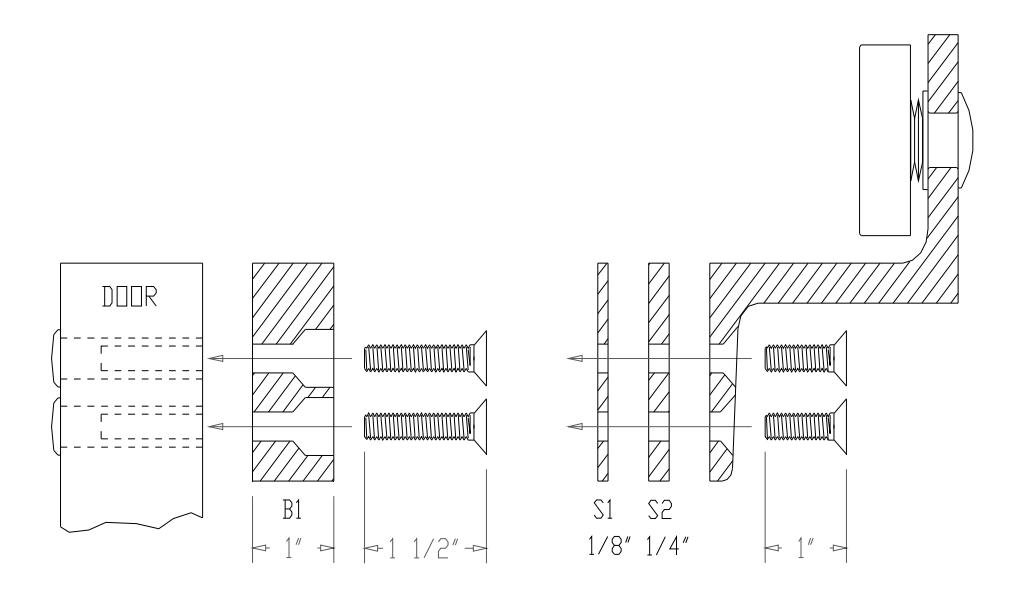

1190 SERIES "Z" BRACKET ACCESSORIES

Z-BRACKET SPACERS & BLOCKS

1176-06S1	1/8" SPACER FOR 1107	$40.00
1176-00S1	1/8" SPACER FOR 1000	$42.00
1176-10S1	1/8" SPACER FOR 1110/1150 (1120/1152, 2 REQUIRED)	$44.00
1176-15S1	1/8" SPACER FOR 1115/1155 (2 REQUIRED)	$38.00
1176-06S2	1/4" SPACER FOR 1107	$46.00
1176-00S2	1/4" SPACER FOR 1000	$50.00
1176-10S2	1/4" SPACER FOR 1110/1150 (1120/1152, 2 REQUIRED)	$52.00
1176-15S2	1/4" SPACER FOR 1115/1155 (2 REQUIRED)	$42.00
1176-06B1	1" BLOCK FOR 1107	$88.00
1176-00B1	1" BLOCK FOR 1000	$92.00
1176-10B1	1" BLOCK FOR 1110/1150 (1120/1152, 2 REQUIRED)	$96.00
1176-15B1	1" BLOCK FOR 1115/1155 (2 REQUIRED)	$84.00

SPECIAL FINISH Z-BRACKETS, SPACERS & BLOCKS (Call for quote)

PART # DESCRIPTION LIST PRICE 1190 SERIES ARMATURE MOUNTING BRACKETS


	2" x 2" ARMATURE BRACKET w/ SEX NUT
1195-06	ARMATURE BRACKET FOR 1107 LOCKS	$60.00
1195-10	ARMATURE BRACKET FOR 1110 LOCKS	$72.00
1195-15L	ARMATURE BRACKET FOR LEFT ARMATURE 1115	$58.00
1195-15R	ARMATURE BRACKET FOR RIGHT ARMATURE 1115	$58.00
	2-1/2" x 2-1/2" BRACKET w/ SEX NUT
	FOR 1000 & 1150 SERIES LOCKS
1195-50	ARMATURE BRACKET FOR 1150 & 1000 LOCKS	$80.00
1195-55L	ARMATURE BRACKET FOR 1155 LEFT ARMATURE	$66.00
1195-55R	ARMATURE BRACKET FOR 1155 RIGHT ARMATURE	$66.00
	2-1/2" x 2-1/2" BRACKET w/ SEX NUT
1197-06	ARMATURE BRACKET FOR 1107 LOCKS	$76.00
1197-10	ARMATURE BRACKET FOR 1110 LOCKS	$86.00
	2-1/2" x 3" BRACKET w/ SEX NUT
	FOR 1000 & 1150 SERIES LOCKS
1197-50	ARMATURE BRACKET FOR 1150 & 1000 LOCKS	$98.00

SPECIAL FINISH ARMATURE BRACKETS (Call for quote)

1190 SERIES HERCULITE GLASS DOOR BRACKETS

1198 SERIES GLASS DOOR U-BRACKETS

SATIN STAINLESS STEEL FINISH (SPECIFY GLASS THICKNESS)


1198/75-55	1155 SERIES U-BRACKET FOR 3/4" THICK GLASS	$120.00

1198/50-55	1155 SERIES U-BRACKET FOR 1/2" THICK GLASS	$110.00
1198/75-50	1150&1000 SERIES U-BRACKET FOR 3/4" GLASS	$160.00
1198/50-50	1150&1000 SERIES U-BRACKET FOR 1/2" GLASS	$150.00
1198/75-15	1115 SERIES U-BRACKET FOR 3/4" THICK GLASS	$110.00
1198/50-15	1115 SERIES U-BRACKET FOR 1/2" THICK GLASS	$100.00
1198/75-10	1110/1120 U-BRACKET FOR 3/4" THICK GLASS DOOR	$140.00

1198/50-10	1110/1120 U-BRACKET FOR 1/2" THICK GLASS DOOR	$132.00
1198/75-06	1107 SERIES U-BRACKET FOR 3/4" THICK GLASS	$140.00
1198/50-06	1107 SERIES U-BRACKET FOR 1/2" THICK GLASS	$132.00

(SUFFIX)	U-BRACKET SPECIAL FINISHES	(ADD)
xUS3	ADD FOR POLISHED BRASS	$150.00
xUS4	ADD FOR SATIN BRASS	$150.00
xUS26	ADD FOR POLISHED CHROME	$150.00
	STANDARD FINISH IS SATIN STAINLESS

ELECTRIC STRIKES & BOLTS

PART # DESCRIPTION LIST PRICE

3300 SERIES ELECTRIC STRIKES

STANDARD ANSI STRIKES 3300 12/24 DC ANSI STRIKE - FIELD SELECTABLE FAIL-SAFE/FAIL-SECURE FOR METAL DOOR FRAME $220.00

3300xD 12/24 DC ANSI STRIKE WITH LATCH BOLT MONITOR SWITCH (SPDT) - FIELD SELECTABLE FAIL-SAFE/FAIL- $300.00

SECURE FOR METAL DOOR FRAME

3311 WOOD FRAME STRIKE PLATE ONLY

CONVERTS ANSI STYLE TO 9" TALL STRIKE FOR $24.00

WOOD DOOR FRAME

JAMB EXTENSION BRACKETS

FOR USE WITH DEEP DOOR JAMB APPLICATIONS

3381 1 INCH JAMB EXTENSION BRACKET $20.00 3382 2 INCH JAMB EXTENSION BRACKET $20.00

3400 SERIES ELECTRIC DROPBOLT

3412 RECESS MOUNT DROPBOLT FAIL-SAFE 12VDC WITH BOLT MONITOR SWITCH (SPDT) - & FIELD SELECTABLE RELOCK TIMER. FOR HOLLOW METAL,

OR WOOD DOOR FRAMES

3402 SURFACE MOUNT DROPBOLT & RECEIVER FAIL-SAFE 12VDC WITH BOLT MONITOR SWITCH (SPDT) - &

DOOR POSITION SWITCH (SPDT) WITH FIELD

SELECTABLE RELOCK TIMER.

3404 HERCULITE DOOR U-BRACKET & RECEIVER HOUSING $175.00

FOR UP TO 1/2" THICK FRAMELESS GLASS DOORS

PHONE: (800) 906-0137 FAX: (631) 725-8148 www.dortronics.com

$365.00

$540.00

PART # DESCRIPTION LIST PRICE

4000 SERIES PLUG-IN POWER SUPPLIES

WALL MOUNT PLUG IN POWER SUPPLIES 4012 12 VOLT PLUG-IN POWER SUPPLY $75.00 (1 AMP 12 VDC FOR USE WITH 1100 SERIES MAGLOCKS)

4024 24 VOLT PLUG-IN POWER SUPPLY $75.00

(1 AMP 24 VDC FOR USE WITH 1100 SERIES MAGLOCKS)

4200 SERIES POWER SUPPLIES

12/24 VDC POWER SUPPLIES

4204NX 4 AMP POWER SUPPLY/CONTROLLER 12/24 VDC $650.00

$160.00

$340.00

$90.00

$160.00

CLASS 2 UL294 RATED ,WITH BATTERY CHARGING CIRCUIT & FIRE ALARM RELAY. THE AUXILLARY CLASS 2 POWER LIMITED OUTPUT SUPPLIES CONTINUOUS DC POWER WHILE A SECOND OUTPUT PROVIDES SWITCHED DC POWER THROUGH THE BUILT IN FIRE ALARM RELAY. FURNISHED IN A 15-1/2" x 12-1/4" x 4-1/2" ELECTRICAL BOX. SEE SERIES 4200 OPTIONS BELOW

4200 SERIES POWER SUPPLY OPTIONS

(SUFFIX)

xRM12 xRM24

4200 SERIES OPTIONS: ADD FOR LARGER ENCLOSURES AS REQUIRED TO

ACCOMMODATE MULTIPLE OPTIONS BELOW (ADD) /1518 15" x 18" x 4" ENCLOSURE REQUIRED TO ACCOMMODATE MULTIPLE FUSED OUTPUT BOARDS

OR RELAY MODULES /2024 20" x 24" x 5" ENCLOSURE REQUIRED TO

ACCOMMODATE MULTIPLE FUSED OUTPUT BOARDS OR RELAY MODULES

xBAT 12/24 VDC - 14 AMP HOUR BATTERY PACK $130.00 INCLUDES 2 EACH 7 AH 12 VOLT RECHARGEABLE BATTERIES w/ HOOK-UP CABLES

RELAY MODULE w/ TWO (2) SPDT ISOLATION RELAYS DIMENSIONS 2" LONG X 1-3/4" WIDE

(SPECIFY 12 OR 24VDC)

xFO 8-ZONE FUSED OUTPUT BOARD (POWER $110.00

DISTRIBUTION) 4-1/4" LONG X 3" WIDE

xFO/AUX 8-ZONE FUSED OUTPUT BOARD (POWER DISTRIBUTION) w/ AUXILARY POWER INTERRUPT

RELAY 4-1/4" LONG X 3" WIDE

xTERM 10 POSITION DOUBLE ROW TERMINAL 6 1/2" LONG $30.00 xCT COVER TAMPER SWITCH FOR ENCLOSURE $60.00

PART # DESCRIPTION LIST PRICE

4300 SERIES MANTRAPS & INTERLOCKS

ALL 4300 INTERLOCKS ARE FACTORY PRE-CONFIGURED

RELAY LOGIC 2-DOOR INTERLOCK CONTROLLERS ARE OFFERED IN STANDARD CONFIGURATIONS WHICH ALLOW FOR ONE DOOR STATUS AND ONE R-E-X INPUT PLUS ONE DPDT LOCK RELAY OUTPUT PER DOOR.

A 4204 CLASS 2 UL-294 POWER SUPPLY INCLUDED IN THE 12-1/4 x 15-1/2 x 4" NEMA ENCLOSURE PROVIDES 4 AMPS OF 12 or 24 VDC POWER FOR MAGLOCKS, STRIKES & LED's. A FIRE ALARM RELAY INPUT IS STANDARD. THE NUMBER OF LOCKS AND TOTAL CURRENT DRAW MAY REQUIRE ADDITIONAL POWER .

REQUEST MANTRAP / INTERLOCK CHECK LIST FROM FACTORY TO PROPERLY CONFIGURE 4300 CONTROLLERS

STANDARD CONFIGURATIONS

43211-U	2-Doors – 1-Room - All Doors Normally Unlocked	$1,075.00
43211-LU	2-Doors – 1-Room - 1-Door Locked & 1-Door Unlocked
43211-L	2-Doors – 1-Room - All Doors Normally Locked

4300020 Controller board only $375.00

COMMUNICATING BATH CONTROLLER

43211-CB 2-Doors – 1-Room - Doors Normally Unlocked $1,120.00

xBAT 12/24 VDC - 14 AMP HOUR BATTERY PACK $130.00

INCLUDES 2 EACH 7 AH 12 VOLT RECHARGEABLE BATTERIES w/ HOOK-UP CABLES

xCT COVER TAMPER SWITCH FOR ENCLOSURE $60.00

SEE 4700 & 4900 SERIES ON FOLLOWING PAGES FOR MORE COMPLEX MANTRAP CONFIGURATIONS

PART # DESCRIPTION LIST PRICE

4700 SERIES PLC MANTRAPS & INTERLOCKS

ALL 4700 INTERLOCKS ARE FACTORY PRE-PROGRAMMED

PLC BASED MULTI DOOR, INTERLOCK & MANTRAP CONTROLLERS ARE OFFERED IN STANDARD CONFIGURATIONS WHICH ALLOW FOR ONE DOOR STATUS AND ONE R-E-X INPUT PLUS ONE DPDT LOCK RELAY OUTPUT PER DOOR. A MAXIMUM OF 6-INPUTS AND 4-OUTPUTS CAPABILITY PLUS CUSTOM OPERATIONAL CHARACTERISTICS INCLUDING SEQUENCING AND TIMING MAY BE DESIGNED INTO THE UNIT UPON REQUEST.

REQUEST MANTRAP / INTERLOCK CHECK LIST FROM FACTORY TO PROPERLY CONFIGURE 4700 PLC CONTROLLERS

STANDARD CONFIGURATIONS


	4700 SERIES 2 DOOR MANTRAP INTERLOCKS
47211-U	2-Doors – 1-Room - All Doors Normally Unlocked	$1,425.00
47211-LU	2-Doors – 1-Room - 1-Door Locked & 1-Door Unlocked
47211-L	2-Doors – 1-Room - All Doors Normally Locked
	4700 SERIES 3 DOOR MANTRAP INTERLOCKS
47311-U	3-Doors – 1-Room - All Doors Normally Unlocked	$1,475.00
47311-L2U	3-Doors – 1-Room - 1-Locked & 2-Unlocked
47311-2LU	3-Doors – 1-Room - 2-Locked - 1-Unlocked
47311-L	3-Doors – 1-Room - 3-Locked
	4700 SERIES 4 DOOR MANTRAP INTERLOCKS
47411-U	4-Doors – 1-Room - All Doors Normally Unlocked	$1,525.00
xBAT	12/24 VDC - 14 AMP HOUR BATTERY PACK	$130.00
	INCLUDES 2 EACH 7 AH 12 VOLT RECHARGEABLE
	BATTERIES w/ HOOK-UP CABLES

xCT	COVER TAMPER SWITCH FOR ENCLOSURE	$60.00
	CUSTOM CONFIGURATION PROGRAMMING
47000-PRGM	FACTORY PROGRAMMING TO CUSTOM APPLICATION	$400.00
	SPECIFICATIONS QUOTED ON AN HOURLY BASIS

	THE 4700 SERIES CONTROLLER IS LIMITED TO 6-INPUTS &

4-RELAY OUTPUTS TOTAL FOR DOOR LOCK & TRAFFIC LIGHT

SEE 4900 SERIES ON NEXT PAGE FOR MORE MANTRAP CONFIGURATIONS

CONTROL.

PART # DESCRIPTION LIST PRICE

4800 SERIES USER CONFIGURED INTERLOCKS

4800 INTERLOCKS ARE FIELD CONFIGURABLE

THE 4800 SERIES MANTRAP CONTROLLER ALLOWS THE USER TO INTERLOCK FROM TWO TO FIVE DOORS IN ANY COMBINATION AND CONFIGURE THE DOORS FOR LOCKED OR UNLOCKED, FAIL SAFE OR FAIL SECURE OPERATION IN THE FIELD. THE PLC BASED LOGIC GIVES THE INSTALLER COMPLETE CONTROL OVER THE INTERLOCK FUNCTIONS. EACH DOOR IN THE MANTRAP HAS AN INDEPENDENT CONTROL RELAY WITH OVERCURRENT PROTECTION BY FUSE AND WET OR DRY CONTACT SELECTOR. EACH DOOR HAS A DEDICATED TRAFFIC LIGHT OUTPUT THAT IS POWERED FOR DIRECT CONNECTION TO INDICATORS, A DEDICATED DOOR STATUS RELAY, A DOOR POSITION INPUT AND A R-E-X INPUT FOR NORMALLY LOCKED DOORS. THE SYSTEM FEATURES AN EMERGENCY UNLOCK FOR ALL DOORS WITH AN

ALARM, AN INTERLOCK VIOLATION ALARM, THREE ONBOARD ADJUSTABLE TIMERS FOR PROPPED DOOR TIME, PANIC RELEASE UNLOCK TIME & UNLOCK TIMER FOR REX UNLOCK DELAY.

THE INTERLOCK FUNCTION HAS A SHUNT INPUT THAT DEFEATS THE INTERLOCK FOR DAY/NIGHT MODE, BUT LEAVES THE ACCESS CONTROL SETTINGS UNAFFECTED.

4800 SERIES 2-5 DOOR MANTRAP INTERLOCKS

48501	MOUNTED IN NEMA ENCLOSURE WITH 4AMP SUPPLY UP TO 5 DOORS FIELD CONFIGURED	$2,080.00
48500	PLC BOARD ONLY (no enclosure) UP TO 5 DOORS	$1,425.00
- 6	WITH 6 AMP OUTPUT POWER SUPPLY	$140.00
xBAT	12/24 VDC - 14 AMP HOUR BATTERY PACK INCLUDES 2 EACH 7 AH 12 VOLT RECHARGEABLE BATTERIES w/ HOOK-UP CABLES	$170.00
xCT	COVER TAMPER SWITCH FOR ENCLOSURE	$60.00
xAUX	AUXILIARY 5 RELAY OUTPUT HARNESS FOR AUTOMATIC DOOR OPERATORS	$125.00

SEE 4900 SERIES ON NEXT PAGE FOR MORE INTERLOCK CONFIGURATIONS

PART # DESCRIPTION LIST PRICE

4900 SERIES PLC MANTRAPS & INTERLOCKS

ALL 4900 INTERLOCKS ARE FACTORY PRE-PROGRAMMED

PLC BASED MULTI ROOM / MULTI DOOR, INTERLOCK & MANTRAP CONTROLLERS ARE OFFERED IN STANDARD CONFIGURATIONS WHICH ALLOW FOR ONE DOOR STATUS AND ONE R-E-X INPUT PLUS ONE DPDT LOCK RELAY OUTPUT PER DOOR. ADDITIONAL INPUT AND OUTPUT CAPABILITY PLUS CUSTOM OPERATIONAL CHARACTERISTICS INCLUDING SEQUENCING AND TIMING MAY BE DESIGNED INTO THE UNIT UPON REQUEST. UP TO 120 TOTAL DOORS MAY BE CONFIGURED

REQUEST MANTRAP / INTERLOCK CHECK LIST FROM FACTORY TO PROPERLY CONFIGURE 4900 PLC CONTROLLERS

STANDARD CONFIGURATIONS


	4900 SERIES 2 DOOR MANTRAP INTERLOCKS
49211-U	2-Doors – 1-Room - All Doors Normally Unlocked	$2,650.00
49211-L	2-Doors – 1-Room - All Doors Normally Locked
	4900 SERIES 3 DOOR MANTRAP INTERLOCKS
49311-U	3-Doors – 1-Room - All Doors Normally Unlocked	$2,850.00
49311-L	3-Doors – 1-Room - All Doors Normally Locked
49311-LU	3-Doors – 1-Room - Doors Locked & Unlocked
	4900 SERIES 4 DOOR MANTRAP INTERLOCKS
49411D-U	4-Doors – 1-Room - All Doors Normally Unlocked	$3,600.00
49411D-L	4-Doors – 1-Room - All Doors Normally Locked
49411D-LU	4-Doors – 1-Room - Doors Locked & Unlocked
xBAT	12/24 VDC - 14 AMP HOUR BATTERY PACK	$130.00
	INCLUDES 2 EACH 7 AH 12 VOLT RECHARGEABLE
	BATTERIES w/ HOOK-UP CABLES
	(NOTE) THIS OPTION CAN ONLY BE USED WITH 1 I/O
	BOARD CONFIGURATIONS. OTHERWISE CONTACT
	FACTORY FOR LARGER ENCLOSURE SIZES
- 6	WITH 6 AMP OUTPUT POWER SUPPLY	$140.00
-10	WITH 10 AMP OUTPUT POWER SUPPLY	$200.00
	SPECIFY 12 OR 24VDC
	COVER TAMPER SWITCH FOR ENCLOSURE	$60.00

WILL BE CUSTOM CONFIGURED TO YOUR SPECIFICATIONS

PROGRAMMABLE I.O. WITH NUMERIC DISPLAY

(SUFFIX) XDSP USER SELECTABLE MULTIFUNCTION PROGRAM TIMER ALLOWS CUSTOM CONFIGURATION OF INPUT/OUTPUT & TIMING FUNCTIONS (ADD) $600.00

CUSTOM CONFIGURATION PROGRAMMING

49000-PRGM FACTORY PROGRAMMING TO CUSTOM APPLICATION $400.00

SPECIFICATIONS QUOTED ON AN HOURLY BASIS

("DOORS" REFERS TO EACH OPENING WHICH MAY BE A PAIR OF DOORS)

PART # DESCRIPTION LIST PRICE

5100 SERIES KEY SWITCH CONTROLS

5141 SERIES KEY SWITCHES (LESS CYLINDER)

5141-23 FORM Z-DELAY ACTION KEY SWITCH ON SINGLE GANG PLATE (PNEUMATIC TIME DELAY) $290.00 5141-24 DPDT ALTERNATE ACTION KEY SWITCH ON SINGLE GANG PLATE $126.00 5141-25 DPDT MOMENTARY ACTION KEY SWITCH ON SINGLE GANG PLATE $120.00 5141-2/24 TWO POSITION KEY SWITCH ON SINGLE GANG PLATE w/ 2-DPDT MAINTAINED ACTION CONTACT SWITCHES $179.00

5141-25

(MOUNTING KIT INCLUDES CYLINDER NUT, PIN HEX SCREWS AND PIN HEX ALLEN WRENCH)

w/ 2-DPDT MOMENTARY ACTION CONTACT SWITCHES

5141-2/25 TWO POSITION KEY SWITCH ON SINGLE GANG PLATE

N5141-25XL2XK


(SUFFIX)	5141 KEY SWITCH OPTIONS (ADD TO ABOVE):	(ADD)
xK	STANDARD 1-1/8" MORTISE CYLINDER & 2 KEYS	$55.00
xKNR	CYLINDER WITH KEY NON-REMOVABLE IN "ON" POSITION (single switch Mom. configuration only)	$65.00
xP15	ADD SPDT PUSH BUTTON SWITCH	$30.00
xCS xL	ADD DC PIEZO SOUNDER (REQUIRES 2-GANG PLATE) ADD 1 LED (BICOLOR RED / GREEN)	$30.00 $20.00
xCT	ADD 1 SPDT COVER TAMPER SWITCH	$60.00
(SUFFIX)	5141 KEY SWITCH FINISHES	(ADD)
xUS26	POLISHED CHROME	$40.00

xUS3 POLISHED BRASS FINISH $40.00 xUS4 SATIN BRASS FINISH $40.00 (PREFIX) N WITH NARROW 1-3/4" SWITCH PLATE $6.00 D WITH DOUBLE GANG SWITCH PLATE $12.00 WR WITH WEATHER RESISTANT SWITCH PLATE (1-GANG) $8.00

SEE #5240 SERIES & #7286 DOOR PROP ALARMS FOR OTHER KEY SWITCH CONFIGURATIONS

PHONE: (800) 906-0137 FAX: (631) 725-8148 www.dortronics.com

$160.00


	PART #	DESCRIPTION	LIST PRICE
5210 SERIES	EXIT PUSH BUTTONS
		5211 PUSH BUTTONS 1-9/16" DIA
	5211-MP23/*	1-9/16" DIA. MUSHROOM PUSH BUTTON (SPECIFY CAP COLOR) w/ DPST MOMENTARY (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG PLATE	$118.00
PUSH TO EXIT	5211-MP24/*	1-9/16" DIA. PALM BUTTON (SPECIFY CAP COLOR) w/ DPST ALT ACTION (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG PLATE	$160.00
	5211-MP23PP/*	1-9/16" DIA. MUSHROOM PUSH-PULL BUTTON (RED CAP) w/ DPST ALT ACTION (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG PLATE	$165.00
5211-MP23XE1	5211-LMP23	1-9/16" DIA. ILLUMINATED PUSH BUTTON (RED CAP) w/ DPST MOMENTARY ACTION (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG PLATE	$185.00
	5211-MP23DA/*	1-9/16"DIA. MUSHROOM PUSH BUTTON (SPECIFY CAP COLOR) w/PNEUMATIC 2-60 DELAY (FORM Z)	$346.00
		5216 PALM BUTTONS 2-3/8" DIA
	5216-MP23/*	2-3/8" DIA. PALM BUTTON (SPECIFY CAP COLOR) w/ DPST MOMENTARY (1-NO & 1-NC CONTACT)	$130.00
	5216-MP24/*	2-3/8" DIA. PALM BUTTON (SPECIFY CAP COLOR) w/ DPST ALT ACTION (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG PLATE	$175.00
	5216-MP23PP	2-3/8" DIA. PALM BUTTON (RED CAP) PUSH-PULL W/ DPST ALT ACTION (1-NO & 1-NC CONTACT)	$175.00
5216-MP23XE3	5216-MP23DA/*	2-3/8" DIA. PALM BUTTON (SPECIFY CAP COLOR) W/ PNEUMATIC 2-60 SEC. DELAY (FORM Z)	$356.00
		5211/16 LATCHING BUTTONS WITH KEY RESET
PANIC	5211-MP23/KR	1-9/16" DIA. DURESS PUSH BUTTON (RED CAP) DPST LATCHING/ KEY RESET (1-NO & 1-NC CONTACT) ON SINGLE GANG PLATE	$250.00
	5216-MP23/KR	2-3/8" DIA. DURESS PUSH BUTTON (RED CAP) DPST LATCHING WITH KEY RESET (1-NO & 1-NC CONTACT) ON SINGLE GANG PLATE	$262.00
	5211-028L	28 VOLT LAMPS- PKG. OF 4	$16.00
	(SUFFIX)	5211 & 5216 PUSH BUTTON OPTIONS:	(ADD)
5211-MP23KRXE2	/R	* DESIGNATES RED CAP	'N/C
	/G	* DESIGNATES GREEN CAP (NON STOCK ITEM)	'N/C
	/B /BU	* DESIGNATES BLACK CAP * DESIGNATES BLUE CAP (NON STOCK ITEM)	'N/C $10.00
	-02CB	ADDITIONAL NO CONTACT BLOCK (Requires 2-3/4"	$18.00
	-03CB	ADDITIONAL NC CONTACT BLOCK deep back box)	$18.00
	xL xAT	ADD 1 LED BLACK BEZEL (BI-COLOR RED/GREEN) ADJUSTABLE 1-60 SEC. TIMER DPDT OUTPUT	$20.00 $125.00
	xFT	FIXED 30 SECOND TIMER DPDT RELAY OUTPUT	$125.00
	XTS	TAMPER PROOF SCREWS & HEX KEY	$12.00
	(SUFFIX)	ENGRAVING OPTIONS (RED TEXT)	(ADD)
	xE1 xE2	S/S PLATE ENGRAVED "PUSH TO EXIT" S/S PLATE ENGRAVED "PANIC"	$18.00 $18.00
	xE3	S/S PLATE ENGRAVED "EMERGENCY RELEASE"	$18.00
	xE4	S/S PLATE ENGRAVED "PUSH TO RELEASE"	$18.00
5210/COV	xE5	ENGRAVED "PULL TO RELEASE" PER PLATE FEE AFTER SET UP	$18.00
(ORDER AS LINE ITEM) XE6SETUP	xE6	CUSTOM ENGRAVING 1 SET UP FEE PER RUN	$24.00 $70.00
	XHCP	HANDICAP LOGO BLUE ENGRAVING	$40.00
	(PREFIX)	5210 SERIES SWITCH PLATE OPTIONS	(ADD)
	WR D	WEATHER RESISTANT 1-GANG PLATE DOUBLE GANG SWITCH PLATE	$8.00 $12.00
	N	NARROW 1-3/4" PLATE FOR FRAME MOUNTING	$6.00
	5210/COV	ANTI TAMPER PLEXIGLAS BUTTON COVER	$75.00

PART # DESCRIPTION LIST PRICE 5215 SERIES SQUARE EXIT PUSH BUTTONS 5215 ILLUMINATED SQUARE PUSH BUTTONS 5215-SPB 1-1/2" ILLUMINATED SQUARE PUSH BUTTON (GREEN COLOR CAP ONLY) w/ SPDT MOMENTARY SWITCH CONTACTS MOUNTED ON SS SINGLE GANG PLATE LAMP BULBS ARE RATED @ 28VDC MAX $75.00 5215-SPBxE1 1-1/2" ILLUMINATED SQUARE PUSH BUTTON "PUSH TO EXIT" LETTERING ON GREEN CAP w/ SPDT MOMENTARY SWITCH CONTACTS MOUNTED ON SS SINGLE GANG PLATE $78.00 5215-SPBxE1 5215-SPBxE3 1-1/2" ILLUMINATED SQUARE PUSH BUTTON "EXIT" LETTERING ON GREEN CAP w/ SPDT MOMENTARY SWITCH CONTACTS MOUNTED ON SS SINGLE GANG PLATE $78.00 5215-SPBxL 1-1/2" ILLUMINATED SQUARE PUSH BUTTON (GREEN CAP ONLY) w/ SPDT MOMENTARY SWITCH CONTACTS & BICOLOR LED MOUNTED ON SS SINGLE GANG PLATE $86.00 5215-SPBxLxE1 1-1/2" ILLUMINATED SQUARE PUSH BUTTON "PUSH TO EXIT" LETTERING ON GREEN CAP w/ SPDT MOMENTARY SWITCH CONTACTS & BICOLOR LED MOUNTED ON SS SINGLE GANG PLATE $90.00 5215-SPBxLxE3 1-1/2" ILLUMINATED SQUARE PUSH BUTTON "EXIT" LETTERING ON GREEN CAP w/ SPDT MOMENTARY SWITCH CONTACTS & BICOLOR LED MOUNTED ON SS SINGLE GANG PLATE $90.00 5215-028L 28 VOLT DC MAX REPLACEMENT LAMP $6.00 5215-SPBxE3 (SUFFIX) (ADD) xAT 1-60 SECOND TIMER DPDT RELAY OUTPUT $125.00 xFT FIXED 30 SECOND TIMER DPDT RELAY OUTPUT $125.00 5210/COV ANTI TAMPER PLEXIGLAS BUTTON COVER PROTECTS PUSH BUTTON FROM BEING ACCIDENTALLY ACTUATED MOUNTS OVER SINGLE GANG SWITCH. 6-1/2"HIGH x 4"WIDE OVERALL $75.00

5210/COV

	PART #	DESCRIPTION	LIST PRICE
5220 SERIES		DELAYED ACTION PUSH BUTTONS
		5221 PNEUMATIC DELAY PUSH BUTTON
	5221-P23DA	PNEUMATIC TIME DELAY PUSH BUTTON SWITCH	$275.00
	(SUFFIX) xUS3 xUS4 xL	5221 TIME DELAY PUSH BUTTON OPTIONS POLISHED BRASS PLATE SATIN BRASS PLATE ADD 1 LED BLACK BEZEL (BICOLOR RED / GREEN) ENGRAVING OPTIONS	(ADD) $40.00 $40.00 $20.00
5221-P23DA (ORDER AS LINE ITEM) XE6SETUP	xE1 xE2 xE3 xE4 xE6 (PREFIX) N	S/S PLATE ENGRAVED "PUSH TO EXIT" S/S PLATE ENGRAVED "PANIC" S/S PLATE ENGRAVED "EMERGENCY RELEASE" S/S PLATE ENGRAVED "PUSH TO RELEASE" PER PLATE FEE AFTER SET UP CUSTOM ENGRAVING 1 SET UP FEE PER RUN 5221 NARROW SWITCH PLATE OPTIONS ADD NARROW 1-3/4" PLATE FOR FRAME MOUNTING	$18.00 $18.00 $18.00 $18.00 $24.00 $70.00 $6.00
5230 SERIES		SNAP ACTION PUSH BUTTONS
	5231-P15 5231-2P15 5231-3P15	5231 PUSH BUTTONS 3/8" DIAMETER 1 SPDT MOMENTARY PUSH BUTTON (1-GANG PLATE) 2 SPDT MOMENTARY PUSH BUTTON (1-GANG PLATE) 3 SPDT MOMENTARY PUSH BUTTON (1-GANG PLATE) ENGRAVING OPTIONS SAME AS 5221 ABOVE	$60.00 $85.00 $115.00
5231-P15	(SUFFIX) xL	5231 SWITCH OPTIONS (ADD): ADD 1 LED BLACK BEZEL (BICOLOR RED / GREEN)	(ADD) $20.00
N5231-P15	(PREFIX) N D	5231 NARROW SWITCH PLATE OPTIONS ADD NARROW 1-3/4" PLATE FOR FRAME MOUNTING ADD DOUBLE GANG SWITCH PLATE	$6.00 $12.00
5236 SERIES		SNAP ACTION MINI BOX
	5236-P14 5236-2P14 5236-3P14 5236-P15 5236-2P15 5236-3P15	5236 PUSH BUTTONS ON MINI-BOX CONSOLE 2-1/2 LONG X 2 WIDE X 1" HIGH 1 SPDT MAINTAINED BUTTON MINI-BOX MOUNTED 2 SPDT MAINTAINED BUTTONS MINI-BOX MOUNTED 3 SPDT MAINTAINED BUTTONS MINI-BOX MOUNTED 1 SPDT MOMENTARY BUTTON MINI-BOX MOUNTED 2 SPDT MOMENTARY BUTTONS MINI-BOX MOUNTED 3 SPDT MOMENTARY BUTTONS MINI-BOX MOUNTED	$95.00 $120.00 $146.00 $95.00 $120.00 $146.00
	5236-P24 5236-2P24 5236-3P24	1 DPDT MAINTAINED BUTTON MINI-BOX MOUNTED 2 DPDT MAINTAINED BUTTONS MINI-BOX MOUNTED 3 DPDT MAINTAINED BUTTONS MINI-BOX MOUNTED	$125.00 $180.00 $238.00
5236-P15	5236-P25 5236-2P25 5236-3P25	1 DPDT MOMENTARY BUTTON MINI-BOX MOUNTED 2 DPDT MOMENTARY BUTTONS MINI-BOX MOUNTED 3 DPDT MOMENTARY BUTTONS MINI-BOX MOUNTED	$120.00 $170.00 $224.00
	5236-T24 5236-P24-H 5236-2P24-H 5236-3P24-H	1 DPDT MAINTAINED TOGGLE MINI-BOX MOUNTED HEAVY DUTY ALL METAL BUTTONS 1 DPDT MAINTAINED BUTTON MINI-BOX MOUNTED 2 DPDT MAINTAINED BUTTONS MINI-BOX MOUNTED 3 DPDT MAINTAINED BUTTONS MINI-BOX MOUNTED	$125.00 $150.00 $200.00 $255.00
	5236-P25-H 5236-2P25-H 5236-3P25-H (SUFFIX) xL xL2	1 DPDT MOMENTARY BUTTON MINI-BOX MOUNTED 2 DPDT MOMENTARY BUTTONS MINI-BOX MOUNTED 3 DPDT MOMENTARY BUTTONS MINI-BOX MOUNTED SWITCH OPTIONS (ADD TO ABOVE): ADD 1 LED (BICOLOR RED / GREEN) 2P-15 ONLY ADD 2 LEDS (BICOLOR RED / GREEN) P-15 ONLY	$150.00 $200.00 $255.00 (ADD) $20.00 $30.00

PART # DESCRIPTION LIST PRICE

5240 SERIES ELECTRICAL KEY SWITCH CONTROLS

5241 KEY SWITCHES ON SINGLE GANG PLATE

5241-K24x3P15

5241-K12	SP N.O. MOM KEY REMOVABLE ONE POSITION	$85.00
5241-K24	SPDT-MAINTAIN KEY REMOVABLE TWO POSITIONS	$70.00
5241-K331	DPDT MAINT. KEY REMOVABLE IN ONE POSITION	$110.00
5241-K332	DPDT MAINT. KEY REMOVABLE IN TWO POSITIONS	$110.00
5241-K65-HS	SPDT-HIGH SECURITY KEY REMOVABLE 2 POSITIONS	$300.00
5246000K	SPARE KEY SPECIFY K24 THRU K332	$10.00
52400065	SPARE KEY SPECIFY K65-HS	$50.00
D (Prefix)	DOUBLE GANG SWITCH PLATE	$20.00
	5246 KEY SWITCH ON MINI-BOX CONSOLE

5246 KEY SWITCH ON MINI-BOX CONSOLE 3-3/4 LONG X 2-1/2 WIDE X 1-1/2" HIGH

5246-K24 SPDT KEY SWITCH KEY REMOVABLE IN TWO POSITIONS ADD PUSH BUTTONS BELOW $140.00

5246-2K24 DUAL SPDT KEY SWITCHES KEY REMOVABLE IN TWO POSITIONS ADD MAX 2 PUSH BUTTONS BELOW $190.00

AS REQUIRED (3/8" DIA)

AS REQUIRED (3/8" DIA) 5246-K331 DPDT KEY SWITCH KEY REMOVABLE IN ONE POSITION ADD PUSH BUTTONS BELOW $220.00

AS REQUIRED (3/8" DIA) 5246-K332 DPDT KEY SWITCH KEY REMOVABLE IN TWO POSITIONS ADD PUSH BUTTONS BELOW $220.00

5246-K65-HS SPDT HIGH SECURITY KEY SWITCH KEY REMOVABLE IN ONE POSITION ADD PUSH BUTTONS BELOW $325.00

AS REQUIRED (3/8" DIA) 5246 ENCLOSURE W/O KEY SWITCH FOR ADDING OPTIONAL COMPONENTS BELOW $80.00

(SUFFIX) 5246 SWITCH OPTIONS (ADD TO ABOVE) (ADD) ANY COMBINATION OF 4 LED's OR PUSH BUTTONS

MAY BE COMBINED w/ 1 KEY SWITCH LEDS

xL ADD 1 LED BLACK BEZEL (BICOLOR RED / GREEN) $14.00 SPDT MAINTAINED BUTTONS xP14 ADD ONE SPDT MAINTAINED BUTTON $30.00 x2P14 ADD TWO SPDT MAINTAINED BUTTONS $60.00 x3P14 ADD THREE SPDT MAINTAINED BUTTONS $90.00 x4P14 ADD FOUR SPDT MAINTAINED BUTTONS $120.00

SPDT MOMENTARY BUTTONS xP15 ADD ONE SPDT MOM PUSH BUTTON $30.00 x2P15 ADD TWO SPDT MOM PUSH BUTTONS $60.00 x3P15 ADD THREE SPDT MOM PUSH BUTTONS $90.00 x4P15 ADD FOUR SPDT MOM PUSH BUTTONS $120.00 DPDT MOMENTARY BUTTONS

xP25 ADD ONE DPDT MOMENTARY BUTTON $55.00 x2P25 ADD TWO DPDT MOMENTARY BUTTONS $110.00 x3P25 ADD THREE DPDT MOMENTARY BUTTONS $165.00 x4P25 ADD FOUR DPDT MOMENTARY BUTTONS $220.00

DPDT MAINTAINED BUTTONS xP24 ADD ONE DPDT MAINTAINED BUTTON $60.00 x2P24 ADD TWO DPDT MAINTAINED BUTTONS $120.00 x3P24 ADD THREE DPDT MAINTAINED BUTTONS $180.00 x4P24 ADD FOUR DPDT MAINTAINED BUTTONS $240.00

HEAVY DUTY ALL METAL BUTTONS xP24-H ADD 1 DPDT MAINTAINED HEAVY DUTY BUTTON $90.00 x2P24-H ADD 2 DPDT MAINTAINED HEAVY DUTY BUTTONS $180.00 xP25-H ADD 1 DPDT MOMENTARY HEAVY DUTY BUTTON $90.00 x2P25-H ADD 2 DPDT MOMENTARY HEAVY DUTY BUTTONS $180.00 xT24 ADD 1 DPDT MAINTAINED TOGGLE $65.00

5246-K24xP15

PART # DESCRIPTION LIST PRICE 5276 SERIES WEATHER PROOF HEAVY DUTY WR5276-HD22 SS BUTTONS WR5276-HD22 5/8" ROUND STAINLESS WEATHER PROOF BUTTON IP66 RATED w/ DPNO MMOMENTARY CONTACTS MOUNTED ON SINGLE GANG SS PLATE $135.00 NWR5276-HD22 5/8" ROUND STAINLESS WEATHER PROOF BUTTON IP66 RATED w/ DPNO MMOMENTARY CONTACTS MOUNTED ON 1-3/4" NARROW SS PLATE $140.00 1GANG WR5276 SS BUTTONS WR5276-HD28 3/4" ROUND STAINLESS BUTTON WEATHER PROOF IP65 w/ DPST MAINTAIN (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG SS PLATE $175.00 WR5276-HD22XE8 WR5276-HD29 3/4" ROUND STAINLESS BUTTON WEATHER PROOF IP65 w/ DPST MOMENTARY (1-NO & 1-NC CONTACT) MOUNTED ON SINGLE GANG SS PLATE $175.00 1 GANG ILLUMINATED WR5276 SS BUTTONS WR5276-HD28 xLRG 3/4" ROUND STAINLESS BUTTON w/ ILLUMINATED LED RING WEATHER PROOF IP65 w/ DPST MAINTAIN (1-NO & 1-NC CONTACT) 1 GANG SS PLATE $195.00 WR5276-HD29 xLRG 3/4" ROUND STAINLESS BUTTON w/ ILLUMINATED LED RING WEATHER PROOF IP65 w/ DPST MOMENTARY (1- NO & 1-NC CONTACT) 1 GANG SS PLATE $195.00 NARROW WR5276 SS BUTTONS WR5276-HD28 NWR5276-HD28 3/4" ROUND STAINLESS BUTTON WEATHER PROOF IP65 w/ DPST MAINTAIN (1-NO & 1-NC CONTACT) MOUNTED ON NARROW 1-3/4" SS PLATE $181.00 NWR5276-HD29 3/4" ROUND STAINLESS BUTTON WEATHER PROOF IP65 w/ DPST MOMENTARY (1-NO & 1-NC CONTACT) MOUNTED ON NARROW 1-3/4" SS PLATE $181.00 NARROW ILLUMINATED 5276 SS BUTTONS NWR5276-HD28 xLRG 3/4" ROUND STAINLESS BUTTON w/ ILLUMINATED LED RING WEATHER PROOF IP65 w/ DPST MAINTAIN (1-NO & 1-NC CONTACT) MOUNTED ON NARROW 1-3/4" SS PLATE $191.00 NWR5276-HD29 xLRG 3/4" ROUND STAINLESS BUTTON w/ ILLUMINATED LED RING WEATHER PROOF IP65 w/ DPST MOMENTARY (1- NO & 1-NC CONTACT) MOUNTED ON NARROW 1-3/4" SS PLATE $191.00 NWR5276-HD28xLRG (SUFFIX) (ADD) xAT 1-60 SECOND TIMER DPDT RELAY OUTPUT $125.00 xFT FIXED 30 SECOND TIMER DPDT RELAY OUTPUT $125.00 xL BI-COLOR LED HEAVY DUTY CHROME BEZEL $42.00 (PREFIX) D DOUBLE GANG SWITCH PLATE $20.00 (SUFFIX) ENGRAVING OPTIONS xE1 PLATE ENGRAVED "PUSH TO EXIT" $18.00 xE2 PLATE ENGRAVED "PANIC" $18.00 xE3 PLATE ENGRAVED "EMERGENCY RELEASE" $18.00 xE4 PLATE ENGRAVED "PUSH TO RELEASE" $18.00 xE5 PLATE ENGRAVED "EMERGENCY DOOR RELEASE" $18.00 xE6 PER PLATE FEE AFTER SET UP $24.00 xE7 PLATE ENGRAVED "PUSH TO ENTER" $18.00 xE8 PLATE ENGRAVED "DOOR BELL" $18.00 XHCP HANDICAP LOGO BLUE ENGRAVING $40.00 (ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00

PART # DESCRIPTION LIST PRICE

5276 SERIES 1" DIAMETER PUSH BUTTONS




5276-GP9/BxE1

5276-G SERIES 1" GUARDED PUSH BUTTONS

5276-GP8/* ALTERNATE ACTION PUSH BUTTON SWITCH DPST GUARD MOUNTED ON SINGLE GANG PLATE

$150.00

5276-GP9/* MOMENTARY ACTION PUSH BUTTON SWITCH DPST GUARD MOUNTED ON SINGLE GANG PLATE

$90.00

$290.00

5276-GP23DA/* PNEUMATIC 2-60 SEC. DELAY (FORM Z) GUARDED

SWITCH ON SINGLE GANG BACK PLATE

N5276-GP9/BxE2	(SUFFIX) xAT xFT xL (PREFIX) N D	5276 SERIES OPTIONS ADD TO ABOVE ADJUSTABLE 1 - 60 SEC. TIMER DPDT OUTPUT FIXED 30 SECOND TIMER DPDT RELAY OUTPUT BI-COLOR LED HEAVY DUTY CHROME BEZEL NARROW 1-3/4" PLATE DOUBLE GANG SWITCH PLATE	(ADD) $125.00 $125.00 $42.00 $6.00 $12.00
	(SUFFIX) /R /B /G	AVAILABLE ON 5276-MP & GP SERIES ONLY * DESIGNATES RED BUTTON CAP * DESIGNATES BLACK BUTTON CAP * DESIGNATES GREEN BUTTON CAP (NON STOCK)	N/C N/C N/C
	(SUFFIX) xE1 xE2 xE3	ENGRAVING OPTIONS PLATE ENGRAVED "PUSH TO EXIT" PLATE ENGRAVED "PANIC" PLATE ENGRAVED "EMERGENCY RELEASE"	$18.00 $18.00 $18.00

xE4 PLATE ENGRAVED "PUSH TO RELEASE" $18.00 xE5 PLATE ENGRAVED "EMERGENCY DOOR RELEASE" $18.00

(ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00 XHCP HANDICAP LOGO BLUE ENGRAVING $40.00

xE6 PER PLATE FEE AFTER SET UP $24.00

PART # DESCRIPTION LIST PRICE

5277 SERIES PIEZO ELECTRIC SWITCHES

W5277-PZL TIME DELAY (1-60 SECOND) PIEZO SWITCH 1 SET N.O. 1 SET N.C. CONTACTS WITH ILLUMINATED BI COLOR LED RING MOUNTED ON STANDARD STAINLESS STEEL 1 GANG PLATE COMPLETELY SEALED FOR WEATHER RESISITANCE

$275.00

N5277-PZL TIME DELAY (1-60 SECOND) PIEZO SWITCH 1 SET N.O. 1 SET N.C. CONTACTS WITH ILLUMINATED BI COLOR LED RING MOUNTED ON NARROW 1-3/4" STAINLESS STEEL PLATE COMPLETELY SEALED FOR WEATHER RESISITANCE

$275.00

(SUFFIX) 5277 STOCK ENGRAVING (ADD)

xE1 ADD "PUSH TO EXIT" IN RED LETTERS (W Series only) $20.00 xE3 ADD "EXIT" IN RED LETTERS $20.00

(ADD)

(ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $80.00

N5277-PZLXE3 5277 CUSTOM ENGRAVING (ADD)

xE6 PER PLATE FEE AFTER SET UP $24.00

5278 SERIES TOUCHLESS ELECTRIC SWITCHES

W5278-25 INFRARED PROXIMITY ACTIVATED SWITCH DOUBLE POLE DOUBLE THROW RELAY CONTACTS WITH ILLUMINATED BI COLOR LED RING MOUNTED ON STAINLESS STEEL 1 GANG PLATE (12VDC)

$112.00

D5278-25 INFRARED PROXIMITY ACTIVATED SWITCH

DOUBLE POLE DOUBLE THROW RELAY CONTACTS WITH ILLUMINATED BI COLOR LED RING MOUNTED ON STAINLESS STEEL 2 GANG PLATE (12VDC)

$124.00

3311228 DUAL VOLTAGE MODULE CONVERTS 12V TO 24VDC $60.00

W5278-25XE1W

(SUFFIX) 5278 STOCK ENGRAVING (ADD)

xE1W ADD "WAVE TO OPEN" IN BLACK LETTERS $12.00 xE3 ADD "EXIT" IN BLACK LETTERS $12.00

5278 CUSTOM ENGRAVING (ADD) xE6 PER PLATE FEE AFTER SET UP $24.00

(ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00

PART # DESCRIPTION LIST PRICE 5286 SERIES PUSH PLATE SWITCHES NARROW STYLE PUSH PLATE SWITCHES N5286-P24 DPDT MAINTAINED ACTION SWITCH WITH 1-1/2" WIDE PUSH PLATE ON 1-3/4" ALUMINUM BACK PLATE $122.00 N5286-P25 DPDT MOMENTARY ACTION SWITCH WITH 1-1/2" WIDE PUSH PLATE ON 1-3/4" ALUMINUM BACK PLATE $112.00 N5286-P25xE1 N5286-P23DA PNEUMATIC 2-60 SECOND DELAY (FORM Z) SWITCH WITH 1-1/2" WIDE PUSH PLATE ON 1-3/4" ALUMINUM BACK PLATE $342.00 N5286-AT ADJUSTABLE 2-60 SECOND TIMER DPDT OUTPUT $235.00 N5286-FT FIXED 30 SECOND TIMER DPDT RELAY OUTPUT $235.00 N5286-ET ADJUSTABLE 2-60 SEC. EXIT TIMER DPDT OUTPUT $280.00 SINGLE GANG PUSH PLATE SWITCHES W5286-P24 DPDT MAINTAINED ACTION SWITCH WITH 1-1/2" WIDE PUSH PLATE ON 3" WIDE ALUMINUM BACK PLATE $122.00 W5286-P25 DPDT MOMENTARY ACTION SWITCH WITH 1-1/2" WIDE PUSH PLATE ON 3" WIDE ALUMINUM BACK PLATE $112.00 W5286-P25xE1 W5286-P23DA PNEUMATIC 2-60 SEC. DELAY (FORM Z) SWITCH WITH 1-1/2" WIDE PUSH PLATE ON 3" WIDE BACK PLATE $342.00 W5286-AT ADJUSTABLE 2-60 SECOND TIMER DPDT OUTPUT $235.00 W5286-FT FIXED 30 SECOND TIMER DPDT RELAY OUTPUT $235.00 W5286-ET ADJUSTABLE 2-60 SEC. EXIT TIMER DPDT OUTPUT $280.00 DOUBLE GANG PUSH PLATE SWITCHES D5286-P24 DPDT MAINTAINED ACTION SWITCH WITH 4" WIDE PUSH PLATE ON 4-5/8" WIDE ALUMINUM BACK PLATE $155.00 D5286-P25 DPDT MOMENTARY ACTION SWITCH WITH 4" WIDE PUSH PLATE ON 4-5/8" WIDE ALUMINUM BACK PLATE $145.00 D5286-P25xE1 D5286-P23DA PNEUMATIC 2 - 60 SEC. DELAY (FORM Z) SWITCH WITH 4" PUSH PLATE ON 4-5/8" WIDE BACK PLATE $360.00 D5286-AT ADJUSTABLE 2-60 SECOND TIMER DPDT OUTPUT $270.00 D5286-FT FIXED 30 SECOND TIMER DPDT RELAY OUTPUT $270.00 PUSH TO EXIT

********* PLEASE SEE PAGE 29 FOR ENGRAVING & FINISH OPTIONS*********

xL ADD 1 LED BLACK BEZEL (BICOLOR RED / GREEN) RECESSED INTO PUSH PAD (NOT AVAILABLE ON "D" SERIES)

D5286-ET ADJUSTABLE 2-60 SEC. EXIT TIMER DPDT OUTPUT $312.00 (SUFFIX) (ADD)

$30.00

PART # DESCRIPTION LIST PRICE

5286 SERIES ROUND PUSH PLATE SWITCHES

R5286-P25xE1

	ROUND PUSH PLATE SWITCHES
R5286-P24	DPDT MAINTAINED ACTION SWITCH WITH 2-1/2" ROUND PALM BUTTON ON 3" WIDE ALUMINUM BACK PLATE	$120.00
R5286-P25	DPDT MOMENTARY ACTION SWITCH WITH 2-1/2" ROUND PALM BUTTON ON 3" WIDE ALUMINUM BACK PLATE	$110.00
R5286-P23DA	PNEUMATIC 2-60 SECOND DELAY (FORM Z) SWITCH WITH 2-1/2" ROUND PALM BUTTON ON 3" WIDE ALUMINUM BACK PLATE	$342.00
R5286-AT	ADJUSTABLE 2-60 SECOND TIMER DPDT OUTPUT	$235.00
R5286-FT	FIXED 30 SECOND TIMER DPDT RELAY OUTPUT	$235.00
R5286-ET	ADJUSTABLE 2-60 SEC. EXIT TIMER DPDT OUTPUT	$278.00
(SUFFIX) xL	ADD 1 LED BLACK BEZEL (BICOLOR RED / GREEN)	(ADD) $20.00

********* PLEASE SEE NEXT PAGE FOR ENGRAVING & FINISH OPTIONS*********

PART # DESCRIPTION LIST PRICE

5286 SERIES CUSTOM FINISHES & ENGRAVING

5286 STOCK ENGRAVING (ADD)

(SUFFIX)		(ADD)
xE1	ADD "PUSH TO EXIT" IN BLACK LETTERS	$18.00
xE1R	ADD "PUSH TO EXIT" IN RED LETTERS	$18.00
xE2	ADD "PANIC" IN RED LETTERS	$18.00
xE3	ADD "EXIT" IN RED LETTERS	$18.00
xE4	ADD "DOOR RELEASE" IN BLACK LETTERS	$18.00
xE5	ADD "EMERGENCY DOOR RELEASE" IN RED LETTERS	$20.00
xE6	PER PLATE FEE AFTER SET UP	$24.00

(ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00

(SUFFIX) 5286 STANDARD HANDICAP LOGOS (ADD) xHCP ADD FOR BLUE LOGO ON CLEAR ALUMINUM ONLY $42.00 xHCP2 ADD FOR BLUE LOGO W/ "PUSH TO OPEN" ON CLEAR ALUMINUM $50.00 xHCP3 ADD FOR WHITE LOGO ON BLUE PLATE $90.00

W / "PUSH TO OPEN" ENGRAVED (D-SERIES ONLY)

ENGRAVING ON RED, BLACK & DARK BRONZE PUSH PLATES WILL BE WHITE

(SUFFIX)	5286 SERIES FINISH OPTIONS	(ADD)
xBRE	ADD FOR BAKED RED ENAMEL FINISH (NON-STOCK)	$32.00
xDBA	ADD FOR DARK BRONZE ANODIZED (STOCKED)	$32.00
	(IF BUTTON IS XBRE OR XDBA TEXT IS WHITE)

xUS26 ADD FOR POLISHED CHROME xUS26D ADD FOR SATIN CHROME xUS3 ADD FOR POLISHED BRASS xUS4 ADD FOR SATIN BRASS -

ALL PLATED FINISHES - (N,W & R SERIES) $250.00 ALL PLATED FINISHES - (D SERIES) $280.00

PART# DESCRIPTION LIST PRICE HEAVY DUTY PUSH BUTTON SWITCHES 5287 SERIES SINGLE GANG PUSH BUTTON SWITCHES W5287-P24 DPDT MAINTAINED ACTION SWITCH WITH 1-1/2" $160.00 DIAMETER BUTTON ON ALUMINUM BACK PLATE DPDT MOMENTARY ACTION SWITCH WITH 1-1/2" W5287-P25 $150.00 DIAMETER BUTTON ON ALUMINUM BACK PLATE PNEUMATIC 2 - 60 SEC. DELAY (FORM Z) SWITCH W5287-P23DA $370.00 WITH 1-1/2" DIAMETER BUTTON ON ALUMINUM BACK PLATE W5287-AT ADJUSTABLE 1 - 60 SECOND TIMER DPDT OUTPUT $285.00 WITH 1-1/2" DIAMETER BUTTON ON ALUMINUM BACK W5287-FT FIXED 30 SECOND TIMER DPDT OUTPUT WITH $285.00 1-1/2" DIAMETER BUTTON ON 3" WIDE ALUMINUM BACK PLATE W5287-ET ADJUSTABLE 1 - 60 SECOND EXIT TIMER DPDT $330.00 OUTPUT WITH 1-1/2" DIAMETER BUTTON ON ALUMINUM BACK PLATE DOUBLE GANG PUSH PLATE SWITCHES (ADD) D5287-CHANGE "W" TO "D" TO SPECIFY A DOUBLE GANG $50.00 4-5/8" WIDE ALUMINUM BACK PLATE WITH 1-1/2" DIAMETER BUTTON (SUFFIX) (ADD) 5287 STOCK ENGRAVING (ADD): ADD "PUSH TO EXIT" IN BLACK LETTERS xE1 $18.00 D5287xE1 xE1R ADD "PUSH TO EXIT" IN RED LETTERS $18.00 xE3 ADD "EXIT" IN RED LETTERS $18.00 xE6 PER PLATE FEE AFTER SET UP $24.00 (ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00 5287 STANDARD HANDICAP LOGOS xHCP ADD HANDICAP BLUE LOGO ON CLEAR ALUMINUM $40.00 xHCP3 ADD HANDICAP WHITE LOGO ON BLUE ALUMINUM $40.00 5287 SERIES FINISH OPTIONS (ADD) (SUFFIX) ADD FOR DARK BRONZE ANODIZED xDBA $32.00 xBRE ANODIZED RED FINISH (ON BUTTON ONLY) BACK $32.00 PLATE CLEAR ANODIZED OR PLATED FINISH (IF BUTTON IS XBRE XSBA OR XDBA TEXT IS WHITE) xUS26 ADD FOR POLISHED CHROME -ADD FOR SATIN CHROME xUS26D ADD FOR POLISHED BRASS xUS3 xUS4 ADD FOR SATIN BRASS -$250.00 ALL PLATED FINISHES - (W SERIES) ALL PLATED FINISHES - (D SERIES) $280.00 (SUFFIX) (ADD) ADD 1 LED (BICOLOR RED / GREEN) хL $42.00 CHROME BEZEL FOR HEAVY DUTY SERIES

ACCESSORIES

6200 SERIES DOOR CORD

PART # DESCRIPTION LIST PRICE

$62.00

6200 SERIES DOOR CORD

6220 18" ARMORED DOOR CORD WITH SURFACE MOUNT

J-BOX 1-5/8" WIDE x 3" LONG x 1-1/8" DEEP (INCLUDES 4 CONDUCTOR 22 AWG CABLE)

STANDARD COLOR ALUMINUM

(SUFFIX) ARMORED DOOR CORD FINISHES (ADD):

xDBA ADD FOR DARK BRONZE COLORED CORD AND N/C

J-BOX ARMORED DOOR CORD

A DOOR CORD IS TYPICALLY REQUIRED TO TRANSFER POWER TO AN EGRESS BAR

6400 SERIES EGRESS BARS

6400 SERIES EGRESS SWITCH BARS

6420-S25	EGRESS BAR FOR 36" DOOR WITH DUAL SPDT SWITCHES STANDARD ALUMINUM FINISH	$450.00
6495	RIM STYLE MECHANICAL LATCHING FOR 36" DOOR UL LISTED PANIC DEVICE (NO SWITCH)	$375.00
6495-S25	RIM STYLE MECHANICAL LATCHING FOR 36" DOOR PANIC DEVICE WITH 2 SPDT SWITCHES	$475.00
	WEATHERPROOF SWITCHES

(SUFFIX)	DUAL SEALED WEATHERPROOF SPDT	(ADD)
xWR	SWITCHES FOR OUTDOOR APPLICATIONS	$90.00
	EGRESS BAR SPECIAL FINISHES:
(SUFFIX) xDBA X48	ADD FOR DARK BRONZE ANODIZED FINISH ADD FOR DOORS OVER 36" UP TO 48" (NON STOCK)	(ADD) $16.00 $40.00

6450 SERIES LEVER TRIM

6450 SERIES LEVER TRIM DEVICE

LEVER TRIM WORKS WITH 6495 SERIES RIM PANIC $245.00 xK STANDARD 1-1/8" MORTISE CYLINDER & 2 KEYS $40.00 xDBA DARK BRONZE FINISH N.C.

ACCESSORIES

PART # DESCRIPTION LIST PRICE

6500 SERIES EMERGENCY PULL STATIONS

6510/*-S35 PULL STATION W/ TWO SPDT (FORM C) SWITCHES $175.00 6510/*-S35xCS PULL STATION W/ TWO SPDT (FORM C) SWITCHES $205.00

WITH LOCAL PIEZO 12-24VDC * SPECIFY COLOR:

/BL = BLUE ENAMEL FINISH /BK = BLACK ENAMEL FINISH /YL = YELLOW ENAMEL FINISH

SURFACE MOUNT COLORED BACK BOXES

4-7/8 H x 3-1/2 W x 2" D

6510/BX-BK BLACK SURFACE MOUNT BACK BOX $65.00 6510/BX-BL BLUE SURFACE MOUNT BACK BOX $65.00 6510/BX-YL YELLOW SURFACE MOUNT BACK BOX $65.00

FLUSH MOUNT STYLE 2-1/2" DEEP ID

6510/COV 4-7/8"W x 5-1/2"H x 2-1/2"D LIFT TO ACCESS PULL $160.00 6510/COV/S SAME AS ABOVE WITH PIEZO ALARM SOUNDER $270.00 6510/COV/SR ANTI-TAMPER COVER W/SOUNDER & SPDT RELAY $305.00

6510/COV

SURFACE MOUNT STYLE 3-7/8" DEEP ID W/ EXTENSION FOR USE WITH 6510 BACK BOX

6510/COV-X 4-7/8"W x 5-1/2"H x 3-7/8"D LIFT TO ACCESS PULL $190.00 6510/COV/S-X SAME AS ABOVE WITH PIEZO ALARM SOUNDER $305.00 6510/COV/SR-X ANTI-TAMPER COVER W/SOUNDER & SPDT RELAY $405.00

6510/COV-X

(SUFFIX)	ACCESSORIES	(ADD)
(ORDER AS LINE ITEM) XE6SETUP	CUSTOM LABELING SETUP	$80.00
XE6	PER UNIT FEE AFTER SET UP	$20.00
651000K	SPARE KEY FOR 6510-S35 PULL	$12.00
6510/BR	BREAK RODS 12 PER PACK	$24.00
65-6581	BACK PLATE FOR 6510/COV ,COV/S & COV/SR	$38.00
	FOR MOUNTING TO UNEVEN SURFACE

6600 SERIES MOTION DETECTORS

6612 UL LISTED REQUEST-TO-EXIT PIR MOTION DETECTOR (12/24 VDC) w/ ADJUSTABLE (1-120 SECOND) TIME DELAY IN A SLIM LINE 7.1" x 1.65" x 1.65" IVORY COLORED CASE (ONE DPDT FORM C ALARM OUTPUT)

$300.00

DORTRONICS SYSTEMS, INC. 1668 SAG HARBOR TURNPIKE SAG HARBOR, NY 11963

Page 32 6000 Series Pricing subject to change without notice

7101 SERIES DELAYED EGRESS CONTROLLERS

PART # DESCRIPTION LIST PRICE

EDR SYSTEM-101 CONTROLLER

CABLES

7101-P EDR-101 DELAYED EGRESS CONTROL PANEL KEYPAD CONSOLE, AUDIBLE ALERT, 3 SECOND NUISANCE / 15 SECOND ALARM DELAY, PROGRAMMABLE CLOCK / DAY SCHEDULER, 3 STATUS OUTPUTS, PROGRAMMABLE ESCORT CODE FOR KEYPAD (OR OPTIONAL KEY SWITCH) INCLUDES 12 VDC 1 AMP POWER SUPPLY, WITH 9 VOLT RECHARGEABLE BATTERY, 3 GANG S/S FLUSH MOUNT PLATE, 3 GANG (IVORY) SURFACE MOUNT BOX, AND 20 FOOT LONG HOOK-UP

EDR SYSTEM-101 ACCESSORIES:

7101-KP AUXILIARY KEYPAD - SUPPLIED WITH 15 FOOT CABLE, WEATHER RESISTANT FOR AUTHORIZED ACCESS FROM SECURED SIDE

$430.00

$1,340.00

5141-24xK

DPDT MAINTAINED KEY SWITCH - EDR-101 ALARM SHUNT / BY-PASS SEE PAGE 19 FOR DETAILED DESCRIPTION

$181.00

5216-MP23xE3 PUSH BUTTON SWITCH - EMERGENCY RELEASE SEE PAGE 20 FOR DETAILED DESCRIPTION $148.00

6420-S25 EGRESS BAR w/ TWO SPDT SWITCHES

$450.00

(ACTIVATES EDR-101 & HAS 1 EXTRA OUTPUT) SEE PAGE 31 FOR DETAILS

6200 SERIES DOOR CORD

$62.00

6220 18" ARMORED DOOR CORD WITH SURFACE MOUNT J-BOX (INCLUDES 4 CONDUCTOR 22 AWG CABLE) STANDARD COLOR ALUMINUM

$485.00

1110xD SINGLE DOOR 1200 LB LOCK w/ DOOR SWITCH (FOR USE w/ EDR-101 & 6420-S25 EGRESS BAR

EGRESS SWITCH (FOR USE w/ EXISTING HDWR.)

RELEASE) 1107xEDR SINGLE DOOR 600 LB LOCK w/ DPS & ATTEMPTED

$625.00

1110xEDR SINGLE DOOR 1200 LB LOCK w/ DPS &

$660.00

ATTEMPTED EGRESS SWITCH (FOR USE w/

EXISTING HDWR.)

NOTE: FOR DOUBLE DOORS USE TWO (2) LOCKS WHICH MAY REQUIRE ADDITIONAL POWER @12V

PART # DESCRIPTION LIST PRICE 7201 SERIES HI-INTENSITY LED INDICATORS

7201-H HI-INTENSITY LEDS 11/16" DIA.

7201xL1*-H 1 HIGH INTENSITY LED MOUNTED ON A 1 GANG STAINLESS STEEL PLATE $60.00

7201xL1*-HxCS 1 HIGH INTENSITY LED 1 PIEZO MOUNTED ON A 1 GANG STAINLESS STEEL PLATE $90.00

7201xL2-H 1 EACH RED/GREEN HIGH INTENSITY LED MOUNTED ON A 1 GANG STAINLESS STEEL PLATE $112.00

7201xL2-H 7202xL2-HxCS 1 EACH RED/GREEN HIGH INTENSITY LED 1 PIEZO MOUNTED ON A 2 GANG STAINLESS STEEL PLATE $142.00

* SPECIFY LED COLOR R=RED G=GREEN

7201-HWR WATER PROOF HI-INTENSITY LEDS 1" DIA.

7201xL1*-HWR 1 WATER PROOF HIGH INTENSITY LED MOUNTED $66.00

ON A 1 GANG STAINLESS STEEL PLATE

7201xL1*-HWRxCSW 1 WATER PROOF HIGH INTENSITY LED 1 WATER $122.00

PROOF (12VDC) PIEZO MOUNTED ON A 1 GANG STAINLESS STEEL PLATE

7201xL2-HWR 1 EACH WATER PROOF RED/GREEN HIGH $120.00

INTENSITY LED MOUNTED ON A 1 GANG

7202xL2-HWRxCSW 1 EACH WATER PROOF RED/GREEN HIGH $176.00

INTENSITY LED 1 WATER PROOF (12VDC)PIEZO MOUNTED ON A 2 GANG STAINLESS STEEL PLATE

7202xL2-HxCS

STANDARD LED INDICATORS

7201 STANDARD LEDS SMALL DIA. 3/16"

7201xL1R-HWRxCSW 7201xL1 1 BICOLOR LED WITH CHROME BEZEL MOUNTED $80.00

ON A 1 GANG STAINLESS STEEL PLATE

STAINLESS STEEL PLATE

7201xL2 2 BICOLOR LEDS WITH CHROME BEZEL MOUNTED $125.00

ON A 1 GANG STAINLESS STEEL PLATE

PIEZO SOUNDERS CONTINUOUS 12-24VDC
7201xCS	PIEZO CONTINUOUS SOUNDER ON 1 GANG SS	$46.00
7201xCSW	WATER PROOF PIEZO SOUNDER ON 1 GANG SS	$72.00

(SUFFIX) ADD OPTIONAL PIEZO CONTINUOUS SOUNDERS (ADD) 7201xL1 xCS ADD PIEZO SOUNDER $30.00 xCSW ADD WATER PROOF PIEZO SOUNDER $60.00 7201xL1 xCSW-A ADD WATER PROOF PIEZO W/ADJ. VOLUME $80.00

(SUFFIX) ADD OPTIONAL LEDS (ADD)

xL ADD FOR EACH BICOLOR LED W/CHROME BEZEL $42.00

(SUFFIX) ADD OPTIONAL SWITCHES (ADD) xT24 ADD FOR EACH DPDT-MAINTAINED TOGGLE $40.00 xT25 ADD FOR EACH DPDT-MOMENTARY TOGGLE $40.00 xP14 ADD FOR EACH SPDT-MAINT.PUSH BUTTON $30.00 xP15 ADD FOR EACH SPDT-MOM PUSH BUTTON $30.00 xP25 ADD FOR EACH DPDT-MOM PUSH BUTTON $55.00

ADD CUSTOM ENGRAVING

xE6 PER PLATE FEE AFTER SET UP $24.00 (ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00

(PREFIX) ADD OPTIONAL MOUNTING PLATES (ADD) D DOUBLE GANG SWITCH PLATE $12.00 N NARROW 1-3/4" PLATE FOR FRAME MOUNTING $8.00

Page 34 7000 Series Pricing subject to change without notice

PART # DESCRIPTION LIST PRICE 7200 SERIES MULTI-ZONE ANNUNCIATORS

7200 SERIES CUSTOM ANNUNCIATORS

7204 3 GANG PLATE WITH 4-ZONE OVERLAY ADD FOR LEDS, TOGGLE SWITCHES, PUSH BUTTONS, KEYSWITCH AND SOUNDER - COMPONENTS ALL HAVE FLYING LEADS (NO LOGIC OR TERMINALS INCLUDED)

$275.00

STAINLESS STEEL PLATE ADD PARTS & ENGRAVING 7208 4 GANG PLATE WITH 8-ZONE OVERLAY ADD FOR LEDS, TOGGLE SWITCHES, PUSH BUTTONS, KEYSWITCH AND SOUNDER - COMPONENTS ALL HAVE FLYING LEADS (NO LOGIC OR TERMINALS

$310.00

INCLUDED)

7208 4 GANG PLATE WITHOUT 4-ZONE OVERLAY $180.00

7208 STAINLESS STEEL PLATE ADD PARTS & ENGRAVING

8 + ZONE PANELS ADD $25.00 FOR EACH ZONE OVER 8 ZONES EA. ZONE $25.00

NOTE: CUSTOM & RACK MOUNT CONFIGURATIONS

(Call for quote)

AVAILABLE TO SUIT INDIVIDUAL APPLICATIONS

7202-ENCL SLOPED DESK TOP CONSOLE 2 GANG PLATE $300.00 7604/8-ENCL SLOPED DESK TOP CONSOLE 4-8 ZONES $400.00

9" X 6" X 2-3/4" ALUMINUM BLACK ENAMEL FINISH

		7200 SERIES ADD ON COMPONENTS
	(SUFFIX)		(ADD)
	xL	ADD FOR EACH BICOLOR LED W/CHROME BEZEL	$42.00
	xT24	ADD FOR EACH DPDT-MAINT.TOGGLE SWITCH	$60.00
	xT25	ADD FOR EACH DPDT-MOM.TOGGLE SWITCH	$60.00
	xP14	ADD FOR EACH SPDT-MAINT.PUSH BUTTON	$30.00
	xP15	ADD FOR EACH SPDT-MOM. PUSH BUTTON	$30.00
	xP24	ADD FOR EACH DPDT-MAINT. PUSH BUTTON	$60.00
	xP25	ADD FOR EACH DPDT-MOM. PUSH BUTTON	$60.00
	xCS	ADD PIEZO SOUNDER	$40.00
	xK24	ADD SPDT MAINTAINED KEY SWITCH	$80.00
	xTERM	10 POSITION DOUBLE ROW TERMINAL 6 1/2" LONG	$40.00
	xDI Pack of 4	LOOSE DIODES FOR SOUNDER/LED OPERATION	$10.00
		ADD CUSTOM ENGRAVING
		FOR STAINLESS 3&4 GANG PLATES WITHOUT OVERLAY
	xE6	PER PLATE FEE AFTER SET UP (1 word per zone)	$80.00
		ADD PER GANG FEE OVER 4 GANG PLATE	$50.00
(ORDER AS LINE ITEM) XE6SETUP		CUSTOM ENGRAVING 1 SET UP FEE PER RUN	$160.00

NOTE: 7200 SERIES ANNUNCIATORS ARE SUPPLIED WITH FLYING LEADS ONLY.

PART # DESCRIPTION LIST PRICE

$375.00

$435.00

$495.00

$470.00

7281 SERIES LOCAL DOOR EXIT ALARMS

EXIT ALARM

7281-EA DOOR ALARM WITH ADJUSTABLE (2 TO 60 SECONDS) DELAY, ALARM OUTPUT (DPDT)

RELAY, TRI-STATE LED, AND LOCAL ALARM PIEZO (RESET ON DOOR RE-SECURE) ON STANDARD

SINGLE GANG PLATE

7281-EA

EXIT ALARM WITH KEY SWITCH RESET

7281-EAxK332 DOOR ALARM WITH ADJUSTABLE (2 TO 60

SECONDS) DELAY, ALARM OUTPUT (DPDT) RELAY, TRI-STATE LED, AND LOCAL ALARM PIEZO RESET BY DPDT MAINTAINED ELECTRIC KEYSWITCH PROVIDED. KEY REMOVABLE IN 2

POSITIONS ON STANDARD DOUBLE GANG PLATE

7281-EAxK332

EXIT ALARM WITH PUSH BUTTON

7281-EAxMP23 DOOR ALARM WITH ADJUSTABLE (2 TO 60 SECONDS) DELAY, ALARM OUTPUT (DPDT) RELAY, TRI-STATE LED, AND LOCAL ALARM PIEZO (RESET ON DOOR RE-SECURE). INCLUDES

MOMENTARY REX BUTTON 1-9/16" DIAMETER ON

STANDARD DOUBLE GANG PLATE

7281-EAxMP23xE1 7281-EAxK24 EXIT ALARM FOR MORTISE CYLINDER

INCLUDED ADD "XK" PER OPTIONS BELOW)

DOOR ALARM WITH ADJUSTABLE (2 TO 60 SECONDS) DELAY, TRI-STATE LED, ALARM OUTPUT (DPDT) RELAY WITH LOCAL ALARM PIEZO (RE-SET BY MORTISE KEY SWITCH), INCLUDES 2 (DPDT) KEY SWITCH CONTACTS 1 MOMENTARY 1 MAINTAINED FOR ALARM SHUNT OR RESET ON DOUBLE GANG PLATE (CYLINDER NOT

7281-EA-K24xK

(SUFFIX)	7281 EXIT ALARM OPTIONS	(ADD)
xCT	COVER TAMPER SWITCH SPDT	$60.00
xK	STANDARD 1-1/8" MORTISE CYLINDER & 2 KEYS	$55.00
xKNR	CYLINDER WITH KEY NON-REMOVABLE IN THE ON POSITION	$65.00

(SUFFIX)	7281-EAxMP23 ENGRAVING OPTIONS	(ADD)
xE1	"PUSH TO EXIT" (RED TEXT)	$18.00
xE5	"EMERGENCY DOOR RELEASE" (RED TEXT)	$20.00
	ADD CUSTOM ENGRAVING

xE6 PER PLATE FEE AFTER SET UP $24.00 (ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00

PART # DESCRIPTION LIST PRICE

$625.00

$700.00

7286 SERIES LOCAL DOOR PROP ALARMS

LOCAL DOOR PROP ALARM

7286-PT5 DOOR PROP ALARM WITH ADJUSTABLE (0- SECONDS TO 90-MINUTES) DOOR OPEN DELAY, ALARM OUTPUT (DPDT) RELAY, TRI-STATE LED, AND LOCAL ALARM PIEZO, ADJUSTABLE LOCAL WARNING TIME DELAY & MIRRORED DOOR

SWITCH OUTPUT

7286-PT5

DOOR PROP ALARM WITH KEY SWITCH

7286-PT5-24 $750.00 DOOR PROP ALARM WITH ADJUSTABLE (0- SECONDS TO 90-MINUTES) DOOR OPEN DELAY, TRI-STATE LED, ALARM OUTPUT (DPDT) RELAY WITH LOCAL ALARM PIEZO, ADJUSTABLE LOCAL WARNING TIME DELAY & MIRRORED DOOR SWITCH OUTPUT

(RE-SET BY TIMER, DOOR RE-SECURE OR KEY SWITCH), INCLUDES 2 (DPDT) KEY SWITCH CONTACTS 1 MOMENTARY 1 MAINTAINED FOR ALARM SHUNT OR ALARM RESET ON DOUBLE GANG PLATE (CYLINDER NOT INCLUDED ADD

"XK" PER OPTIONS BELOW)

7286-PT5-24xK SHOWN

DOOR PROP ALARM WITH PUSH BUTTON

7286-PT5xMP23 DOOR PROP ALARM WITH ADJUSTABLE (0- SECONDS TO 90-MINUTES) DOOR OPEN DELAY, TRI-STATE LED, ALARM OUTPUT (DPDT) RELAY WITH LOCAL ALARM PIEZO, ADJUSTABLE LOCAL WARNING TIME DELAY & MIRRORED DOOR SWITCH OUTPUT

(AUTOMATIC ALARM RESET BY TIMER OR DOOR RE-SECURE), AND MOMENTARY ACTION PUSH BUTTON SWITCH (1-NO/1-NC) ON DOUBLE

GANG PLATE

SHOWN

7286-PT5xMP23xE1 PUSH TO EXIT

(SUFFIX) 7286 DOOR PROP ALARM OPTIONS (ADD) xCT COVER TAMPER SWITCH SPDT $60.00 xK STANDARD 1-1/8" MORTISE CYLINDER & 2 KEYS $55.00 xKNR CYLINDER WITH KEY NON-REMOVABLE IN THE ON POSITION $65.00

(SUFFIX) 7286xMP23 ENGRAVING OPTIONS (ADD) xE1 "PUSH TO EXIT" (RED TEXT) $18.00 xE5 "EMERGENCY DOOR RELEASE" (RED TEXT) $20.00 ADD CUSTOM ENGRAVING

xE6 PER PLATE FEE AFTER SET UP $24.00 (ORDER AS LINE ITEM)---- XE6SETUP CUSTOM ENGRAVING 1 SET UP FEE PER RUN $70.00

PART # DESCRIPTION LIST PRICE

7600 SERIES MULTI-ZONE ANNUNCIATOR/CONTROLLERS

7600 ANNUNCIATOR MULTI-GANG CONSOLES

ANNUNCIATOR/CONTROLLER WITH LED INDICATORS & TOGGLE SWITCHES FOR EACH ZONE. SECURITY KEY SWITCH FOR LED TEST, NORMAL CONTROL, RESTRICTED OPERATION, AND SILENCED ALERT SOUNDER MODE. CONFIGURED IN FOUR ZONE INCREMENTS MOUNTED ON MULTI-GANG STAINLESS STEEL SWITCH PLATES OR 19" WIDE RACK MOUNTABLE PLATES WITH BLACK OVERLAY SUITABLE FOR

FLUSH MOUNTING.

7604-H 4 ZONE HARDWIRED ANNUNCIATOR/

CONTROLLER ON THREE GANG PLATE (6-1/2"

WIDE x 4-1/2" HIGH x 2-1/2" DEEP)

4 ZONE EXPANSION ADD (TO #7604 ABOVE) FOR EACH ADDITIONAL 4

ZONE EXPANSION MODULE (EXAMPLES BELOW)

$580.00

$400.00

$470.00

$505.00

$1,250.00

7608-H

7604-H

#7608-H = $1,830.00 (EIGHT ZONES TOTAL) #7612-H = $2,410.00 (TWELVE ZONES TOTAL) #7616-H = $2,990.00 (SIXTEEN ZONES TOTAL) #7620-H = $3,570.00 (TWENTY ZONES TOTAL)

760006-K SPARE KEY FOR 7600 ANNUNCIATOR $30.00

*****MINIMUM OF 10 KEYS PER ORDER****** ALL 7600'S HAVE 2 ORIGINAL KEYS SUPPLIED MULTIPLE UNITS MAY BE SPECIFIED KEYED ALIKE

DESK TOP ANNUNCIATOR ENCLOSURES

7600 SERIES SLOPED FACE ENCLOSURES:

ALUMINUM CONSTRUCTION BLACK BAKED

ENAMEL FINISH 7604/8-ENCL DESKTOP SLOPE FACE ENCLOSURE FOR FOUR

9 x 6 x 2-3/4" OR EIGHT ZONE CONSOLES 7612/16-ENCL DESKTOP SLOPE FACE ENCLOSURE FOR TWELVE

15 x 6 x 2-3/4" OR SIXTEEN ZONE CONSOLES

7620/24-ENCL DESKTOP SLOPE FACE ENCLOSURE FOR TWENTY

19 x 6 x 2-3/4" OR TWENTY FOUR ZONE CONSOLES

PART # DESCRIPTION LIST PRICE 7600 SERIES ANNUNCIATOR DIMENSIONS

PHONE: (800) 906-0137 FAX: (631) 725-8148 www.dortronics.com

7600 SERIES MOUNTING PLATE SIZES:

Model #		Plate Width x Height - Plate Type
#7604	6-1/2" x 4-1/2"	3-GANG SWITCH PLATE	(4-Zones)
#7608	8-1/4" x 4-1/2"	4-GANG SWITCH PLATE	(8-Zones)
#7612	11-3/4" x 4-1/2"	6-GANG SWITCH PLATE	(12-Zones)
#7616	13-1/2" x 4-1/2"	7-GANG SWITCH PLATE	(16-Zones)
#7620	17-1/2" x 4-1/2"	9-GANG SWITCH PLATE	(20-Zones)

SUFFIX 7604 THRU 7620 OPTIONAL RACK MOUNT PLATE

xRM MOUNTED ON RACK MOUNT PLATE '19" x 5-1/4" ADD $150.00

NO ADDITIONAL CHARGE FOR 7624 & LARGER RACK MOUNT PLATES

			N/C
#7624	19" x 5-1/4"	RACK MOUNT PLATE	(24-Zones)
#7628 *	19" x 7"	RACK MOUNT PLATE	(28-Zones)
#7632	19" x 7"	RACK MOUNT PLATE	(32-Zones)
#7636	19" x 10-1/2"	RACK MOUNT PLATE	(36-Zones)
#7640	19" x 7"	RACK MOUNT PLATE	(40-Zones)
#7644 *	19" x 10-1/2"	RACK MOUNT PLATE	(44-Zones)
#7648	19" x 9-1/4"	RACK MOUNT PLATE	(48-Zones)
#7652 *	19" x 10-1/2"	RACK MOUNT PLATE	(52-Zones)
#7656 *	19" x 10-1/2"	RACK MOUNT PLATE	(56-Zones)
#7660	19" x 10-1/2"	RACK MOUNT PLATE	(60-Zones)
#7664	19" x 12-1/4"	RACK MOUNT PLATE	(64-Zones)
#7668 *	19" x 18-1/2"	RACK MOUNT PLATE	(68-Zones)
#7672	19" x 18-1/2"	RACK MOUNT PLATE	(72-Zones)
#7676 *	19" x 12-1/4"	RACK MOUNT PLATE	(76-Zones)
#7680	19" x 12-1/4"	RACK MOUNT PLATE	(80-Zones)
#7684 *	19" x 18-1/2"	RACK MOUNT PLATE	(84-Zones)
#7688 *	19" x 18-1/2"	RACK MOUNT PLATE	(88-Zones)
#7692 *	19" x 18-1/2"	RACK MOUNT PLATE	(92-Zones)
#7696	19" x 18-1/2"	RACK MOUNT PLATE	(96-Zones)
#76100	19" x 15-1/4"	RACK MOUNT PLATE	(100-Zones)
#76104 *	19" x 18-1/2"	RACK MOUNT PLATE	(104-Zones)
#76108 *	19" x 18-1/2"	RACK MOUNT PLATE	(108-Zones)
#76112 *	19" x 18-1/2"	RACK MOUNT PLATE	(112-Zones)
#76116 *	19" x 18-1/2"	RACK MOUNT PLATE	(116-Zones)
#76120	19" x 18-1/2"	RACK MOUNT PLATE	(120-Zones)

ELECTRICAL BACK BOXES FOR FLUSH WALL MOUNTING

700353	3 GANG BACK BOX FOR 7604-H	$60.00
700354	4 GANG BACK BOX FOR 7608-H	$70.00
700356	6 GANG BACK BOX FOR 7612-H	$80.00

^* Due to the physical layout of these units there may be additional zones which will be plugged on the plate with black plastic inserts to match the black overlay

ACCESS CONTROL

PART # DESCRIPTION LIST PRICE 8100 SERIES KEYPAD ACCESS CONTROLS 8112 SERIES DIGITAL KEY PADS 8112 USER PROGRAMMABLE DIGITAL KEY PAD $315.00 SINGLE DOOR STAND-ALONE ACCESS CONTROL 120 USER CODES PROGRAMMED FROM KEYPAD 1 TO 90 SECONDS ADJUSTABLE TIME DELAY (RECOMMENDED FOR INTERIOR APPLICATIONS) 8112-WR WEATHER RESISTANT MEMBRANE KEY PAD $370.00 SINGLE DOOR STAND-ALONE ACCESS CONTROL 8112 120 USER CODES PROGRAMMED FROM KEYPAD 1 TO 90 SECONDS ADJUSTABLE TIME DELAY WR500351 WEATHER RESISTANT SURFACE MOUNT SINGLE $30.00 GANG BOX FOR USE WITH 8112-WR 8160 SERIES HEAVY DUTY DIGITAL KEY PADS HEAVY DUTY, ALL METAL, TOUCH SENSITIVE, WEATHERPROOF, KEYPAD SINGLE DOOR STAND ALONE ACCESS CONTROL WITH 200 ACTIVE USER CODES 8160 8160xINT INTEGRATED UNIT SINGLE GANG MOUNT WITH ON-BOARD ELECTRONICS 200 USER CODES SPDT. RELAY OUTPUT N.O. PUSH BUTTON SWITCH INPUT $450.00 $450.00 1 2 3 4 5 6 7 8 9 * ⁰ #

8160xNSxINT NARROW INTEGRATED UNIT 1-3/4" WIDE WITH ON-BOARD

ELECTRONICS 200 USER CODES SPDT. RELAY OUTPUT N.O.

PUSH BUTTON SWITCH INPUT

MISCELLANEOUS

	PART #	DESCRIPTION	LIST PRICE
MAG LOCK		REPLACEMENT PARTS
		MAGLOCK REPLACEMENT PARTS
	1000701	LOCK MOUNTING KIT 1000 SERIES	$12.00
	1000702	TJ LOCK MOUNTING KIT 1000 SERIES	$10.00
	1100701	LOCK MOUNT KIT 1106,1107,1110,1150	$10.00
	1100702	TJ-LOCK MOUNT KIT TJ1106,TJ1107,TJ1110,TJ1150	$11.50
	1100721	DOUBLE LOCK MOUNTING KIT 1120, 1152	$11.50
	1100722	DOUBLE TJ-LOCK MOUNTING KIT TJ1120, TJ1152	$14.00
	1100703	ARMATURE MOUNTING KIT 1-3/4" DOOR	$22.00
	1100703.2	ARMATURE MOUNTING KIT 2" DOOR	$50.00
	1100703-SC	ARMATURE MOUNTING KIT FOR XEDR LOCKS	$18.00
	1100704	TJ- ARMATURE MOUNTING KIT	$14.00
	1000051	1000 SERIES ARMATURE	$105.00
	1000054	1000 DPS ARMATURE W/ACTUATING MAGNET	$115.00
	1106051	1106 & 1107 SERIES ARMATURE	$60.00
	1106054	1106 & 1107 DPS ARMATURE W/ACTUATING MAGNET	$70.00
	1115051	1115 SERIES ARMATURE	$50.00
	1115054	1115 DPS ARMATURE W/ACTUATING MAGNET	$66.00
	1110051	1110 SERIES ARMATURE	$85.00
	1110054	1110 DPS ARMATURE W/ACTUATING MAGNET	$95.00
	1160011	DPS ACTUATING MAGNET ONLY	$12.00
	1160015	DPS SWITCH ONLY SPDT W/LEADS	$28.00
	1610051	1150 SERIES ARMATURE	$105.00
	1610054	1150 DPS ARMATURE W/ACTUATING MAGNET	$115.00
	1610155	1155 SERIES ARMATURE	$64.00
	1610154	1155 DPS ARMATURE W/ACTUATING MAGNET	$70.00
		SURFACE MOUNT PLATE FOR ARMATURE
		(INCLUDES REQUIRED MOUNTING HARDWARE)
	1110050	FOR 1000,1110,1150 (2 REQ. FOR 1120/1152/1155)	$135.00
	1115050	FOR 1107 (2 REQUIRED FOR 1115 SERIES)	$70.00
"Z" BRACKETS		TOP JAMB Z-BRACKETS w/ SEX NUT
	1096-00	Z-BRACKET FOR 1000 "TJ" LOCKS	$84.00
	1196-06	Z-BRACKET FOR 1107 "TJ" LOCKS	$72.00
	1196-10	Z-BRACKET FOR 1110 "TJ" LOCKS	$84.00
	1196-15L	Z-BRACKET FOR 1115 "TJ" LOCKS	$68.00
	1196-15R	Z-BRACKET FOR 1115 "TJ" LOCKS	$68.00
	1196-50	Z-BRACKET FOR 1150 "TJ" LOCKS	$104.00
	1196-55L	Z-BRACKET FOR 1155 "TJ" LOCKS	$80.00
	1196-55R	Z-BRACKET FOR 1155 "TJ" LOCKS	$80.00
	1196703	Z-BRACKET MOUNTING KIT	$30.00
	(SUFFIX)	Z- BRACKET SPECIAL FINISHES
	xDBA	ADD FOR DARK BRONZE ANODIZED Z-BRACKET	$60.00
	xUS3	ADD FOR POLISHED BRASS Z-BRACKET	$250.00
	xUS26	ADD FOR POLISHED CHROME Z-BRACKET	$250.00
	xUS4	ADD FOR SATIN BRASS Z-BRACKET	$250.00

xUS26D ADD FOR SATIN CHROME Z-BRACKET $250.00

MISCELLANEOUS


	PART #	DESCRIPTION	LIST PRICE
SWITCH REPLACEMENT PARTS
	5141090 5141703	5140 SERIES PARTS CYLINDER W/ 2 KEYS FOR 5141 SERIES CYLINDER MOUNTING KIT FOR 5141 KEY SWITCH 5215 SERIES SWITCHES	$55.00 $22.00
	5215015	SPDT MOM ACTION SW. 8" LEADS 5230 SERIES SWITCHES	$25.00
	5230014L 5230015L 5230024L 5230025L	SPDT MAINTAINED SNAP ACTION SW. 8" LEADS SPDT MOMENTARY SNAP ACTION SW. 8" LEADS DPDT MAINTAINED SNAP ACTION SW. 8" LEADS DPDT MOMENTARY SNAP ACTION SW. 8" LEADS	$30.00 $30.00 $60.00 $55.00
		5140 & 5280 SERIES SWITCHES
		(SPECIFY IF REPLACEMENT SWITCH IS FOR A KEY SWITCH OR A PUSH BUTTON)
	5280024L 5280025L 5280024T	DPDT MAINTAIN ACTION SWITCH W/8" LEADS DPDT MOMENTARY ACTION SWITCH W/8" LEADS DPDT MAINTAIN TOGGLE SWITCH W/8" LEADS	$60.00 $60.00 $60.00
TIME DELAY REPLACEMENT PARTS
	5220023L 52800AT 52800FT 52800ET	PNEUMATIC 2-60 SEC. TIME DELAY SWITCH AT ADJUSTABLE 2-60 SEC.TIMER DPDT 12/24 VDC FT FIXED 30 SEC.TIMER DPDT 12/24 VDC ET TIMER 2-60 SEC. DPDT 12/24 VDC	$260.00 $125.00 $125.00 $170.00
ELECTRICAL BOXES & ACCESSORIES
	500351 500352 WR500351 WR500352 N500351	1-GANG STANDARD ELECTRICAL BOX 2-GANG STANDARD ELECTRICAL BOX 1-GANG WEATHER RESISTANT ELECTRICAL BOX 2-GANG WEATHER RESISTANT ELECTRICAL BOX NARROW 1-3/4" JAMB MOUNT BACK BOX BLACK HIGH IMPACT PLASTIC CONSTRUCTION	$15.00 $20.00 $35.00 $50.00 $65.00
	SS500351 SSN500351	SS 1 GANG SURFACE BOX FOR 5277 SERIES SS NARROW SURFACE BOX 1-3/4 FOR"N" 5277	$75.00 $60.00
LED REPLACEMENT PARTS
	7020251	BLACK PLASTIC BEZEL (BICOLOR RED / GREEN) W/6" LEADS	$20.00
	7020256	CHROME BEZEL FOR HD AND 7200 SERIES ANNUNCIATORS (BICOLOR RED / GREEN)	$42.00
	7020252-HI 7020255-HI 7020252-HI-WR 7020255-HI-WR	HI INTENSITY RED W/6" LEADS HI INTENSITY GREEN W/6" LEADS WEATHER PROOF HI INTENSITY RED 6" LEADS WEATHER PROOF HI INTENSITY GREEN 6" LEADS	$70.00 $70.00 $75.00 $75.00
MISC. REPLACEMENT PARTS
	1100640	xCT COVER TAMPER REPLACEMENT SWITCH	$40.00
	4802001 4802024	12VDC RELAY MODULE 2 SPDT ISOLATION RELAYS 24VDC RELAY MODULE 2 SPDT ISOLATION RELAYS DIMENSIONS 2" LONG X 1-3/4" WIDE	$90.00 $90.00
	6410015-J	6420 / 6495 SERIES SPDT REPLACEMENT SWITCH (2	$40.00
	6410015-JWR	REQUIRED PER DEVICE) WEATHER PROOF SWITCH FOR SAME AS ABOVE	$60.00
	LA-LABEL DOOR SIGN 15-30	DELAYED EGRESS NFPA 101 SIGNAGE	$14.00

SALES – POLICIES, PROCEDURES & WARRANTY

To Open an Account:

A credit application which includes bank, trade references, Dunn & Bradstreet rating and company information, is filled out and returned for processing. If customer is approved, they are set up on a Net-30 Day Terms with a credit limit based on the outcome of the credit check. Typically first orders are cod, Credit card or Cash in advance. Credit cards accepted are: Visa, Mastercard, Discover and American Express.

Dortronics Systems, Inc. will not accept Credit card information via e-mail.

Minimum Order:

There is no minimum order; however, if a customer is going to buy a small quantity, low dollar amount on a one-time basis, the order will be shipped COD or credit card. Customer also has the option to send payment in advance.

Freight Policy:

Freight is prepaid and billed on all invoices which are mailed the day after shipment. Carriers used are UPS, FED-EX and trucking. Customers may use their own shipping account.

Drop ship Info:

No additional charge. Address be advised during verbal phone order, or specified on E-mail or faxed purchase orders.

International Accounts:

The minimum export order is $250.00. Export orders requiring special handling, packaging, and documentation are subject to additional charges. Export orders are accepted on the basis of payment in advance of shipment by a check in U.S. funds, wire transfer, or credit card. Payment will include costs of Materials, freight, brokerage, bank fees, duty or taxes. Customer may request shipping insurance at additional cost.

Contact (Sales):

Mike Palermo – Sales/Customer Service Stuart Arthur – Sales/Applications Specialist Bryan Sanderford - National Sales Manager

Contact (Clerical):

Janice Wilson – Accounting; New Customer Accounts

Returns:

All claims for shortages must be made within 72 hours of receipt of product. Any shipping, damaged parts or order discrepancies must be reported within 5 days of receipt. A Return Authorization Number must be obtained and accompany all returns within 14 days of issue. Products returned without a Return Material Authorization number will not be accepted. All Return Material Authorizations are conditional and are not final until the product is received and inspected by the Company. Credit will be issued at the original price charged less handling and transportation charges, where applicable (see Product Warranties ). Unused items returned for credit must be complete and packed in original unit box and are subject to a minimum 15% restocking charge.

8/15/2018 1

Product Warranties

All Electromagnetic locks have a LIFETIME WARRANTY against defects in material and workmanship. Defective units will be replaced or repaired based upon incoming evaluation and inspection. All other Dortronics components and electronics shall be similarly warranted for a period of one year. Expressed warranties are conditionally based on the requirement that the items covered within the warranty are used and maintained in accordance with the manufacturer's recommendations.

Dortronics sole and maximum liability for breach of its warranties herein is limited to the obligation, at the Company's sole discretion to repair, reprocess or provide replacement goods, or at the Company's discretion credit the Customer's account, any goods delivered hereunder which either become defective or fail to meet the applicable specifications during the warranty period and which are found by the Company to be defective under the terms of this warranty, provided that (a) the Company is notified in writing by the Customer within thirty (30) days after discovery of defects or failure to meet the Specifications; (b) the Customer obtains a Return Material Authorization number from Company prior to returning any defective goods to the Company; (c) the defective goods are returned to the Company, transportation charges prepaid by the Customer (provided, however, that if upon examination by the Company, it determines that the goods are entitled to this warranty, then the Company shall be responsible for all transportation charges to and from the Company's facility); (d) the defective goods are received by the Company for adjustment no later than four (4) weeks following the last day of the warranty period; and (e) the Company's examination of such goods shall disclose that such defects or failures have not been caused by misuse, abuse, neglect, improper installation or application, repair, alteration, damage by rain, fire or casualty or by accident or negligence in use, storage, transportation or handling. In addition, the Company shall have no liability to the Customer to the extent such failure is caused by non-compatibility with other components used by the Customer. In the event that any one or more of the foregoing conditions is not satisfied, the Company shall have no liability under this warranty whatsoever. The Customer has an obligation to mitigate any damages related to integration of defective or non-conforming Parts. If the Customer has knowledge that such Parts are defective or non-conforming or the Company has advised the Customer that Parts are defective or non-conforming and in either event the Customer integrates such defective Parts, the Company shall have no liability to the Customer for any damages incurred by the Customer as a result. In the event that the foregoing exclusive remedy under this warranty is determined upon judicial review to have failed in its essential purpose through no fault of the Customer, the alternate exclusive remedy shall be the refund of the purchase price of the non-conforming or defective goods. Any repairs to or alterations on the goods shipped hereunder must be authorized in writing by the Company to prevent voiding the Company's warranty. The Company's goods may be prohibited for shipment to certain countries, entities or individuals under U.S. export regulations. The Company is not liable to the Customer for any delays or failure to obtain the necessary export license. THE COMPANY'S OBLIGATION TO HONOR THESE WARRANTIES IS CONTINGENT UPON THE COMPANY'S RECEIPT OF PAYMENT IN FULL FOR THE GOODS ENTITLED TO THIS WARRANTY. THE COMPANY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE COMPANY HAS NOT AUTHORIZED ANYONE TO MAKE ANY REPRESENTATION OR WARRANTY OTHER THAN AS PROVIDED ABOVE. THE FOREGOING STATES THE ENTIRE WARRANTY LIABILITY OF THE COMPANY.

8/15/2018 2

CREDIT APPLICATION

FX: STATE:ZIP: PRINCIPALS TITLE OR POSITION NAME: NAME: NAME: NAME: BANK: BRANCH: ADDRESS: PH: EXT: CITY: STATE: ZIP: PERSON TO CONTACT: POSITION: AMOUNT OF CREDIT REQUESTED: $ TRADE REFERENCES 1: 2: PH: FX: PH: FX: ACCOUNT #: ACCOUNT #: 3: 4: FX: PH: FX: ACCOUNT #: ACCOUNT #: we agree to pay invoices due within 30 days of invoice date. fee may be applied to past due invoices. In the case of default, all collection charges, Lawyers fees and interest will be borne by the Company. We understand your terms and conditions as stated above and agree to abide by them in making this application for credit. I also under stand that an investigative consumer report may be made. We hereby authorize the release of any information from the above business references and our bank. ALL REPLIES WILL BE KEPT CONFIDENTIAL Signature required below by Company officer or duly authorized representative. TITLE: DATE:	COMPANY NAME:	PH:
	STREET ADDRESS:
	CITY:






















	PH:

	TERMS & CONDITIONS: In consideration of credit extended A 2% interest DEFAULT: applicant

	SIGNATURE:
	PRINT NAME:

WHAT YOU WANT - WHEN YOU WANT IT

1668 SAG HARBOR TURNPIKE SAG HARBOR NY11963

www.dortronics.com • (800) 906-0137 • (631) 725-8148 FAX • sales@dortronics.com
