DS4540 Double-Lipped Strike for 1by8 Inset Cylindrical Latch 6-3by4 Frame – Template

Open the original PDF document

View PDF

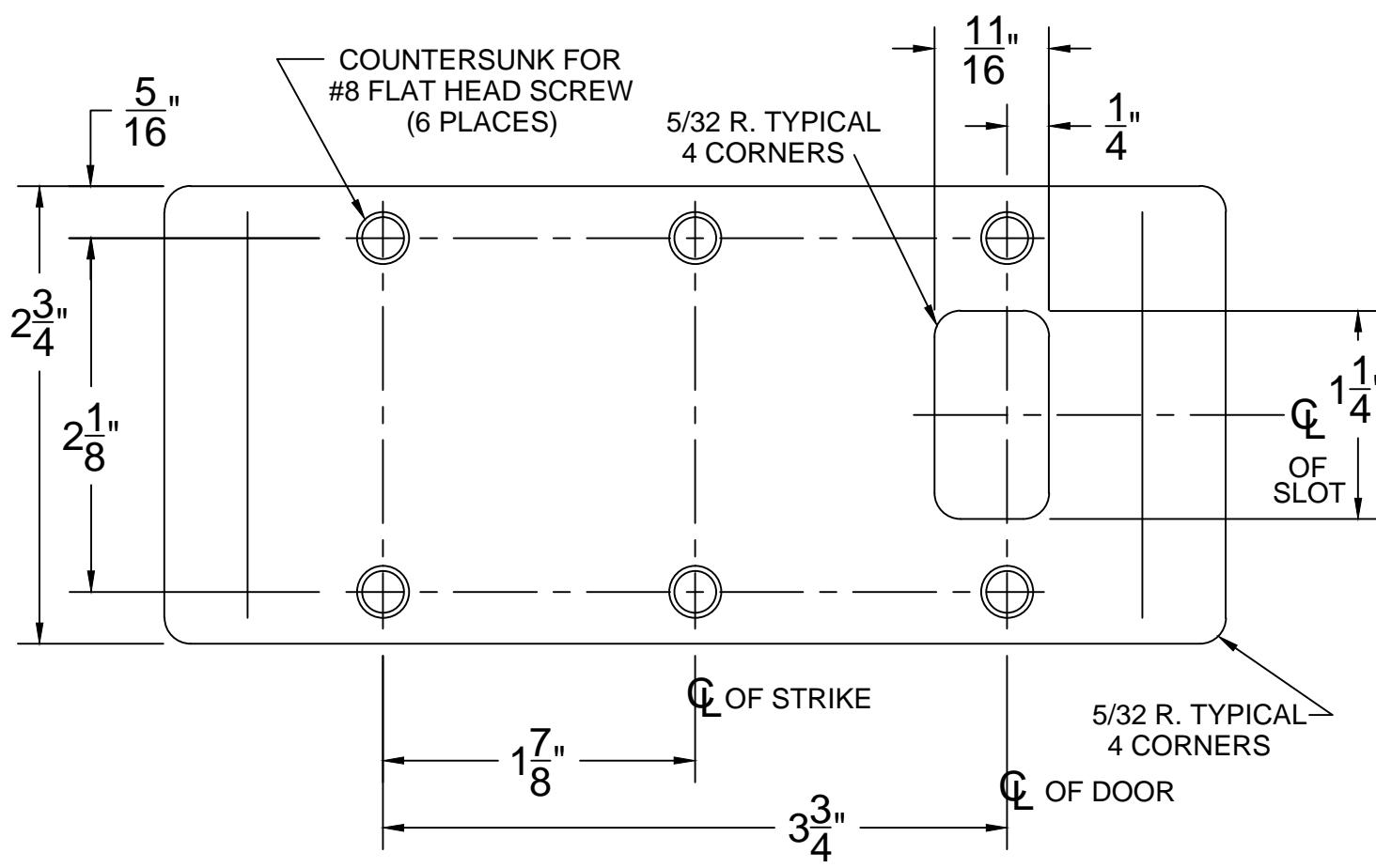

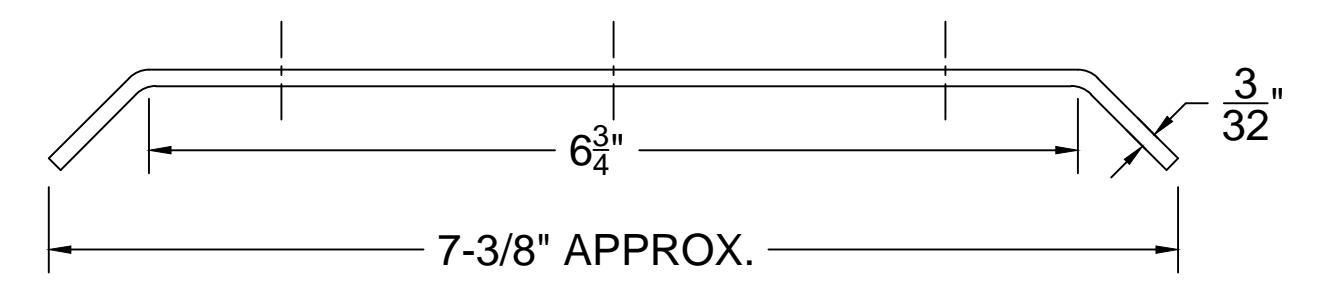

DOUBLE LIPPED STRIKE

REINFORCEMENT:

CUSTOMER TO SUPPLY FRAME REINFORCEMENT WITH LATCH BOLT CLEARANCE.

NOTE:

  • 1. CENTERLINE OF PLATE TO COINCIDE WITH CENTERLINE OF JAMB.
  • 2. FOR USE WITH 1-3/4" DOOR INSET 1/8" ON 5-3/4 FRAME.
  • 3. MACHINE SCREW SIZE: #8-32 x 1/2 UNDERCUT FLAT HEAD RECESSED.
  • 4. DRAWING NOT TO SCALE.

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2009 ABH Mfg., Inc. printed in USA

DS4530-02.DWG

DS4540 REVISED 10-23-09
