DS4510 Double-Lipped Strike for Center Hung Cylindrical Latch 5-3by4 Frame – Template
Open the original PDF document

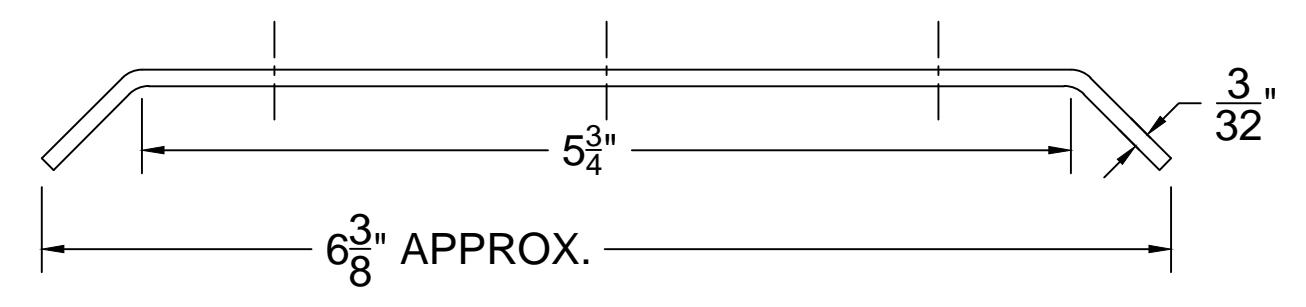

View PDFDOUBLE LIPPED STRIKE -----------------------------------
REINFORCEMENT:
CUSTOMER TO SUPPLY FRAME REINFORCEMENT WITH LATCH BOLT CLEARANCE.
NOTE:
- 1. CENTERLINE OF PLATE TO COINCIDE WITH CENTERLINE OF JAMB.
- 2. FOR USE WITH 1-3/4" DOOR CENTERED ON 5-3/4 FRAME.
- 3. MACHINE SCREW SIZE: #8-32 x 1/2 UNDERCUT FLAT HEAD RECESSED.
- 4. DRAWING NOT TO SCALE.
® www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
© 2009 ABH Mfg., Inc. printed in USA
DS4510-02.DWG
DS4510
