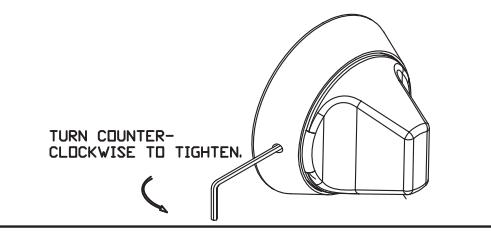

TO BOTH HOLES IN THE ROSE; PLACE A 5/64TH ALLEN WRENCH PROVIDED) IN THE SET SCREW THROUGH THE HOLE IN INNER PLATE AND SECURE THE THUMB TURN BY TURNING COUNTER-CLOCKWISE (TO REMOVE ROTATE CLOCKWISE).

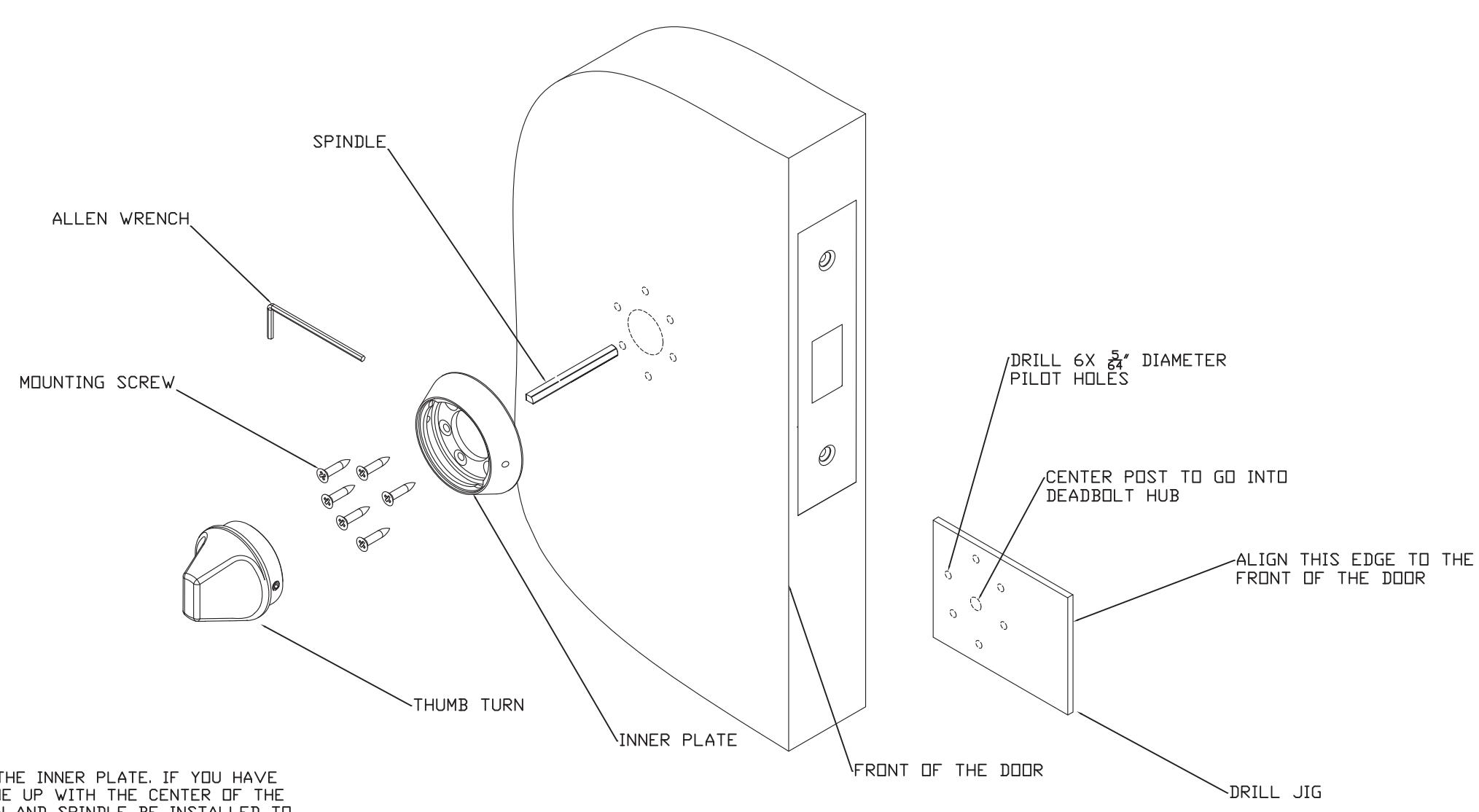

EXPLODED VIEW

HOSPITAL THUMB TURN INSTRUCTIONS

• 1. PREPARE DOOR PER TEMPLATE.
• 2. USE THE SMALL DRILL JUG TO DRILL THE 6 HOLES TO MOUNT THE INNER PLATE, IF YOU HAVE NO DRILL JIG- CENTER INNER PLATE OVER DOOR HOLE AND LINE UP WITH THE CENTER OF THE HUB FOR THE THUMB TURN, RECOMMEND THAT THE THUMB TURN AND SPINDLE BE INSTALLED TO AID LINING UP WITH THE HUB.
• 3, IF YOU HAVE NO DRILL JIG- HOLD INNER PLATE ONTO THE DOOR AND REMOVE THE THUMB TURN AND SPINDLE. HOLDING THE INNER PLATE IN POSITION MARK LOCATION FOR 6 SMALL PILOT HOLES FOR #6 SCREWS.
• 4. MOUNT THE INNER PLATE WITH THE 6 SCREWS.
• 5. INSTALL THE SPINDLE AND THUMB TURN.
• 6. OPERATE THE LOCK TO ENSURE PROPER INSTALLATION AND ALIGNMENT.

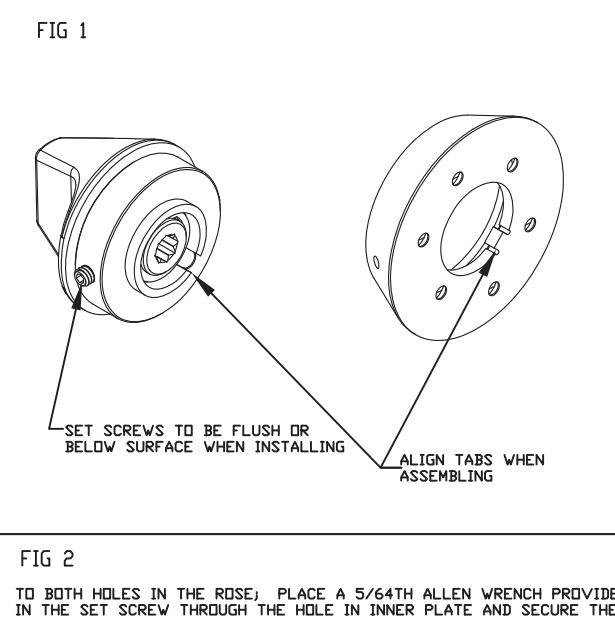

• 7. TIGHTEN THE THUMB TURN ONTO THE ASSEMBLY- SEE FIG 1 & 2. INSERT THE ALLEN WRENCH THROUGH EACH HOLE (2 IN EACH INNER PLATE) TO ENGAGE THE SET SCREW AND SECURE THE THUMB TURN ASSEMBLY, ROTATE COUNTERCLOCKWISE TO TIGHTEN IN THE ASSEMBLY AND ROTATE CLOCKWISE TO LOOSEN. SEE FIG 1 & 2.
• 8. CHECK LOCK FOR CORRECT OPERATION BEFORE CLOSING THE DOOR.

TownSteel

17901 RAILROAD STREET CITY OF INDUSTRY, CA 91748

REV

DRAFT UNLESS DTHERWISE SPECIFIED: 1° MAX DRAWN BY: SC	В	TOLERANC UNLESS OTHE SPECIFIE) X.X (METRIC) X.XX (METRIC) FRACTIONS ANGLES ©	=±0.4 =±0.15
DATE:		MACHINED SURFACES 125/
10/19/12		⊕ € THIRD	ANGLE

DESCRIPTION

MATERIAL: NOTED HEAT TREAT: NA FINISH 32D RX T-TURN, ASSY, INSTRUCTIONS PART#: RX T-TURN

DATE

THIS DRAWING AND THE INFORMATION CONTAINED THEREON OR DERIVED THEREFROM ARE THE CONFIDENTIAL PROPERTY OF TOWNSTEEL, INC. IT IS NOT TO BE REPRODUCED, OR DISCLOSED TO OTHERS, AND MAY BE USED ONLY FOR THE PURPOSE OF ENABLING THE PARTY TO WHOM IT HAS BEEN LOANED TO QUOTE ON OR FILL AN ORDER FOR TOWNSTEEL, INC., OR AS MAY BE OTHERWISE AUTHORIZED BY TOWNSTEEL, INC. IN WRITING.

בוני ס

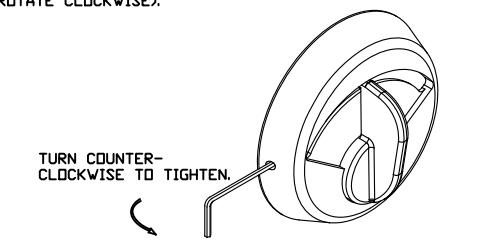

IN BOTH HOLES IN THE THUMB TURN; PLACE A 5/64TH ALLEN WRENCH (PROVIDED) THROUGH THE HOLE IN THE SET SCREW IN THE INNER PLATE AND SECURE THE THUMB TURN BY TURNING COUNTER-CLOCKWISE (TO REMOVE ROTATE CLOCKWISE).

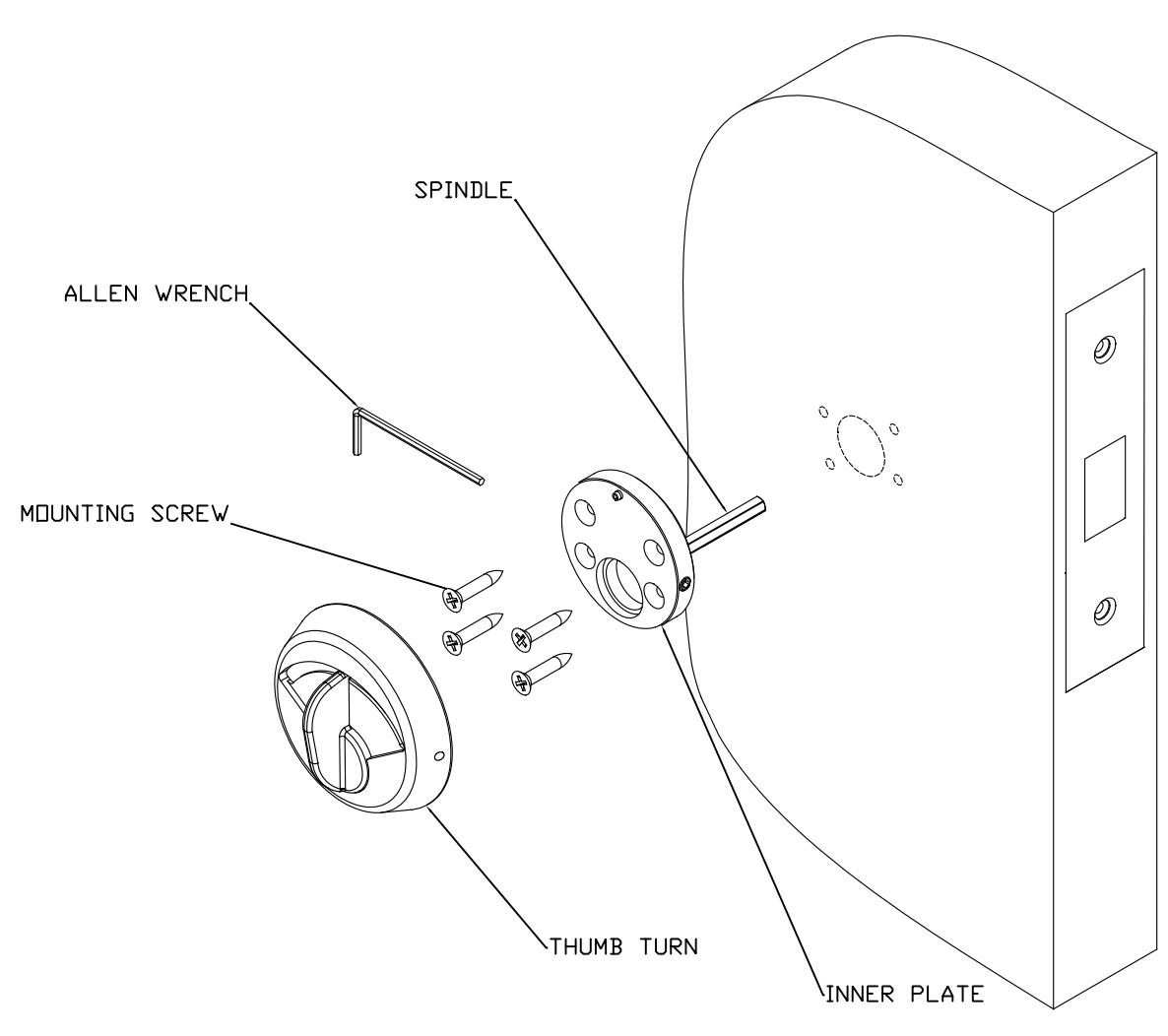

EXPLODED VIEW

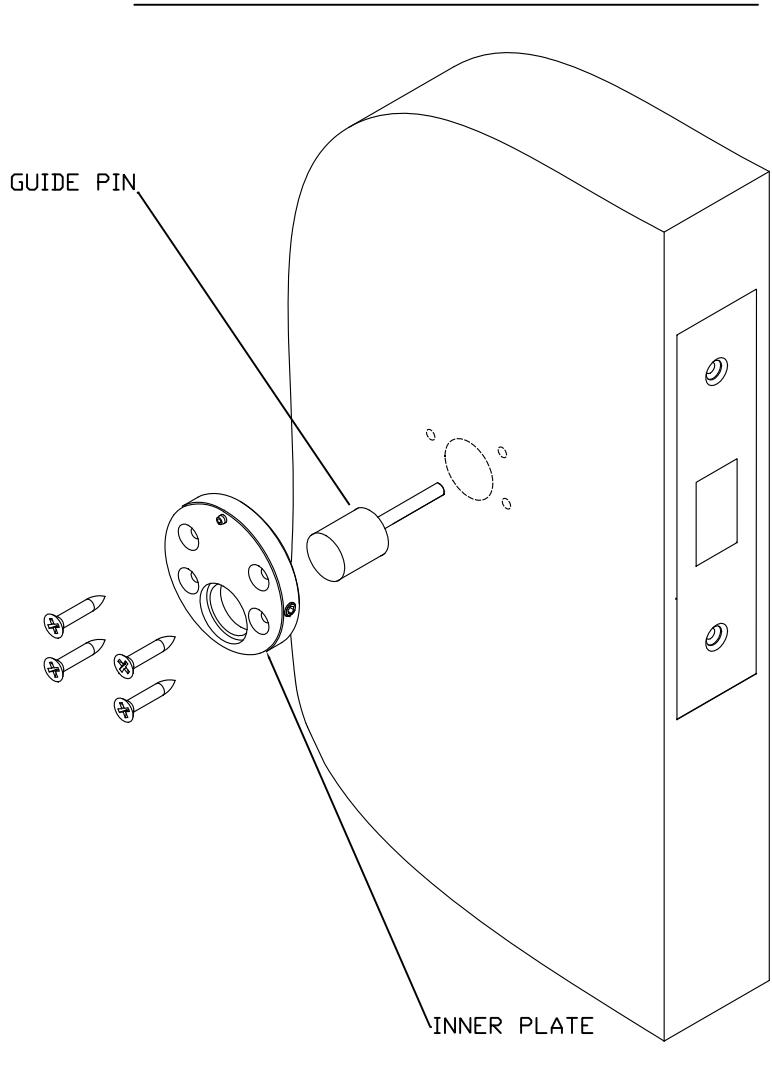

USING GUIDE PIN TO ALIGN INNER PLATE

DESCRIPTION

HOSPITAL THUMB TURN INSTRUCTIONS

• 1. PREPARE DOOR PER TEMPLATE.
• 2. USE THE GUIDE PIN TO HELP ALIGN THE INNER PLATE, MATCH DRILL (OR MARK LOCATION AND DRILL) THE 4 HOLES TO MOUNT THE INNER PLATE, PILOT HOLE SIZE FOR #6 SCREW IN A WOOD DOOR IS &.".
• 3. MOUNT THE INNER PLATE WITH THE 4 SCREWS.
• 4. INSTALL THE SPINDLE AND THUMB TURN (SEE EXPLODED VIEW).
• 5. OPERATE THE LOCK TO ENSURE PROPER INSTALLATION AND ALIGNMENT.

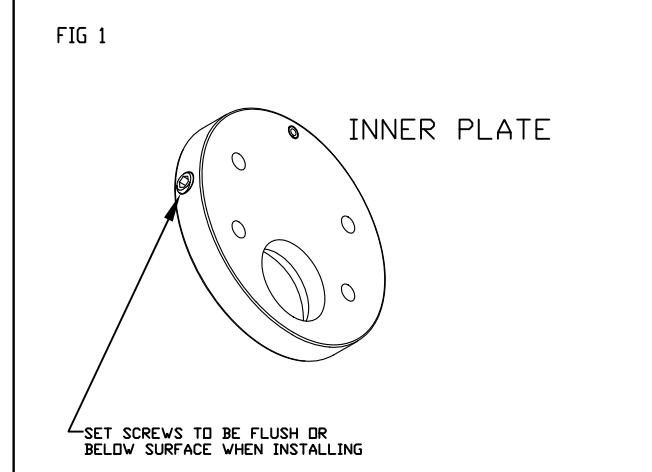

• 6. TIGHTEN THE THUMB TURN ONTO THE INNER PLATE- SEE FIG 1 & 2. INSERT THE ALLEN WRENCH THROUGH EACH HOLE (2 IN EACH INNER PLATE) TO ENGAGE THE SET SCREW AND SECURE THE THUMB TURN ASSEMBLY. ROTATE COUNTERCLOCKWISE TO TIGHTEN IN THE ASSEMBLY AND ROTATE CLOCKWISE TO LOOSEN. SEE FIG 1 & 2.
• 7. CHECK LOCK FOR CORRECT OPERATION BEFORE CLOSING THE DOOR.

TownSteel

17901 RAILROAD STREET CITY OF INDUSTRY, CA 91748

REV

DRAFT UNLESS	В	TOLERANCES UNLESS OTHERWISE
OTHERWISE SPECIFIED:		SPECIFIE X.X (METRIC	_
1° MAX		X.XX (METRIC
DRAWN BY:		FRACTIONS
SC			= ±1/2
		| ©	.12
DATE:		MACHINED SURFACES 125
10/7/11		⊕ ← THIR	D ANGLE

TOLERANCES UNLESS OTHERWISE	MATERIAL: NOTED
SPECIFIED:	HEAT TREAT: NA
.X (METRIC) =±0.4 .XX (METRIC) =±0.15	FINISH: 32D
RACTIONS = $\backslash pm\; .8$ NGLES = $\backslash pm\; 1/2^\{\backslash circ\}$ $\backslash bigcirc$ .12	TITLE: ADA THUMB TURN ASSY INSTRUCTIONS
ACHINED SURFACES 125∕	PART# ADA-TTURN
