DRX How-To-Order

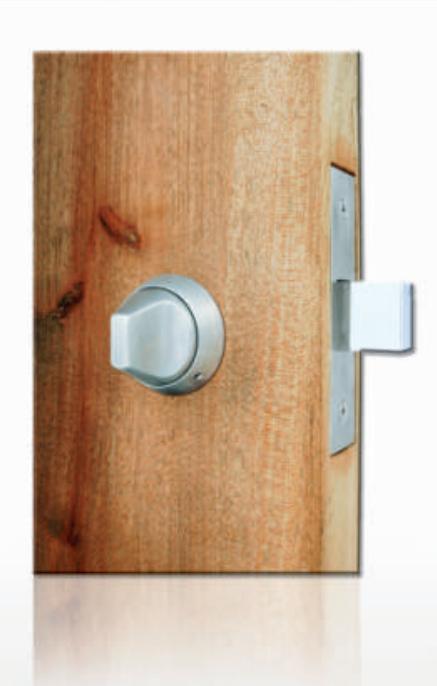

DRX ANSI Grade 1 Mortise Deadbolt Lock with Ligature Resistant Thumb Turn

DRX Series- Heavy duty commercial quality deadbolt that provides a positive deterrent to forced entry. The health safety thumb turn design enhances opportunity to reduce accidents in health care facilities, detention centers and potential high risk areas. It is also designed to be an integral part of your Accident Prevention and Safety Program. Schlage C keyway, standard Small Format 6 or 7 pin Interchangeable Core (SFIC) available. 32D Finish. ADA Turn piece available

(U) LISTED

Trim	DRX Ligature Resistant Knob Deadbolt Lock
Function	F09, F07, F18
	e Resistant Deadbolt	DRX-18-ADA

DRX Functions

ANSI F09	Deadbolt operated by key from outside and turn from inside turn retracts but does not project deadbolt
ANSI F07	Deadbolt operated by key from outside and turn from inside
ANSI F18	Deadbolt operated by turn from inside only, no trim on other side

Important Note:

It is TownSteel's position that if any of our keyed locks are to be used less cylinder, whether I.C. or standard, and another manufacturer's cylinder is to be used in place of the TownSteel original manufacturer's cylinder, that a sample of that product be provided to TownSteel in advance for testing.
