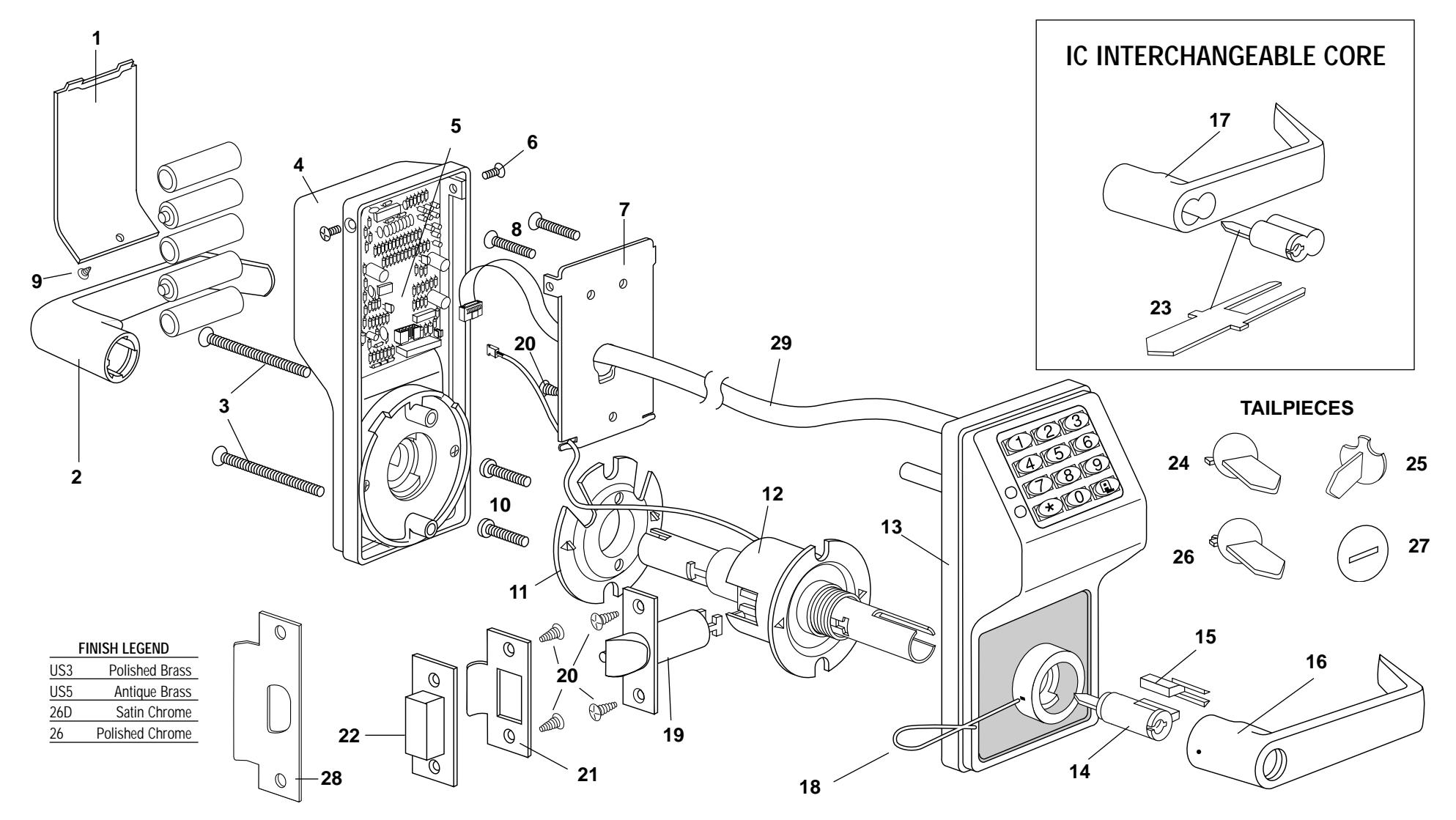

MODEL DL 2700 LEVER SETS PARTS LIST
Standard Cylinder and Interchangeable Core Models
|
Key Part No.
|
Description
|
|
1a
|
HW592-US3
|
Battery Cover
|
|
1b
|
HW592-US5
|
Battery Cover
|
|
1c
|
HW592-26D
|
Battery Cover
|
|
1d
|
HW592-26
|
Battery Cover
|
|
2a
|
HW615-US3
|
Inside Lever
|
|
2b
|
HW615-US5
|
Inside Lever
|
|
2c
|
HW615-26D
|
Inside Lever
|
|
2d
|
HW615-26
|
Inside Lever
|
|
|
|
Thru Bolt/10-32x2-1/2", (2)
|
|
3a
|
SC458-US3
|
Flat Hd.,PH,MS
|
|
3b
|
SC458-US5
|
Flat Hd.,PH,MS
|
|
3с
|
SC458-26D
|
Flat Hd.,PH,MS
|
|
3d
|
SC458-26
|
Flat Hd.,PH,MS
|
|
4a
|
S6017-US3
|
Inside Housing Ass'y w/PC Board
|
|
4b
|
S6017-US5
|
Inside Housing Ass'y w/PC Board
|
|
4c
|
S6017-26D
|
Inside Housing Ass'y w/PC Board
|
|
4d
|
S6017-26
|
Inside Housing Ass'y w/PC Board
|
|
4e
|
S6044-US3
|
Inside Housing Ass'y less PC Board
|
|
4f
|
S6044-US5
|
Inside Housing Ass'y less PC Board
|
|
4g
|
S6044-26D
|
Inside Housing Ass'y less PC Board
|
|
4h
|
S6044-26
|
Inside Housing Ass'y less PC Board
|
|
5
|
S6052
|
PC Board Assembly
|
|
|
|
Inside Mounting Screws (2)
|
|
6a
|
P1526-US3
|
#6-32x3/8", Oval Hd
|
|
6b
|
P1526-US5
|
#6-32x3/8", Oval Hd
|
|
6c
|
P1526-26D
|
#6-32x3/8", Oval Hd
|
|
6d
|
P1526-26
|
#6-32x3/8", Oval Hd
|
|
7
|
HW594
|
Inside Mounting Plate
|
|
|
|
Inside Mounting Plate Screws (2)
|
|
8
|
SC459
|
#8-32 x 1", Flat Hd., PH, MS
|
|
9a
|
P5851-26D
|
#4-40x1/4", Flat Hd., PH, MS
|
|
9b
|
P5851-US3
|
#4-40x1/4", Flat Hd., PH, MS
|
|
|
|
Inside Rose Screws (2)
|
|
10
|
SC457
|
#10-32 x 1", w/#8 Pan Hd, PH, MS
|
|
11
|
HW564
|
Inside Rose
|
|
12
|
S6014
|
Lock Body Assembly
|
|
12A
|
S6015
|
IC Lock Body Assembly
|
|
13a
|
S6016-US3
|
Outside Housing Ass'y
|
|
13b
|
S6016-US5
|
Outside Housing Ass'y
|
|
13c
|
S6016-26D
|
Outside Housing Ass'y
|
|
13d
|
S6016-26
|
Outside Housing Ass'y
|
|
|
|
|
|
Key
|
Part No.
|
Description
|
|
14a
|
HW596-US3
|
Std. Cylinder Ass'y
|
|
14b
|
HW596-26D
|
Std. Cylinder Ass'y
|
|
15
|
HW578
|
Cylinder Retainer
|
|
16a
|
HW614-US3
|
Outside Lever
|
|
16b
|
HW614-US5
|
Outside Lever
|
|
16c
|
HW614-26D
|
Outside Lever
|
|
16d
|
HW614-26
|
Outside Lever
|
|
17a
|
HW616-US3
|
Outside Lever-IC Core
|
|
17b
|
HW616-US5
|
Outside Lever-IC Core
|
|
17c
|
HW616-26D
|
Outside Lever-IC Core
|
|
17d
|
HW616-26
|
Outside Lever-IC Core
|
|
-
|
Key
|
Part No.
|
Description
|
|
|
18
|
HW618
|
Lever Release Pin
|
|
_
|
19a
|
S6034-US3
|
Latch - 2-3/4" Backset
|
|
|
19b
|
S6034-US5
|
Latch - 2-3/4" Backset
|
|
|
19c
|
S6034-26D
|
Latch - 2-3/4" Backset
|
|
|
19d
|
S6034-26
|
Latch - 2-3/4" Backset
|
|
|
19e
|
S6035-US3
|
Latch - 2-3/8" Backset
|
|
|
19f
|
S6035-US5
|
Latch - 2-3/8" Backset
|
|
_
|
19g
|
S6035-26D
|
Latch - 2-3/8" Backset
|
|
_
|
19h
|
S6035-26
|
Latch - 2-3/8" Backset
|
|
|
20a
|
SC460-US3
|
#8x3/4" Combination screw
|
|
-
|
20b
|
SC460-US5
|
#8x3/4" Combination screw
|
|
•
|
|
|
|
|
Key
|
Part No.
|
Description
|
|
20c
|
SC460-26D
|
#8x3/4" Combination screw
|
|
20d
|
SC460-26
|
#8x3/4" Combination screw
|
|
21a
|
HW577-US3
|
Strike 2-3/4" x 1-1/8"
|
|
21b
|
HW577-US5
|
Strike 2-3/4" x 1-1/8"
|
|
21c
|
HW577-26D
|
Strike 2-3/4" x 1-1/8"
|
|
21d
|
HW577-26
|
Strike 2-3/4" x 1-1/8"
|
|
22
|
P5847
|
Dust Box
|
|
23
|
HW598
|
IC Tailpiece for Best, Arrow, Falcon
|
|
24
|
HW597
|
Std. Tailpiece
|
|
25
|
HW580
|
Replacement tailpiece for Schlage
|
|
26
|
HW620
|
Replacement tailpiece for Lori
|
|
Key
|
/ Part No.
|
Description
|
|
27
|
WA160
|
Tailpiece washer for all tailpieces
|
|
28a
|
HW470-US3
|
Strike 4-7/8" x 1-1/4"
|
|
28b
|
HW470-US5
|
Strike 4-7/8" x 1-1/4"
|
|
28c
|
HW470-26D
|
Strike 4-7/8" x 1-1/4"
|
|
28d
|
HW470-26
|
Strike 4-7/8" x 1-1/4"
|
|
29
|
W279
|
Ribbon Cable Ass'y
|
|
|
|
|
