HINGES & POWER TRANSFER

Command Access Door Loop

Quality, selection & pricing second to none

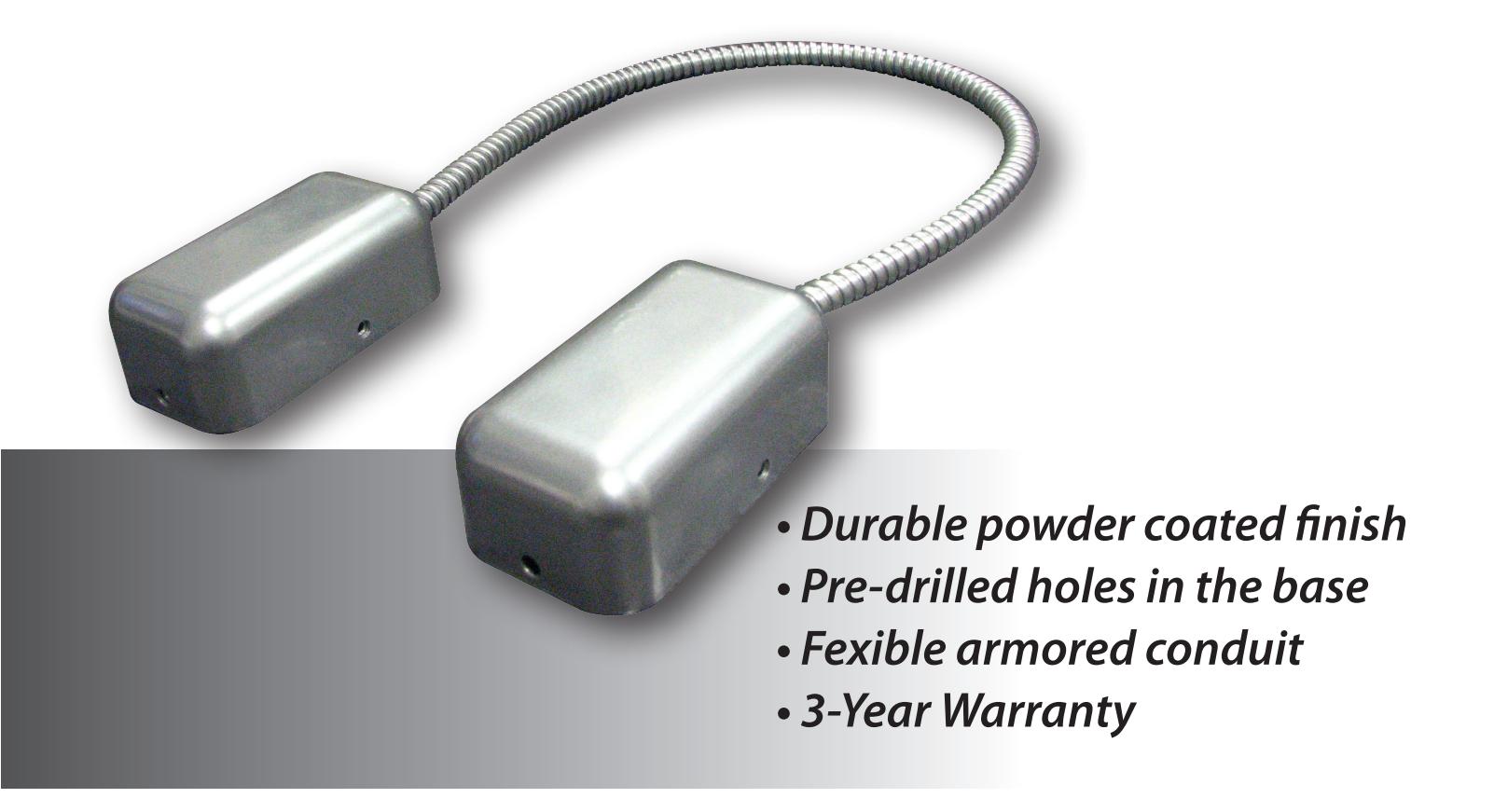

The Door Loop (DL) is a low cost method of transferring low voltage power from the door frame to the locking device. Door loops are commonly used with electric mortise & cylindrical locks, electric exit trims and latch pullback devices. These are available in 20" lengths in aluminium and duronatic finishes.

HINGES & POWER TRANSFER

Command Access Door Loop

Features:

• Available in aluminium or duronatic finishes
• Field sizeable 20" cable
• Surface mount

Models available:

• DL-20AL Standard 20" aluminium finish
• DL-20D Standard 20" duronatic finish

Model No.	Notes:
Customer:	Job No./Name:	Date:	Provided by:
