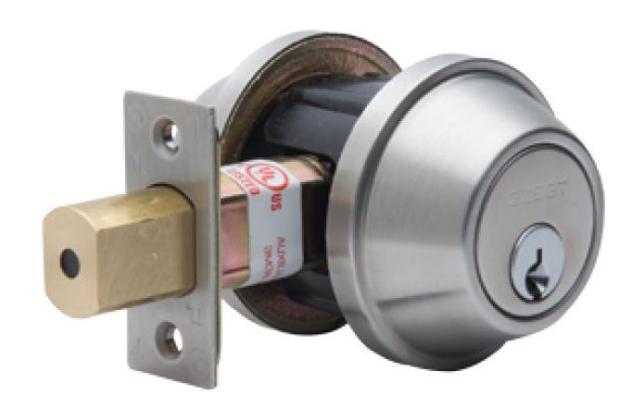

DBT-HEAVY DUTY GRADE 2 DEADBOLT

Specifications:

• ANSI: ANSI/BHMA A156.5–2001 Grade 2 Certified.
• UL: 3 hours fire rating certified

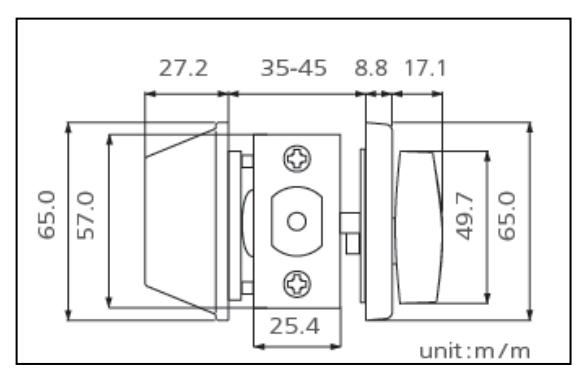

• Door Thickness: 1-3/8"-1-3/4" (35mm-45mm), 2" (51mm) optional
• Backset: Except DBT-50 with 2-3/4" (70mm) standard, 2-3/8" (60mm) optional, all others with the 2-3/4" - 2- 3/8" adjustable backset.
• Strike: Rectangular with door reinforce 1-1/8" x 2-3/4" x 5/64" (28.4mm x69.8mm x 2.0mm), square corner standard
• Deadbolt: Solid brass with hardened steel rod insert, full 1" (25.4mm) throw
• Faceplate: 1-1/8" x 2-1/4" (28.4mm x 57mm) , square corner
• Cylinder: 6pin solid brass cylinder, Schlage "C" keyway. Small Format IC Core available

Available Finish: US3, US4, US10B, US26D, US32, US32D

Code Compliance:

• ANSI/BHMA A156.5-2001 Grade 2 Certified
• UL: Listed 3-hour fire rating
• BAA: Meets guidelines of the Buy American Act

Available Functions:

Series Number	Description
DBT-61	Single Cylinder
DBT-62	Double Cylinder
DBT-50	Thumb Turn Only
DBT-70	Thumb Turn with Indicator
DBT-65	Classroom
DBT-81	Cylinder with blank plate

Product Gallery

Thumb Turn DBT-70 Outside

DBTI-61 DBT-62
