DBM Installation

DEAD BOLT LOCK INSTALLATION INSTRUCTIONS

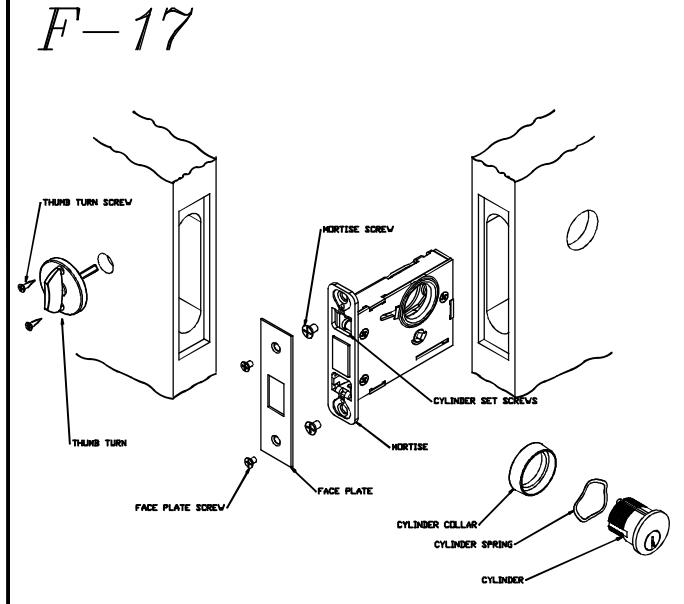

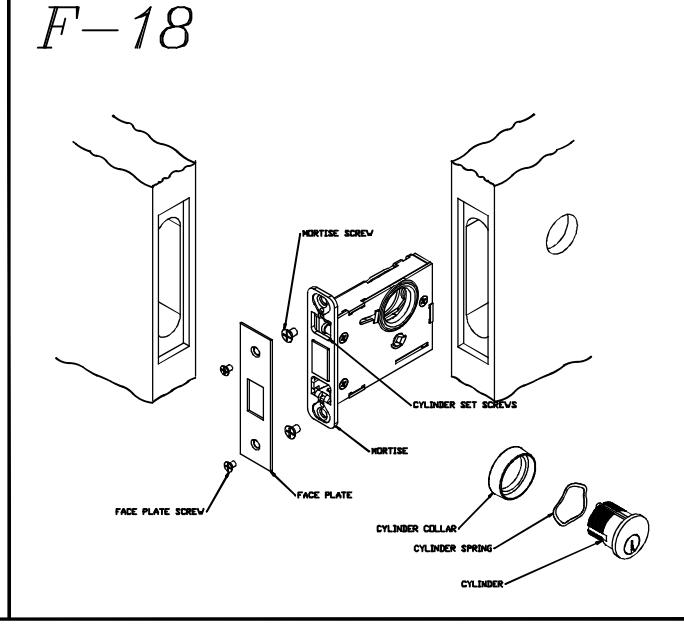

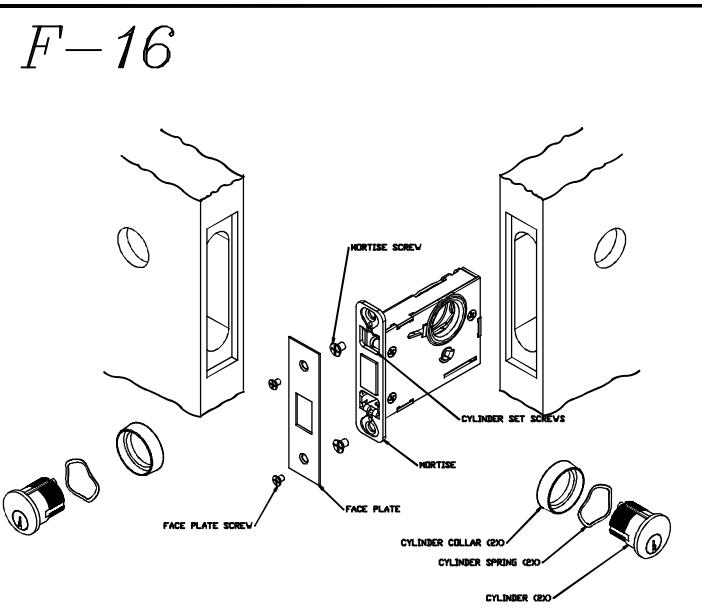

• PREPARE DOOR PER TEMPLATE PROVIDED— DRILL ONLY THE HOLES NEEDED FOR THE THUMB TURN AND CYLINDER PER MORTISE FUNCTION AND ILLUSTRATIONS ABOVE.
• 2. INSTALL MORTISE IN POCKET- SEE ILLUSTRATION FOR ORIENTATION.
• 3. USE 2 MORTISE SCREWS TO SECURE MORTISE IN POCKET.
• 4. INSTALL CYLINDER(S) WITH CYLINDER, COLLAR AND SPRING PER ILLUSTRATION.
• 5. TIGHTEN SET SCREW(S) INSIDE MORTISE TO HOLD CYLINDER IN PLACE.
• 4. INSTALL FACE PLATE AND SECURE WITH FACE PLATE SCREWS.
• 5. INSTALL THUMB TURN— ALIGN SPINDLE WITH THE MORTISE AND MATCH DRILL PILOT HOLES. SECURE WITH THUMB TURN SCREWS.
• 6. CHECK OPERATION OF THUMB TURN AND CYLINDER TO ENSURE THE LOCK WILL LOCK AND UNLOCK AND IS FUNCTIONING PROPERLY BEFORE CLOSING THE DOOR.

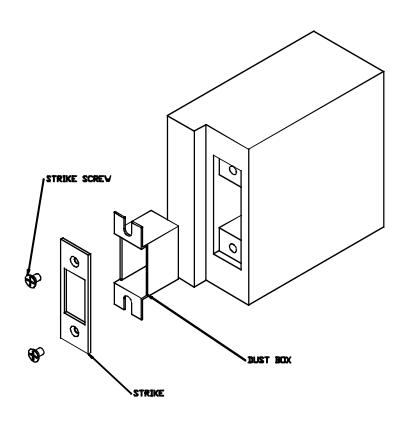

• 7. INSTALL STRIKE AND DUST BOX PER ILLUSTRATION E AND SECURE WITH STRIKE SCREWS. ENSURE STRIKE AND DEAD BOLT LINE UP AND DO NOT BIND. ADJUST AS NECESSARY.

ILL.E
