MORTISE DEADBOLT LOCKS

HEAVY DUTY AUXILIARY LOCKS

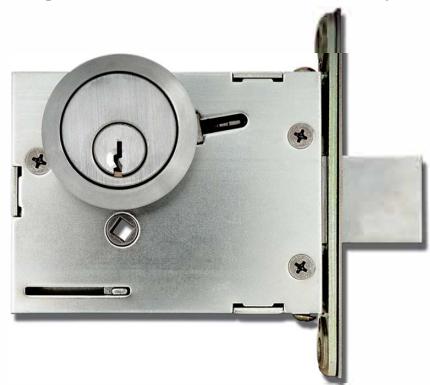

DBM Series is a heavy duty commercial quality deadbolt that provides a positive deterrent to forced entry. Designed for maximum security, the cylinder resist blows attempting to move the lock.

Specifications

APPLICATIONS To use as an auxiliary lock for quality residential and commercial buildings wherever

additional security is desired.

1-3/8" to 2" door thickness. DOOR RANGES

BACKSET 2-3/4" standard.

BOLT 1" throw, stainless steel deadbolt, Anti-Saw Deadbolts with hardened pins.

FINISHES 622, 626, 630, Other finishes on request

HANDING Non-Handed.

CYLINDER Accepts standard cylinders.

Meets or exceeds ANSI A156.5 Grade 1 strength and operational requirements. CERTIFICATIONS

Functions

DBM 16 Deadlock \ Single Cylinder

Deadbolt operated from either side by key. Use only on rooms with more than one exit

DBM 17 Classroom Deadbolt / Single Cylinder

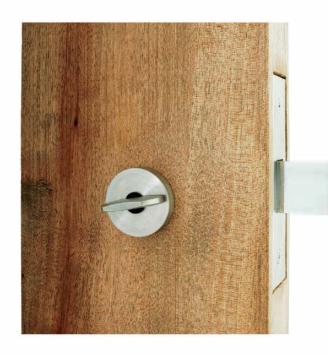

Deadbolt operated from outside by key. Deadbolt operated from inside by turn lever

DBM 18 Classroom Deadbolt / Single Cylinder

Deadbolt operated from outside by Key. No inside operation. Use only on rooms with more than one

DBM 29 Classroom Deadbolt / Single Cylinder

Deadbolt operated from inside by turn lever. No outside operation.

How To Order
Series	DBM: Mortise Deadbolt Lock
Function	15: Classroom 17: Single Cylinder	Function Cylinder
Finish	622/US19 Flat Black 626/US26D Satin Chrome / Other finishes upon request	DBM - 15 - 613 - SC
Cylinder	SC Standard - Schlage "C" keyway 6 pin SFIC/LFIC Small or Large Format IC Core with or without core HS High security. TownSteel "L" keyway	Series Finish
