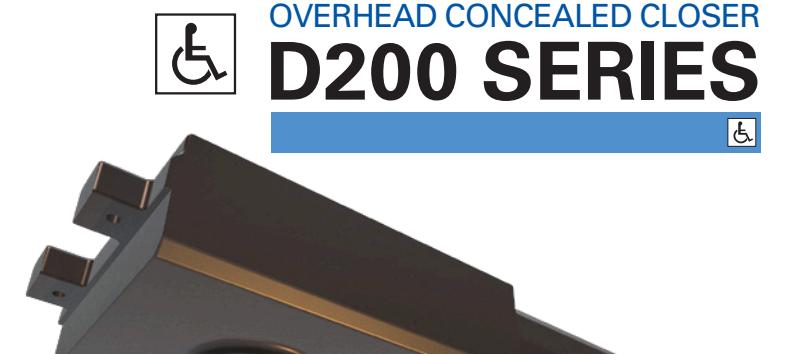

D200 Spec Sheet

Open the original PDF document

View PDF

FEATURES

  • • I.D.C. provides LEAK-FREE guaranteed performance under the most demanding conditions.
    • 1. Steel spring cap is now on top of closer body utilizing a new high performance O-Ring and epoxy sealed threads for double protection.
    • 2. New automotive type heavy duty spindle seal replacing old standard O-ring technology.
    • 3. All three adjustment valves now with two high performance O-rings for double protection.
    • 4. Steel end caps incorporating new high performance O-rings and also epoxy sealed threads for double protection.
    • 5. Adjustable back check after 80° to prevent the door from slamming open.
  • • CENTER HUNG DOORS: Double or Single Acting (Door stop applied to frame renders unit Single Acting). Adjustable "S" type side loading or "A" type, "K" type and "PT" type end loading top arms are available for center pivoted applications.
  • Built-in positive back stop and hold-open positions available:
    • 105° Back Stop with Hold-Open
    • 105° Back Stop no Hold-Open
    • 90° Back Stop with Hold-Open
    • 90° Back Stop no Hold-Open
  • ADA spring tensions available for use on center pivoted applications:
    • 5 lb. opening force (Interior door)
      • 8-1/2 lb. opening force (Exterior door)
  • Standard spring tensions available:
    • LIGHT, MEDIUM & HEAVY
  • Three control valves: Closing speed, latching speed and back check, fully adjustable after installation.
  • Fits in an aluminum header or transom bar as small as 1-3/4" x 4".
  • Positive centering for alignment and to hold door closed against any normal wind or draft.
  • Stable hydraulic door check fluid for any climatic operation and constant lubrication.

NEW IMPROVED FEATURES

1) Steel spring cap is now on top of closer body utilizing a new high performance O-Ring and epoxy sealed threads for double protection.

2) New automotive type heavy duty spindle seal replacing old standard O-ring technology.

3) All three adjustment valves now with two high performance O-rings for double protection.

  • 4) Now with steel end caps incorporating new high performance O-rings and epoxy sealed threads for double protection.
  • 5) Adjustable back check after 80° to prevent the door from slamming open.

Center Hung Doors: Complete units for aluminum doors and frames are furnished with top arm assembly (adjustable 'S' side loading, "A" end loading, "K" end loading or "PT" end loading), adjustable dual purpose 3010-DP bottom pivot set for floor or threshold mounting (side or end loading) and 3010-FS anchor set with all fasteners. 3010-G and 3010-GE bottom pivot sets are available, but must be ordered separately.

"S" type side loading top arms and 3010-DP adjustable dual purpose pivot set and 3010-FS anchor set will be furnished unless otherwise specified.

"A" type, "K" type or "PT" type end loading and "JO" or "VO" type offset arms are optional, but must be specified.

"G" and "GE" type pivot sets are available, but must be ordered separately.

Offset Hung Doors: Single Acting. Offset "JO" and "VO" type top arms are available for butt hinge or offset pivot applications.

(Offset Pivots or Butt Hinges not included. Top Door Stop/ Arm Cover by others – fabrication drawings available.)

DOOR SIZE CHART - SCHEDULE OF MODELS AND TYPES

NOTE:
Doors of sizes over the schedule, or
of excessive weight, or doors subject
to severe wind or draft conditions, or
abusive usage, require the next stronger
model closer.
SPECIFY:
Closer Model Number and Type of Top
Arm, Anchor and/or Pivot Set.
SPECIFY FINISH:
For 3010-JO or 3020-VO Arms
AL - Satin Aluminum
DU - Storefront Bronze
WARRANTY:
5 Year Warranty 		DOOR
SIZE 		SPRING
TENSION 		TYPE MODEL WITH
"S" "A" "K" OR
"PT" ARM 		MODEL WITH
"JO" OR "VO"
OFFSET ARM
From
36" to 48"
X 96" 		ADA 5Ib.
(INTERIOR) 		105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold·Open 		D200
D201
D202
D203 		NA
NA
NA
NA
From
36" to 48"
X 96" 		ADA 8-1/2Ib.
(EXTERIOR) 		105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold·Open 		D210
D211
D212
D213 		NA
NA
NA
NA
Up to 30"
X 96" 		LIGHT 105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold·Open 		D220
D221
D222
D223 		D220 X JO or VO
D221 X JO or VO
D222 X JO or VO
D223 X JO or VO
31" to 41"
X 96" 		MEDIUM 105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold·Open 		D230
D231
D232
D233 		D230 X JO or VO
D231 X JO or VO
D232 X JO or VO
D233 X JO or VO
42" to 48"
X 96" 		HEAVY 105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold·Open 		D240
D241
D242
D243 		D240 X JO or VO
D241 X JO or VO
D242 X JO or VO
D243 X JO or VO
PARTS AND ACCESSORIES
Unit Body (Specify: Spring Tension & degree of Back Stop & Hold open) D2000-B
"S" Type Adjustable Side Loading Top Arm Assembly (1/2" Depth Top Rail) 3010-S
"A" Type End Loading Top Arm Assembly (1" Depth Top Rail) 3010-A
"K" Type End Loading Top Arm Assembly (5/8" Depth Top Rail) 3010-K
"PT" Type End Loading Top Arm Assembly (7/8" Depth Top Rail) 3010-PT
"JO" Type Offset Top Arm Assembly
Mortised Type (9/16" Depth Top Rail) 		Painted Arm -Aluminum
Storefront Bronze 		3010-JO x AL
3010-JO x DU
"VO" Type Offset Top Arm Assembly
Surface Type (7/8" Depth Top Rail) 		Painted Arm -Aluminum
Storefront Bronze 		3020-VO x AL
3020-VO x DU
Anchor Set (Standard) 3010-FS
Adjustable Dual Purpose Bottom Pivot Set (Standard) 3010-DP
Adjustable Floor Mount Bottom Pivot Set (Optional) 3010-G
Adjustable Threshold Mount Bottom Pivot Set (Optional) 3010-GE
