View PDF(12 GA.) CUSTOM WIDE THROW HINGE ORDER FORM
ORDER DATE: CUSTOMER NAME: CUSTOMER P.O. NO.: HINGE MODEL: FC5500WT FC5505WT FC5515WT FINISH: QUANTITY:
| DOOR CLEARANCE CHART | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Door -
Square Edged |
Hinge Model |
Hinge Side
Clearence |
+ |
Lock Side
Clearence |
+ |
Frame
Irregularity |
Square Edged Door
Undersize |
|||
| Single Door | FC5500WT, FC5515WT | 5/16" | + | 1/8" | + | 1/32" | = | 15/32" | ||
| Olligic Bool | FC5505WT | 3%" | + | 1/8" | + | 1/32" | = | 17/32" | ||
| Pair of Doors | FC5500WT, FC5515WT | 5/8" | + | 3/ 16 " | + | 1/16" | = | 7/8" | ||
| 1 411 01 00013 | FC5505WT | 3/4" | + | 3 / 16 " | + | ½6" | = | 1" | ||
|
Door -
Bevelled Edged |
Hinge Model |
Hinge Side
Clearence |
+ |
Lock Side
Clearence |
+ |
Frame
Irregularity |
velled Edged Door
Undersize |
||
|---|---|---|---|---|---|---|---|---|---|
| Single Door | FC5500WT, FC5515WT | 11/32" | + | 1/8" | + | 1/32" | = | 1/2" | |
| FC5505WT | 13/32" | + | 1/8" | + | ½32" | = | 9/ 16 " | ||
| Pair of Doors | FC5500WT, FC5515WT | 2 / 32 " | + | 3 / 16 " | + | ½16" | = | 29 / 32 " | |
| i dii di Doors | FC5505WT | 25 / 32 " | + | 3 / 16 " | + | ½16" | = | 11/32" |

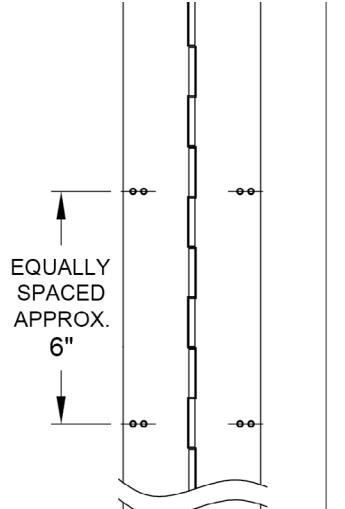

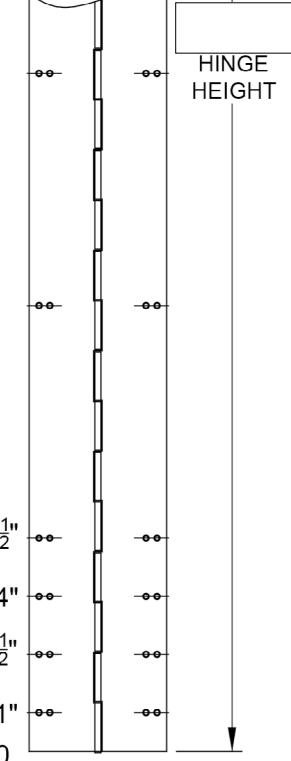

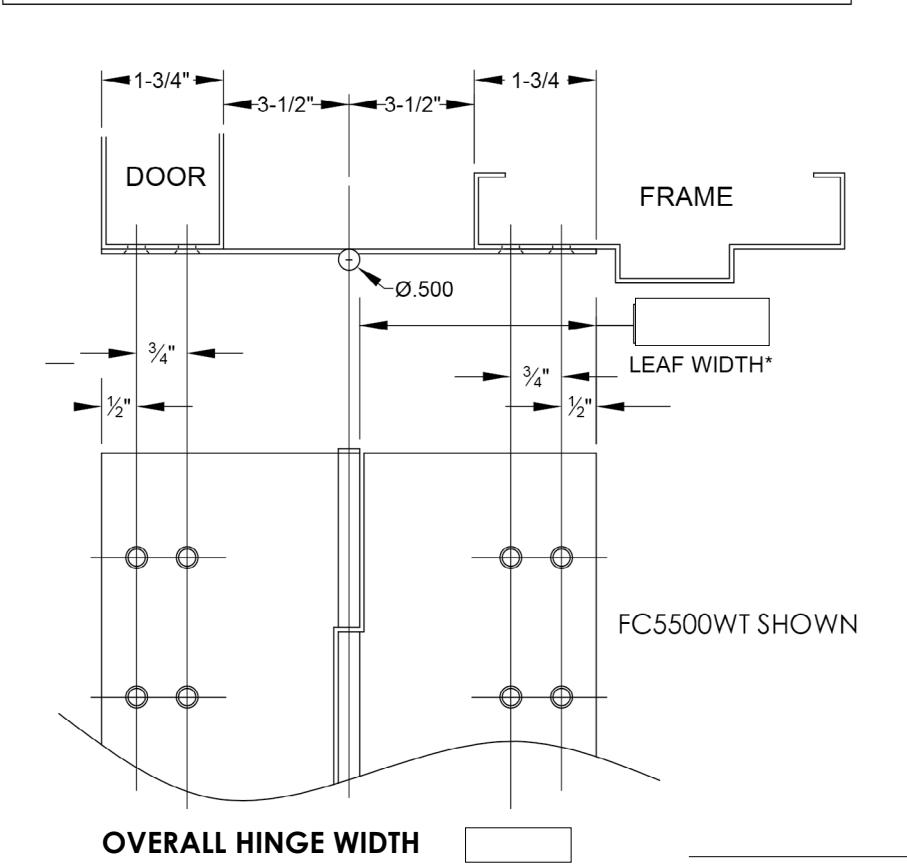

*1/4 WILL BE ADDED TO THE LEAF WIDTH FOR CLEARANCE
E-mail: sales@fcbp.com • Attach File & Send
First Choice Building Products, LLC. 1222 Ardmore Avenue, Itasca 60143 800-793-4544 • FAX 800-867-5016 • www.fcbp.com
