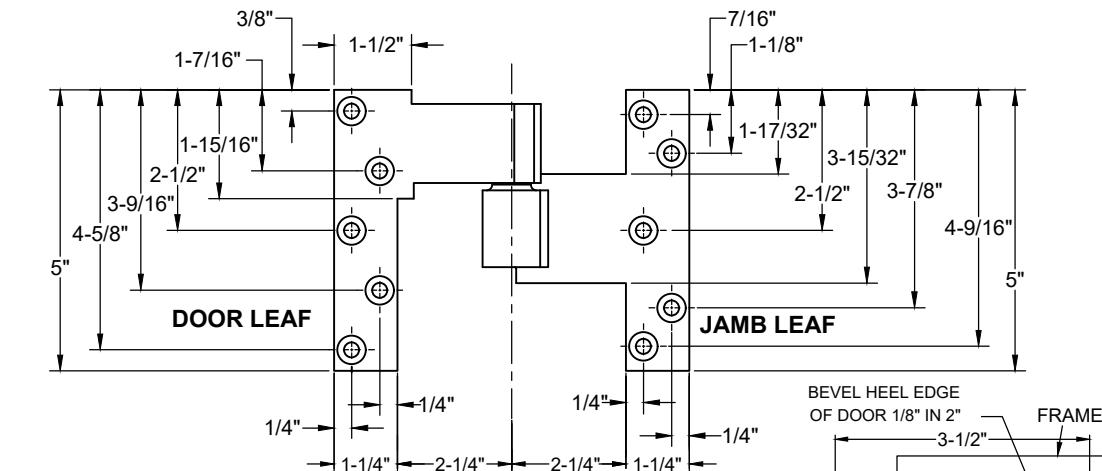

CUSTOM L019 INTERMEDIATE PIVOT, HANDED

(1-3/4" THICK DOOR & 1-1/4" CLADDING)

THIS TEMPLATE TO BE USED WITH SP-6461

3-1/2" 3-1/2"

NOTES:

  • 1. PIVOTS DRILLED FOR 1/4-20 x 3/4 FLAT HEAD METAL SCREW OR #14 x 2" FLAT HEAD WOOD SCREW.
  • 2. REINFORCING BY OTHERS.
  • 3. IT IS THE DOOR AND FRAME MANUFACTURERS RESPONSIBILITY TO CHECK THE HARDWARE SCHEDULE AND PREP THE DOORS AND FRAMES.
  • 4. MAXIMUM DEGREE OF OPENING, 180°, TRIM PERMITTING.
  • 5. RIGHT HAND SHOWN, LEFT HAND OPPOSITE.
  • 6. DRAWING IS NOT TO SCALE.

CENTERLINE OF TOP PIVOTS MUST LINE UP WITH CENTERLINE OF INTERMEDIATE PIVOTS & BOTTOM PIVOT/CLOSER

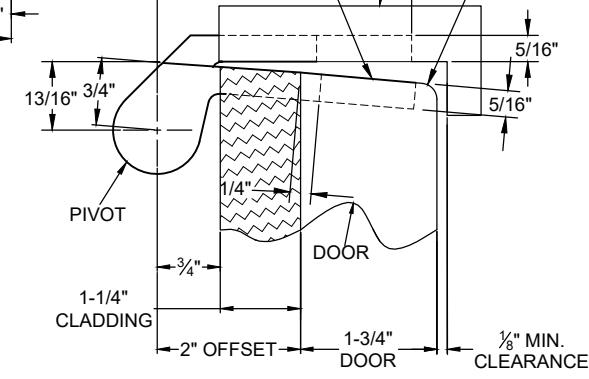

TOP VIEW

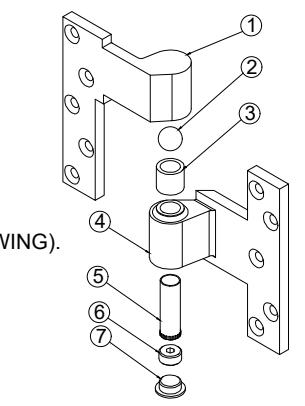

INSTALLATION INSTRUCTIONS

NOTE: DOOR SHOULD ALREADY BE HUNG WITH TOP PIVOT AND BOTTOM PIVOT (OR FLOOR CLOSER).

  • 2. INSTALL L019 DOOR & FRAME PIVOT LEAVES.
  • 3. ALIGN PIVOT POINT FROM TOP PIVOT TO BOTTOM ARM (SEE DRAWING).
  • 4. REMOVE 019 END CAP.
  • 5. TURN 019 RETAINER SCREW CLOCKWISE TO RAISE THE DOOR OR COUNTERCLOCKWISE TO LOWER DOOR UNTIL YOU REACH THE DESIRED HEIGHT.
  • 6. TURN 019 RETAINER SCREW .
  • 7. TIGHTEN 019 RETAINER SCREW UNTIL YOU FEEL RESISTENCE.
  • 8. REPLACE 019 END CAP.

R 3/16"

IT
E
M
N
O 		Q
Y.
T 		P
A
R
T
N
O
1
1 		L
01
9
D
af
L
o
or
e
2
1 		01
9
Al
ig
nt
all
B
n
m
e
3
1 		01
9
N
dl
B
in
e
e
g
e
e
ar
4
1 		L
01
9
J
b
af
L
a
m
e
5
1 		01
9
Pi
ot
Pi
n
v
6
1 		01
9
R
et
ai
S
n
er
cr
e
w
7
1 		01
9
C
E
d
p
n
a

SP-6461-1

ISSUED 06-22-21

SP-6461.DWG

printed in USA www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL60143 630.875.9900; FAX 800.9FAXABH (932.9224)

c 2021 ABH Mfg., Inc.
