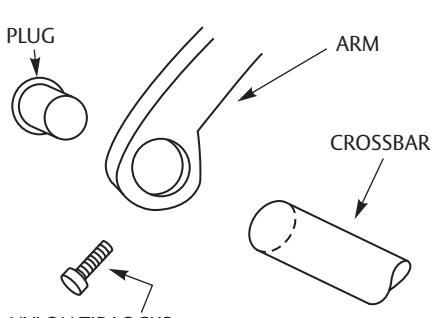

CROSSBAR ASSEMBLY INSTRUCTIONS

NYLON TIP LOCKS ASSEMBLY IN POSITION WHEN SCREW IS TIGHT

USE 5/32" SOCKET HEAD WRENCH TO ASSEMBLE

BE SURE SCREW IS

TIGHT

CUT AND RE-DRILL

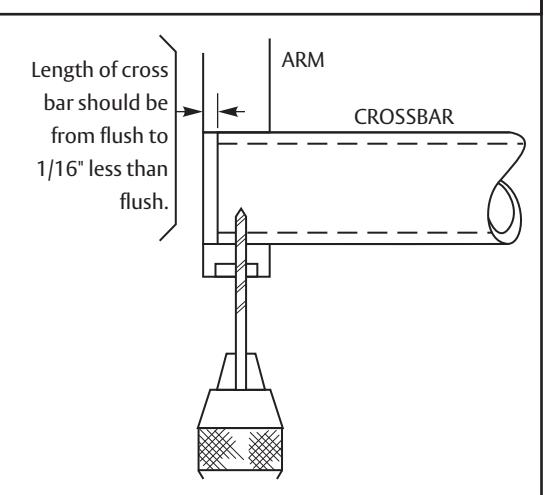

Note: If a shorter crossbar is required, cut crossbar to length and re-drill a 3/16" hole thru one side using hole in arm for locating.

IMPORTANT!

SEE OTHER SIDE FOR ASSEMBLY INSTRUCTIONS.
