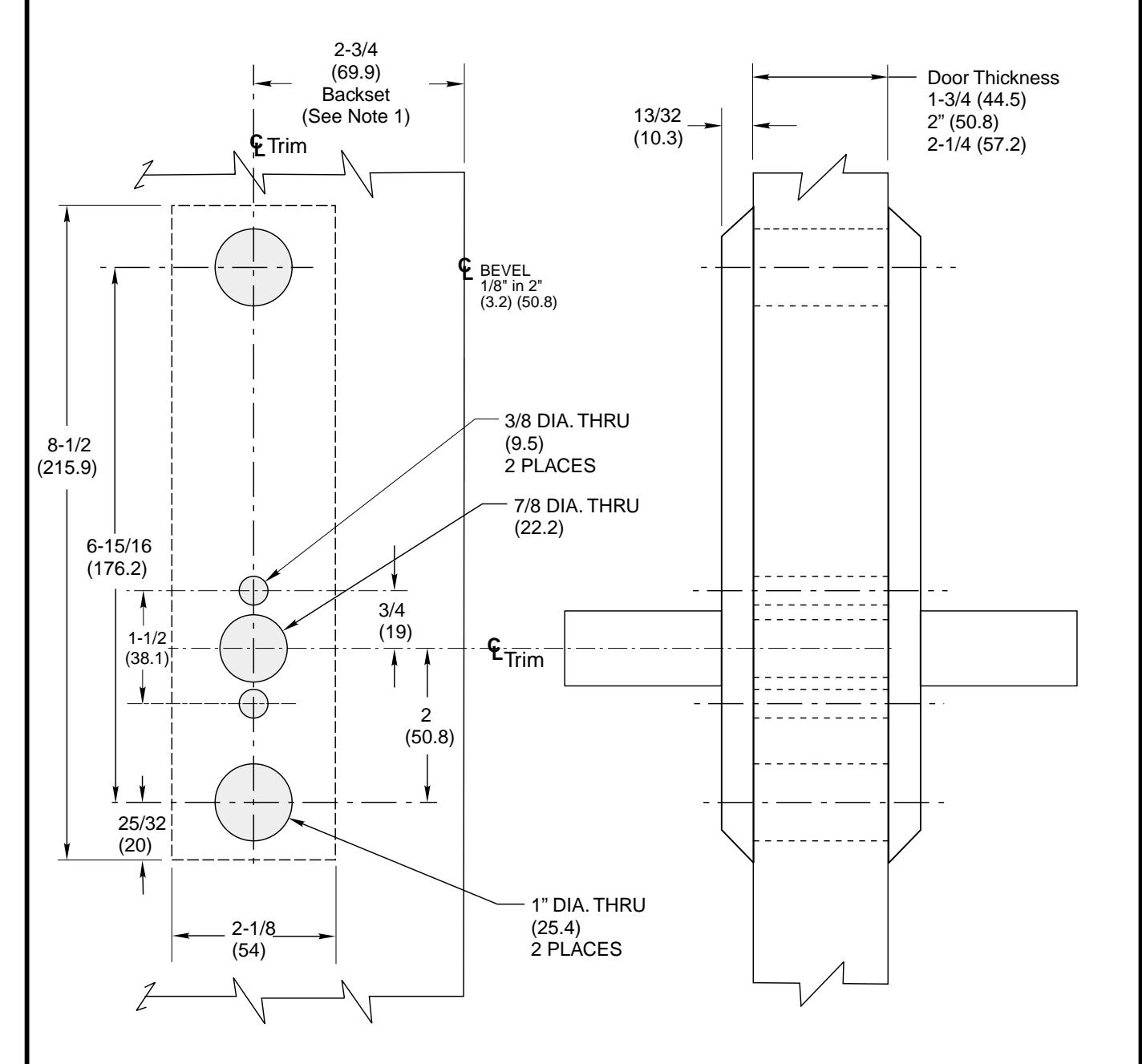

Corbin Russwin Vandal Resistant Trim for ML2000 Series Mortise Locks Template_T30946

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• Refer to mortise lock template for cylinder and turnpiece or indicator preps when required.
• 3. Dimensions given in inches and (mm).

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ML2000 Vandal Resistant

Lever Trim

Corbin 75° Russwin 75°

www.corbinrusswin.com

Drawing Not To Scale Supersedes Dr. SJL A

Date 5-01 Template Number T30946
