Notes:

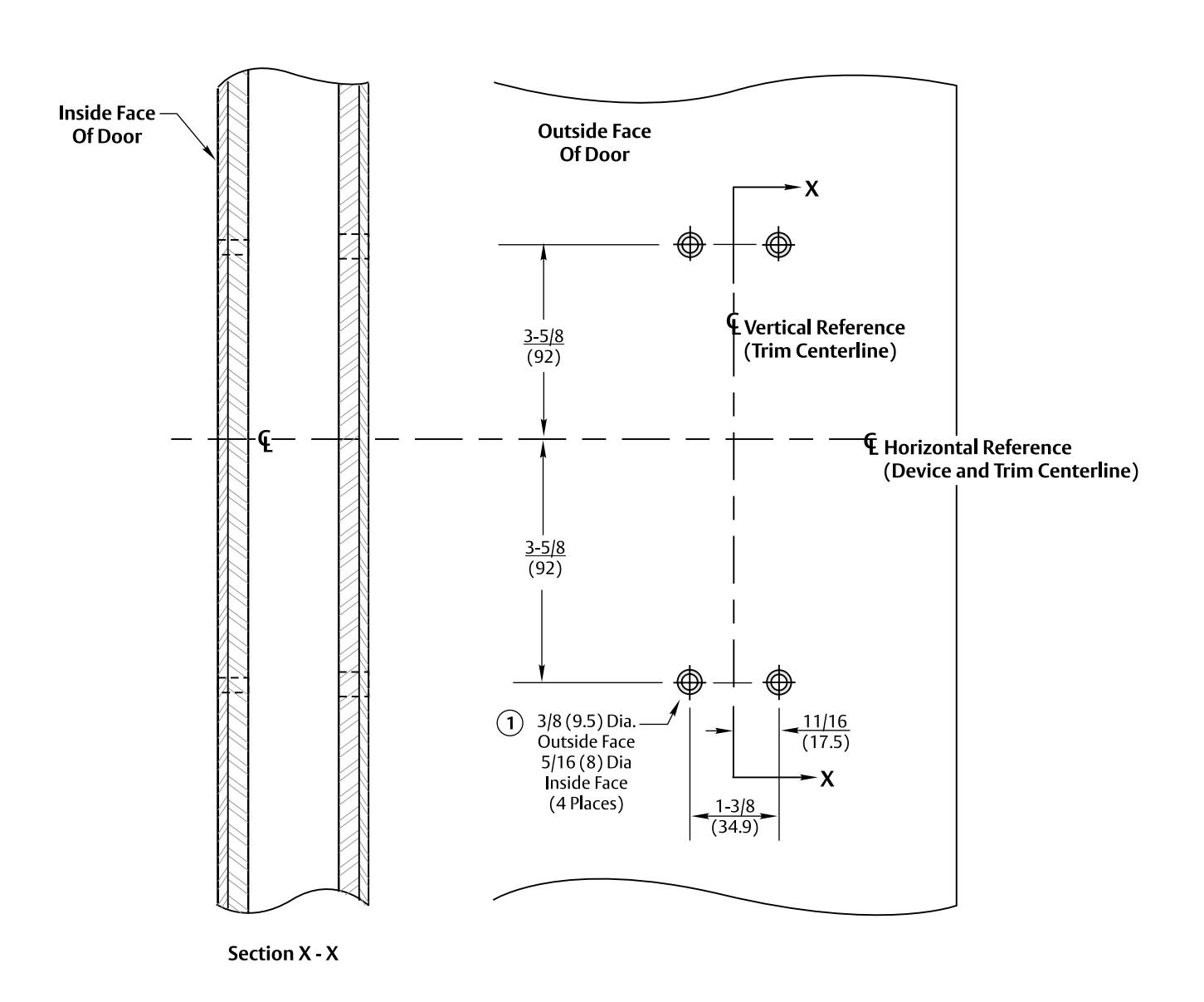

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • Provide adequate internal support to prevent door deformation after trim is bolted to the device.

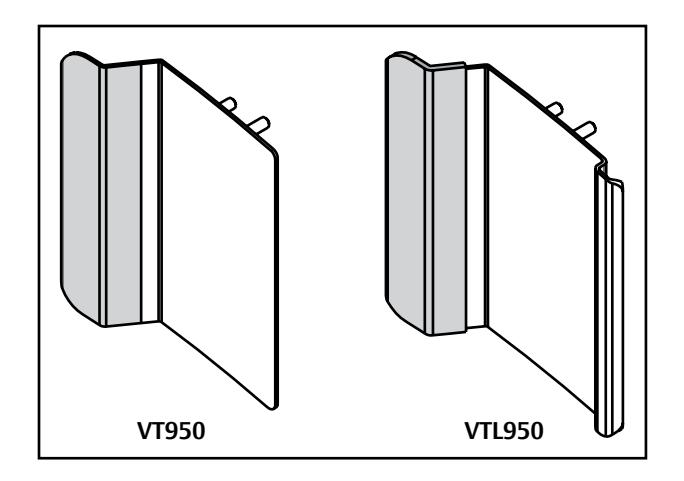

VT950 & VTL950 Series Trim

With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices Metal Door Preparation

Corbin 72° RUSSWIN 22° ASSA ABLOY

TANDRE TO NOT SCALE DRAWING TEMPLATE NUMBER T31086-1 corbinrusswin.com DATE 02-20
