UT5200 Series

Table of Contents

Applications	2
Features 3
Functions	4
Trim Designs	5
Options and Accessories	6
How to Order 8
Helpful Terms	11
How to Specify	12

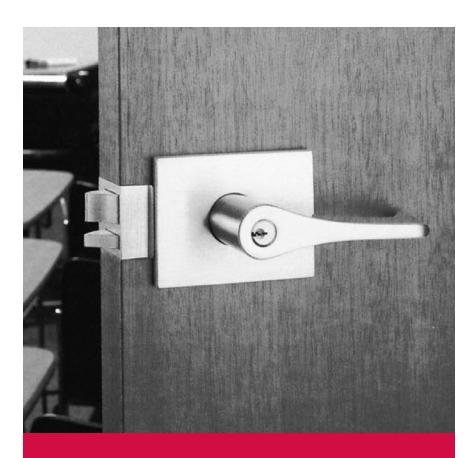

Applications

This lock has provided decades of service in some of the world's most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized. Typical high-traffic commercial, institutional and industrial applications include:

• Schools and universities
• Office buildings
• Hospitals
• Municipal buildings
• Historic buildings

Advantages

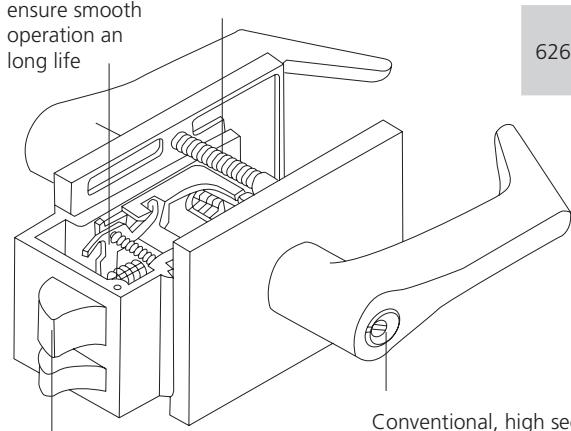

• Factory pre-assembled for quick, economical, one-piece installation: no job site assembly required
• 3/4" radius latchbolt, designed to wedge more tightly into the strike when tampered with, while meeting all ADA force-to-latch requirements.

www.corbinrusswin.com

Overview Features

UT5200 Series UT5200 Series

Features

Handing

Specify hand. All functions are handed.

Door Thickness

1-3/4" (44mm) only.

Backset

2-3/4" (70mm) only.

Lock Chassis

One-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromated for corrosion resistance.

Front

Beveled 1/8" (3mm) in 2" (51mm).

Latchbolt

Brass, chrome plated, 3/4" (19mm) throw pivoted, swinging type.

Auxiliary Latch

Deadlocks latchbolt, preventing manipulation when door is closed.

Strike

Wrought brass or bronze, ANSI strike with nylon adjusting screw, standard. 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes and lip lengths available; see pages 6 and 9.

Cylinder

Brass, 6-pin, L4 keyway, 0-bitted standard.

Keys

Two nickel silver standard.

Keying Features Available

Master keying Construction master keying Visual key control Concealed key control Interchangeable core (LFIC or SFIC) Security

Security LFIC Access 3®

Pyramid High Security Pyramid High Security LFIC Pyramid Security Pyramid Security LFIC

Master ring

Warranty

One-year limited.

MicroShield®

UT5200 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C".

Note: MicroShield® coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated product must still be cleaned to insure the surfaces will be free of destructive microbes. Corbin Russwin makes no representations or warranties, express or implied, as to the efficacy of the MicroShield antimicrobial.

Certification/Compliance

ANSI/BHMA

Precision machined internal parts

Designed to meet A156.2 Series 2000. Meets A117.1 Accessibility Code (lever design only).

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

All levers with return comply; levers return to within 1/2" (13mm) of door face.

UL-cUL

All locks listed for A label and lesser class doors, single or pair, maximum door size 3'8" (111.7cm) x 7'2"(218.4cm) All locksets also listed for B label doors, single or pair, maximum door size 4' x 8'. Letter F and UL symbol on lock frame indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Finishes

612	US10	Satin Bronze
613	US10B	Dark Oxidized Satin Bronze, Oil Rubbed
613E	—	Dark Oxidized Satin Bronze - equivalent
625	US26	Bright Chromium Plated
626	US26D	Satin Chromium Plated
626C	—	Satin Chromium Plated with MicroShield®

3/4" throw latchbolt provides security and meets all force-to-latch requirements

Conventional, high security, interchangeable core and master ring cylinders available for keying flexibility

Overview Functions

UT5200 Series UT5200 Series

Outside Inside	Series/Function	Type	ANSI No.	Function Description
	UT5210	Passage or Closet	F36	• Latchbolt by grip either side. • Both grips always free.
	UT5220	Privacy Bedroom or Bathroom	F37	• Latchbolt by grip either side. • Outside grip locked by push button. • Outside grip unlocked by emergency release tool outside, by rotating inside grip or by closing door. • Inside grip always free.
	UT5251	Entrance or Office	F40	• Deadlocking latchbolt by grip either side, except when turn button locks outside grip. • Key outside retracts latchbolt. • Outside grip unlocked by turn button. • Inside grip always free.
	UT5255	Classroom	F42	• Deadlocking latchbolt by grip either side, except when key outside locks outside grip. • Outside grip unlocked by key outside. • Inside grip always free.
	UT5257	Storeroom or Closet	F44	• Deadlocking latchbolt by key in outside grip or by rotating inside lever. • Outside grip always rigid. • Inside grip always free.
	UT5282	Store Door	F46	• Deadlocking latchbolt by grip either side, except when key either side locks and unlocks both grips. • Keyed alike unless specified otherwise.

Indicates optional interchangeable core available; see How to Order, page 9.

Indicates rigid grip.

Overview Trim Designs

UT5200 Series UT5200 Series

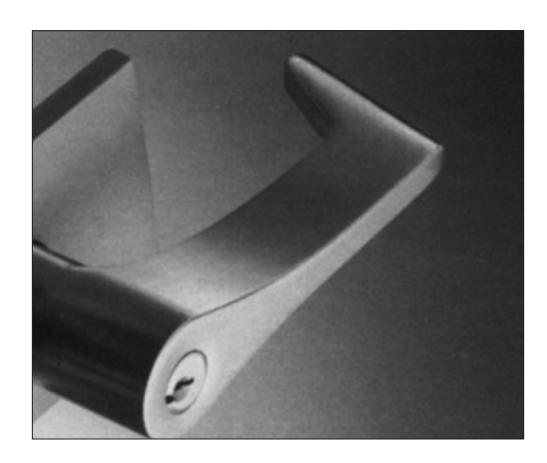

Essex

Complies with codes requiring lever to return to within 1/2" (13mm) of door face. Brass.

Overview Options and Accessories

UT5200 Series UT5200 Series

Strikes

*Lip length for ANSI strikes measured from lip to center

ANSI Curved Lip

Brass or bronze. 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Nylon set screw to adjust clearance. No optional lip lengths. Wrought box not available. To order with lockset, see How to Order, pages 8 and 9. To order separately, specify 236L75 x Finish.

ANSI Straight Lip for Extended Lip Escutcheon

Brass or bronze. 4-7/8" (124mm) x 1-1/4" (32mm) x 15/16" (24mm) lip to center.

Nylon set screw to adjust clearance.

Furnished standard with extended lip escutcheon option. To order separately, specify 610L43 x Finish.

ANSI Straight Lip for Pairs of Doors

Brass or bronze. 4-7/8" (124mm) x 1-1/4" (32mm) x 1" (25mm) lip to center. Non-adjustable. To order with lockset, see How to Order, pages 8 and 9. To order separately, specify 610L44 x Finish.

*Lip length for non ANSI strikes measured from back of the strike to the lip.

Curved Lip "T" Strike

Brass.

3-1/4" (83mm) x 1-1/8" (29mm) x 2-1/8" (54mm).

Nylon set screw to adjust clearance.

Optional lip lengths (measured from back of strike to edge of lip): 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order with lockset, see How to Order, page 9.

To order separately, specify 083L96 x Lip Length x Finish.

For Extended Lip Escutcheon

Brass or bronze. 3-1/4" (83mm) x 1-1/8" (29mm) x 1-13/16" (46mm) lip length. Nylon set screw to adjust clearance. Lip not curved. To order with lockset, see How to Order, page 9. To order separately, specify 293L14 x Finish.

For Pairs of Doors

Brass or bronze. Non-adjustable 3-1/4" (83mm) x 1-1/16" (27mm) x 1-13/16" (46mm). To order with lockset, see How to Order, page 9. To order separately, specify 082L67 x Finish.

Overview Options and Accessories

UT5200 Series UT5200 Series

Cylinders

Standard Cylinder .552" plug diameter Brass, 6-pin 2 nickel silver keys Finishes: 606, 626 .496" plug diameter Pyramid

Interchangeable Core .509" plug diameter conventional .552" plug diameter high security Brass, 6-pin 2 nickel silver keys Finishes: 606, 626 .496" plug diameter Pyramid

Master Ring Cylinder .552" plug diameter Brass, 6-pin 2 nickel silver keys Finishes: 606, 626

Conventional 6-Pin	CR2000-052	CR8000	CR2060-052
Conventional 7-Pin	N/A	CR8000-7	N/A
Security	CR2010-052	CR8010	N/A
Pyramid High Security	CR2020-052	CR8020	N/A
Pyramid Security	CR2027-052	CR8027	N/A
Access 3 - Patented (AP)	CR2500-052	CR8500	N/A
Access 3 - Security (AS)	CR2600-052	CR8600	N/A
Access 3 - High Security (AHS)	CR2700-052	CR8700	N/A

To order optional cylinder with lockset, see How to Order, page 9. To order cylinder separately, specify Part No. x Keyway x Finish) (e.g., CR2000-052 x L4 x 626).

Small Format Interchangeable Core

Description	Number
6-pin	CR8200
7-pin	CR8200-7

Cores are available in Best® keyways A, B, C, D, E, F, G, H, J, K, L, M. Cores are brass and come with 2 nickel silver keys. Finishes: 606, 626

How to Order

UT5200 Series

Ordering Examples

Stock Order

Quantity	Series/Function	Trim	Finish	Hand
100	UT5251	ESE	626	RH

Split Finish Order

Overstitus	Series/	Trino	Fin	ish	Hand
Quantity	Function	Trim -	Outside	Inside	Hand
12	UT5251	ESE	626	625	RH

Where to find ordering information and Quick Codes

Series/Function	Page 4
Trim Designs	Page 5
Cylinder and Keying	Page 9
Strikes	Page 9
Finish	Page 10
Handing	Page 10
Miscellaneous Options	Page 10

Contract / Detailed Order

Quantity	Series/ Function	Trim	Finish	Hand	Optional Strike	Misc. Options	Optional Cylinder	Keying	Keyset
24	UT5251	ESE	626	RHR	SC200	M21	MR	VKC3	AA1

Overview How to Order

UT5200 Series UT5200 Series

Cylinder and Keying

Description	Specify
Conventional 6-pin	(standard)
Less Cylinder(s)	LC
Master Ring	MR
LFIC
LFIC 6-pin	C6
LFIC 6-pin Less Core	CL6
LFIC 6-Pin Disposable Core	CT6D
LFIC 6-pin with Temporary Construction Core (Red)	CT6R
LFIC 6-pin with Temporary Construction Core (Blue)	CT6B
LFIC 6-pin with Temporary Construction Core (Green)	CT6G
LFIC 7-pin	C7
LFIC 7-pin Less Core	CL7
LFIC 7-Pin Disposable Core	CT7D
LFIC 7-pin with Temporary Construction Core (Red)	CT7R
LFIC 7-pin with Temporary Construction Core (Blue)	CT7B
LFIC 7-pin with Temporary Construction Core (Green)	CT7G
SFIC
SFIC 6-pin	C6S
SFIC 6- or 7-pin Disposable Core	CTSD
SFIC 6-pin with Temporary Construction Core	CT6SB
SFIC 7-pin	C7S
SFIC 7-pin with Temporary Construction Core	CT7SB
Security
Security	HS
Security LFIC	CHS
Access 3®
Access 3® Patented Fixed Core	AP
Access 3® Security Fixed Core	AS
Access 3® High Security Fixed Core	AHS
Access 3® Patented LFIC	ACP
Access 3® Security LFIC	ACS
Access 3® High Security LFIC	ACHS
Pyramid
Pyramid Security Fixed Core	PS
Pyramid High Security Fixed Core	PHS
Pyramid Security LFIC	PCS
Pyramid High Security LFIC	PCHS
Pyramid LFIC Less Core	CLP
Pyramid with temporary construction core	CTP
Pyramid Disposable Core	CTPD

Cylinder and Keying (cont.)

Description	Specify
Keying and Keys
0-bitted with 2 blank keys	(standard)
Keyed random	KR
Construction master keyed	CMK
2 keys per lock	(standard)
More than 2 keys	KY# (e.g., KY6)
Visual key control (VKC)
No bitting or keyset stamping on keys	VKC0
Keys only	VKC1
Cylinders and keys (not for AS, AHS, ACS, ACHS, HS, CHS, PHS or PCHS)	VKC2
Cylinders only (not for AS. AHS, HS, ACS, ACHS, CHS, PHS or PCHS)	VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys	CKC2
CKC cylinders only (not for AS, AHS, ACS, ACHS, PHS, PCHS)	CKC3

Strikes

Lip Length	ANSI Curved Lip Specify	T-Strike Curved Lip Box* Specify
1-1/4" (32mm)	(standard)	N/A
2" (51mm)	N/A	SC200
2-1/8" (54mm)	N/A	SC218
2-1/4" (57mm)	N/A	SC214
2-1/2" (64mm)	N/A	SC212
2-3/4" (70mm)	N/A	SC234
3" (76mm)	N/A	SC300
Lip Length	ANSI* Straight Lip for Door Pair Specify	For Door Pair* Specify
1-13/16" (46mm)	SA136	SP136
Lip Length	ANSI Straight Lip for Extended Lip Escutcheon	For Extended Lip Escutcheon
15/16" (24mm)	Standard when extended lip escutcheon option is specified	SX156

^* Lip is measured from back of strike

Overview How to Order

UT5200 Series UT5200 Series

Miscellaneous Options

Description	Specify
Spanner head screws	M02
Lever to accept SFIC core	M08
Extended lip escutcheon (for single door reverse bevel; 630 finish to match 626 only)	M11
Knurling outside and inside	M20*
Knurling outside only	M21*
Knurling inside only	M22*
Abrasive coat outside and inside	M23
Abrasive coat inside only	M24
Abrasive coat outside only	M25
Lead-lined escutcheon (inside only)	M28
Unstaked lever retainer	M33

^* All levers provided in a powder coat finish will be supplied with an abrasive coating

Finish

	Description	Specify
US10	Satin Bronze	612
US10B	Dark Oxidized Satin Bronze, Oil Rubbed	613
—	Dark Oxidized Satin Bronze - equivalent	613E
US26	Bright Chromium Plated	625
US26D	Satin Chromium Plated	626
—	Satin Chromium Plated with MicroShield®	626C

Lock/Cylinder Finish

Lock	Cylinder/Core*
612,613,613E	606
625,626	626

^* Finish when cylinder provided with lock

Handing

Hand	Specify
Right Hand	RH
Left Hand	LH
Right Hand Reverse	RHR
Left Hand Reverse	LHR

Overview Helpful Terms

UT5200 Series UT5200 Series

Abrasive Coat

Hard granular material applied to a knob or lever to provide a non-slip tactile surface for the visually impaired.

Auxiliary Latchbolt

A supplementary latch which, when the door is closed, automatically deadlocks the latchbolt. Protects the latchbolt from forced retraction or "credit carding."

Backset

The distance from the front of the lock to the centerline of the cylinder or knob/lever hub.

Bevel

The angle of the edge of a door in relation to the inside and outside surfaces of the stile. The most common bevel for commercial doors is 1/8" in 2".

Box Strike

A strike equipped with an enclosure behind the hole(s) for the latchbolt and/or deadbolt. Protects the strike area from mortar and cement.

Chassis

The housing of a lockset, containing most of the working parts.

Curved Lip Strike

A strike with the lip curved to conform to the detail of the door frame.

Front

The part of a lock visible on the edge of a door.

Hand

The direction a door swings.

Knurling

A permanently applied tactile warning engraved in the metal of a knob or lever to warn the visually impaired of dangerous conditions on the other side of the door.

Latchbolt

A lock component having a beveled end that projects from the lock front but may be forced back into the lockcase by end pressure or drawn back by action of the retractor. When the door is closed, the latchbolt projects into a hole provided in the strike, holding the door in the closed position.

Lead Lined

Pertains to a lockset whose trim has a lining of lead to prevent the passage of radiation. Generally used in hospital applications.

Lip of Strike

The projecting part of a strike which first engages the latch; may be curved or straight.

Return

The part of a lever handle which angles or turns back toward the face of the door. Also, the distance between the end of the return of the lever and the surface of the door.

Strike

A metal plate that is pierced or recessed to receive the deadbolt or latchbolt of a lock (sometimes called a keeper).

Throw

The distance that a lock's deadbolt or latchbolt projects when in the locked position. The effective throw is the distance that a latchbolt projects when deadlocked.

Wrought Strike Box

A metal box mounted behind the strike to protect the strike opening from mortar or cement.

Keying and Cylinder Terms

Concealed Key Control (CKC)

The marking of standard key symbols on a cylinder in a location which is not visible once the cylinder is installed.

Construction Core

An interchangeable core for temporary use during construction. It is replaced by the permanent core when construction personnel no longer need access.

Construction Master Keying (CMK)

A cylinder preparation which allows temporary access by construction personnel.

Control Key

A key used to remove and install interchangeable cores.

Cylinder

A lock component containing the combination which determines which keys will operate.

Interchangeable Core (IC)

A cylinder which can be removed and installed quickly with a control key by non-skilled personnel when rekeying is required.

Key Section

The cross-section of a key blade, as viewed from bow to tip.

Key Symbol

A letter/number combination in standard industry format (e.g., 1AA, AA1, etc) which indicates exactly how a key or cylinder fits into a keying system.

Keyway

The opening in a cylinder plug through which the key enters.

Master Keying

Preparation of a cylinder to operate with keys of different levels of access.

Master Ring Cylinder

A cylinder which offers a wider range of keying.

Visual Key Control (VCK)

The marking of standard key symbols on keys and on the visible portion of the front of a cylinder.

Copyright © 2000-2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

How to Specify

UT5200 Series

Suggested Specification

All locksets shall be UT5200 Series Pre-Assembled Unit Locksets, as manufactured by Corbin Russwin Architectural Hardware, Berlin, Connecticut, USA.

Locksets shall be the unit type, completely pre-assembled at the factory, requiring no dis-assembly to install on the door. Levers and escutcheons shall be part of the pre-assembled lockset.

The lock frame, levers, escutcheons and bolts shall be made from non-ferrous metals. Escutcheons shall be forged brass, 5/16" thick, and when installed on specified reverse bevel doors shall be the extended lip type to provide additional security. The latchbolt shall be extruded brass, pivoted swinging type with 3/4" throw. The cylinder shall be universal with a horizontal keyway to assure correct orientation. Conventional, high security, interchangeable core and master ring cylinders shall be available.

Lever handle designs shall return to within 1/2" of door surface.

All locksets shall be listed by Underwriters Laboratories for A label and lesser class doors, single or pair, maximum door size 3'8" x 7'2". All locksets shall also be UL listed for B label doors, single or pair, maximum door size 4' x 8'.

Certification:

Designed to meet ANSI/BHMA A156.2 Series 2000 ANSI A117.1 Accessibility Code (lever handle trim) California State Reference Code (formerly Title 19, California State Fire Marshal Standard) (lever handle trim)

All locks, trim and cylinders shall be from one manufacturer.

All locksets shall carry a one-year limited warranty.

Notes

UT5200 Series

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or impled, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
