Corbin Russwin Thumbturn Lever Sectional Trim for ML2000 Series Mortise Locks Template_T30554
Open the original PDF document
View PDFNOTES:
- BACKSET IS MEASURED FROM CENTERLINE OF BEVEL WHICH IS CENTERPOINT OF DOOR THICKNESS.
- 2. DIMENSIONS GIVEN IN INCHES AND (MM).
| TEMPLATE CROSS REFERENCE | |
|---|---|
| DESCRIPTION | TEMPLATE |
| ML2000, ML2200 Series Mortise Lock | 130600 |
| ML2000, ML2200 Series Mortise Lock (MR) | T30605 |
| ML2000, ML2200 Series Mortise Lock (HT) | T30607 |
RESPONS 18 ILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of handware shown. All architectural builders handware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

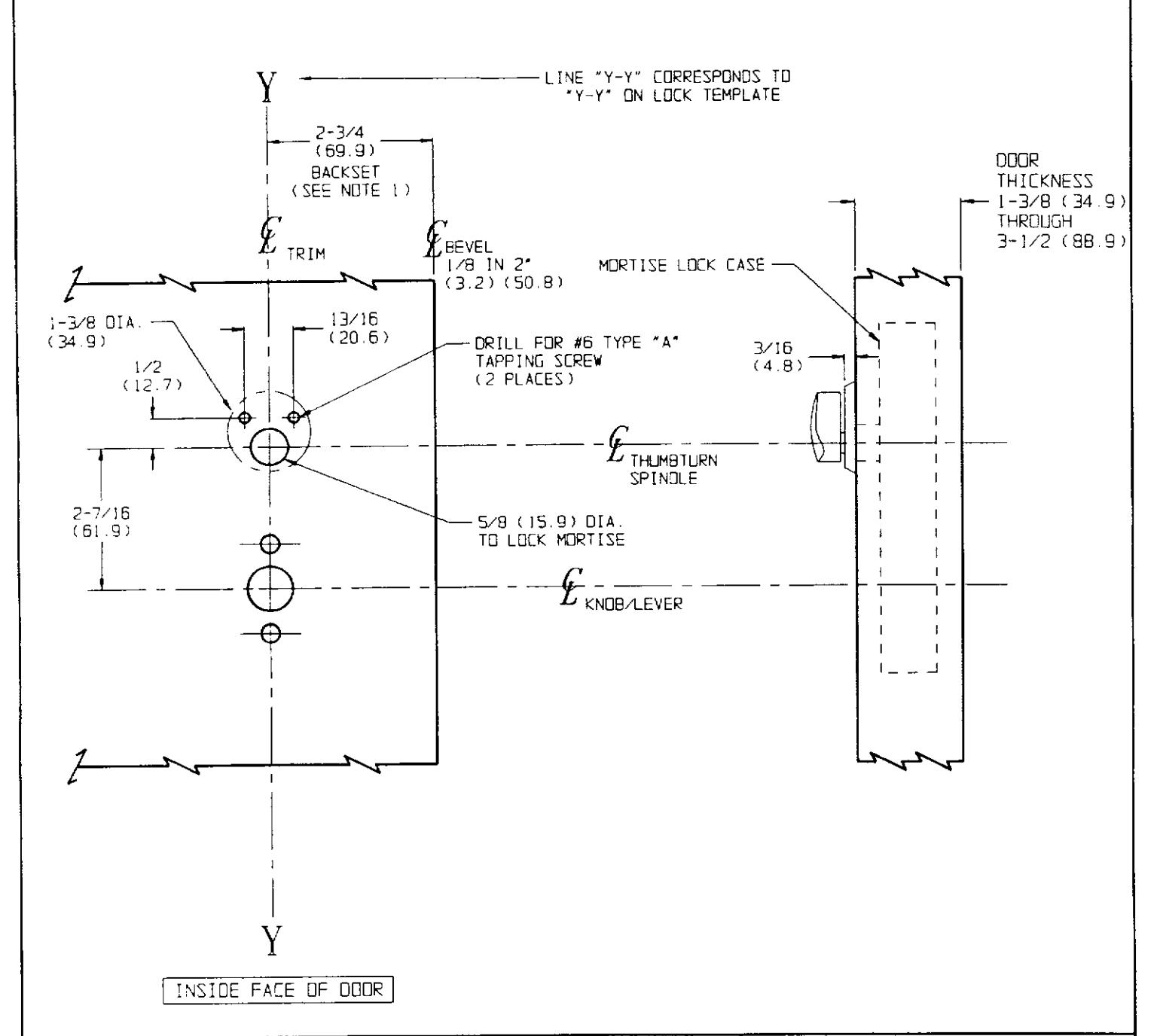

THUMBTURN LEVER
FOR MORTISE LOCK SECTIONAL TRIM
www.corbinrusswin.com
SUPERSECUS T30554 DA. CJF
8-99
TEMPLATE HUMBER
T30554-1
