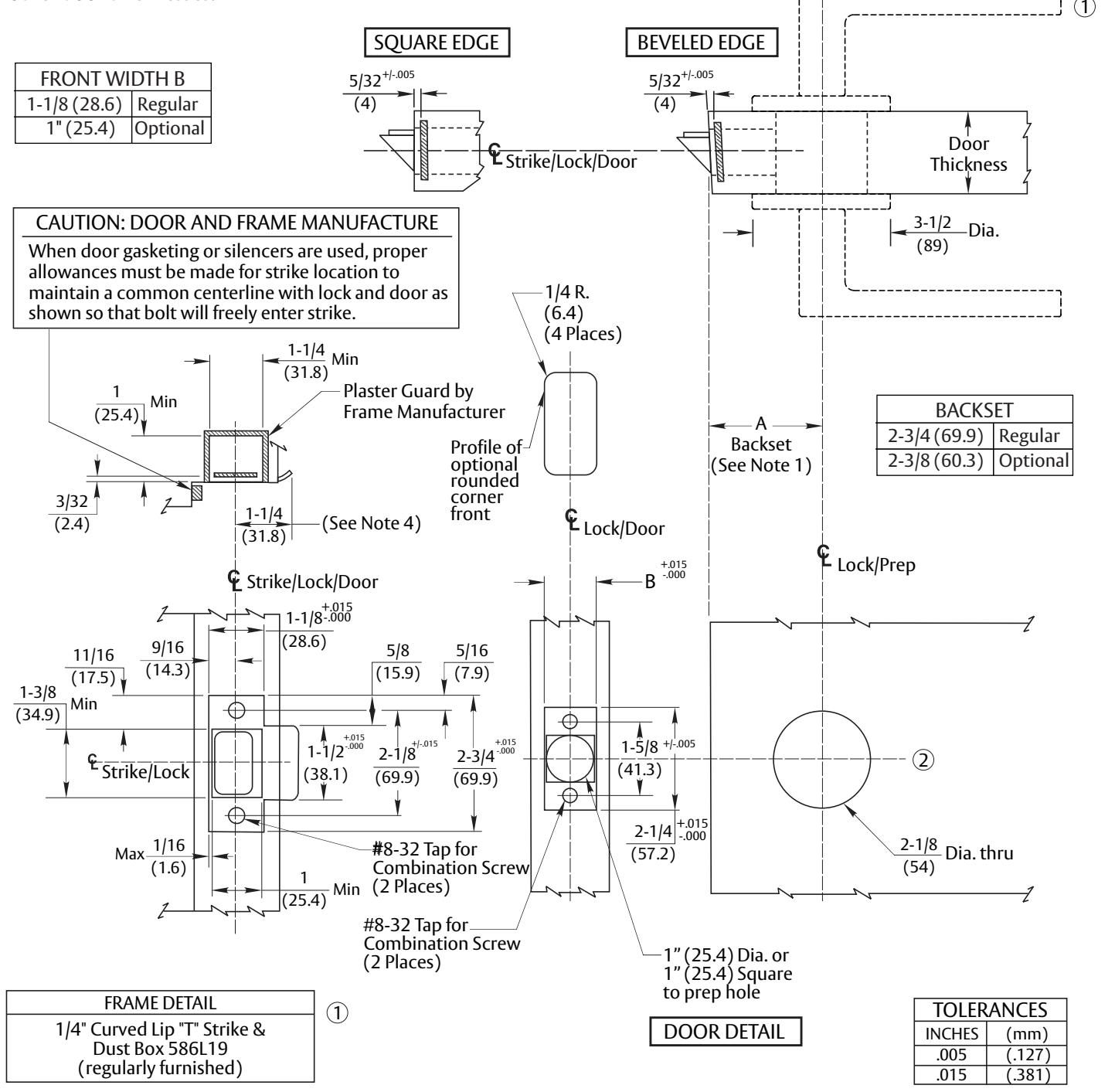

Corbin Russwin TL3700 Series Tubular Locks All Functions and Trims (except Dummy Trim) Template_T31048

Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Door prep with 2-3/4" (70) backset meets ANSI/BHMA standards A156.115 for steel doors and A156.115W for wood doors.
• 3. Dimensions given in inches and (mm).
• 4. 1-1/4" strike lip suits frame for 1-3/4" thick door. Lip will vary for other door thicknesses.

TEMPLATE CROSS REFERENCE DESCRIPTION TEMPLATE TL3750/50S/70 Dummy Trim T31049 217L13 ANSI Strike T30543 SF114, SFR114 Full Lip Strike T30683

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

TL3700 Series Tubular Lock All Functions And Trim Except Dummy Trim

Corbin 72° Russwin 72°

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31048-1 DO NOT SCALE DRAWING TEMPLATE NUMBER T31048-2 SHEET 1 Of 1 1/23
