Installation Instructions

Russwin 22 ASSA ABLOY

1. Check box contents. See other side for components.

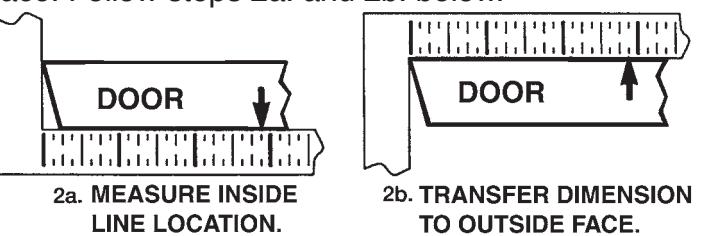

2. After marking door inside face for device location (Device Instructions), transfer "Vertical Reference Centerline" from inside to outside door face. Follow steps 2a. and 2b. below.

Transfer "Horizontal Reference Centerline" from inside to outside door face.

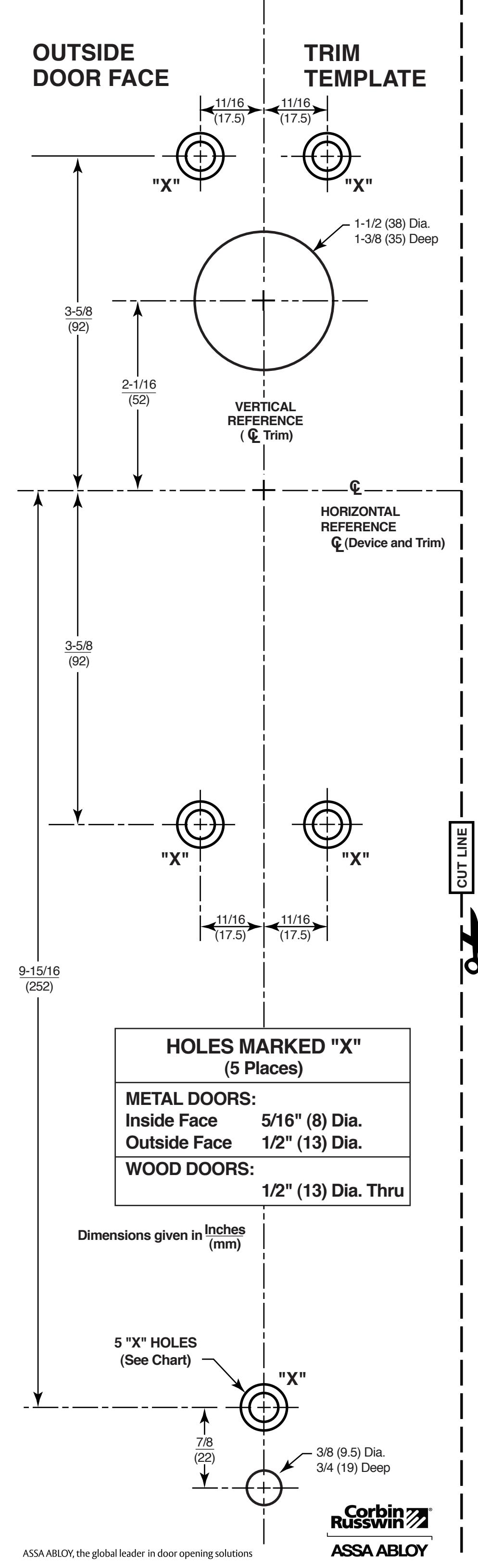

4. Align trim template and tape to door outside face. CAUTION: Office copiers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the dimensions written on the template to locate the holes on the door (do not use the template as a door marker).

5. Spot holes and prepare door for trim.

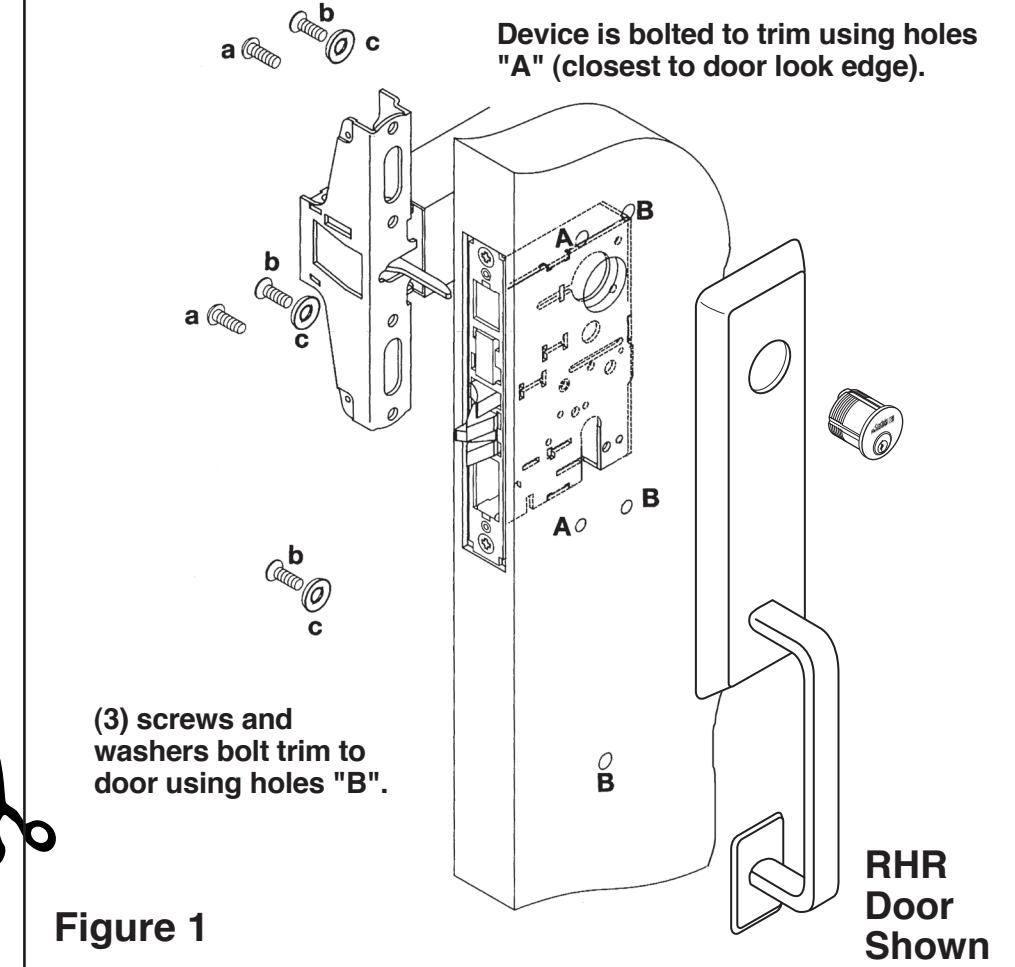

• 6. Mount trim to door thru holes "B". Fasten, finger tight only, with 3 screws (b) and washers (c), seating on door as shown in Figure 1.
• 7. Thread cylinder into mortise lock until seated within escutcheon recess with keyway positioned vertically and with plug in lower cylinder as shown in Figure 1. Tighten cylinder locking screw thru mortise lock front.

Continue as shown in device instructions.

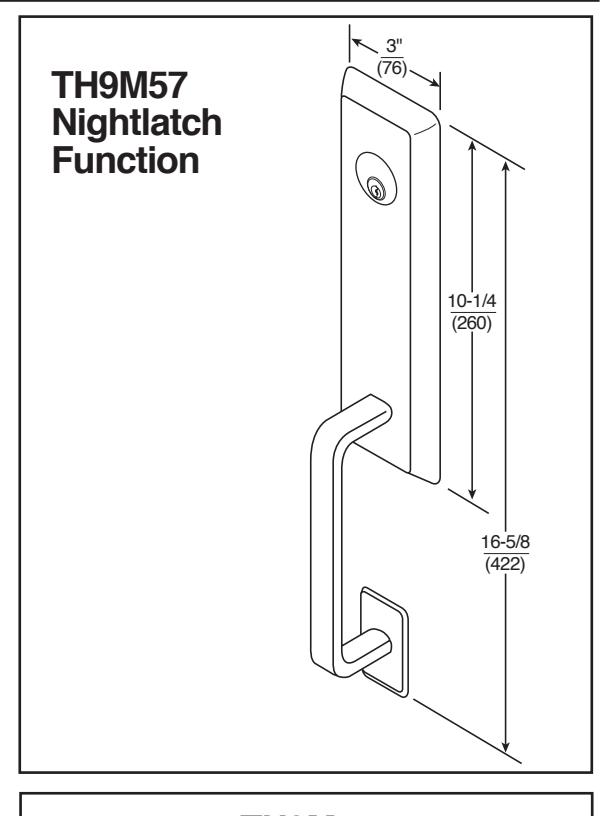

TH9M57 Heavy Duty Thumbpiece Trim Installation Instructions

For use with ED5600 Series Mortise Exit Device (Metal, Wood or Composite Doors)

FM262 11/18

(617417705)

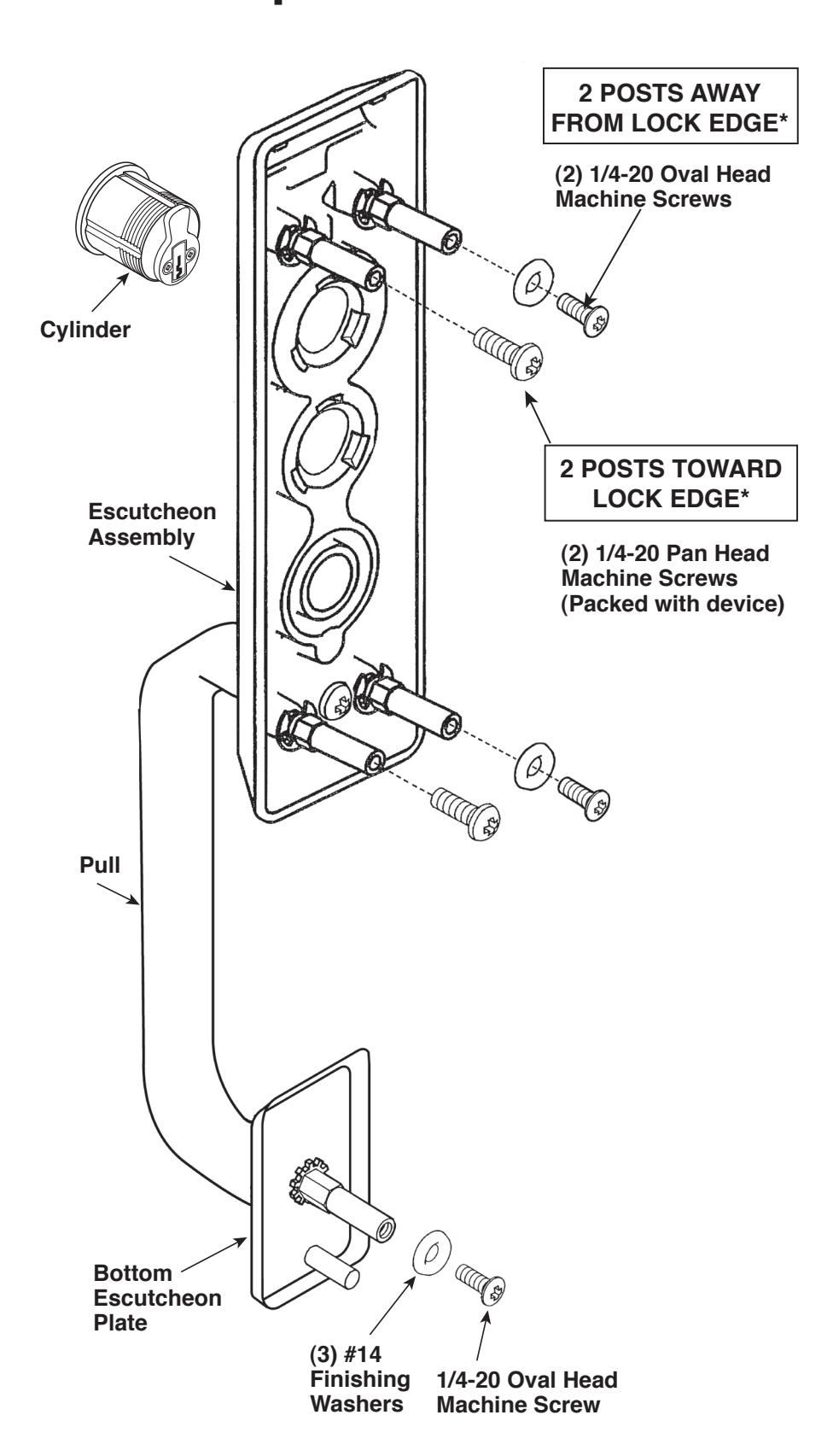

Trim Components

*Shown for LHR Door
