Corbin Russwin T13M55 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30869

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Shaded area represents mortise lock cavity from device template.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

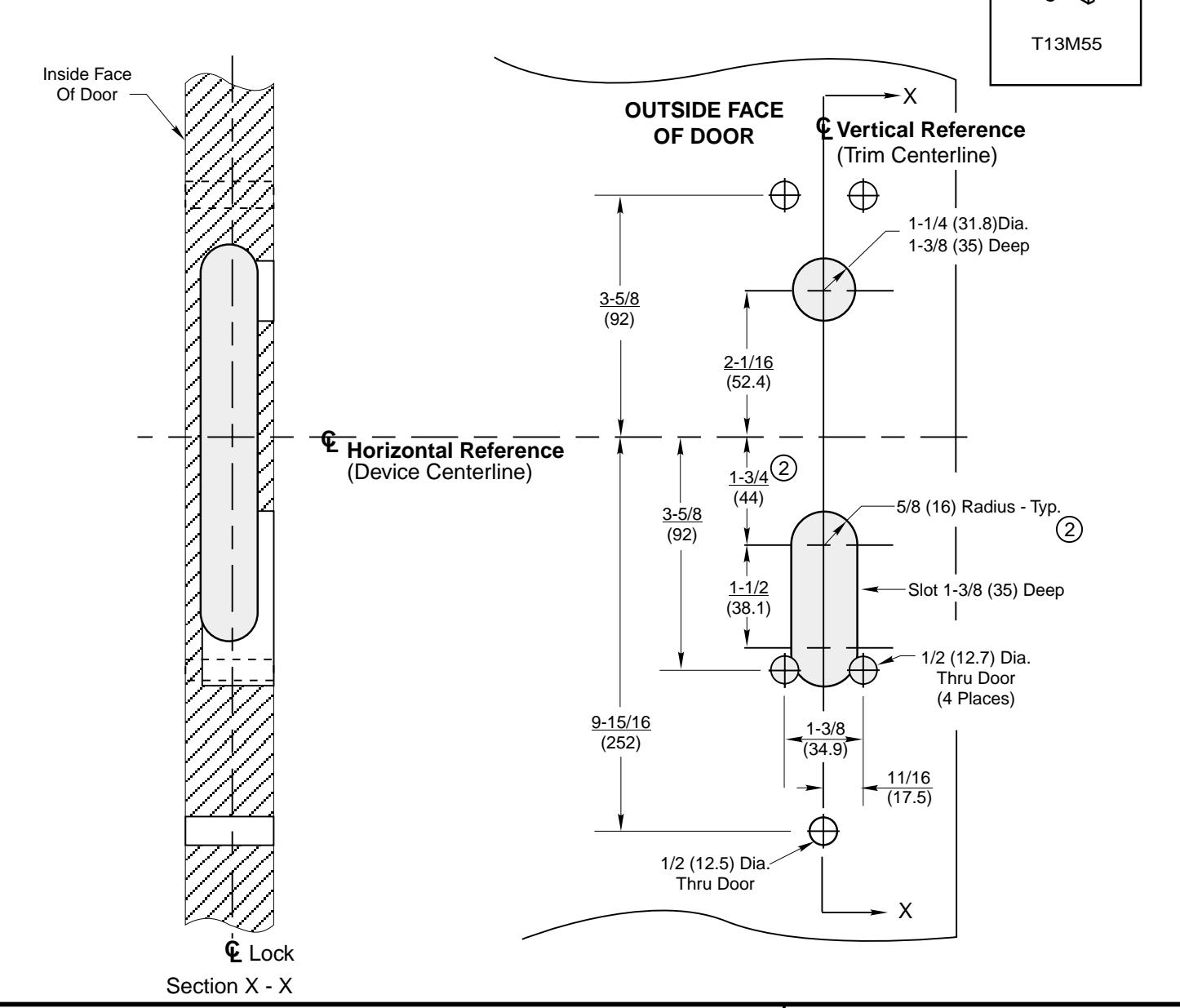

T13M55 Trim Wood or Composite Door Preparation With ED5600 Series Mortise Exit Devices

www.corbinrusswin.com

T308691 DO NOT SCALE DRAWING SUPERSEDES

T30869-2 6-06 TEMPLATE NUMBER DATE
