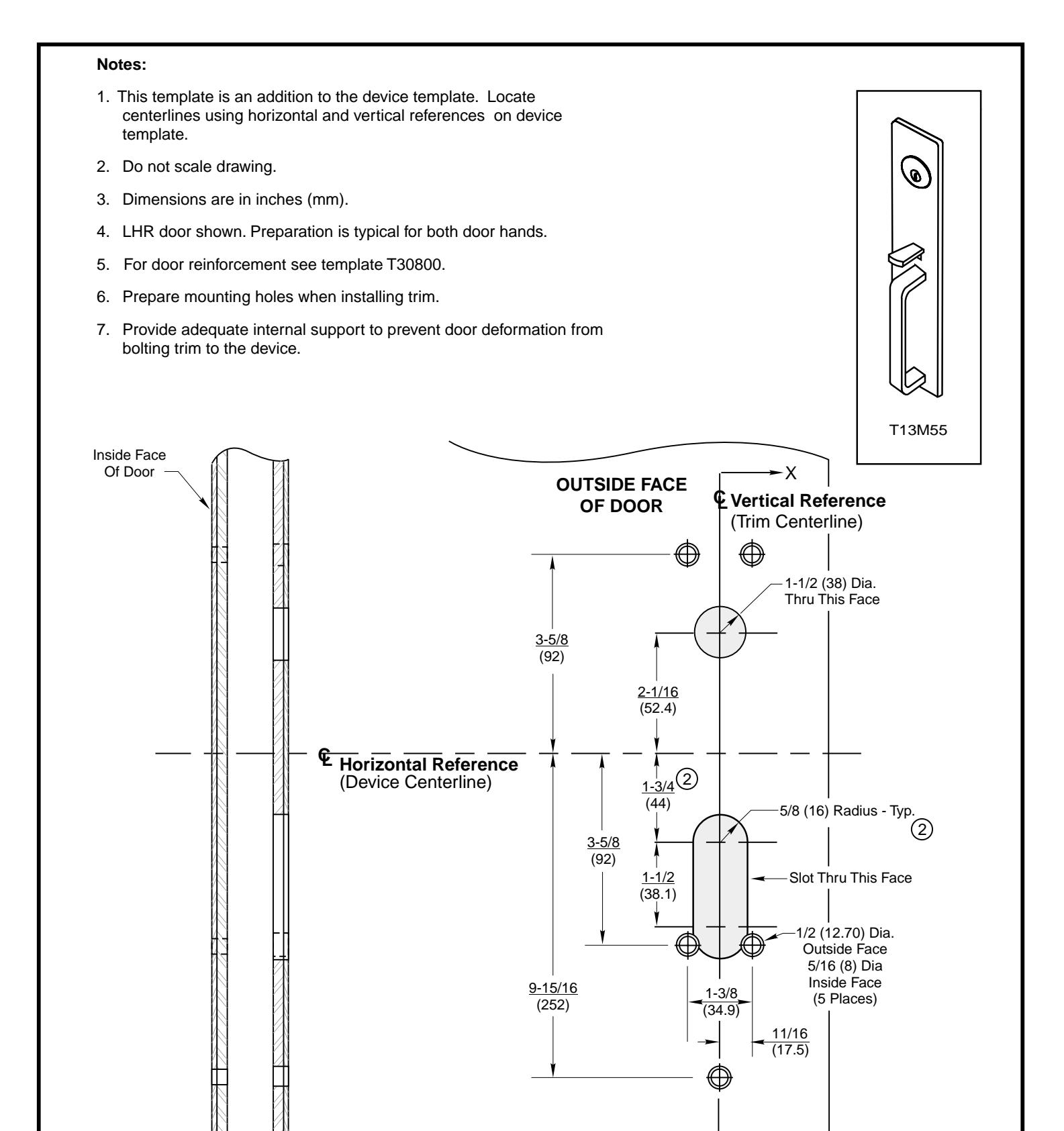

T13M55 Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices
Section X - X
DO NOT SCALE DRAWING SUPERSEDES T30833-1
X
TEMPLATE NUMBER DATE T30833-2 6-06
