Corbin Russwin T13M10 Trim for ED5600 Wide Stile Mortise Metal Door Template_T30834
Open the original PDF document
View PDF

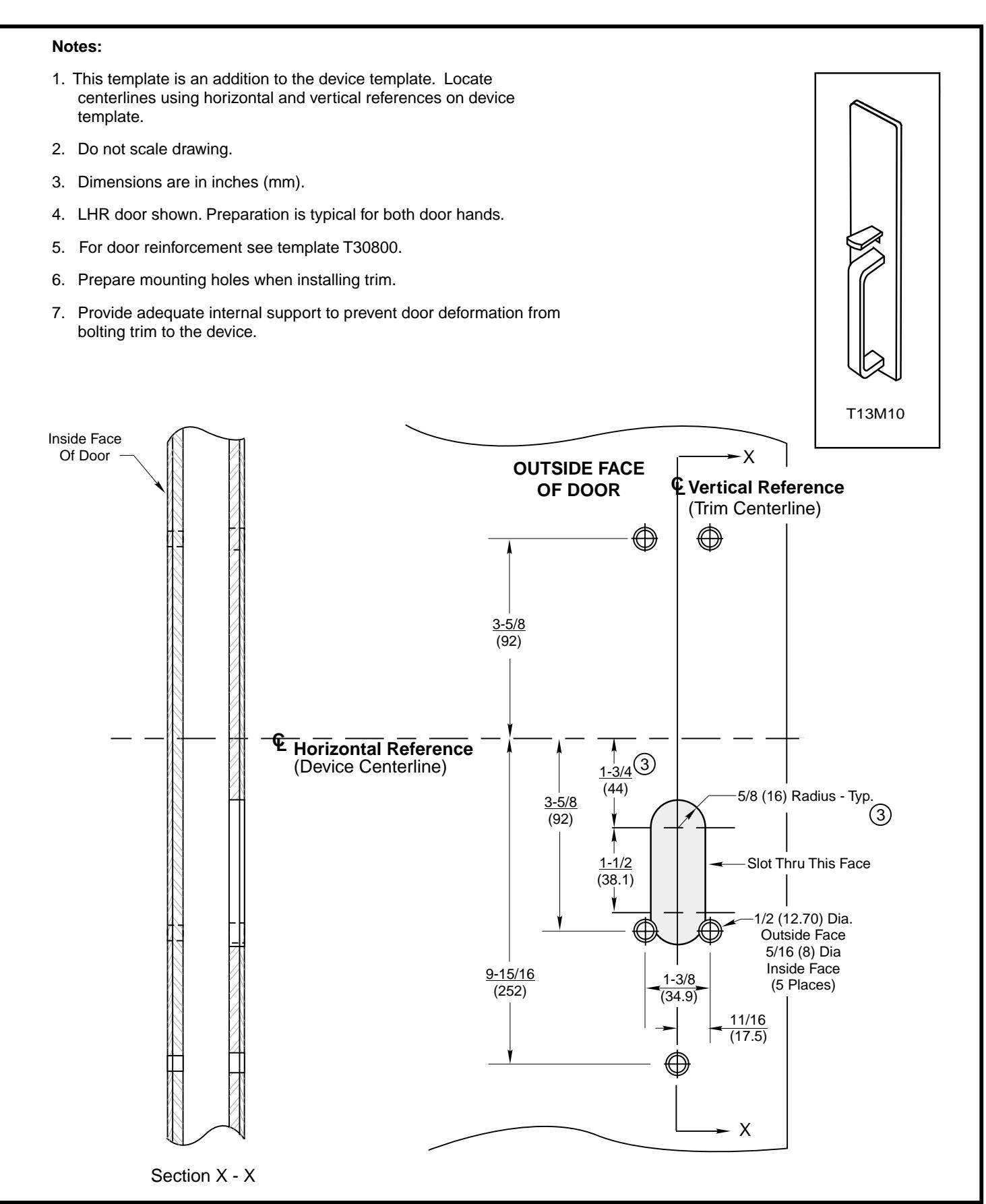

T13M10 Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices
DO NOT SCALE DRAWING SUPERSEDES T30834-2
TEMPLATE NUMBER DATE T30834-3 6-06
