Corbin Russwin T1357 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Wood or Composite Door Template_T30860

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate internal support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

T1357 Trim

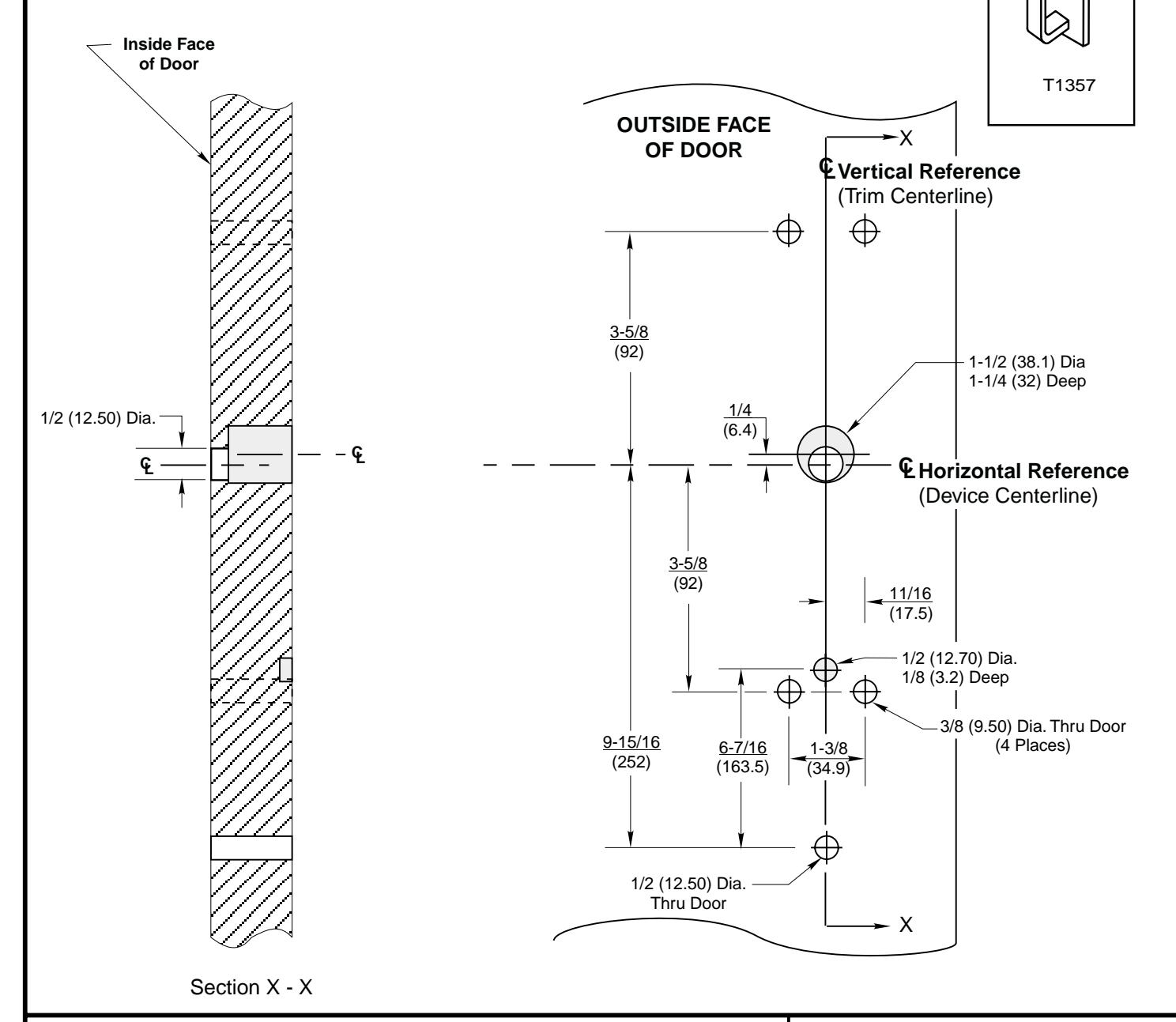

Wood or Composite Door Preparation with ED5200, ED5400, or ED5800 Series Rim and Vertical Rod Exit Devices

www.corbinrusswin.com

T30860-1 DO NOT SCALE DRAWING SUPERSEDES

T30860-2 8-99 TEMPLATE NUMBER DATE
