Corbin Russwin T1355 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30825

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.
  • 8. Dimensions given about a centerline are symmetrical
  • 9. Unspecified radii 1/8 (3.20) maximum.

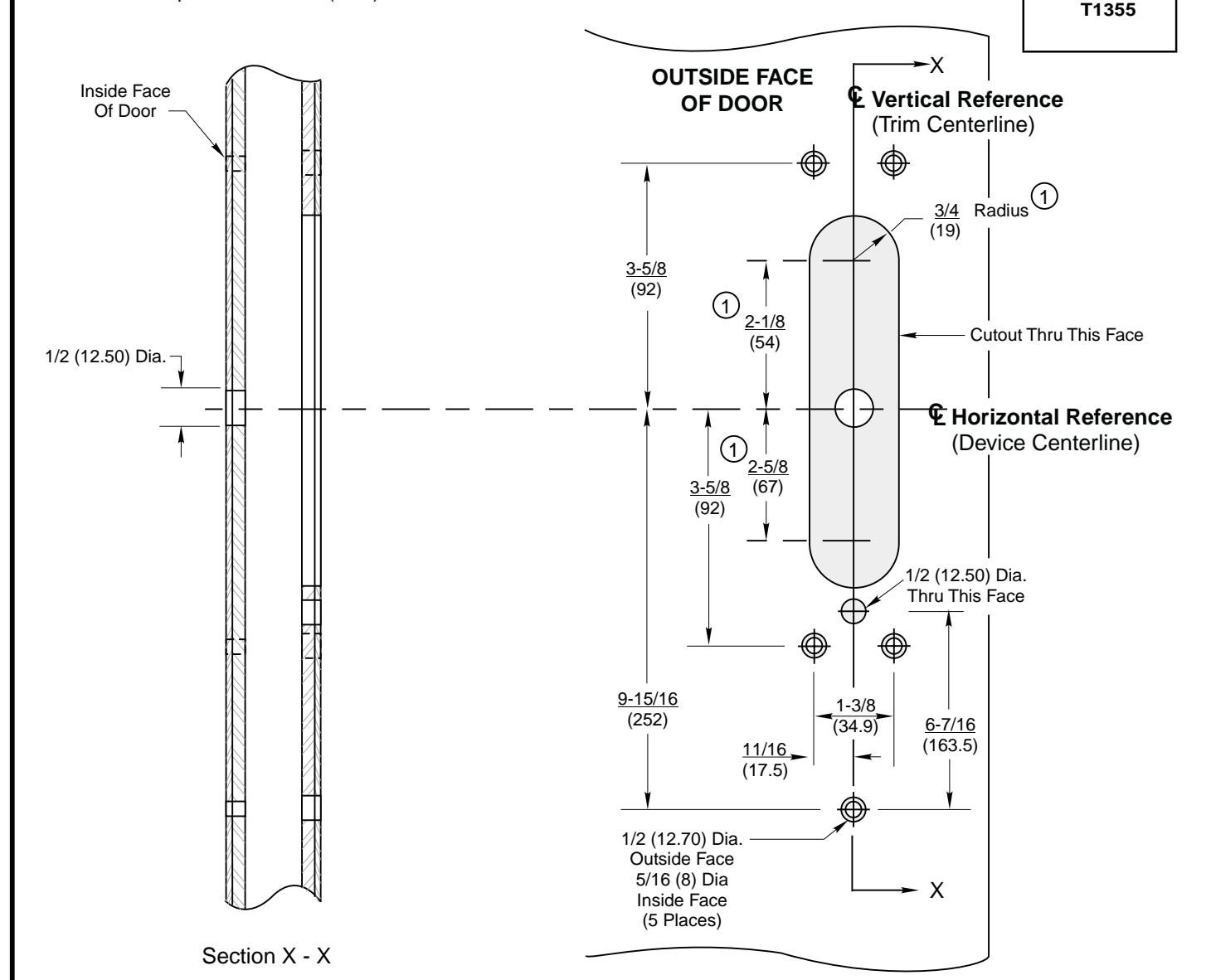

T1355 Trim

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30825

TEMPLATE NUMBER DATE T30825-1 9-99
