Corbin Russwin T1350 Trim for ED5200, ED5400, ED5600, ED5800 Wide Stile Rim, Mortise, CVR, SVR Wood or Composite…_T30862

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.

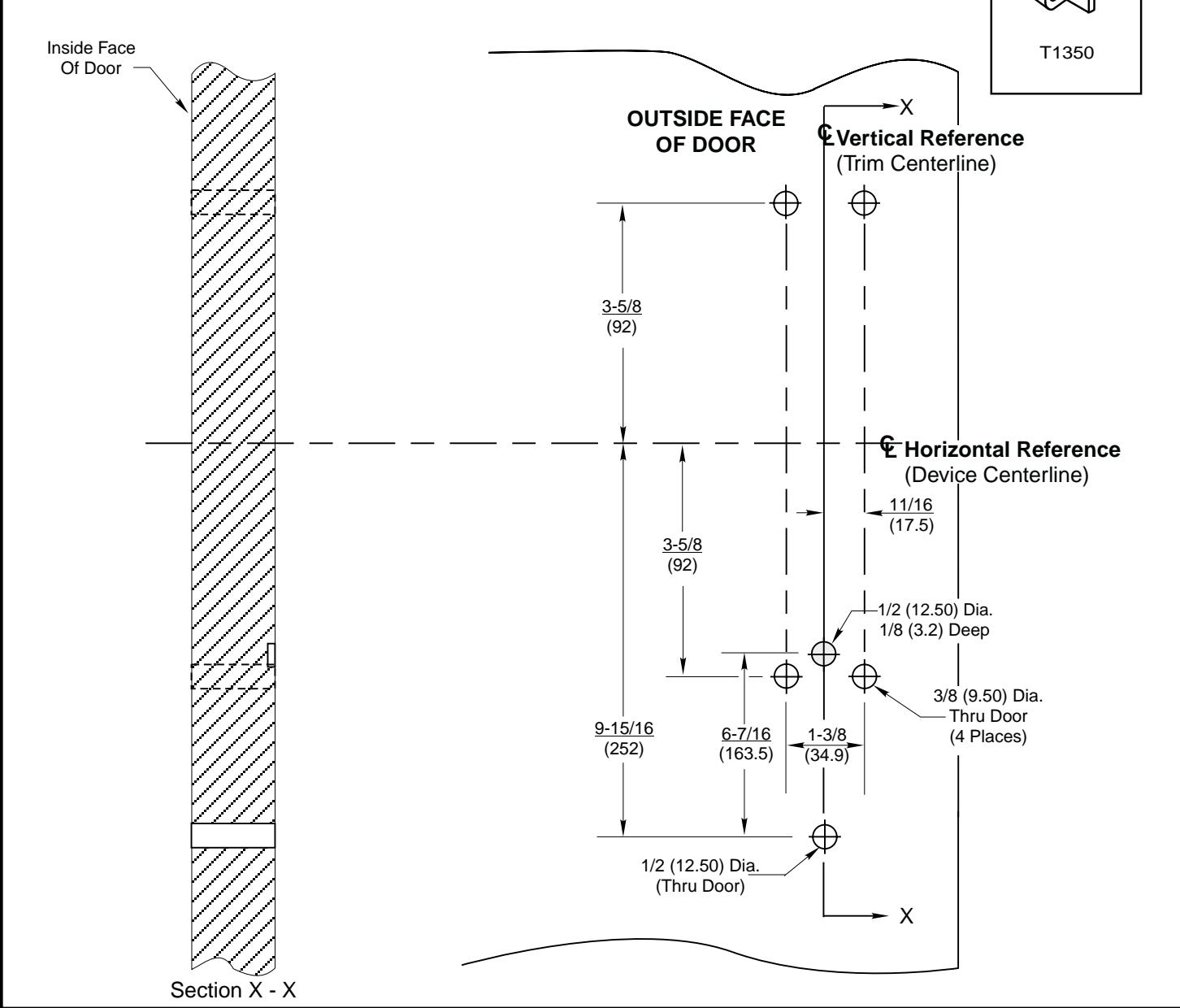

T1350 Trim With ED5200, ED5400, ED5600 or ED5800 Series

Wood or Composite Door Preparation Rim, Mortise and Vertical Rod Exit Devices

www.corbinrusswin.com

T30862-1 DO NOT SCALE DRAWING SUPERSEDES

T30862-2 8-99 TEMPLATE NUMBER DATE
