Corbin Russwin T1310 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30827
Open the original PDF document
View PDF

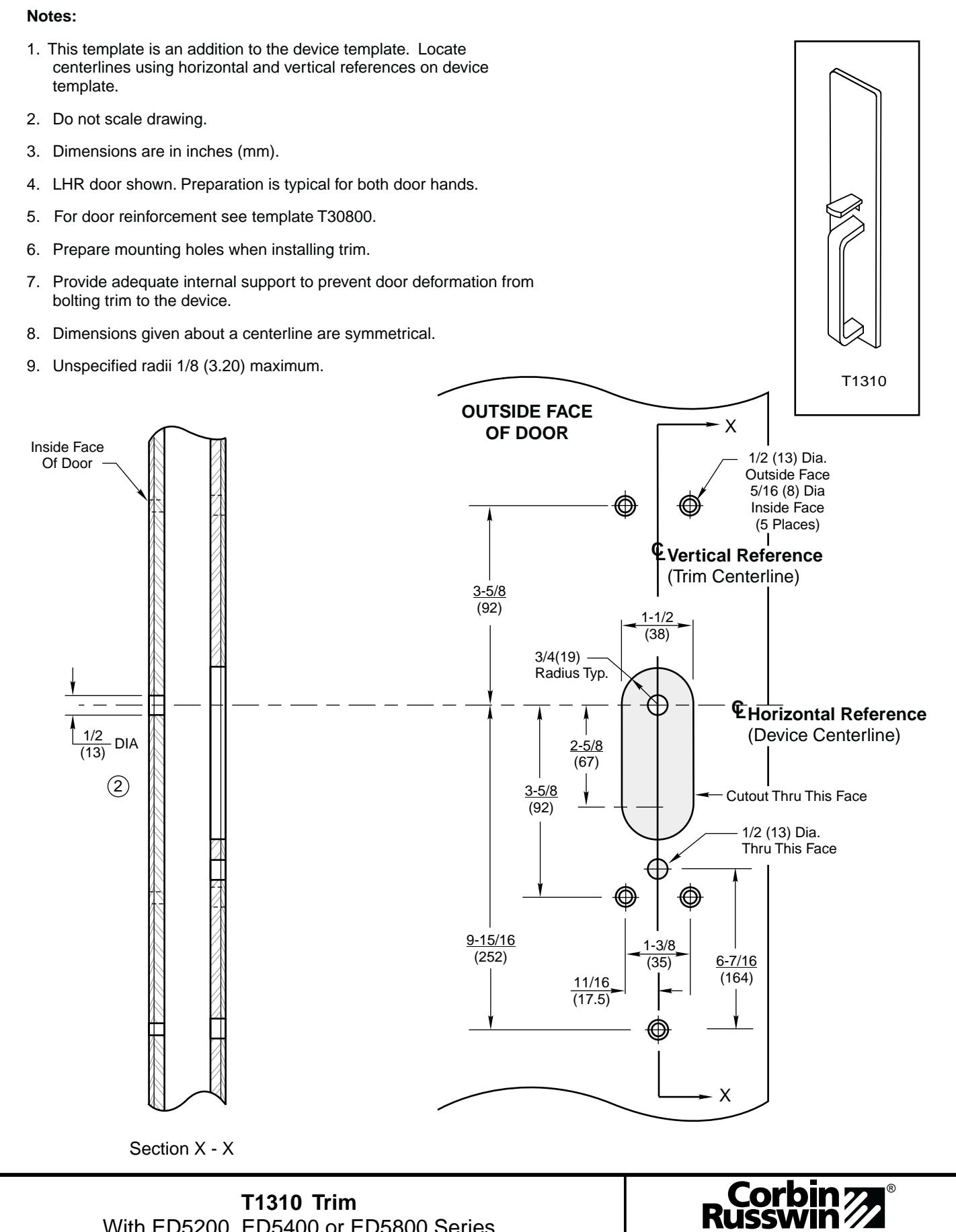

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices
www.corbinrusswin.com
DO NOT SCALE DRAWING SUPERSEDES T30827-1
TEMPLATE NUMBER DATE T30827-2 6-05
