Corbin Russwin SR118 Rabbeted Front and Strike for ML2000 Series Mortise Locks Template_T30641
Open the original PDF document
View PDFNotes:
- 1. Dimensions given in inches and (mm).
- 2. Refer to template of specific mortise lock series for all other door prep specifications.
- 3. Cutout dimensions marked (*) to be 1/2 (12.7) deep minimum.
| TEMPLATE CROSS REFERENCE | |
|---|---|
| Description | Template |
| ML2000, ML2200 Series Mortise Lock | T30600 |
| ML2000HS, ML2200HS Series Mortise Lock | T30604 |
| ML2000, ML2200 Series Mortise Lock (MR) | T30605 |
| ML2000, ML2200 Series Mortise Lock (HT) | T30607 |
RH SHOWN LH OPPOSITE
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
SR118

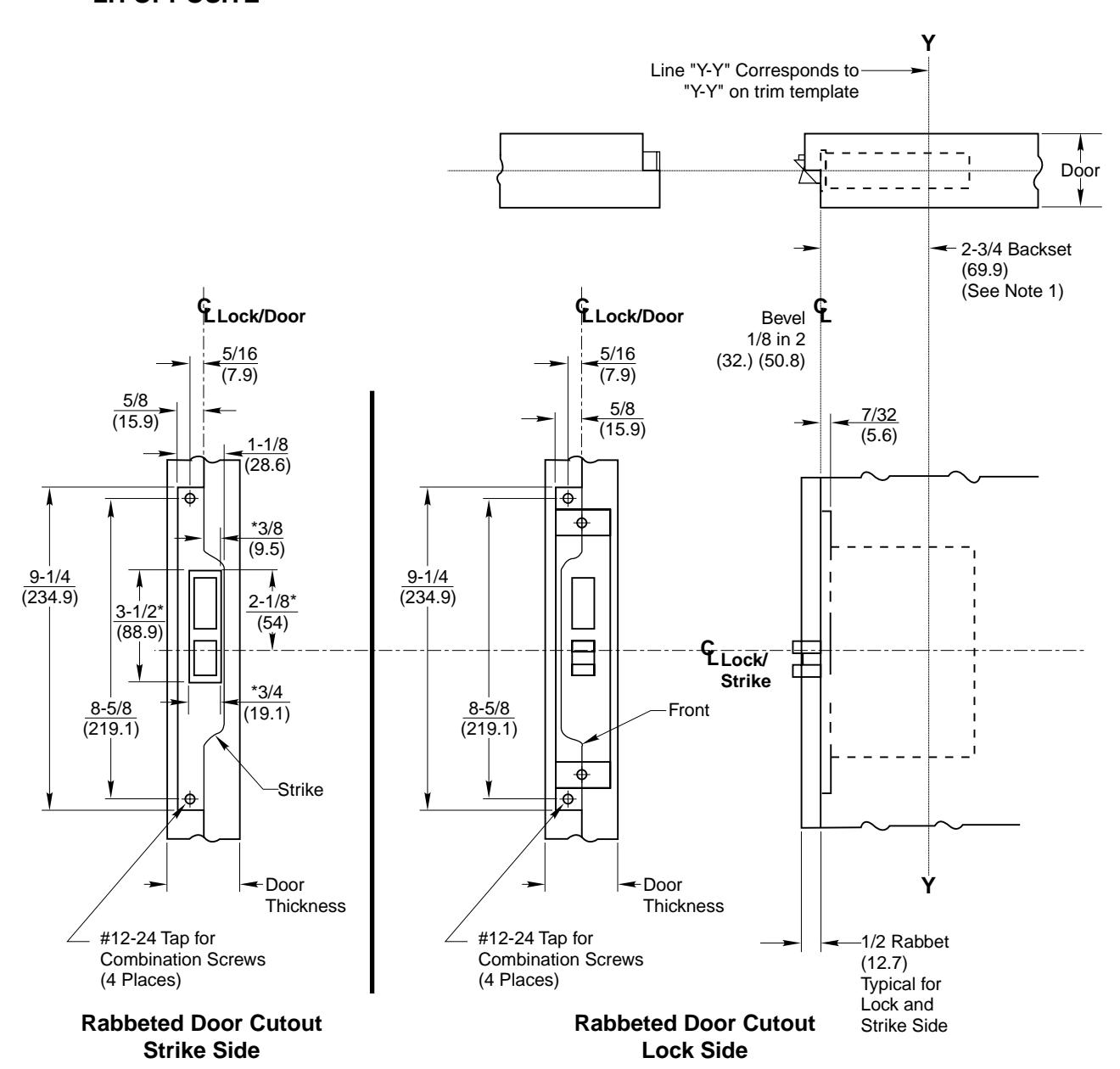

Rabbeted Front and Strike for Mortise Locks
Corbin 778° Russwin 778°
www.corbinrusswin.com
Do Not Scale Drawing Supersedes T30641 Dr. Ap
Date 8-99 Template Number T30641-1
