SN Series Integrated Wired Access Control
Parts Manual
Table of Contents SN Series
| Table of Contents | 2 |
|---|---|
| How to Order Parts | 2 |
| General Information | 2 |
| General Information | 3 |
| Reader Modifier | 3 |
| Reader Code | 3 |
| Finishes | 3 |
| Reader and Harness Assembly | 4 |
| Reader and Harness Assembly Options Parts Table | 4 |
| ML20600 Mortise Locks | 6 |
| ML20600 Mortise Locks Parts List | |
| CL33600 Cylindrical Locks | 8 |
| CL33600 Cylindrical Locks | |
| CL33600 Cylindrical Locks Parts List | 9 |
| CLX33600 Cylindrical Locks | 10 |
| CLX33600 Cylindrical Locks | 10 |
| CLX33600 Cylindrical Locks Parts List | 11 |
| 9600 Series Exit Device | 12 |
| 9600 Series With MELR | 12 |
| MP9800 Series Multi-Point Lock | 14 |
| MP9800 Series Without MELR Option | |
| MP9800 Series With MELR Option | 15 |
| MP9800 Series With and Without MELR Option Parts List | 16 |
| FE6600 Multi-Point Lock | 17 |
| FE6600 Mortisa | 17 |
How to Order Parts
- 1. In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed.
- 2. To order parts, provide the appropriate quantity, part number, hand and/or finish (when required) and description as directed and illustrated below.
General Information
SN Series Finishes
| Finishes | ANSI | Mortise | Cyl. | Exit | |
|---|---|---|---|---|---|
| 03 | Bright Brass | 605 | X | X | X |
| 04 | Satin Brass | 606 | X | X | X |
| 09 | Bright Bronze | 611 | X | X | X |
| 10 | Satin Bronze, Clear Powder Coat | 612 | X | X | X |
| 10B | Oxidized Satin Bronze Oil Rubbed | 613 | X | X | X |
| 10BE | Dark Oxidized Satin Bronse - equivalent | 613E | X | X | X |
| 10BL | Oxidized Satin Bronze, Clear Powder Coat | – | X | X | X |
| 14* | Bright Nickel, Clear Coated | 618 | X | X | X |
| 15* | Satin Nickel, Clear Coated | 619 | X | X | X |
| 20D | Dark Statuary Bronze, Clear Powder Coat | – | X | X | X |
| 26* | Bright Chrome | 625 | X | X | X |
| 26D* | Satin Chrome | 626 | X | – | X |
| 32** | Bright Stainless Steel | 629 | X | – | X |
| 32D** | Satin Stainless Steel | 630 | X | X | X |
| BSP | Black Suede Powder Coat | – | X | X | X |
| WSP | White Suede Powder Coat | – | X | X | X |
* ET Trim will be supplied with the requiested finish, the Exit Devices will be supplied in 32 or 32D accordingly
Reader Modifier
| B03 | UL294 Compliant, tamper wire connected FIPS/FIKPS: 200-bit output |
|---|---|
| B0E | Non-UL294 Compliant, green LED wire connected BIS, BIKS, BIPS, BIKPS only |
| B04 | UL294 Compliant, tamper wire connected FIPS/FIKPS: 75-bit output |
| B0D | UL294 Compliant, tamper wire connected FIPS/FIKPS: 128-bit output |
| B0F | Non-UL294 Compliant, green LED wire connected FIPS/FIKPS: 200-bit output |
| B0G | Non-UL294 Compliant, green LED wire connected FIPS/FIKPS: 75-bit output |
| B0H | Non-UL294 Compliant, green LED wire connected FIPS/FIKPS: 128-bit output |
Reader Code
| BIS* |
HID Mobile Access® Ready and Bluetooth Smart capable; High Frequency credentials ONLY
supported |
| BIKS* |
HID Mobile Access® Ready and Bluetooth Smart capable with keypad; High Frequency
credentials ONLY supported |
| BIPS* |
HID Mobile Access® Ready and Bluetooth Smart capable; High and Low Frequency credentials
supported |
| BIKPS* |
HID Mobile Access® Ready and Bluetooth Smart capable with keypad; High and Low Frequency
credentials supported |
| FIPS*** | PIV compatible |
| FIKPS*** | PIV compatible with Keypad |
* SN210 BIS, BIKS, BIPS, and BIKPS only available with 0E credential modifer; SN210 FIPS and FIKPS only available with 03 or 0D credential modifier
Copyright © 2023 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written
** Only available with Exit Devices, the external trim will be supplied in 26 or 26D accordingly
** With SN Series the reader is always 12VDC. Please select either 12VDC or 24VDC for the lock voltage.
*** Please contact your local Door Security Solutions representative for FIPS and FIKPS availability.

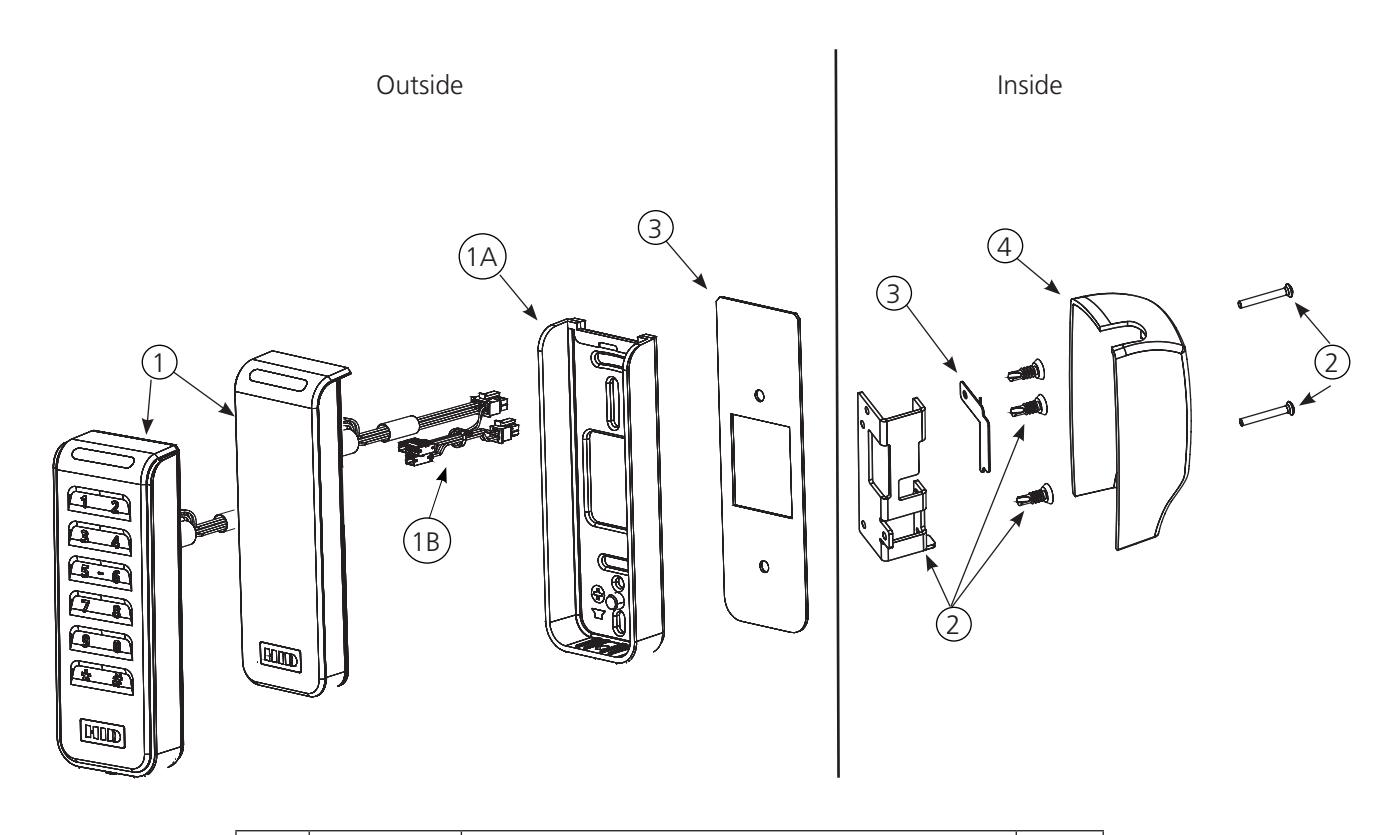

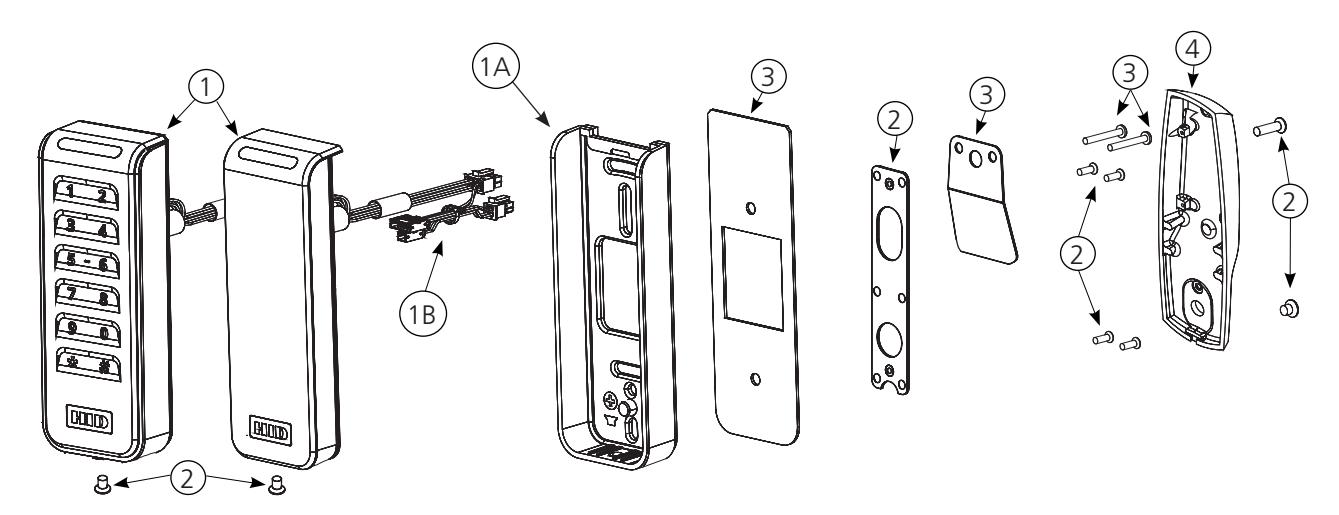

Reader and Harness Assembly
Reader and Harness Assembly Options Parts Table
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 1 | 868F809 | SN200 BIPS-B03 Reader & Harness Assembly - Wiegand (UL294/TAMPER Configuration) | 1 |
| 862F349 | SN200 BIPS-BOE Reader & Harness Assembly - Wiegand (Non-UL294 Configuration) | 1 | |
| 868F819 | SN200 BIKPS-B03 Reader & Harness Assembly - Keypad, Wiegand (UL294/TAMPER Configuration) | 1 | |
| 862F359 | SN200 BIKPS-B0E Reader & Harness Assembly - Keypad, Wiegand (Non-UL294 Configuration) | ] | |
| 871F069 | SN200 FIPS-B03 Reader & Harness Assembly - Wiegand - 200-bit output (UL294/TAMPER Configuration | 1 | |
| 871F079 | SN200 FIPS-B04 Reader & Harness Assembly - Wiegand - 75-bit output (UL294/TAMPER Configuration) | ] | |
| 871F089 | SN200 FIPS-B0D Reader & Harness Assembly - Wiegand - 128-bit output (UL294/TAMPER Configuration) | 1 | |
| 871F099 | SN200 FIPS-B0F Reader & Harness Assembly - Wiegand - 200-bit output (Non-UL294 Configuration) | 1 | |
| 871F109 | SN200 FIPS-BOG Reader & Harness Assembly - Wiegand - 75-bit output (Non-UL294 Configuration) | 1 | |
| 871F119 | SN200 FIPS-B0H Reader & Harness Assembly - Wiegand - 128-bit output (Non-UL294 Configuration) | 1 | |
| 871F129 | SN200 FIKPS-B03 Reader & Harness Assembly - Keypad, Wiegand - 200-bit output (UL294/TAMPER Configuration) | 1 | |
| 871F139 | SN200 FIKPS-B04 Reader & Harness Assembly - Keypad, Wiegand - 75-bit output (UL294/TAMPER Configuration) | 1 | |
| 871F149 | SN200 FIKPS-B0D Reader & Harness Assembly - Keypad, Wiegand -128-bit output (UL294/TAMPER Configuration) | 1 | |
| 871F159 | SN200 FIKPS-B0F Reader & Harness Assembly - Keypad, Wiegand - 200-bit output (Non-UL294 Configuration) | 1 | |
| 871F169 | SN200 FIKPS-BOG Reader & Harness Assembly - Keypad, Wiegand - 75-bit output (Non-UL294 Configuration) | 1 | |
| 871F179 | SN200 FIKPS-B0H Reader & Harness Assembly - Keypad, Wiegand - 128-bit output (Non-UL294 Configuration) | ] | |
| 862F389 | SN210 BIPS-BOE Reader & Harness Assembly - OSDP | ] | |
| 862F399 | SN210 BIKPS-B0E Reader & Harness Assembly - Keypad, OSDP | ] | |
| 871F189 | SN210 FIPS-B03 Reader & Harness Assembly - OSDP - 200-bit output | ] | |
| 871F209 | SN210 FIPS-B0D Reader & Harness Assembly - OSDP - 128-bit output | ||
| 871F219 | SN210 FIKPS-B03 Reader & Harness Assembly - Keypad, OSDP - 200-bit output | ] | |
| 871F239 | SN210 FIKPS-B0D Reader & Harness Assembly - Keypad, OSDP - 128-bit output | ||
| 1A | _ | Signo Reader Back Plate | 1 |
| 1B | 859F929 | Signo Wiring Harness ONLY - Wiegand (non-UL294 Configuration) and OSDP | 1 |
| 867F899 | Signo Wiring Harness ONLY - Wiegand (UL294/TAMPER Configuration) |
Reader and Harness Assembly
SN Series
Reader and Harness Assembly Options Parts Table
| 2 | 763F892 FIN | Mounting Packet | 1 |
|---|---|---|---|
| #8-32x5/8" OHM-PH Screw | 1 | ||
| #8-32x1/4" OHM-PH | 1 | ||
| #8x3/8" FHT-A-PH UC | 2 | ||
| Mounting PLT, I/S Mortise | 1 | ||
| Packet, Universal Screw | 1 | ||
| 3 | 862F949 | Fire Plate Packet | 1 |
| Fire Plate | 1 | ||
| Fire Shield (SN200/210) | 1 | ||
| #8x1 1/4" Phillips Pan Head Drilling Screw | 2 | ||
| Solder Sleeve | 1 | ||
| 4* | — | Inside Escutcheon | 1 |
* See each lock type for specific part numbers

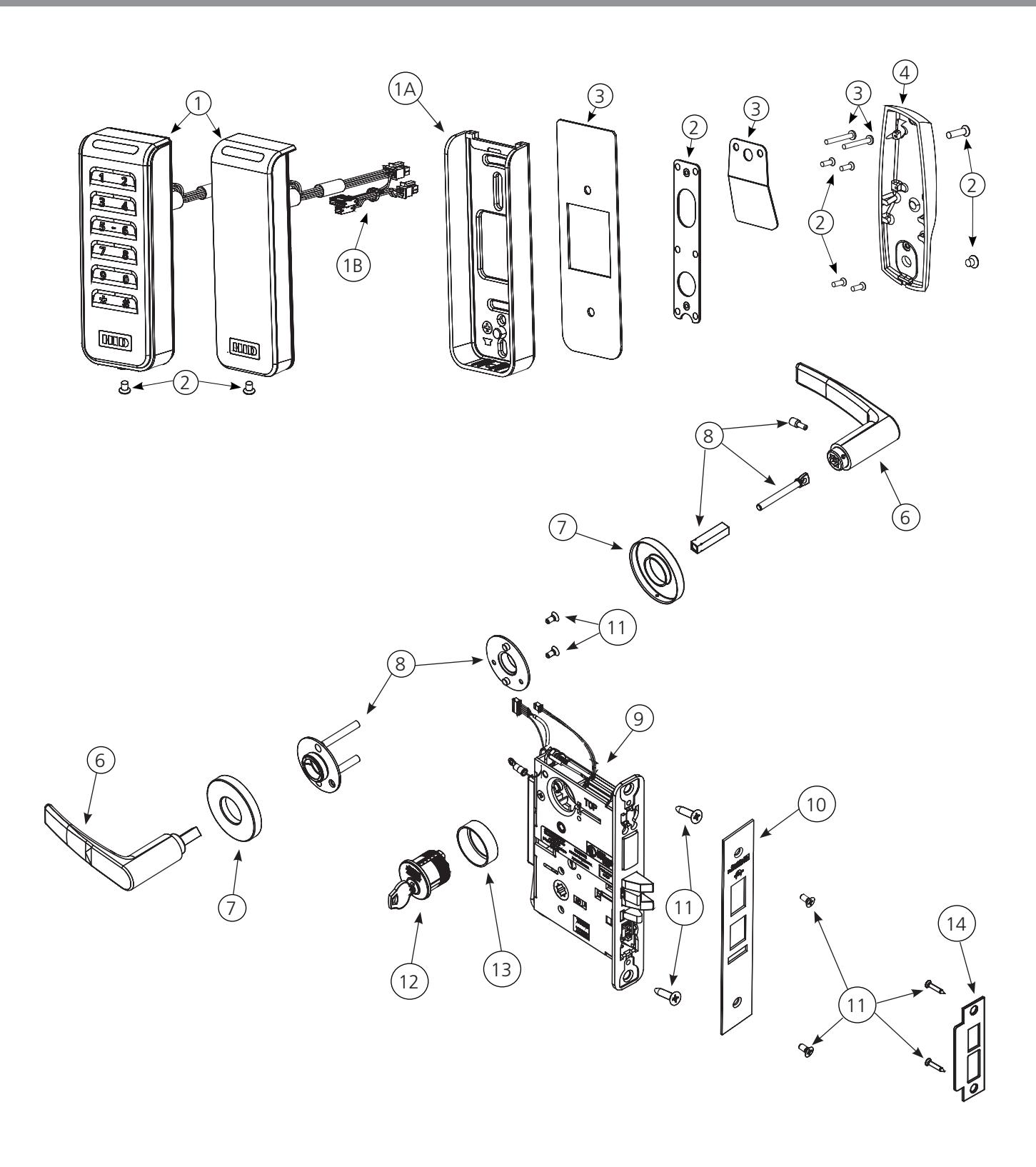

ML20600 Mortise Locks
ML20600 Mortise Locks
SN Series
ML20600 Mortise Locks Parts List
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 1* | — | Reader and Harness Assembly | 1 |
| 1A* | — | Signo Reader Back Plate | 1 |
| 1B* | — | Signo Wiring Harness ONLY | 1 |
| 2* | — | Mounting Packet | 1 |
| 3* | — | Fire Plate Packet | 1 |
| 4 | 763F79M FIN | Inside Escutcheon with Thumbturn | 1 |
| 743F27M FIN | Inside Escutcheon without Thumbturn | 1 | |
| 6 | — | Reference SN200/210 Catalog for Available Lever Styles | 1 |
| 7 | — | Reference SN200/210 Catalog for Available Rose Styles | 1 |
| 8 | 466F418 | Trim Pack - Standard Levers | 1 |
| Adapter Plate Sub Assembly | 2 | ||
| Lugs | 2 | ||
| Screw #8-32 FHMS-PH W/VC3 | 2 | ||
| 807F328 | DL Trim Pack - Museo® (not shown) | ||
| 9** | 816F008*** 26D | ML20606/07 SAF | 1 |
| 816F018*** 26D | ML20606/07 SEC | 1 | |
| 816F028*** 26D | ML20608/09 SAF (with Deadbolt) | 1 | |
| 816F038*** 26D | ML20608/09 SEC (with Deadbolt) | 1 | |
| 10 | 402F30M FIN | Outside Faceplate w/ Deadbolt | 1 |
| 624F49M FIN | Outside Faceplate w/o Deadbolt (not shown) | 1 | |
| 11 | 429F41M FIN | Lock Body and Strike Screw Pack | 1 |
| Screw, FHUM-PH #8-32x1/4" | 2 | ||
| Screw, Comb. THD. #12-FHU-PH x 1" | 2 | ||
| Screw, Comb. THD. #12-FHU-PH x 3/4" | 2 | ||
| Screw, Cylinder Set | 1 | ||
| 12 | — | Cylinder, A01 Cam | 1 |
| 13 | — | Cylinder Collar | 1 |
| 14 | 236L72M018 FIN | Strike (w/ Deadbolt) | 1 |
| 236L73M018 FIN | Strike (w/o Deadbolt) - not shown | 1 | |
| 15 | FM380 | Inside Field Prep Template (Not shown) | 1 |
| 16 | T31213 | Door Manufacturer Template (Not shown) | 1 |
| 17 | FM562 | Installation Instructions (Not shown) | 1 |
| 18 | FM388 | Outside Field Prep Template (Not shown) | 1 |
* See Reader and Harness Assembly Options for specific part numbers
Copyright © 2023 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
How to Order:
Lockbody: ML2060XXX specify LL x fin must spec voltage, cred modifier, hand, less lever (LL), less cylinder, safe or secure, tech code: SN200/210
** For EOL (End-of-Line Resistor) and PHR locks, please consult factory
*** Replace with handing (L, LR, R, or RR)

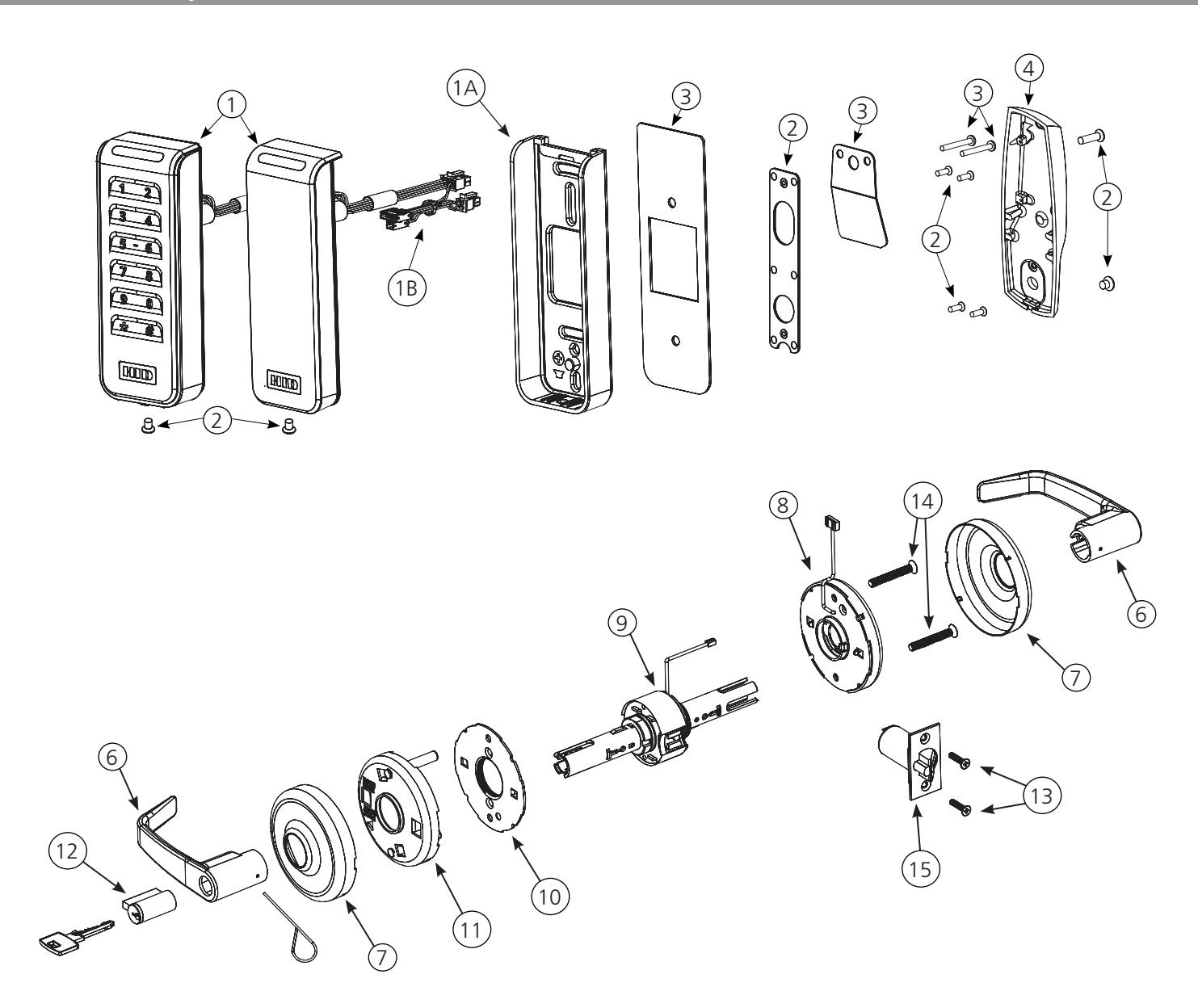

CL33600 Cylindrical Locks
CL33600 Cylindrical Locks
SN Series
CL33600 Cylindrical Locks Parts List
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 1* | — | Reader and Harness Assembly | 1 |
| 1A* | — | Signo Reader Back Plate | 1 |
| 1B* | — | Signo Wiring Harness ONLY | 1 |
| 2* | — | Mounting Packet | 1 |
| 3* | — | Fire Plate Packet | 1 |
| 4 | 743F285 FIN | Inside Escutcheon | 1 |
| 6 | — |
Refer to SN200/210 Catalog for
Available Lever Styles |
|
| 7 | — |
Refer to SN200/210 Catalog for
Available Rose Styles |
|
| 8 | 785F428 |
Inside Cassette Housing Assembly for
1-3/4" - 2" Doors |
1 |
| 785F438 |
Inside Cassette Housing Assembly for
Doors more than 2" |
1 | |
| 9 | STANDARD CYLINDER LOCKBODIES | ||
| 785F528 | xx-24V Fail Safe Lock body Assembly | 1 | |
| 785F538 | xx-24V Fail Secure Lock body Assembly | 1 | |
| 785F548 | xx-12V Fail Safe Lock body Assembly | 1 | |
| 785F558 | xx-12V Fail Secure Lock body Assembly | 1 | |
| INTERCHANGEABLE CORE CYLINDER LOCKBODIES | |||
| 785F568 | xx-24V Fail Safe Lock body Assembly | 1 | |
| 785F578 | xx-24V Fail Secure Lock body Assembly | 1 | |
| 785F588 | xx-12V Fail Safe Lock body Assembly | 1 | |
| 785F598 | xx-12V Fail Secure Lock body Assembly | 1 | |
| 10 | 678F248 | Outside Rose Liner for 1-3/4" - 2" Doors | 1 |
| 678F498 |
Outside Rose Liner for Doors more than
2" |
1 | |
| 11 | 783F208 | Outside Housing Assembly | 1 |
| 12 | — |
Refer to SN200/210 Catalog for
Available Cylinders |
1 |
| 13 | 604F228 | Screw Pack | 1 |
| Screw, FHCOM-PH #12 x 15/16" | 2 | ||
| Screw, FHCOM-PH #8 x 11/16" | 2 | ||
| 14 | 710F658 |
Mounting Screw Pack for - 1 3/4" - 2"
Doors |
1 |
| Insert, Lever | 2 | ||
| Tool, Knob Release | 1 | ||
| Screw, FHM-PH #12-24 x 1 1/2" | 2 | ||
| 710F668 |
Mounting Screw Pack for Doors more
than 2" |
1 | |
| Insert, Lever | 2 | ||
| Tool, Knob Release | 1 | ||
| Screw, FHM-PH #12-24 x 2" | 2 |
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 15 | — | Latch Assembly | |
| 867F32 FIN |
Square Corner Latch Assembly 2 3/4"
Backset |
1 | |
| 867F35 FIN |
Rounded Corner Latch Assembly 2 3/4"
Backset |
1 | |
| 867F33 FIN |
Square Corner Latch Assembly 3 3/4"
Backset |
1 | |
| 867F36 FIN |
Rounded Corner Latch Assembly 3 3/4"
Backset |
1 | |
| 867F34 FIN |
Square Corner Latch Assembly 5"
BAckset |
1 | |
| 867F37 FIN |
Rounded Corner Latch Assembly 5"
Backset |
1 | |
| 16 | FM381 | Field Prep Template (not shown) | 1 |
| 17 | T31214 |
Metal/Wood Door Manufacturer
Template (not shown) |
1 |
| 18 | FM388 | Outside Field Prep Template (not shown) | 1 |
| 19 | FM561 | Installation Instructions (not shown) | 1 |
* See Reader and Harness Assembly Options for specific part numbers

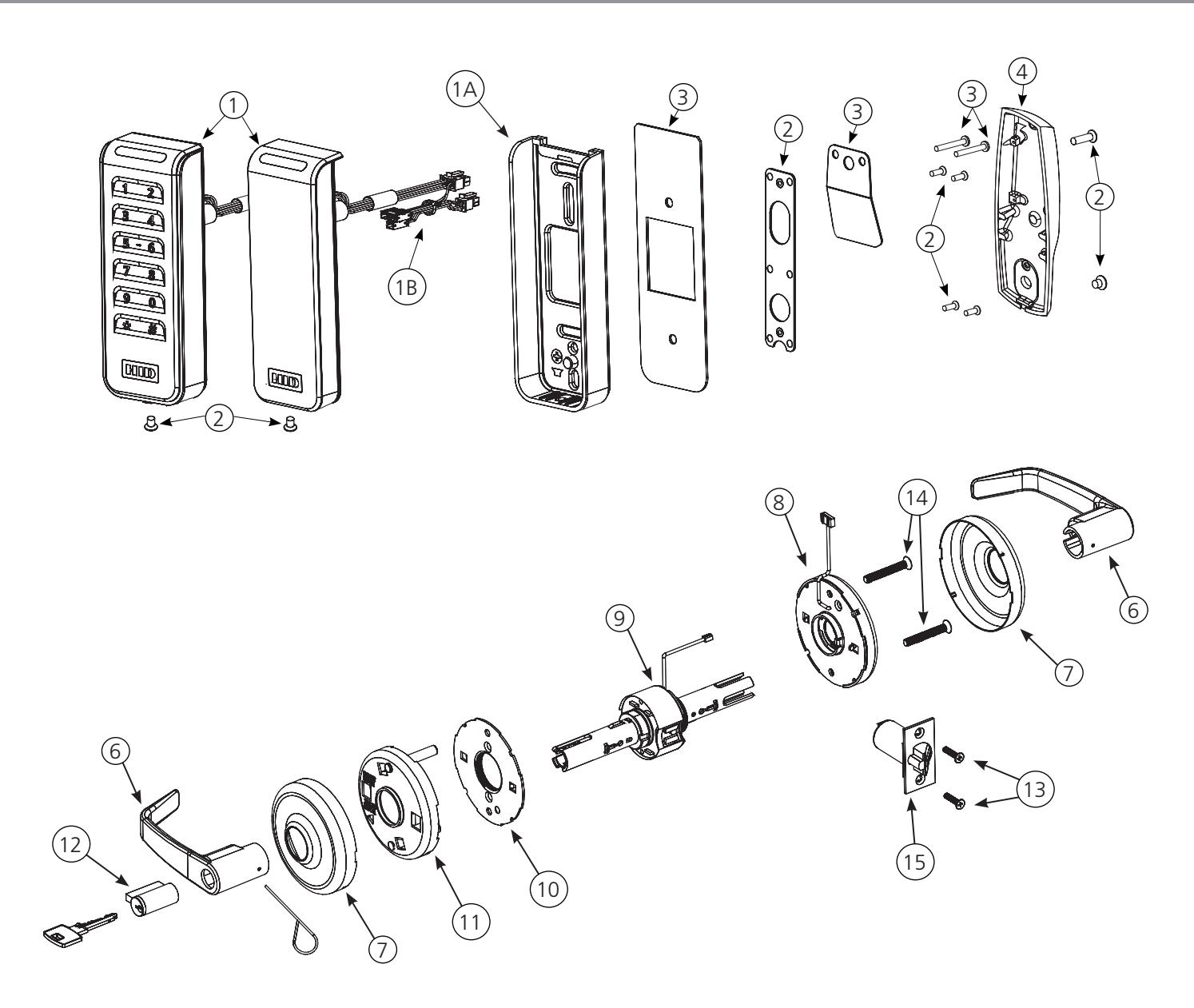

CLX33600 Cylindrical Locks
CLX33600 Cylindrical Locks
CLX33600 Cylindrical Locks
SN Series
CLX33600 Cylindrical Locks Parts List
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 1* | — | Reader and Harness Assembly | 1 |
| 1A* | — | Signo Reader Back Plate | 1 |
| 1B* | — | Signo Wiring Harness ONLY | 1 |
| 2* | — | Mounting Packet | 1 |
| 3* | — | Fire Plate Packet | 1 |
| 4 | 743F285 FIN | Inside Escutcheon | 1 |
| 6 | — | Refer to SN200/210 Catalog for Available Lever Styles | |
| 7 | — | Refer to SN200/210 Catalog for Available Rose Styles | |
| 8 | 885F920 | Inside Cassette Housing Assembly for 1-3/4" - 2" Doors | 1 |
| 885F930 | Inside Cassette Housing Assembly for Doors more than 2" | 1 | |
| 9 | LOCKBODIES | ||
| 886F020 | Freewheeling Lock body Assembly | 1 | |
| 886F030 | Rigid Lock body Assembly | 1 | |
| 10 | 789F058 | Outside Rose Liner for 1-3/4" - 2" Doors | 1 |
| 789F068 | Outside Rose Liner for Doors more than 2" | 1 | |
| 11 | 860F608 | Outside Housing Assembly | 1 |
| 12 | — | Refer to SN200/201 Catalog for Available Cylinders | 1 |
| 13 | 604F228 | Screw Pack | 1 |
| Screw, FHCOM-PH #12 x 15/16" | 2 | ||
| Screw, FHCOM-PH #8 x 11/16" | 2 | ||
| 14 | 865F308 | Mounting Screw Pack for - 1 3/4" - 2" Doors | 1 |
| Tool, Knob Release | 1 | ||
| Screw, FHM-PH #12-24 x 1 1/2" | 2 | ||
| 865F398 | Mounting Screw Pack for Doors more than 2" | 1 | |
| Tool, Knob Release | 1 | ||
| Screw, FHM-PH #12-24 x 2" | 2 | ||
| 15 | — | Latch Assembly | |
| 867F32 FIN | Square Corner Latch Assembly 2 3/4" Backset | 1 | |
| 867F35 FIN | Rounded Corner Latch Assembly 2 3/4" Backset | 1 | |
| 867F33 FIN | Square Corner Latch Assembly 3 3/4" Backset | 1 | |
| 867F36 FIN | Rounded Corner Latch Assembly 3 3/4" Backset | 1 | |
| 867F34 FIN | Square Corner Latch Assembly 5" BAckset | 1 | |
| 867F37 FIN | Rounded Corner Latch Assembly 5" Backset | 1 | |
| 16 | FM381 | Field Prep Template (not shown) | 1 |
| 17 | T31214 | Metal/Wood Door Manufacturer Template (not shown) | 1 |
| 18 | FM388 | Outside Field Prep Template (not shown) | 1 |
| 19 | FM636 | Installation Instructions (not shown) | 1 |
* See Reader and Harness Assembly Options for specific part numbers

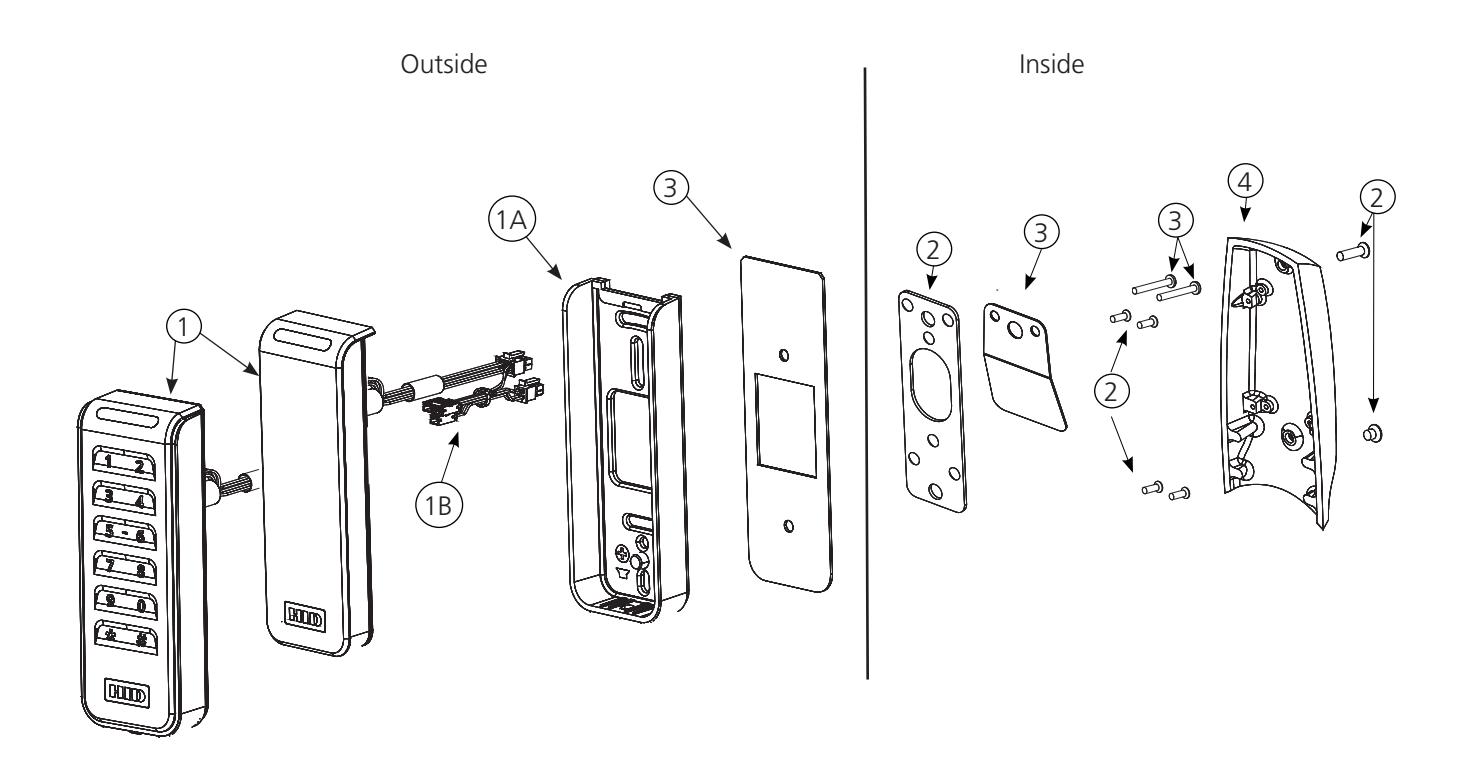

9600 Series With MELR
SN Series
Rim/CVR/Mortise
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 1* | _ | SN200 Reader & Harness Assembly (Wiegand/OSDP) | 1 |
| 1A* | _ | SE Reader Mounting Plate | 1 |
| 1B* | _ | Signo Wiring Harness ONLY | 1 |
| 2 | 763F872 FIN | Mounting Packet | 1 |
| #8-32x5/8 OHM-PH Screw | 2 | ||
| MTG.PLT, I/S CYL/RIM/CVR | 1 | ||
| Packet, Universal Screw | 1 | ||
| 3* | _ | Fire Plate Packet | 1 |
| 4 | 743F28M FIN | Inside Escutcheon | 1 |
* See Reader and Harness Assembly Options for specific part numbers
SN Series
9600 Series With MELR
SVR
| ITEM | PART# | DESCRIPTION | REQ. |
|---|---|---|---|
| 1* | — | SN200/210 Reader & Harness Assembly (Wiegand/OSDP) | 1 |
| 1A* | — | SE Reader Mounting Plate | 1 |
| 1B* | — | Signo Wiring Harness ONLY | 1 |
| 2 | 763F882 | Mounting Packet | 1 |
| #8-32x5/8 OHM-PH Screw | 2 | ||
| MTG.PLT, I/S CYL/RIM/CVR | 1 | ||
| Packet, Universl Screw | 1 | ||
| 3 | 862F959 | Fire Plate Packet | 1 |
| Fire Plate | 1 | ||
| Fire Sheild (SN200/SN210) | 1 | ||
| #8-1 1/4" Phillip Pan Head Drilling Screw | 2 | ||
| Solder Sleeve | 1 | ||
| 4 | 744F762 FIN | Inside Escutcheon (LHR) | 1 |
| 744F772 FIN | Inside Escutcheon (RHR) | 1 |
* See Reader and Harness Assembly Options for specific part numbers

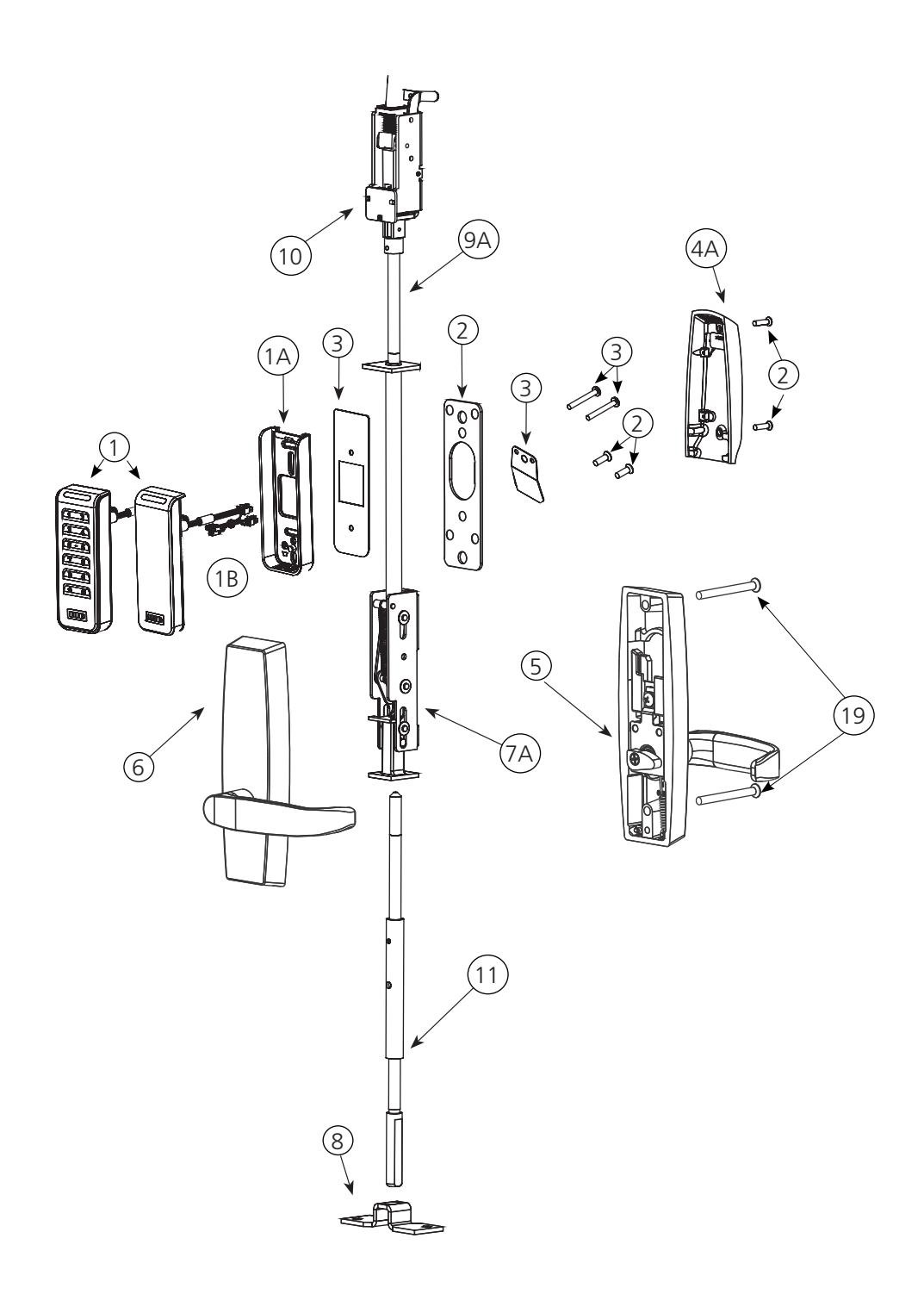

MP9800 Series Without MELR Option
SN Series

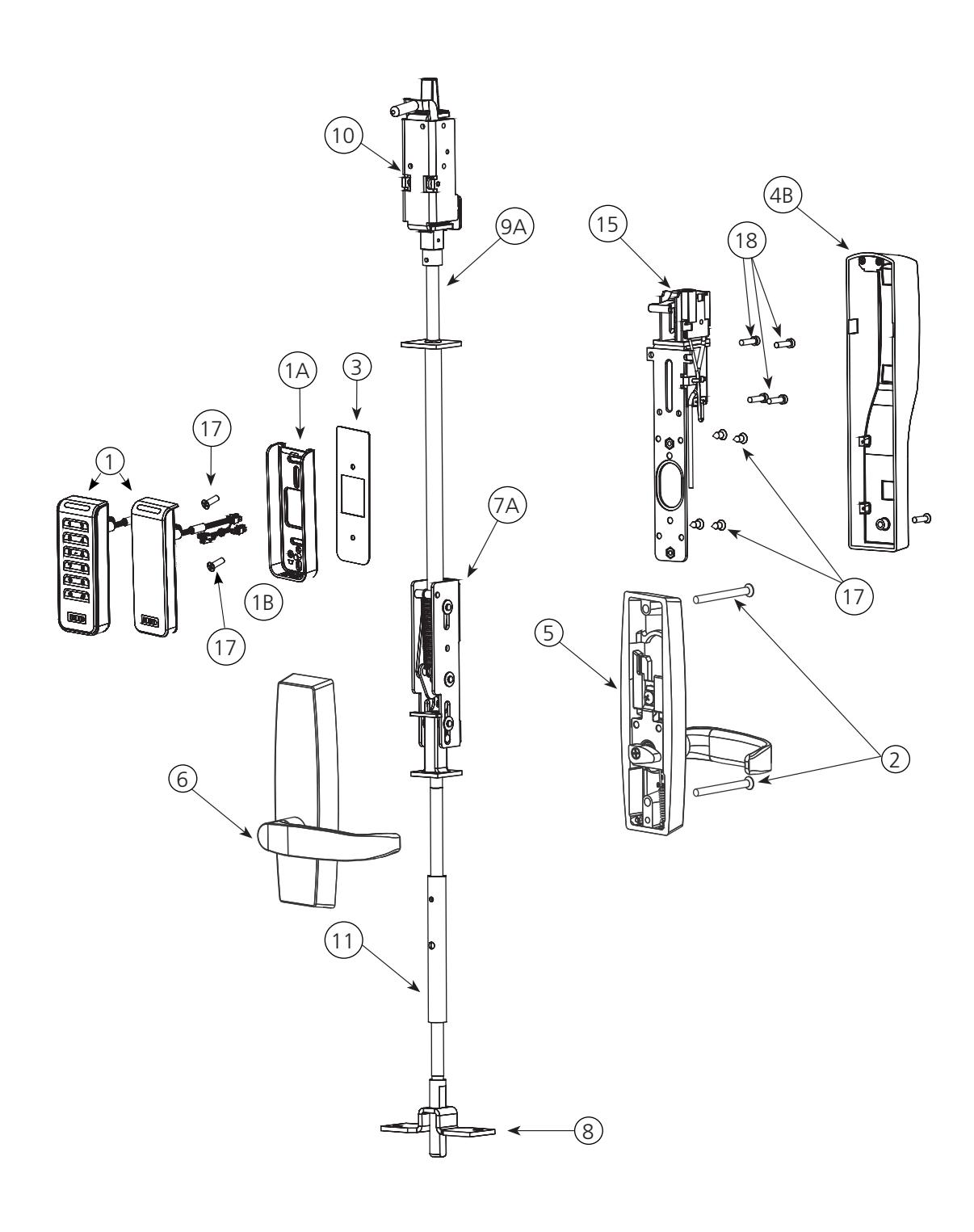

MP9800 Series With MELR Option
MP9800 Series Multi-Point Lock
MP9800 Series With and Without MELR Option Parts List
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| 1* | — | SN200/210 Reader & Harness Assembly (Wiegand/OSDP) | 1 |
| 1A* | — | Signo Reader Back Plate | 1 |
| 1B* | — | Signo Wiring Harness ONLY | |
| 2 | 764F62M | MD/AD Screw Pack | 1 |
| 3* | — | Fire Plate Packet | 1 |
| 4A | 765F44M FIN | Inside Escutcheon | 1 |
| 4B | 765F452 | I/S MELR Escutcheon Assembly | 1 |
| 5 | — | WD/MD/AD Inside Trim Assembly | 1 |
| 6 | — | Outside Trim Assembly | 1 |
| 7A | 764F488 | MD/AD Inner Chassis Assembly | 1 |
| MD/AD Inner Chassis Assembly, Fire (12-) | |||
| 764F508 | MD/AD Monitoring Inner Chassis, Fire (53-/12-53-) | ||
| 7B | 764F498 | WD Inner Chassis Assembly (Not shown) | 1 |
| 764F518 | WD Monitoring Inner Case (53-) (Not shown) | ||
| 8 | 764F538 | Bottom Case | 1 |
| 9A | — | MD/AD Top Rod and Bolt Assembly | 1 |
| 9B | — | WD Top Rod and Bolt Assembly (Not shown) | 1 |
| 10 | 764F558 | Top Case Assembly | 1 |
| 11 | — | Bottom Rod and Bolt Assembly | 1 |
| 12 | 766F942 | Standard Plate (Rectangular) (Not shown) | 2 |
| 766F352 | Sculpted Plate (Optional) (Not shown) | 1 | |
| 13 | 764F548 | WD Top Case Bracket (Not shown) | 1 |
| 14 | 764F577 | Top Strike Pack (not shown) | 1 |
| 764F587 | Bottom Strike Pack, Fire (A/B) (M107) (not shown) | ||
| 764F567 | Top and Bottom Strike Pack, STD (not shown) | ||
| 15 | 765F849 | MELR Assembly | 1 |
| 16 | 764F64M | WD Screw Pack (not shown) | 1 |
| 17 | 763F918 | Screw Pack, SE Series | 1 |
| Screw, FHUM-Torx Pin #6-32x3/8" | 1 | ||
| Screw, FHUT-PH Self Drilling #8 Thread | 6 | ||
| 18 | — | MELR Mounting Hardware | 1 |
| 19 | 763F738 | WD Mounting Hardware | 1 |
| Screw, FHUT-PH Self Drilling #8 Thread | 2 | ||
| 20 | 752F598 | #3 - 48 x 1/8" Pan head Machine Screw (not shown) | 4 |
* See Reader and Harness Assembly Options for specific part numbers

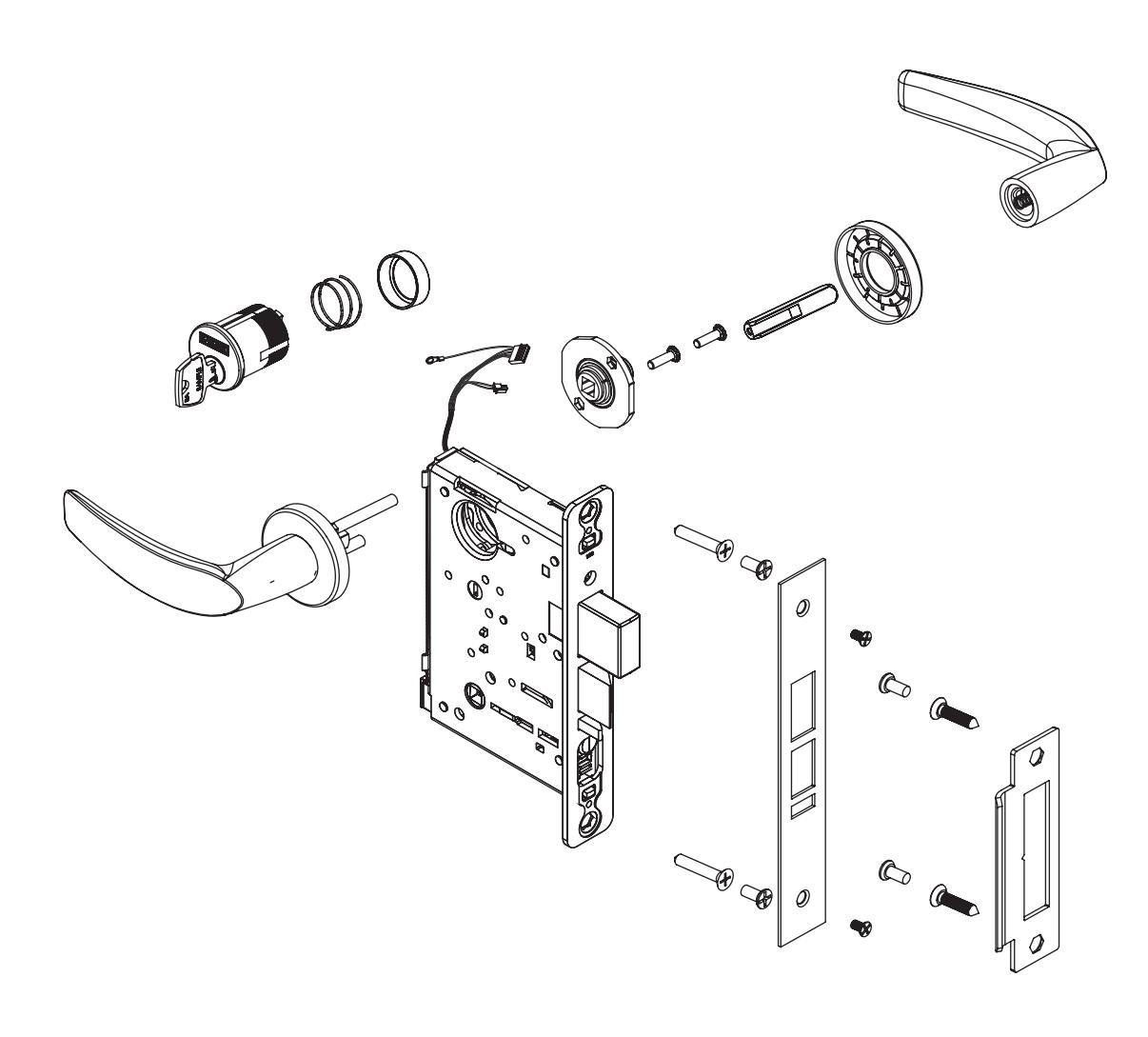

SN Series FE6600 Mortise
| ITEM | PART # | DESCRIPTION | REQ. |
|---|---|---|---|
| — | Reference SN200/210 Catalog For Available Lever Styles | 1 | |
| — | Reference SN200/210 Catalog For Available Rose Styles | 1 | |
| Lock Body† | FE66608-SAF | Deadbolt, w/Key Override, Fail Safe | 1 |
| FE66608-SEC | Deadbolt, w/Key Override, Fail Secure | 1 | |
| FE66609-SAF | Deadbolt, w/out Key Override, Fail Safe | 1 | |
| FE66609-SEC | Deadbolt, w/out Key Override, Fail Secure | 1 |
For mechanical parts listing refer to FE6600 Parts Manual 45499
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com .
In U.S. Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
In Canada ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 905-738-2478 www.assaabloy.ca
MicroShield® ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ionbased technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.
MicroShield® is a trademark of the respective ASSA ABLOY Group company.
The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.
