Light/Medium-Duty Cylindrical Locksets

SL3200 Series

Trim Designs

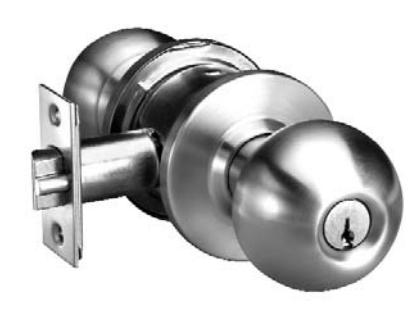

Groton GWK

GWK

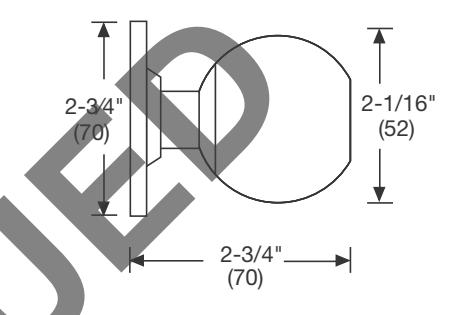

Projection 2-3/4" (70mm) Knob: Stainless Steel or Wrought Brass dia. 2-1/16" (52mm) Rose: Stainless Steel or Wrought Brass dia. 2-3/4" (70mm)

Features

Handing

Non-handed.

Door Thickness

1-3/8" (35mm) to 1-3/4 (44mm).

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Backset

2-3/4" (70mm) standard. Optional: 2-3/8" (60mm)

Latchbolt

Square Corner Front 2-1/4" x 1-1/8" (57mm x 29mm) x 2-3/4" (70mm) standard.

Optional Square Corner Front 2-1/4 1" (57mm x 25mm) x 2-3/8" - Quick Code B238.

Deadlocking latchbolts for keyed functions, Plain latchbolts for non-keyed functions.

Latch

1/2" (13mm) bolt projection. Front plate, stainless steel or wrought brass

Strike

ANSI strike standard 47/8" x $1\backslash \; 1/4$ " x $1\backslash \; 1/4$ " (124mm x 32mm x 32mm) lip to center. For other strikes, see back of this page.

Options

ANSI wrought strike box, specify Quick Code M17.

Dust box for 2-3/4" strike, specify Quick Code M77.

Dust box for 2-3/8" strike, specify Quick Code M78.

Cvlinder

System 70 specification.

Brass, 6-pin, I.4 keyway only, 0-bit standard.

To order separately:

Catalog number - SL20-033H x L4 x keying requirements x fin

Options:

Masterkeying and Construction Masterkeying.

Less cylinder, specify Quick Code " LC".

Keyed Random specify "KR" (System 70).

To order separately:

Catalog number - SL20-033H x KR x L4 x fin.

Schlage®, 6 pin, C keyway, 0-bitted. When ordered with lock, specify Quick Code "C".

To order separately:

Catalog number - 2400-033H-C x fin

Keys

2 nickel silver, 10 bow, L4 keyway furnished standard.

2 brass, nickel plated keys (with non-Corbin Russwin bow) are furnished with Schlage® C keyway.

Warranty

One-year.

Finishes

BHMA 605	Bright Brass
BHMA 630	Satin Stainless Steel

Certification/Compliance

ANSI

ANSI - Certified A156.2 Series 4000 Grade 2.

C-UL US

All locks listed for B label single doors.

How to Order

Standard

Quantity	Series/Function	Trim	Finish
6	SL3251	GWK	630

Non-Standard

iton otanaara
Quantity	Series/Function	Trim	Cylinder	Strike	Finish
6	SL3251	GWK	LC	SC114	630

Light/Medium-Duty Cylindrical Locksets

SL3200 Series

Outside	Inside	Series/Function	Type	Function Description
		SL3210	Passage or Closet	• Latchbolt by knob either side. • Both knobs always free. • ANSI F75
		SL3220	Privacy Bedroom or Bathroom	• Latchbolt by knob either side. • Outside knob locked by push button. • Outside knob unlocked by rotating inside knob or closing door. • Emergency release in outside knob. • Inside knob always free. • ANSI F76
		SL3251	Entrance or Office	• Deadlocking latchbolt by knob either side except when turn button locks outside knob. • Pushing in and rotating turn button locks outside knob requiring key for entry. • Remains locked until turn button is released manually. • Inside knob always free. • ANSI F81.
		SL3255	Classroom	• Deadlocking latchbolt by knob either side except when key outside locks outside knob. • Outside knob unlocked by key outside. • Inside knob always free. • ANSI F84
		SL3259	Storeroom or Public Restroom	• Deadlocking latchbolt. • Outside knob locked at all times except when operated by key. • Inside knob always free. • ANSI F86.
		SL3250	Half Dummy Trim (Surface Mounted)	• Knob acts as pull only. • No operation

Note: Shaded knobs indicate always rigid

Strikes

ANSI Curved Lip - Standard

4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center

To order separately, specify 753F44 x Lip Length x Finish.

Curved Lip "T" Strike

2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center

To order with lockset, specify SC114.

To order separately, specify 687F60 x Lip Length x Finish.

Full Lip Radius Corner

2-1/4" x 1-1/2" x 1" (57mm x 38mm x 25mm) lip to center

To order with lockset, specify SFR 114.

To order separately, specify 687F62 x 1-1/8" (29mm) x Finish.

Full Lip Square Corner

2-1/4" x 1-1/2" x 1" (57mm x 38mm x 25mm) lip to center

To order with lockset, specify SF114.

To order separately, specify 687F61 x Finish.
