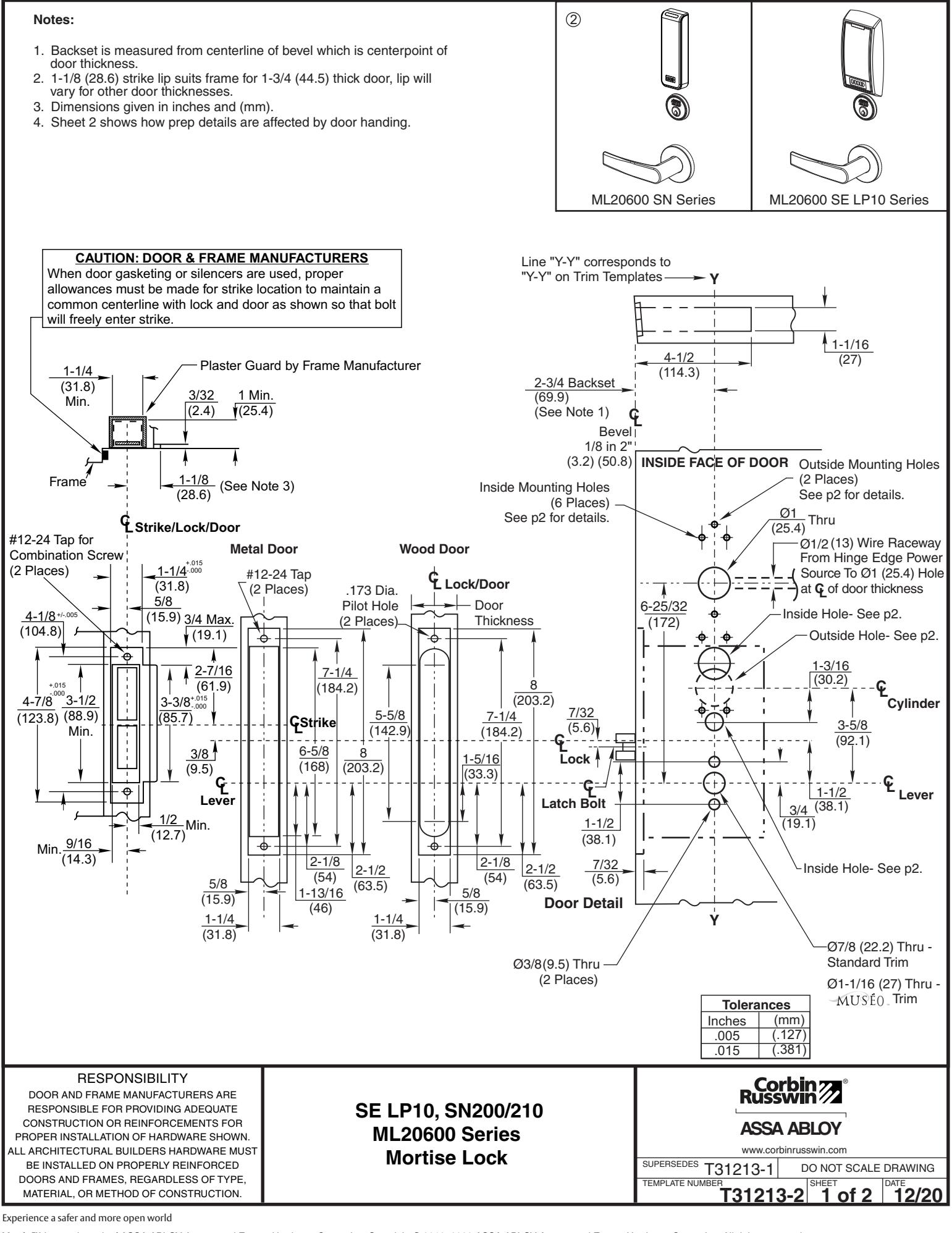

Corbin Russwin SE LP10, SN200, and SN210 Series ML20600 Series Mortise Locks Template_T31213

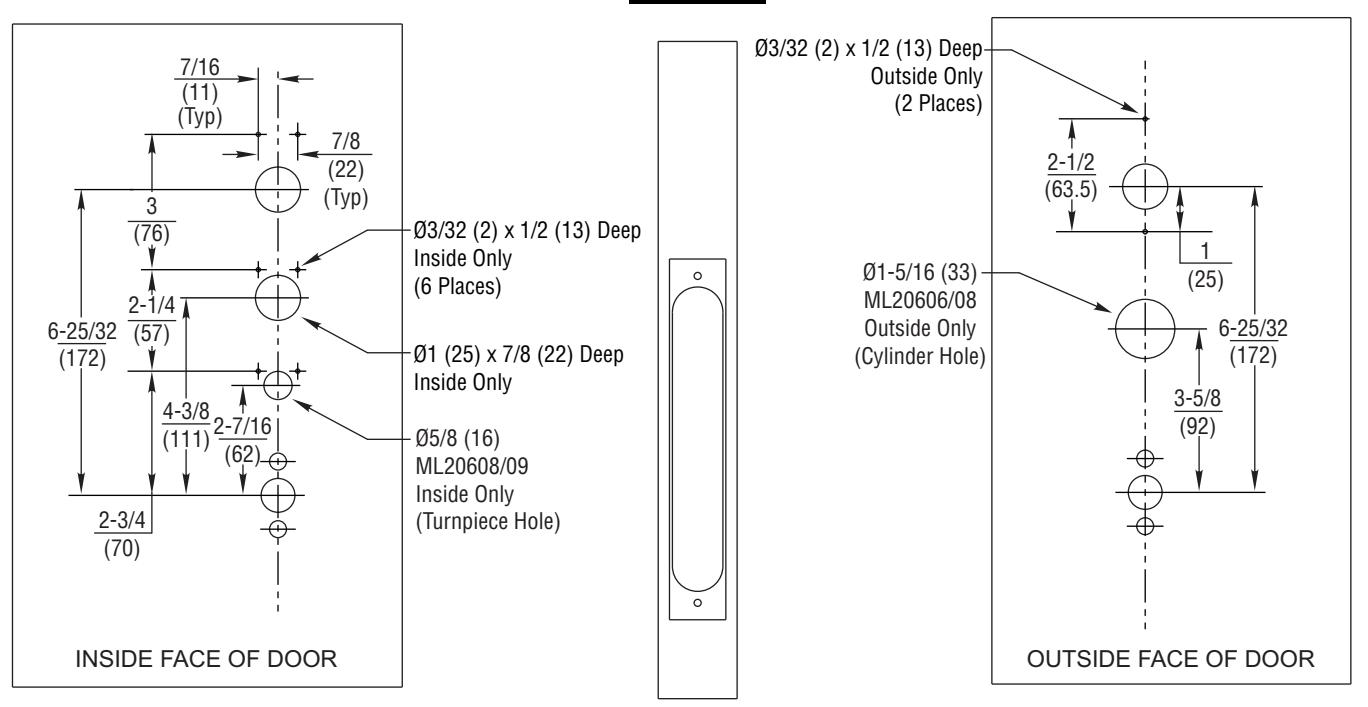

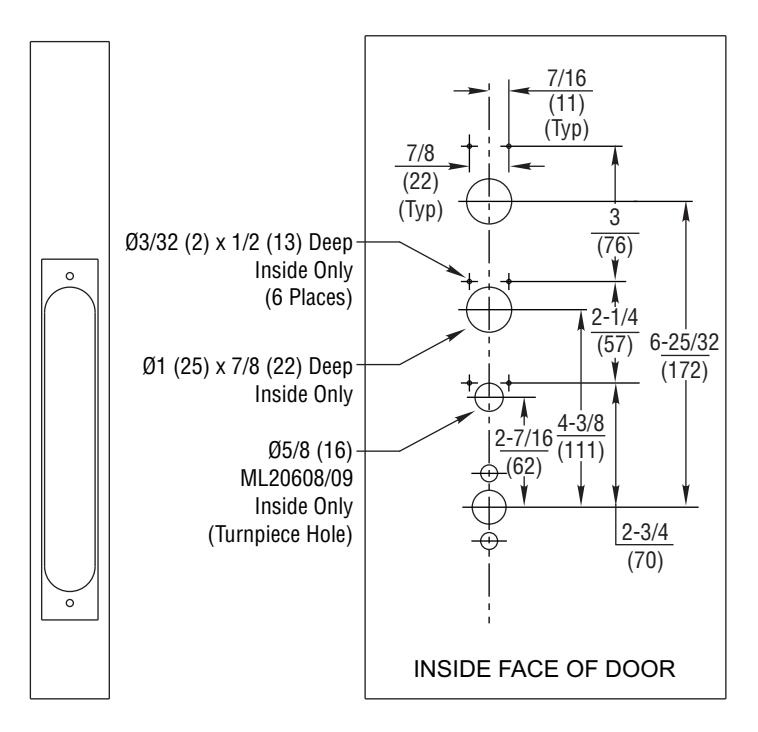

LH/LHR DOORS

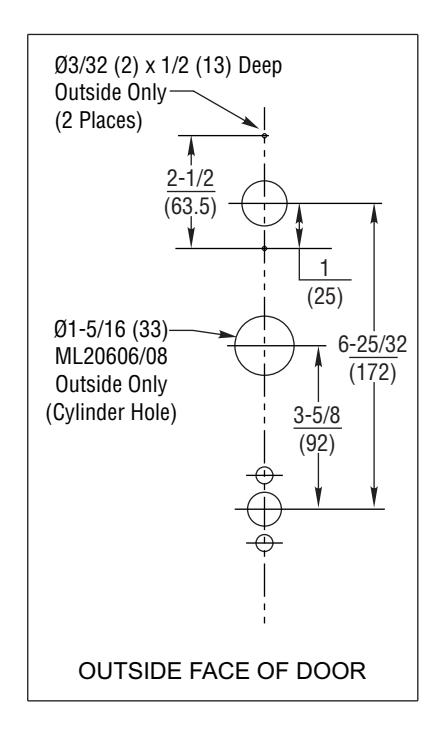

RH/RHR DOORS

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

SE LP10, SN200/210 ML20600 Series Mortise Lock

ASSA ABLOY www.corbinrusswin.com

www.corbinrusswin.com

SUPERSEDES T31213-1 DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET DATE 12/20
