Corbin Russwin SE LP10, SN200, and SN210 Series ED5400N Series SVR 9S600 Series Trim Wood or Composite Doors Tem…_T31218

Notes:

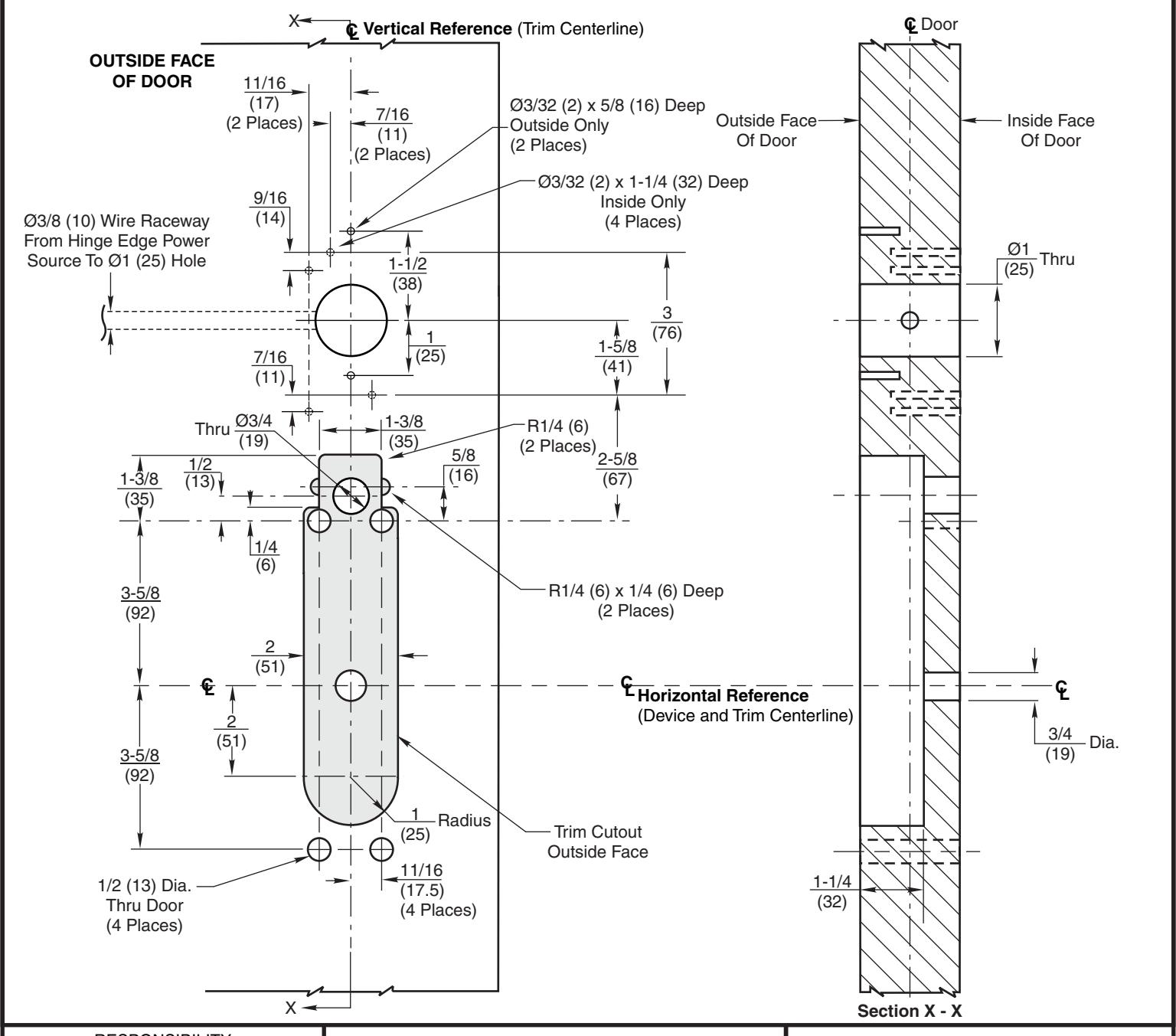

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. (RHR opposite)
• 4. Provide adequate structural support to maintain door integrity during operation.
• 5. Prepare mounting holes when installing trim.
• 6. Dimensions given about a centerline are symmetrical.
• 7. Unspecified radius 1/8 maximum.
• 1 8. Concealed Door Position Switch p/n: 708F989 is included with this product. Use and installation location to be specified by others. See SE LP10 (FM385) or SN200/210 (FM563) installation instructions for details.

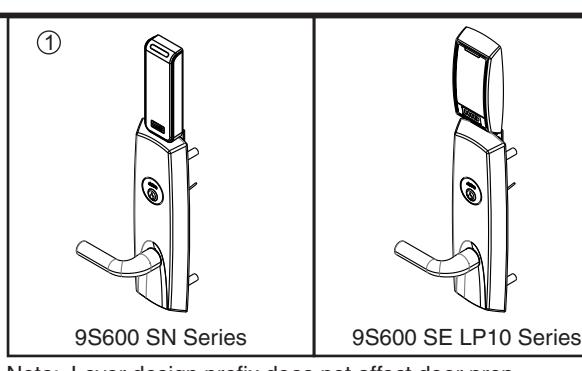

Note: Lever design prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

SE LP10, SN200/210 9S600 Series Trim for ED5400N Series Exit Devices Wood or Composite Door Preparation

®

ASSA ABLOY

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE T31218

T31218-1 1 of 2 12/20

LHR Door RHR Door Inside < Face of Door ONLY

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

SE LP10, SN200/210 9S600 Series Trim for ED5400N Series Exit Devices Wood or Composite Door Preparation

Corbin 77° Russwin 77°

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31218 DO NOT SCALE DRAWING

T31218-1 SHEET DATE 12/20
