Corbin Russwin SE LP10, SN200, and SN210 Series ED5400N Series SVR 9S600 Series Trim Metal Doors Template_T31219

Notes:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Dimensions are in inches (mm).
• 3. LHR door shown. (RHR opposite)
• 4. For door reinforcement see template T30800.
• 5. Prepare mounting holes when installing trim.
• 6. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
• 7. Dimensions given about a centerline are symmetrical.
• 8. Unspecified radius 1/8 maximum.

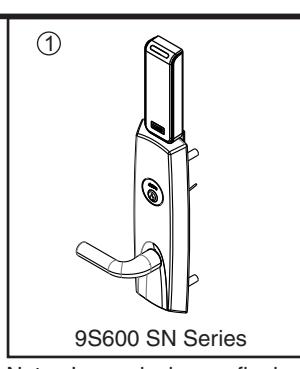

• 9. Concealed Door Position Switch p/n: 708F989 is included with this product. Use and installation location to be specified by others. See SE LP10 (FM385) or SN200/210 (FM563) installation instructions for details. 1

Note: Lever design prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

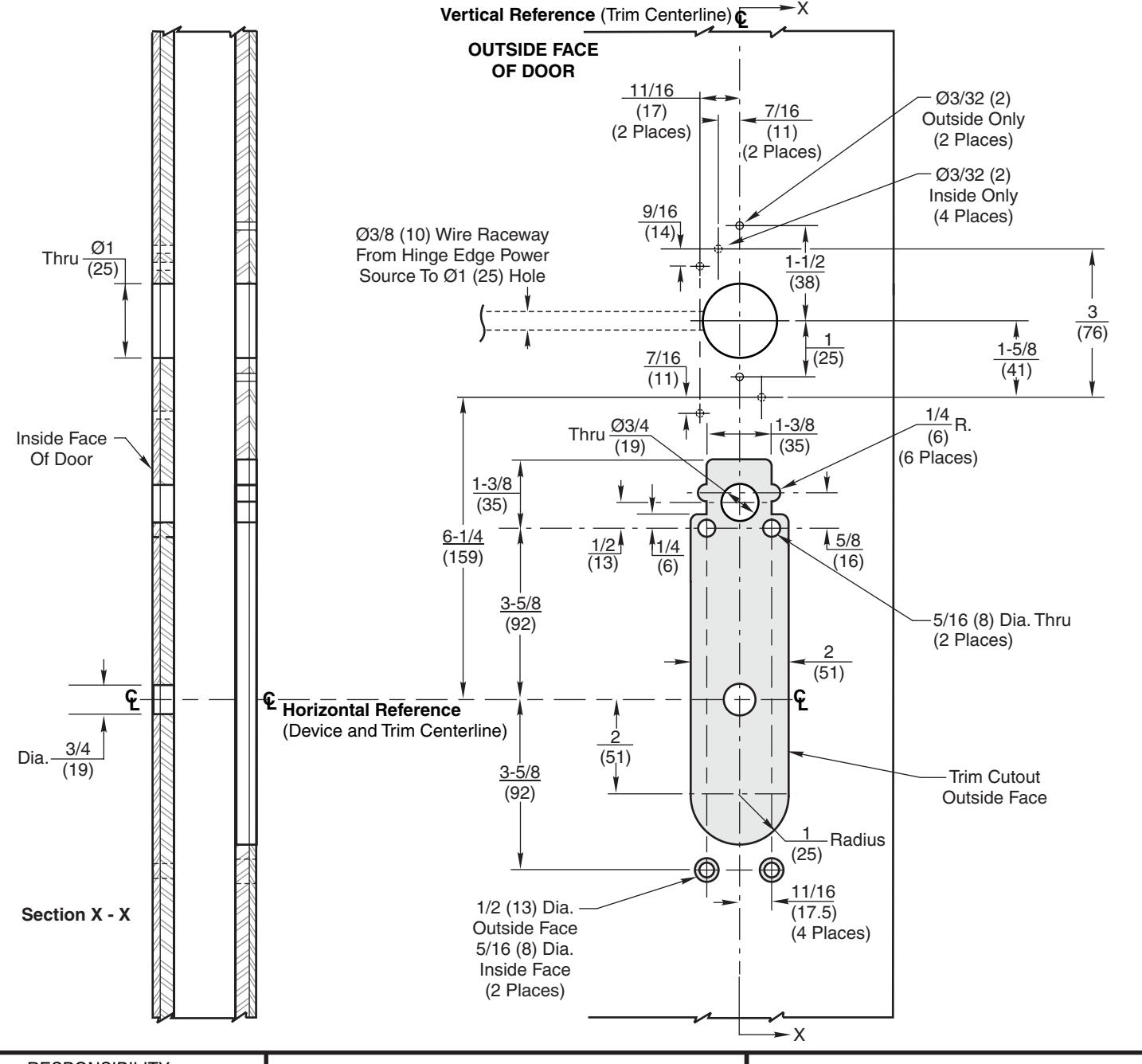

SE LP10, SN200/210 9S600 Series Trim for ED5400N Series Exit Devices Metal Door Preparation

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER SHEET DATE T31219-1 1 of 2 12/20 T31219 www.corbinrusswin.com ASSA ABLOY

®

LHR Door RHR Door Inside ^• Face of Door ONLY

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

SE LP10, SN200/210 9S600 Series Trim for ED5400N Series Exit Devices Metal Door Preparation

ASSA ABLOY

SUPERSEDES

DO NOT SCALE DRAWING T31219

T31219-1

2 of 2 12/20
