Turnkey Solution

SE LP-10F

FIPS 201-1 Compliant PIV Solution Integrated Wired Access Control

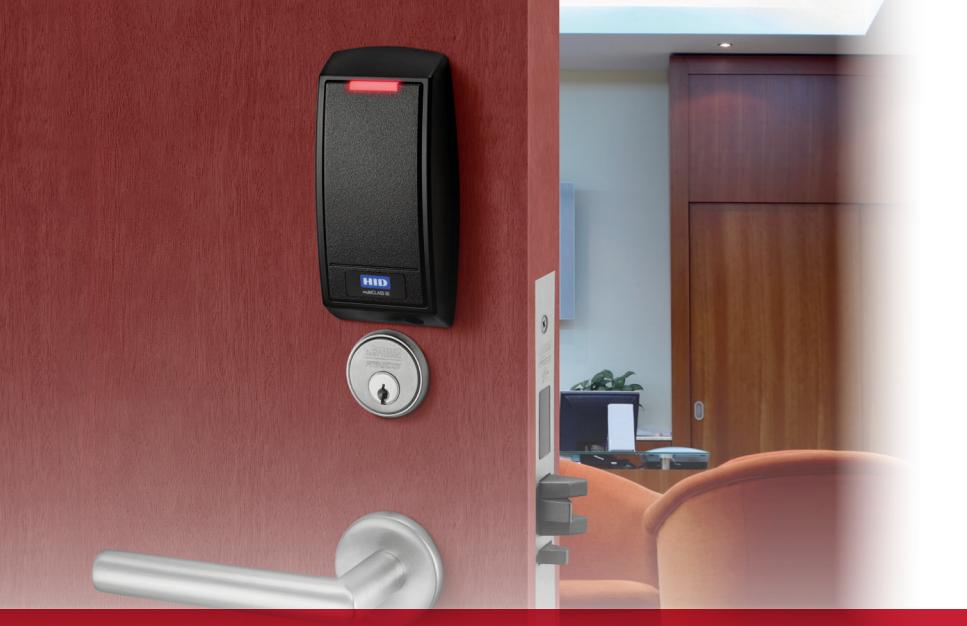

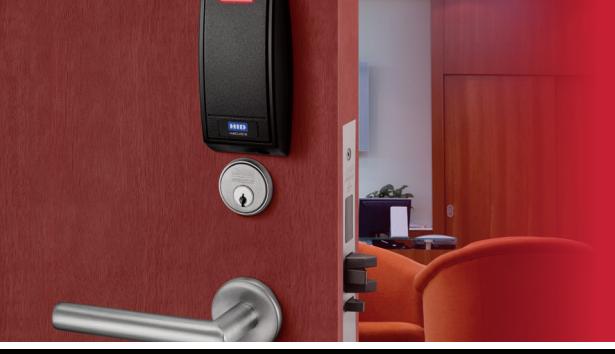

The Corbin Russwin SE LP10-F is designed for secure physical access projects that must comply with Personal Identity Verification (PIV) standards under Federal Information Processing Standards (FIPS) 201-1. Offering the same ease and convenience as our other Integrated Wired access control solutions, the SE LP10-F provides a simple-to-deploy, cost-effective turnkey solution for any federal agency or facility seeking compliance.

SE LP10-F

Integrated Wired Access Control

Specifications and System Requirements

• › Reader: 12VDC
• › Mortise and multi-point locks operate from 12-24VDC; cylindrical locks available as 12 or 24VDC; exit devices available as 24VDC only
• › Mortise and multi-point locks field selectable to fail-safe or fail-secure; must specify fail-safe or fail-secure for cylindrical locks and exit devices

Credential Support:

The SE LP10-F features HID® multiCLASS SE® technology to support the following credentials:

• › High Frequency (13.56 MHz):
• ISO14443A/B (FIPS 201-1* Transparent FASC-N read)
• Secure Identity Object™ (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1/EV2 and MIFARE Classic (on by default)
• Standard iCLASS Access Control Application, ISO14443A (MIFARE) CSN, ISO14443B CSN, and ISO15693 CSN
• › Low Frequency (125 kHz):
• HID Prox®, AWID, EM4102
• * FIPS 201-2 support coming soon

Features	Benefits
Supports SP 800-116 for use in Uncontrolled Compliance security areas or sub-areas within Controlled or Limited areas	• Meets U.S. Government Smart Card Interoperability Specifications

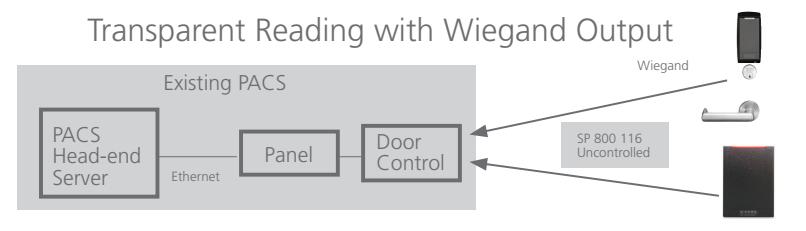

Transparent FASC-N read of PIV credential with Wiegand output	• Enables existing PACS infrastructure to be maintained for most facility openings
Open architecture platform	• Compatibility with all popular access control systems
multiCLASS SE® Technology from HID Global®	• Provides heightened security • Supports multiple credential types
HID pivCLASS® Transparent Reader	• Supports dynamic detection of PIV or PIV-I cards; ideal for phased deployment approach
Intelligent power management	• Reduces reader power consumption by as much as 75%
Technology Lockdown capable	• Ability to secure areas immediately from central security system
Mortise locks feature EcoFlex® technology	• Reduces energy consumption up to 96%, as certified by GreenCircle • Field configurable to fail-safe or fail-secure • Lock operates from 12-24VDC, offering greater flexibility in system design • Innovative actuator design provides superior reliability
Integrated design incorporates all access control components, including card reader, door position switch, and request to exit monitoring sensors	• Significantly reduces installation time with fewer components and a single wire harness
Installation Integrated ANSI/BHMA Grade 1 hardware, available in cylindrical lock, mortise lock, multi point lock, and exit device configurations	• Flexibility to support a variety of door applications; industry leading Grade 1 hardware offers the highest degree of physical security available in access control locks
Direct Wiegand output (75 bit or 200 bit output option for PIV credentials)	• Eliminates the need for an interface panel
Provided with pre-terminated ElectroLynx® connectors	• Reduced installation time and costs; improved reliability
