Corbin Russwin SD001 Strike for DL3000 Series Deadbolts Template_T30540
Open the original PDF document
View PDF
Notes:
- Frame prep meets ANSI standards A115.5 for steel doors and A115.WB for Wood Doors
- 2. Dimensions given in inches and (mm)
| Tolera | ances |
|---|---|
| Inches | (mm) |
| .005 | (.127) |
| .015 | (.381) |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

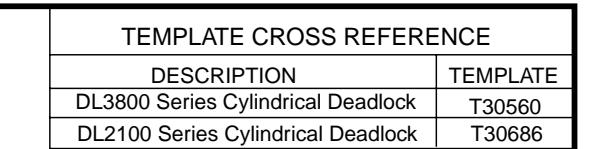

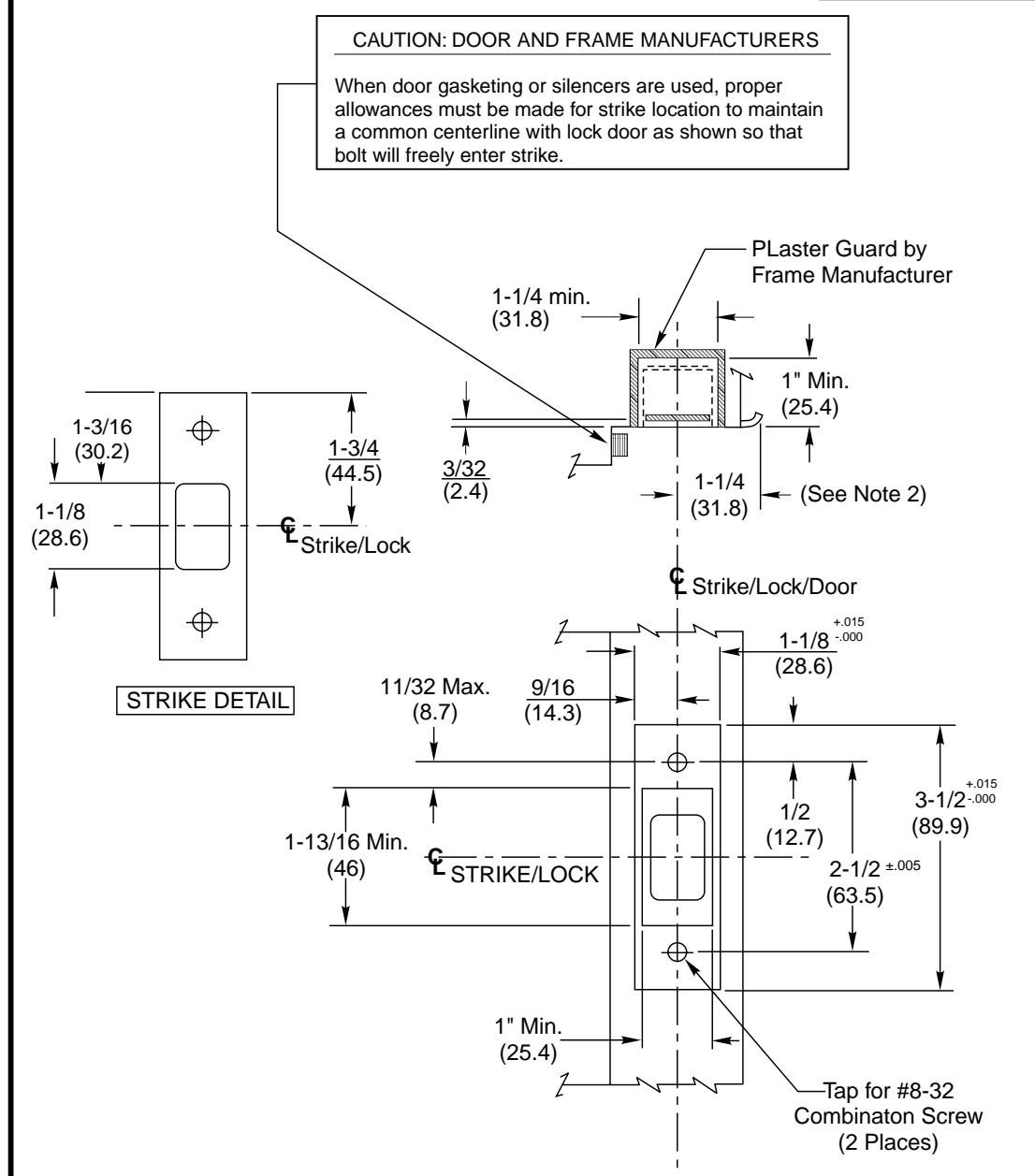

SD001 394F19 (Strike)
FRAME DETAIL
|
Corbin
z
Russwin |
® |
|---|---|
| www.corbinrusswin.c | om |
| Do Not Scale Drawin |
| Supersedes | T30540 | Dr. | App. | |-----------------------------------
