Corbin Russwin SC Series 83L96 Curved Lip Box Strike for UT5200 Series Unit Locks Template_T30497
Open the original PDF document
View PDF
NOTES:
- 1. DIMENSIONS GIVEN IN INCHES AND (MM).
- 2. 1-9/16" STRIKE LIP SUITS FRAME FOR 1-3/4" THICK DOOR.
| TOLERANCES | |
|---|---|
| INCHES | (MM) |
| .005 | (.127) |
| .015 | (.381) |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
SC SERIES

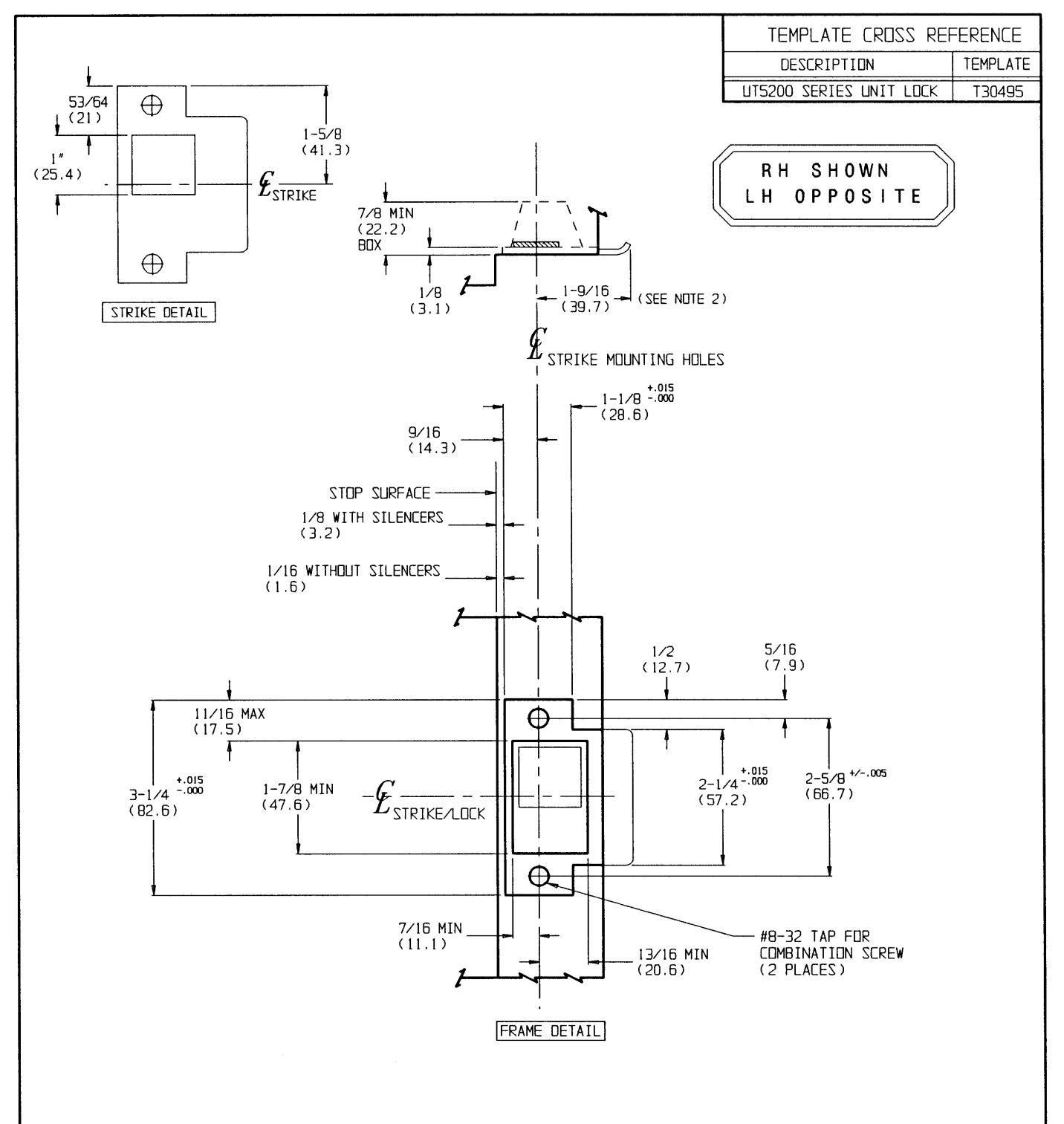

83L96 CURVED LIP BOX STRIKE
| Corbin Z |
|---|
| www.corbinrusswin.com |
DO NOT SCALE DRAWING
5 / 2 4 / 9 3 NAMBER T 3 0 4 9
