Corbin Russwin SB Options Template_T30606
Open the original PDF document
View PDFNotes:
1. Dimensions given in inches and (mm).
LHR SHOWN RHR OPPOSITE
| TEMPLATE CROSS REFERENCE | |||
|---|---|---|---|
| Description | Template | ||
| ML2000, ML2200 Series Mortise Lock | T30600 | ||
| ML2000HS, ML2200HS Series Mortise Lock | T30604 | ||
| ML2000, ML2200 Series Mortise Lock (MR) | T30605 | ||
| - | MLE03, MLE06 Mortise Exit Lock | T30586 | |
| MLE01, MLE02 Mortise Exit Lock | T30439 | ||
| - | MLE08, MLE09 Mortise Exit Lock | T30610 | |
| MLE10, MLE11 ECE Mortise Exit Lock | T30635 | ||
| ML2000, ML2200 ECL Series Mortise Lock | T30636 | ||
| Α | В | |
|---|---|---|
| Door | Lip | |
| Thickness | Length | |
| 1-3/4 (44.5) | 1 (25.4) | |
| 2 (50.8) | 1-1/8 (28.6) | |
| 2-1/4 (57.2) | 1-1/4 (31.8) | |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
SB Series

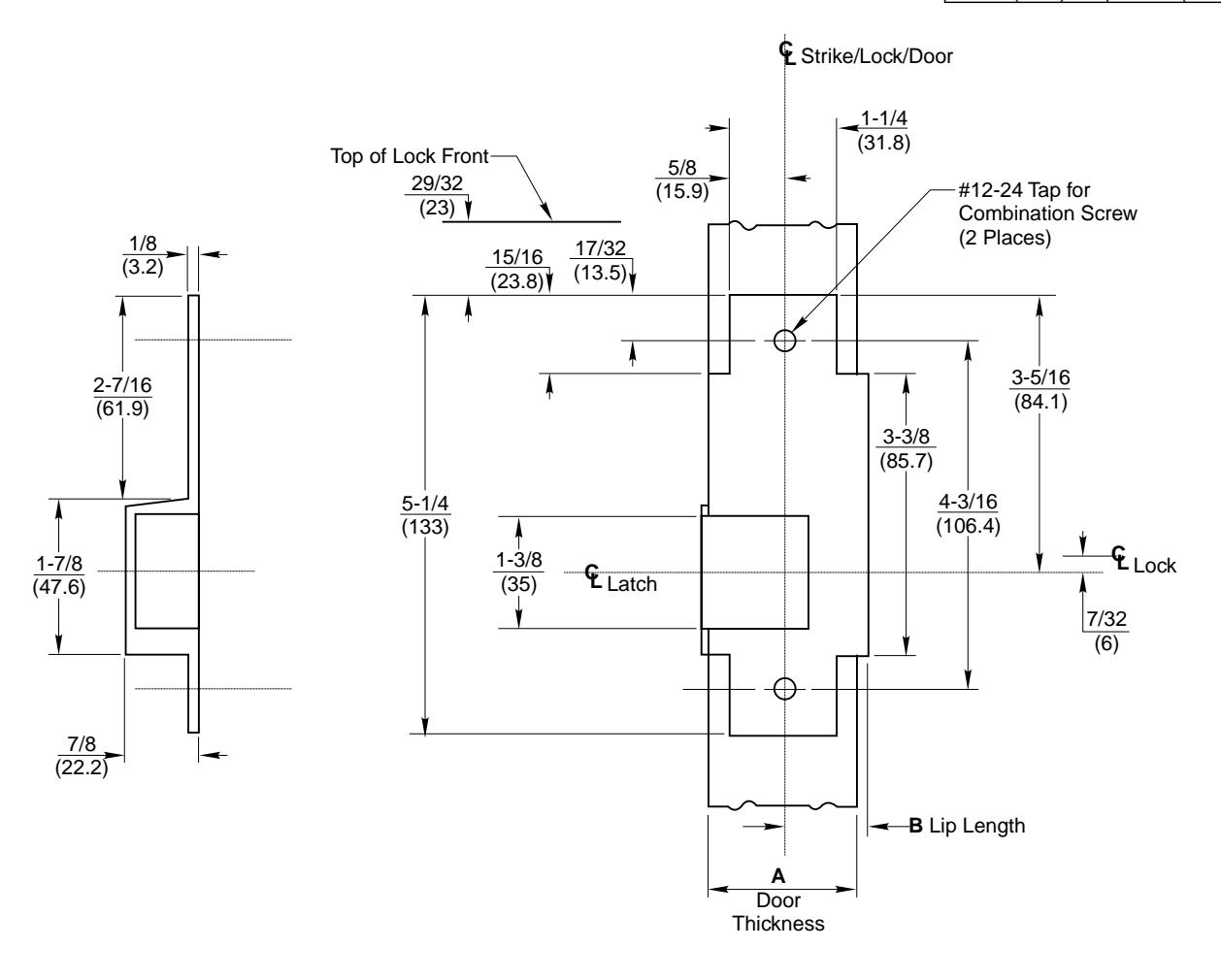

411L62 LHR 411L63 RHR Open Back Strike
Template T30606-2
www.corbinrusswin.com
Do Not Scale Drawing
8-99
Supersedes T30606-1 Dr. App.
