Corbin Russwin Positive Pull Stop Retrofit Kit for HPSK ML2000 and HP3000 Series Mortise and Tubular Locks Insta…_FM348

Positive Pull Stop Retrofit Kit Used with HPSK Mortise and HP3000 Tubular Locks

HPSK Mortise Lock Shown

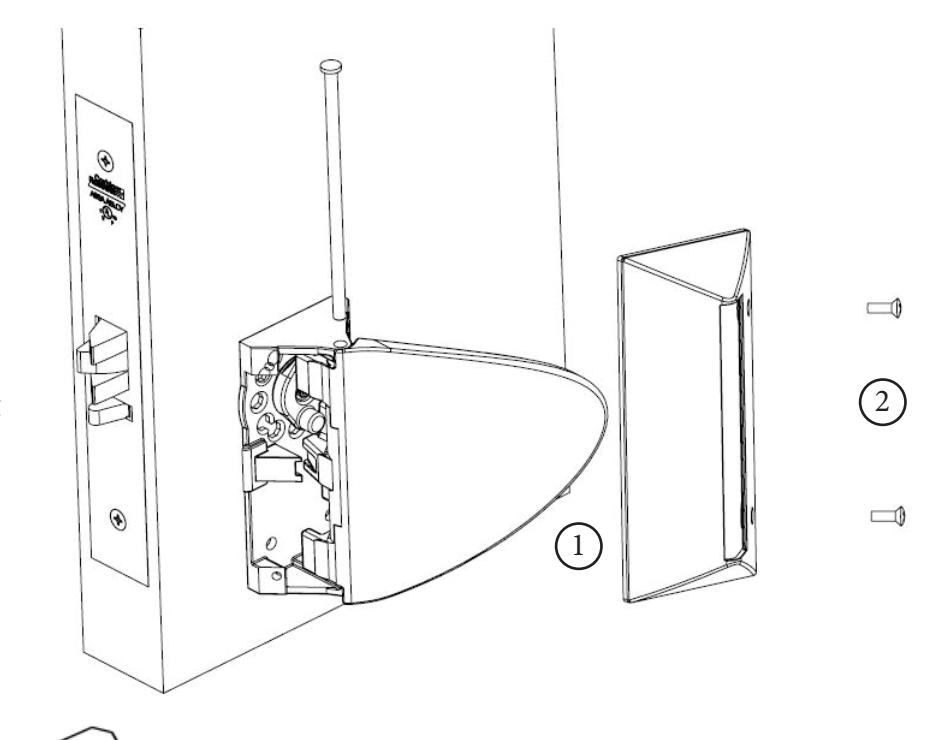

• Step 1: Remove the cover and the paddle on the pull side of the
• Step 2: Remove both surface mount screws from pull side of door.

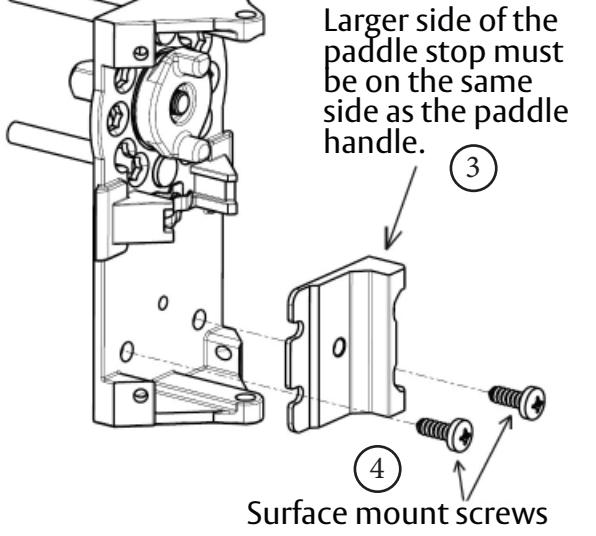

• Step 3: Place the paddle stop so that larger side is underneath the paddle.
• Step 4: Re-install both surface mount

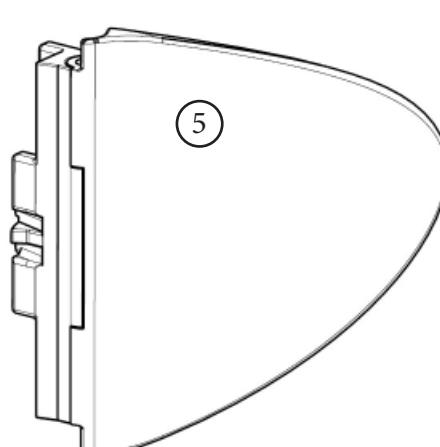

• Step 5: Re-Install paddle.
• Step 6: Check to make sure the paddle retracts the latch when pushed, but not when pulleď.
• Step 7: Re-Install the cover.
