Corbin Russwin PED5000 Series and SARGENT PE80 Series Devices with Electro-Mechanical Options Template_MEDT17

PRE	D EXIT DEVICE RA P LOCATION
DIMENS	SION "X" CROSS- RENCE CHART
DOOR WIDTH	DIM "X" FOR WIDE STYLE CHASSIS
48"	41.912
47"	40.912"
46"	39.912"
45"	38.912"
44"	37.912
43"	36.912"
42"	35.912"
41"	34.912"
40"	33.912"
39"	32.912"
38"	31.912
37"	30.912"
36"	29.912"
35"	28.912"
34"	27.912"
33"	26.912"
32"	25.912"
31"	24.912"
30"	23.912"
29"	22.912"
28"	21.912"
27"	20.912"
26"	19.912"
25"	18.912"

	RIZED PREMIUM EXIT DEVICE PLATE AND INSTRUCTION SHEET
DESCRIPTION	OPTION	INSTALLATION INSTRUCTIONS	OPTION	INSTALLATION
LATCH MONITOR SWITCH	53-	A8299	M91	FM575
SIGNAL SWITCH RAIL	55-	A8299	M92	FM575
ELECTRIFIED LATCH RETRACTION	56-	A8297	MELR	FM573
ELECTRIC DOGGING	58-	A8299	M97	FM575
DELAYED EGRESS	59-	A8298	D	FM574
ALARMED	AL-	A8325	M61	FM618

Security and Consequences and Consequences

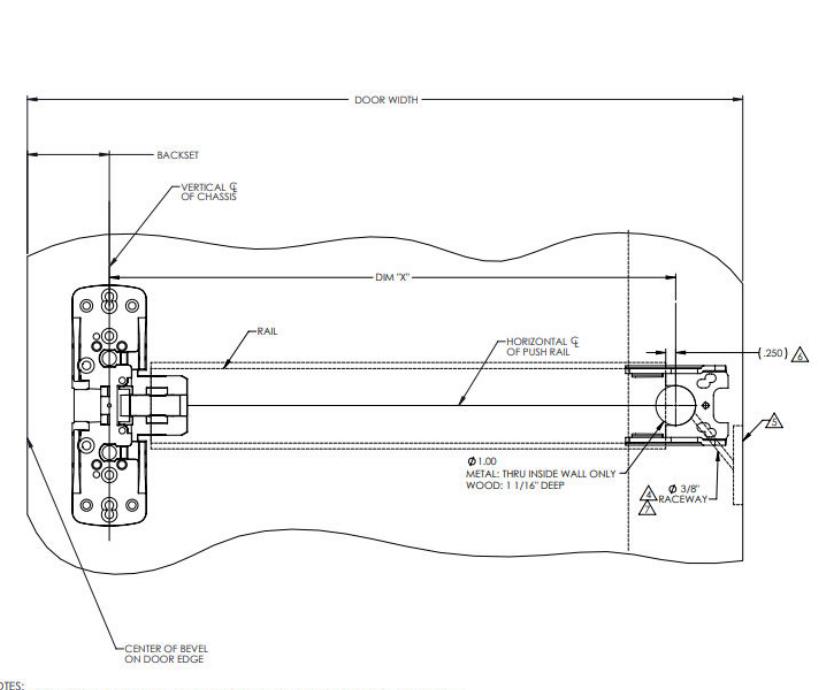

DOOR MANUFACTURERS TEMPLATE: ELECTRO - MECHANICAL
EXIT DEVICE RAILS(WIDE DESIGN

04/07/22 TEMPLATE NO. MEDT17

17 912

FOR LOCATION OF VERTICAL AND HORIZONTAL Q. AND ADDITIONAL EXIT DEVICE PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.

2. HARNESS ROUTES MAY DIFFER BY DOOR, CONSULT DOOR MANUFACTURES SPECS FOR ROUTES USED. 3. FOR ELECTROLYNX™ APPLICATIONS REFER TO MCKINNEY TRANSFER DEVICE CATALOG.

4. 3/8" RACEWAY FOR ELECTROLYNX™ APPLICATIONS REFER TO MCKINNY TRANSFER DEVICE CATALOG. 5. CONSULT WITH POWER TRANSFER DEVICE

CONSULT WHITE POWER HANDS LEVEL MANUFACTURER AND DOOR MANUFACTURER FOR DOOR AND FRAME TEMPLATE DETAILS. FOR MODIFIED RAIL ENGINES POSITION HOLE 250' BEYOND END OF RAIL DOOR MFG TO PROVIDE CLARGANCE IN REMINORCEMENT TO ALLOW INSERTION OF ELECTRICAL WIRES RUNNING BETWEEN RAIL AND ELECTRIC HINGE. MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.
