Installation Instructions

PED5200 & PED5200 A Series

Rim Exit Device for 10T, 55T, 42, & 42T Functions

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov.

and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com Copyright © 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.

Reproduction in whole or in part without the express written permission of ASSA ABLOY Access

WARNING

Attention Installer: Improper installation may result in damage to the product and void the factory warranty.

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

Screw Chart

SCREW	TOTAL QTY SUPPLIED	WHERE USED
#10-24 X 3/4" FLAT HEAD MACHINE SCREW	4	(4) CHASSIS CORNER MOUNTING HOLES (METAL DOOR)
#10 X 1-1/4" FLAT HEAD WOOD SCREW	4	(4) CHASSIS CORNER MOUNTING HOLES (WOOD DOOR)
#10-24 X 3/4" ROUND HEAD MACHINE SCREW	4	(2) REAR MOUNTING PLATE (METAL DOOR) (2) 649 STRIKE INNER MOUNTING HOLES
#10 X 1-1/4" ROUND HEAD WOOD SCREW	2	(2) REAR MOUNTING PLATE (WOOD DOOR)
#10-24 X 3/4" OVAL HEAD MACHINE SCREW	2	(2) 649 STRIKE OUTER MOUNTING HOLES (METAL FRAME)
#10 X 1-1/4" OVAL HEAD WOOD SCREW	2	(2) 649 STRIKE OUTER MOUNTING HOLES (WOOD FRAME)
#8-32 X 7/16" FLAT HEAD MACHINE SCREW	2	(2) CYLINDER SUPPORT TO CHASSIS (42 & 42T FUNCTIONS ONLY)
#8-32 X 1/4" SOCKET HEAD SET SCREW	1	(1) CYLINDER SUPPORT TO CYLINDER (42 & 42T FUNCTIONS ONLY)
#8-32 X 5/16" W/ #6 OVAL HEAD MACHINE SCREW	4	(2) CHASSIS COVER FRAME SIDE (2) END CAP
#8-32 X 5/8" W/ #6 OVAL HEAD MACHINE SCREW	2	(2) CHASSIS COVER RAIL SIDE
1/4"-20 X 2-3/8" KNURLED FLAT HEAD MACHINE SCREW	2	(2) EXIT TRIM (IF USED)

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

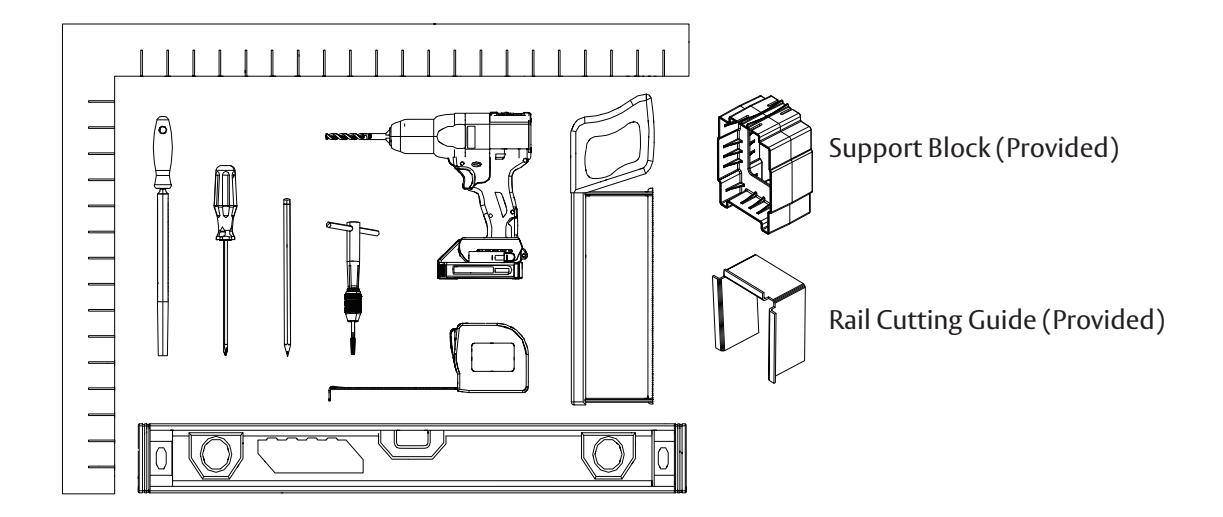

Tools Needed

Before installation:

• 1. Install mullion, if used.
• 2. Fit and hang door.
• 3. Check the box's label for the size of the exit device.
• 4. For wood doors, use wood screws and prep accordingly.

The surface of the door where the exit device is to be applied must be flush. Clear away any raised projections to allow exit device to rest on the flat surface of the door. If shim kit is required, contact your distributor.

Note: Please refer to trim and other installation instructions provided in the box.

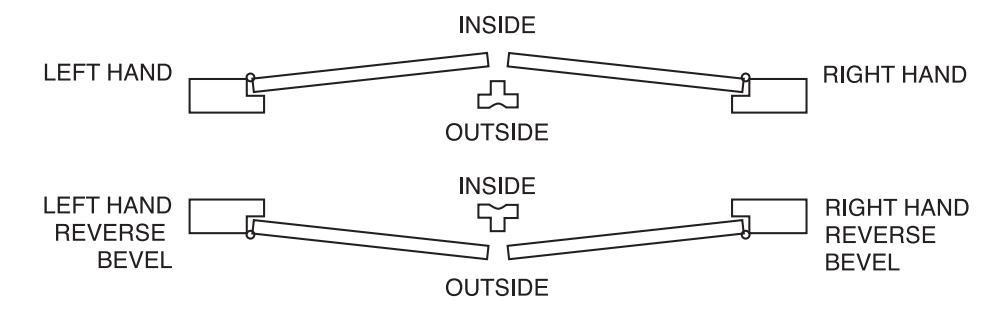

DOOR HANDS DETERMINED FROM OUTSIDE OF DOOR OR SECURED SIDE

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

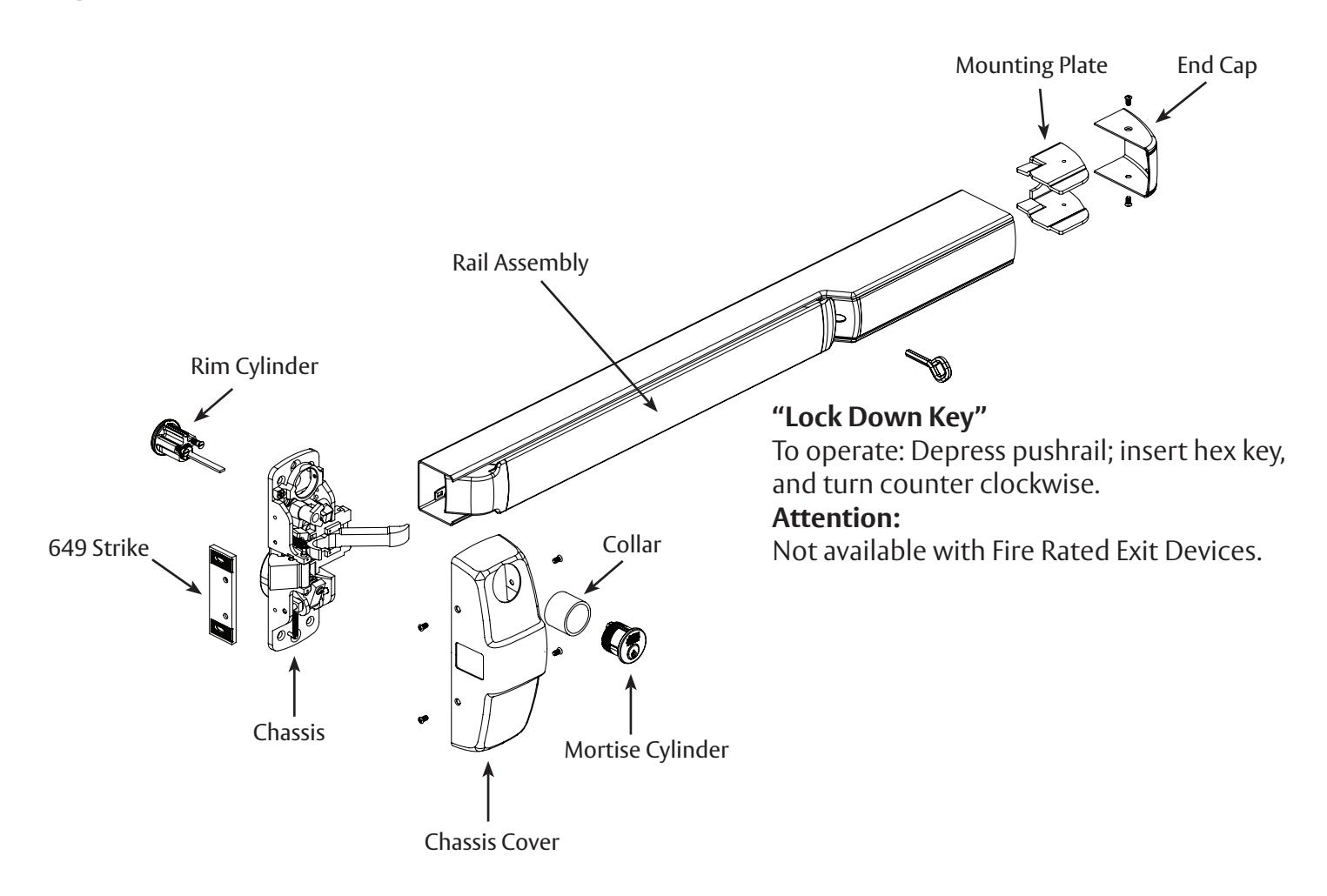

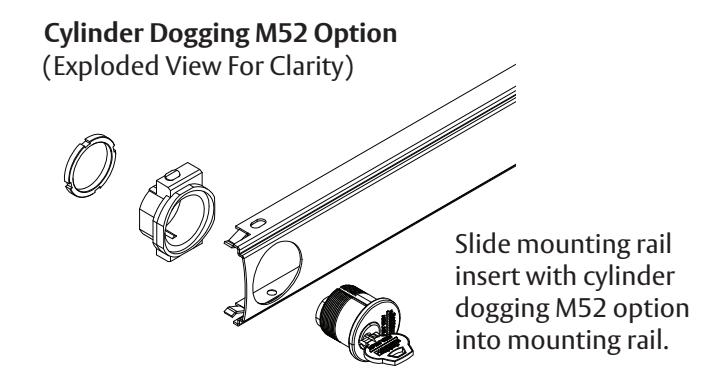

Exploded View

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

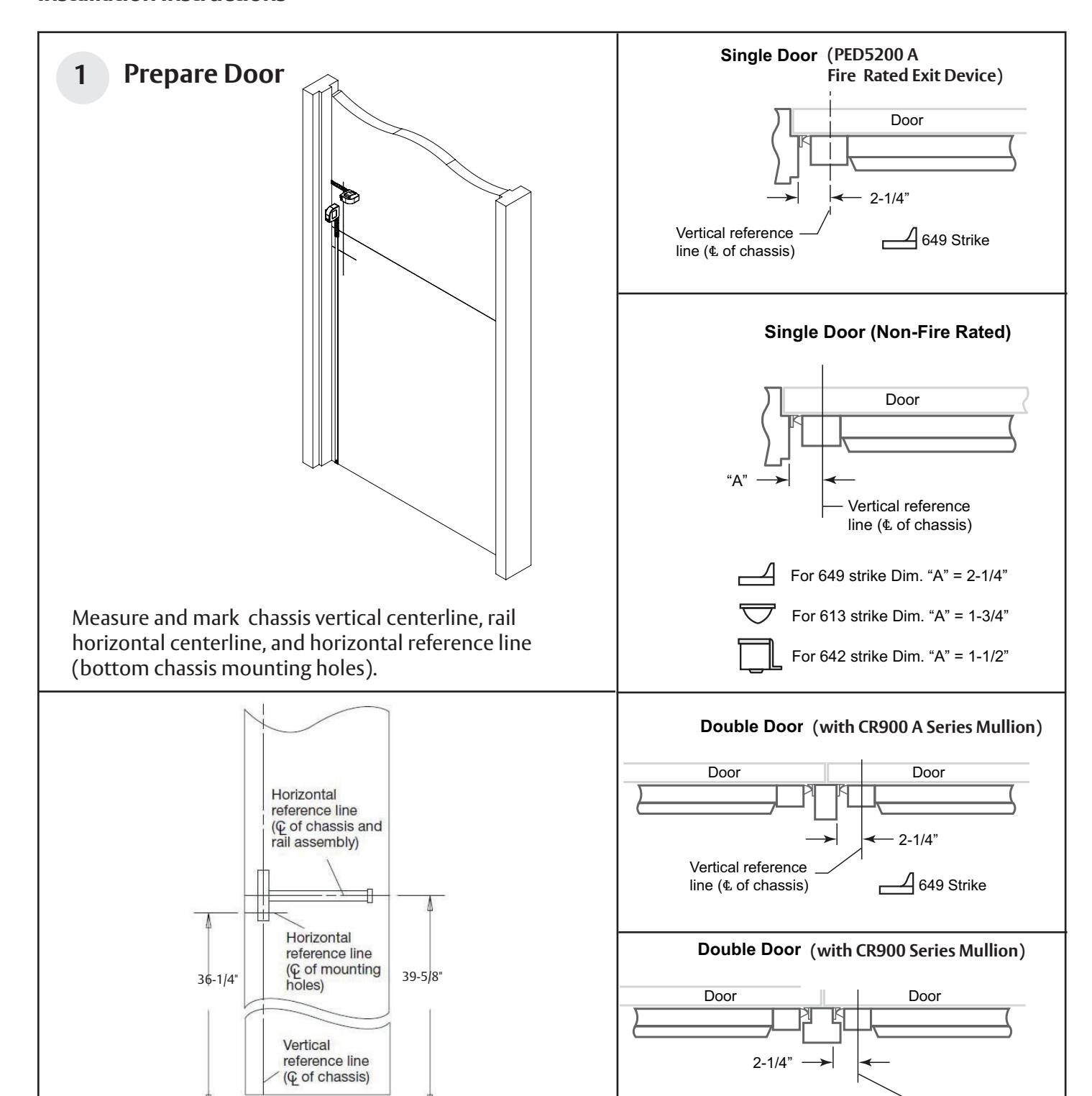

FM576 9/22

Vertical reference line (℄ of chassis)

649 Strike

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

FM576 9/22

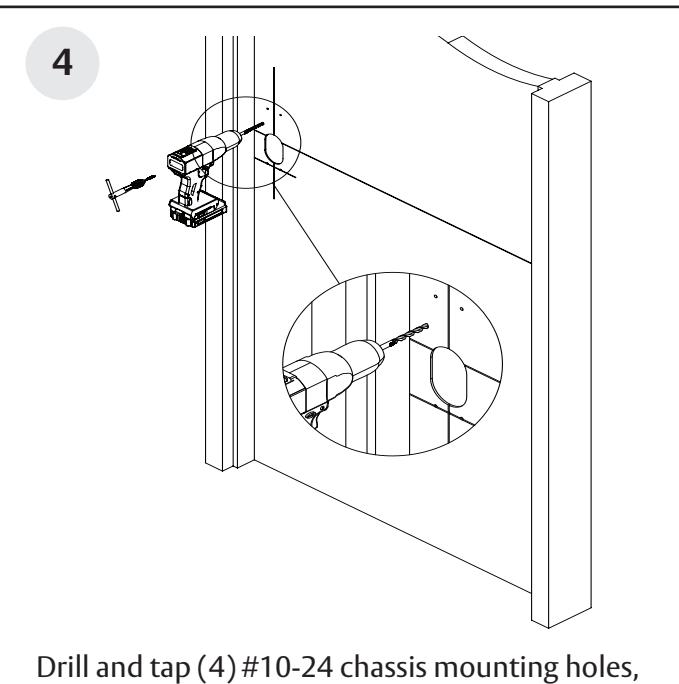

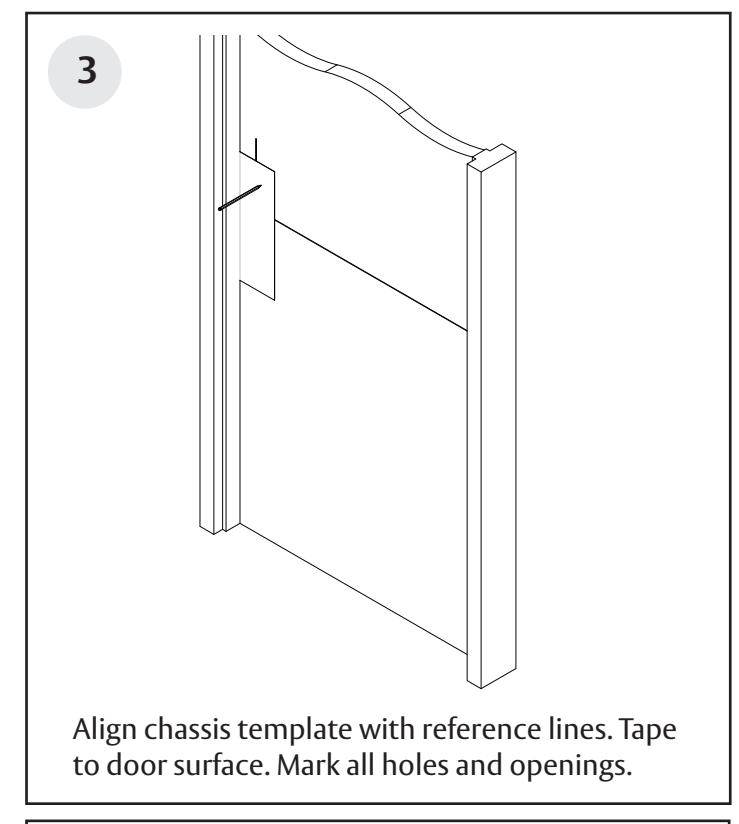

and cut out opening for chassis bell housing /

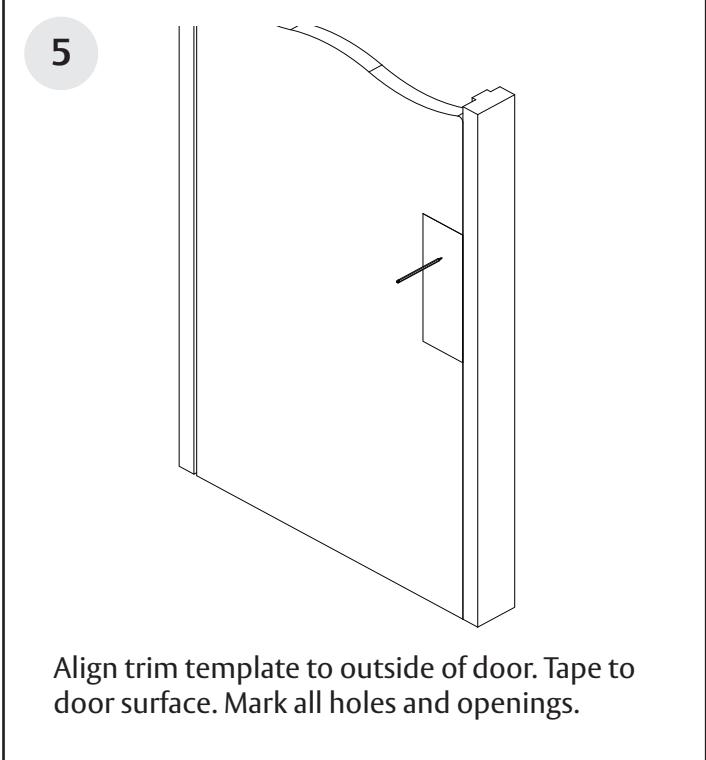

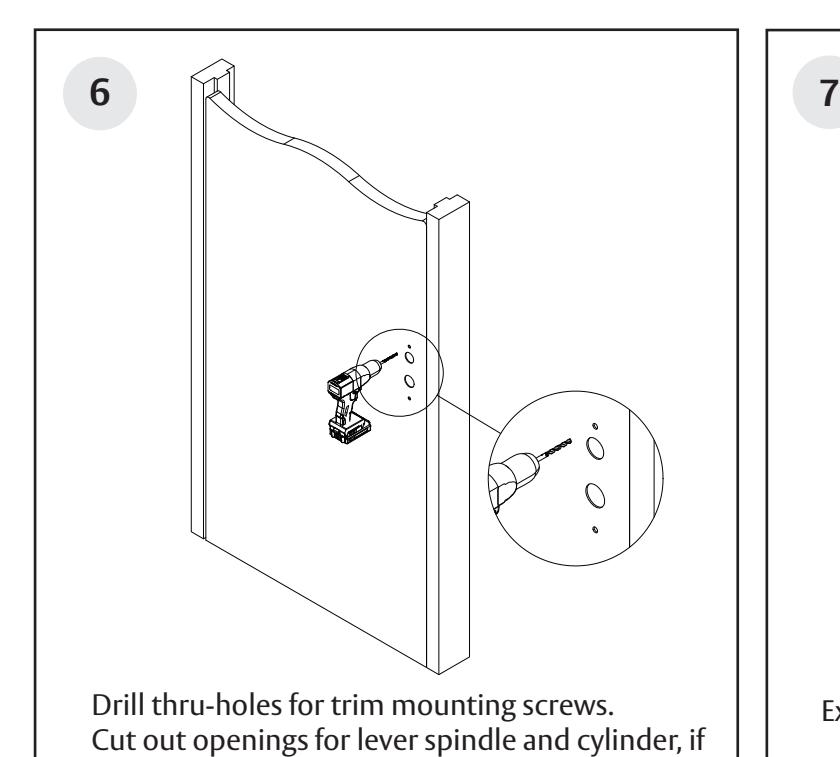

thumbpiece clearance (this side only).

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

used (this side only).

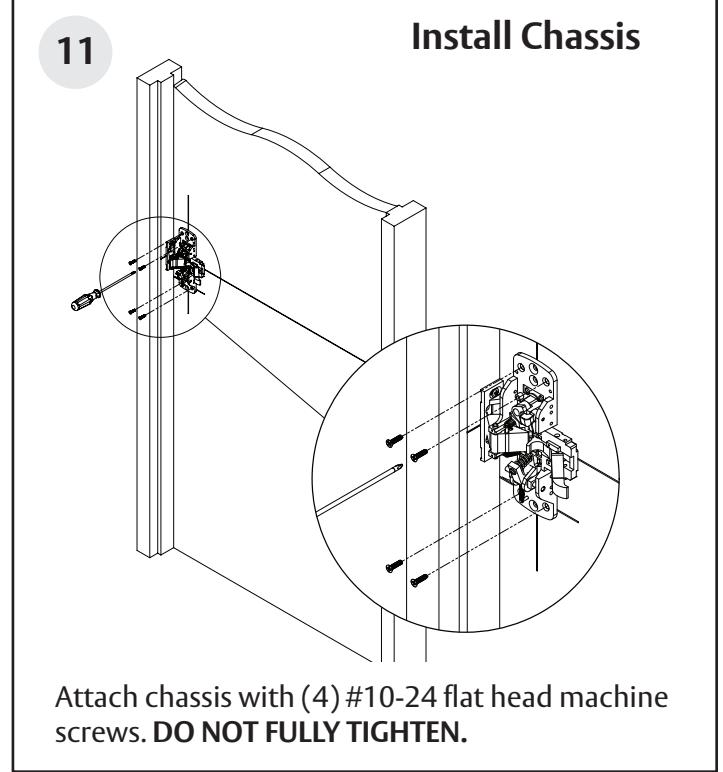

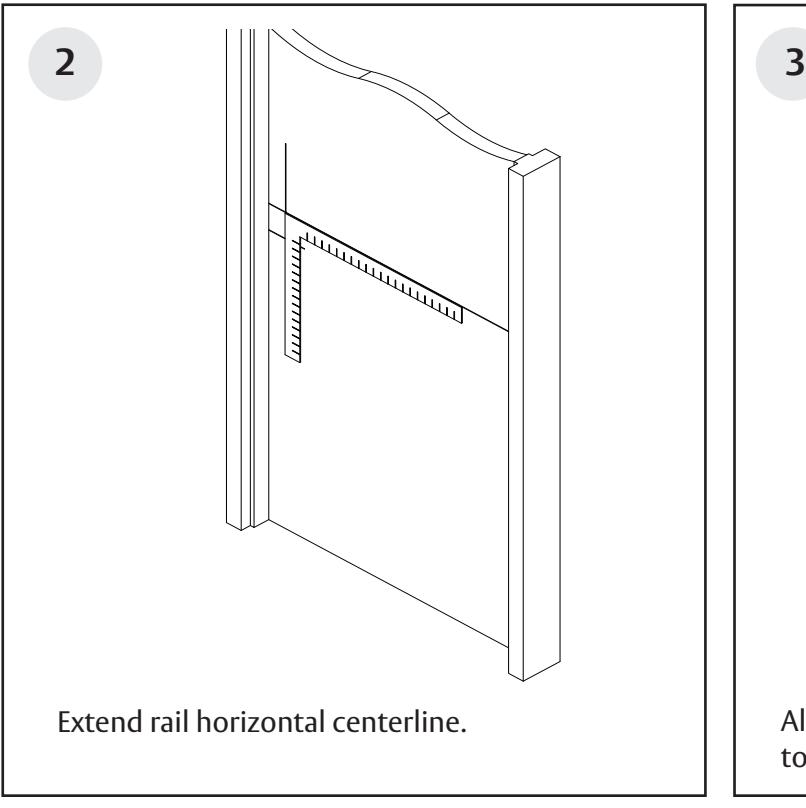

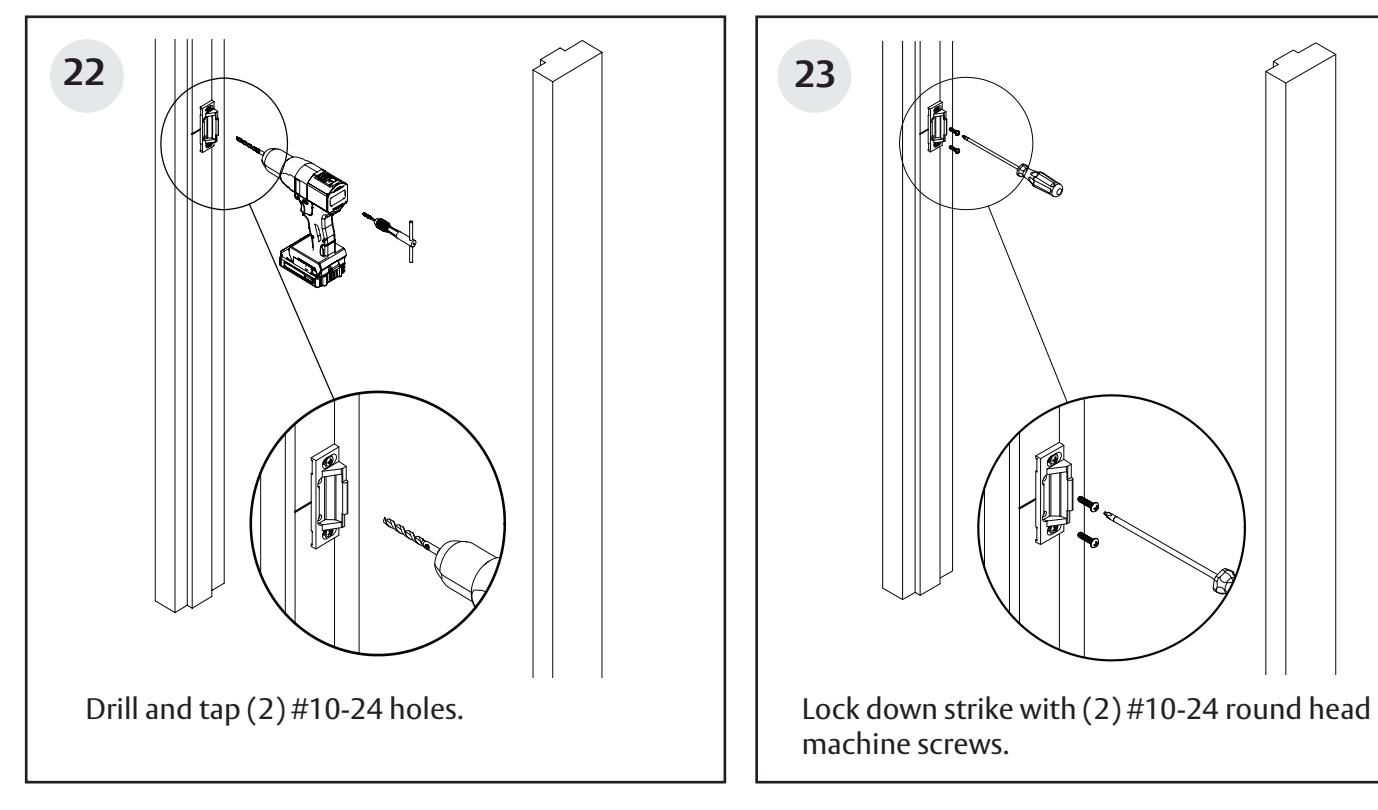

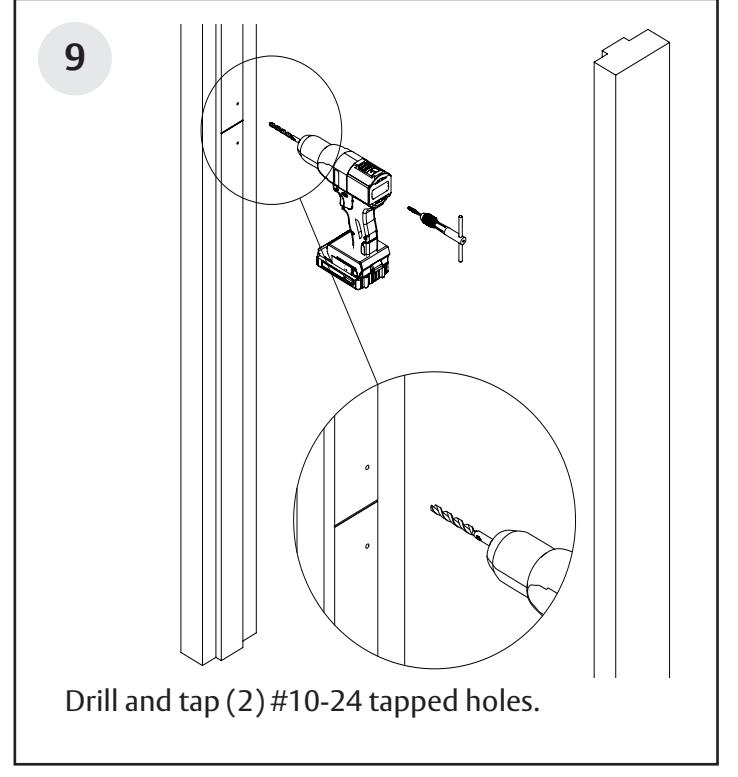

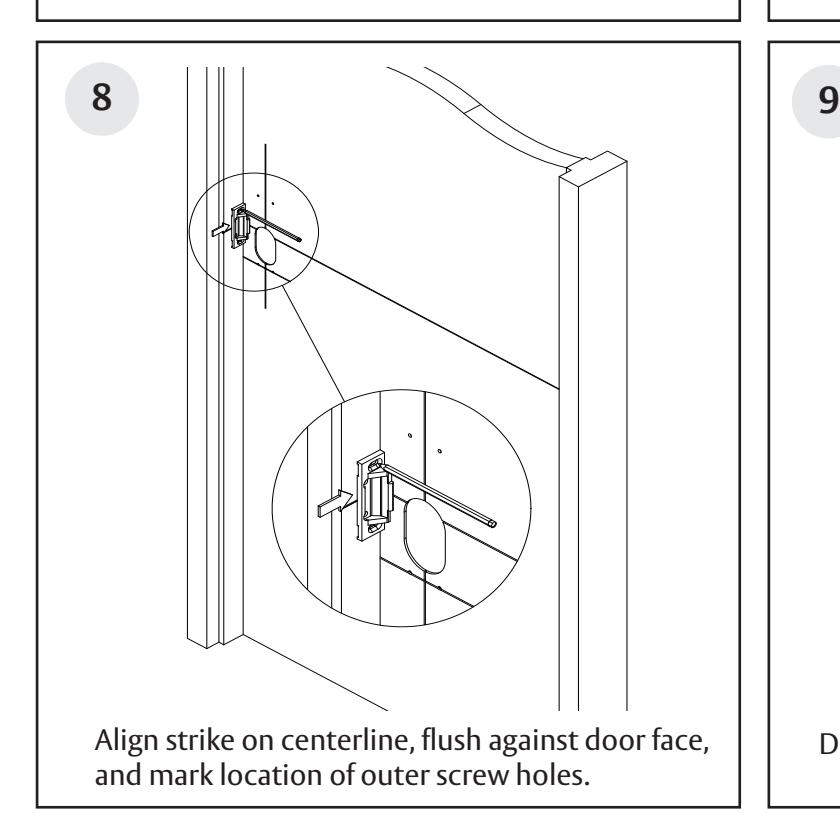

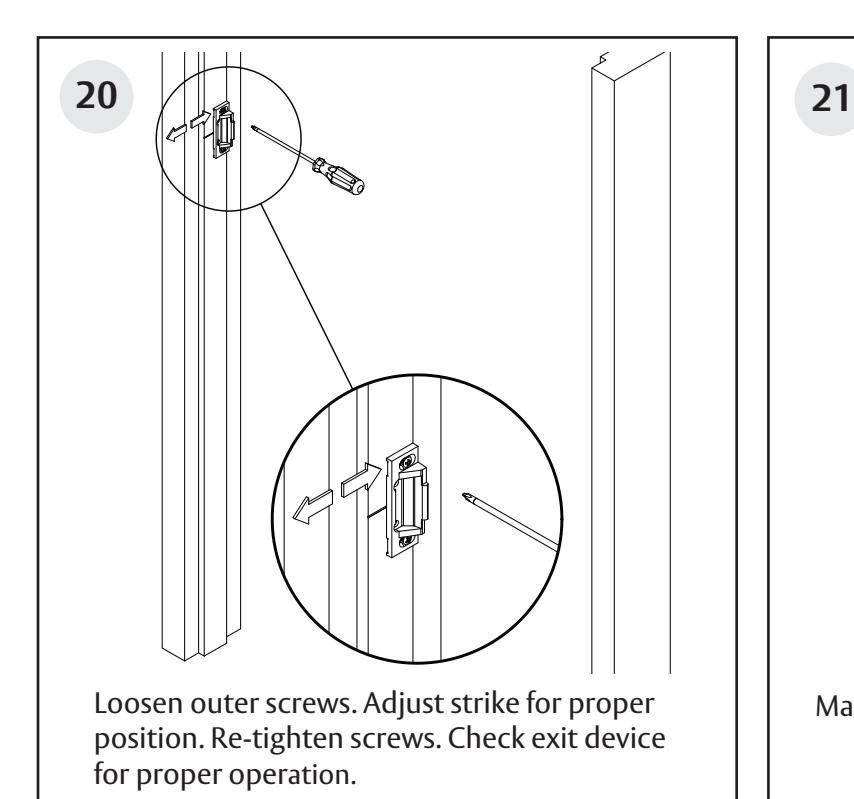

Extend rail horizontal centerline to frame. Install Strike

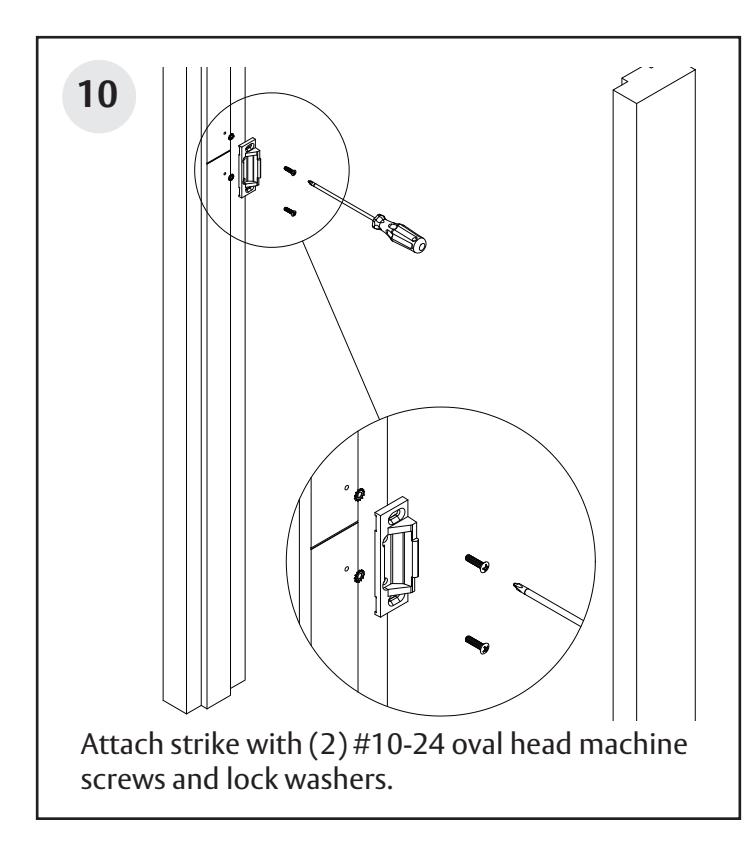

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

Rail cutting guide

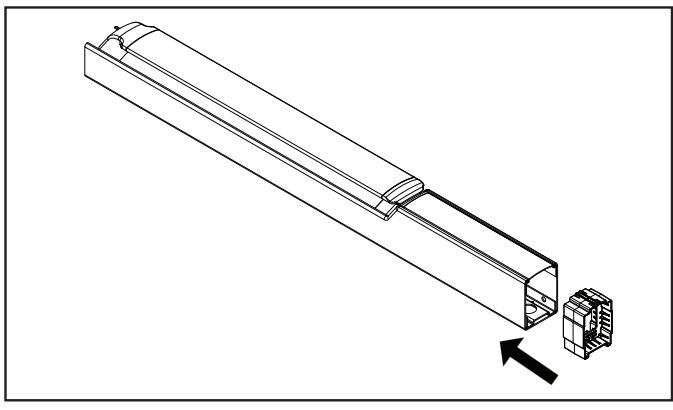

If the rail doesn't need to be cut, continue to page 10, step 12. If the rail must be cut, follow these steps on page 8 and 9:

Refer to the individual exit device installation instructions for rail cutting requirements / restrictions.

Instructions will vary based on device type and options.

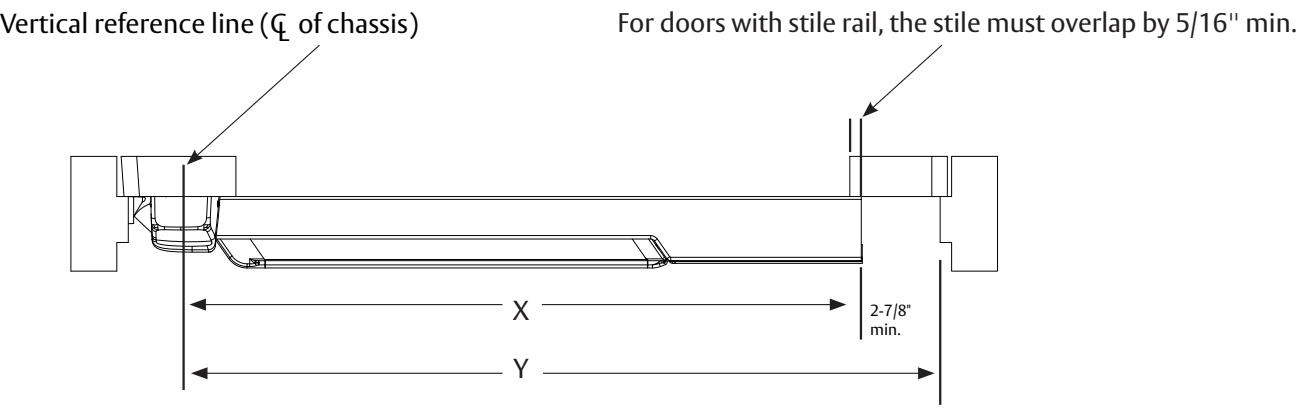

• Determine cut off dimension "X" by subtracting 2-7/8" from dimension "Y". Mark cut off point on mounting rail. (See below.)

Do not cut closer than 1-5/8" from the the front edge of the rail insert.

Information for Cutting Rails
Rail Sizes	Door Widths
	Standard	Minimum
W032	32"	24"
W036 (Std.)	36"	33"
W042	42"	37"
W048	48"	43"

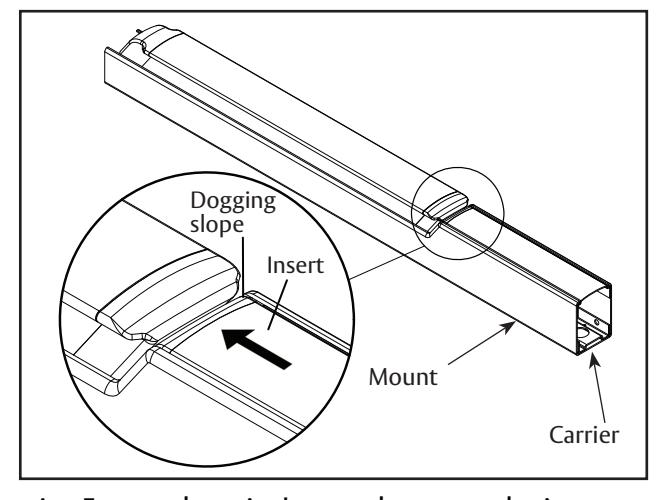

A. Ensure there isn't a gap between the insert and the dogging slope, and the carrier is flush with the mount.

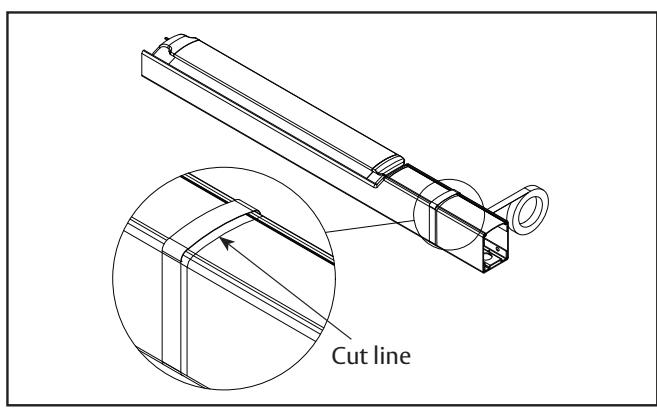

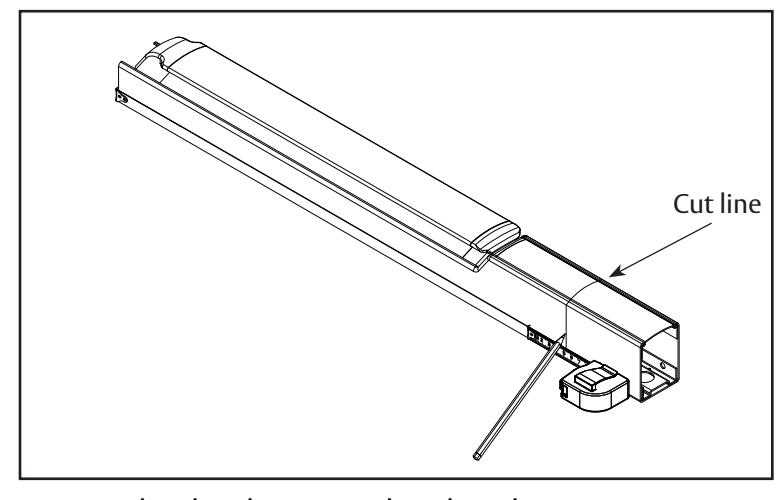

B. Mark rail at the required cut length.

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

Rail cutting guide, continued.

C. Ensure plastic insert support is installed under the cut line.

D. Wrap the rail and insert in masking tape, as shown.

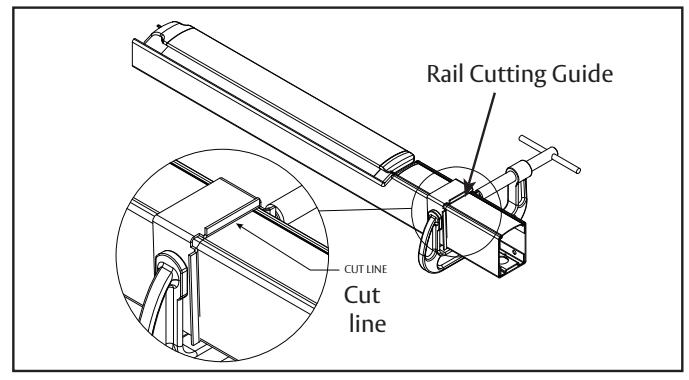

E. Place the rail cutting guide over the masking tape and align it with the cut line. Clamp the cut guide to the rail using a C-clamp.

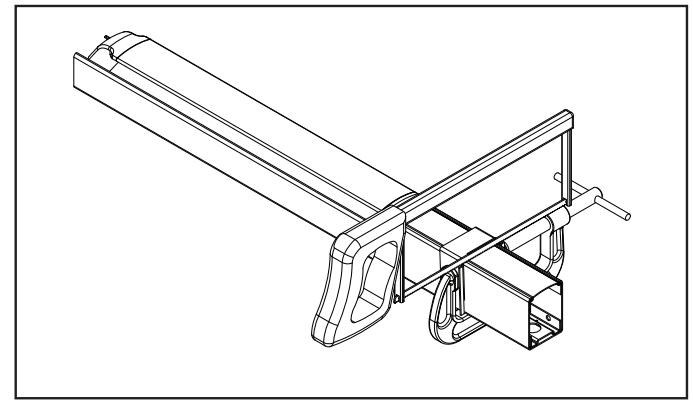

F. Using a hack saw with a new blade or a chop saw with a metal cutting blade, cut the rail, ensuring that the blade stays pressed against the rail cutting guide.

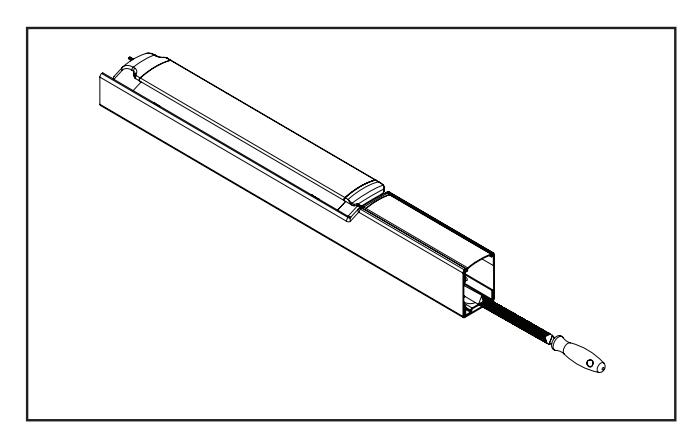

G. Deburr and smooth all cut edges with a file.

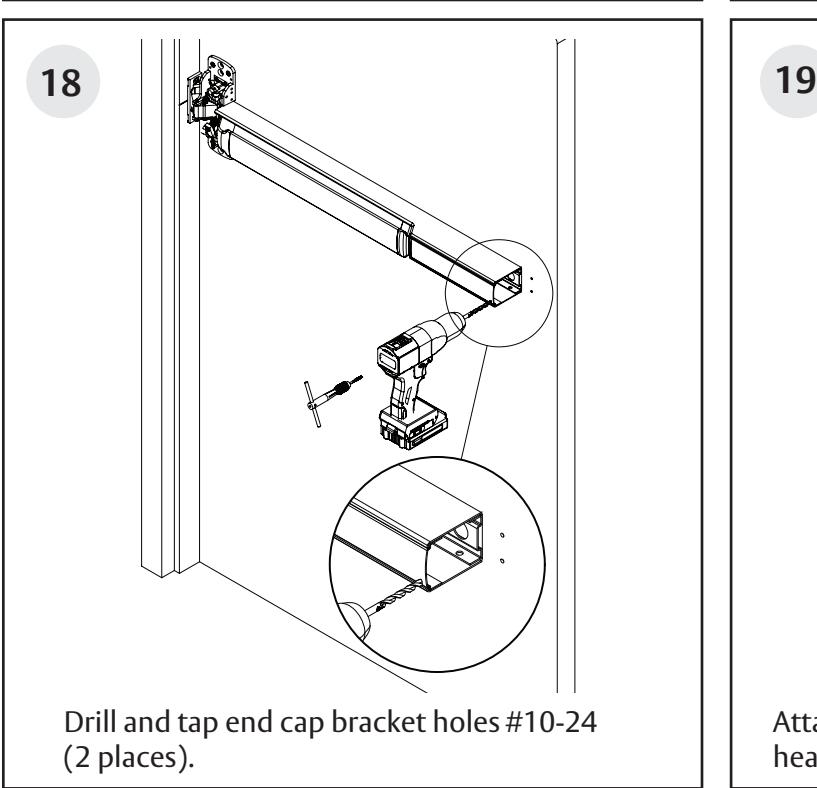

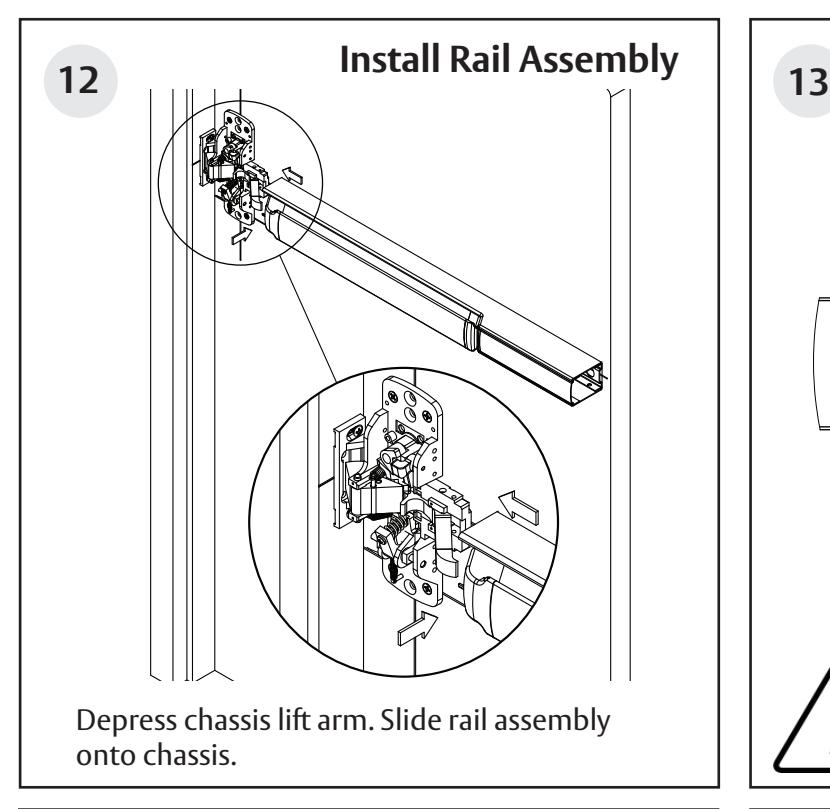

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

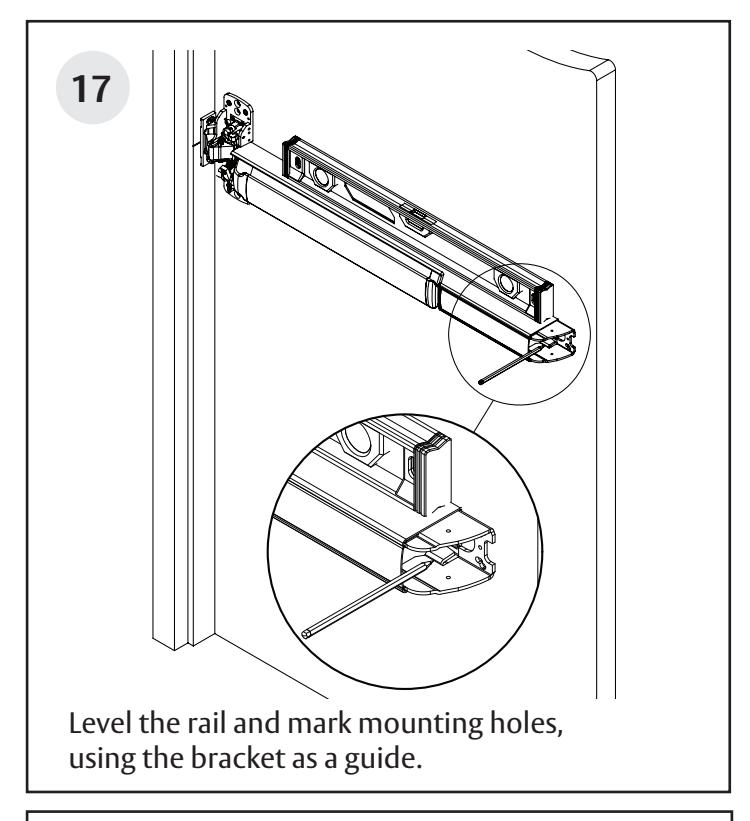

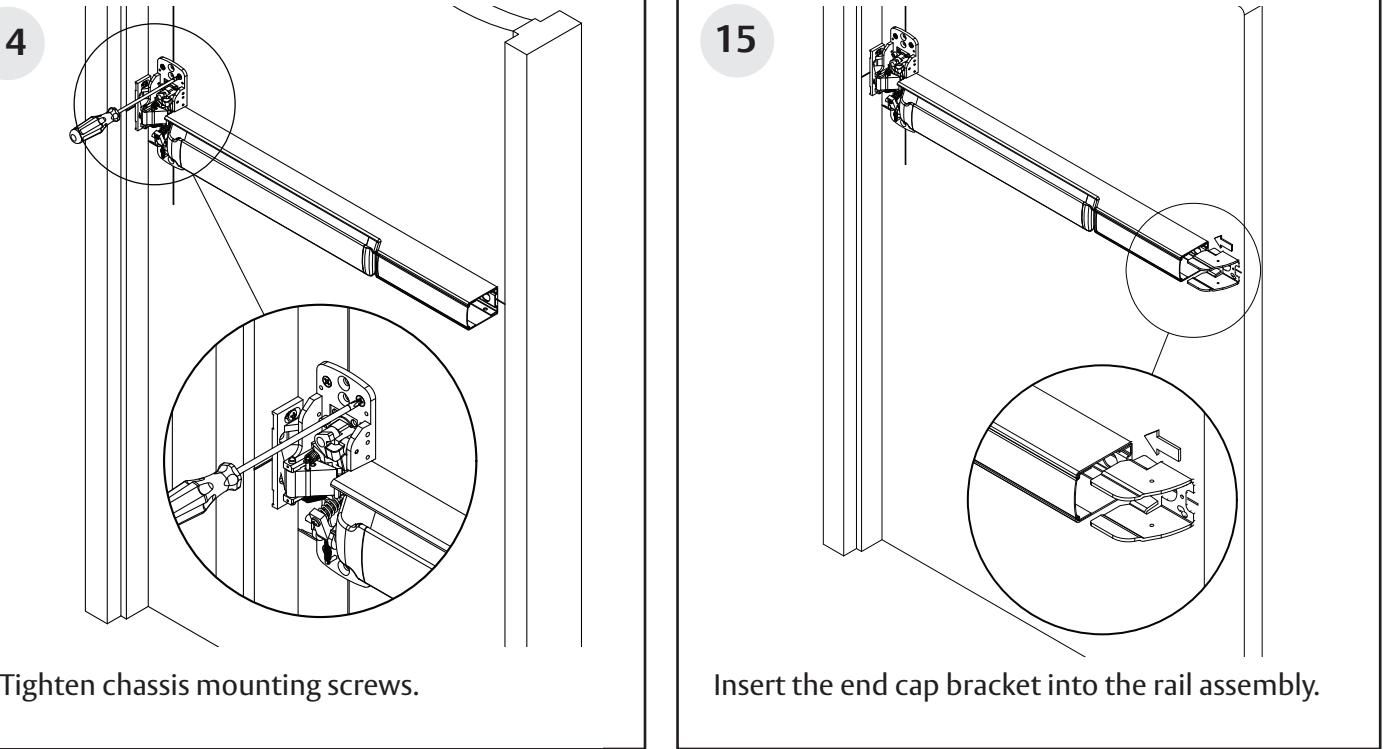

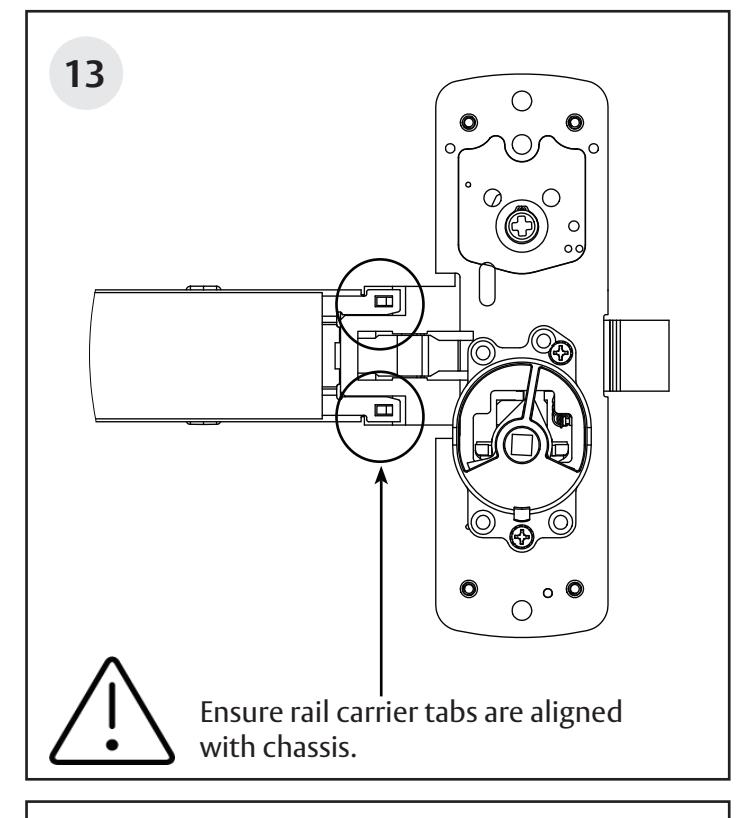

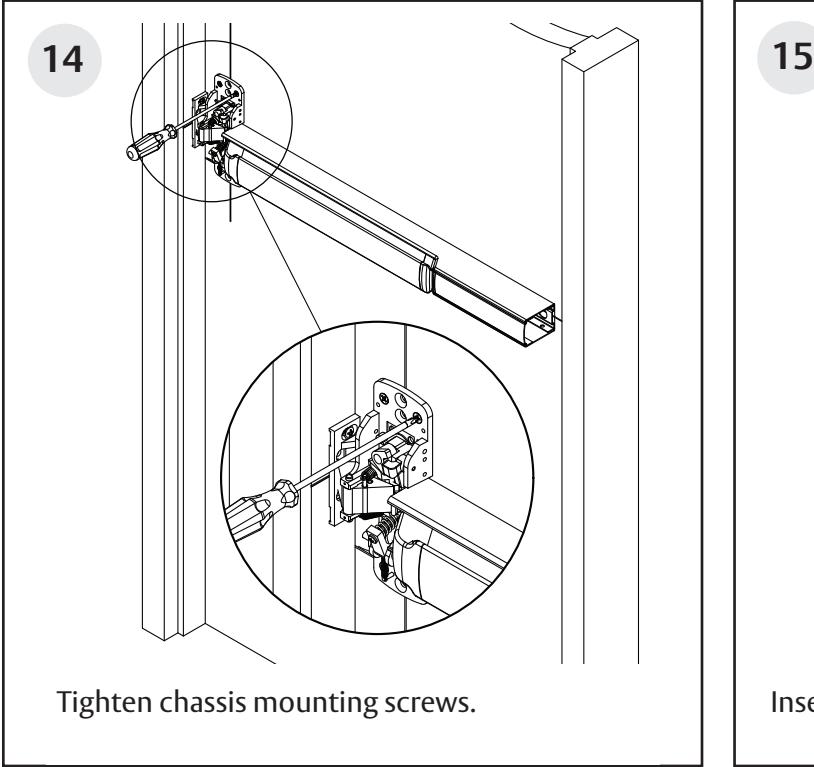

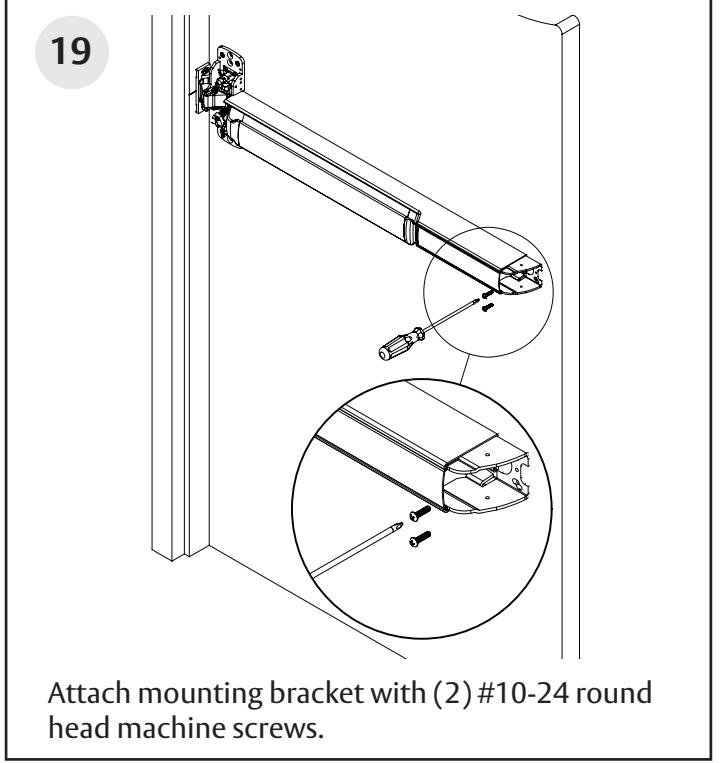

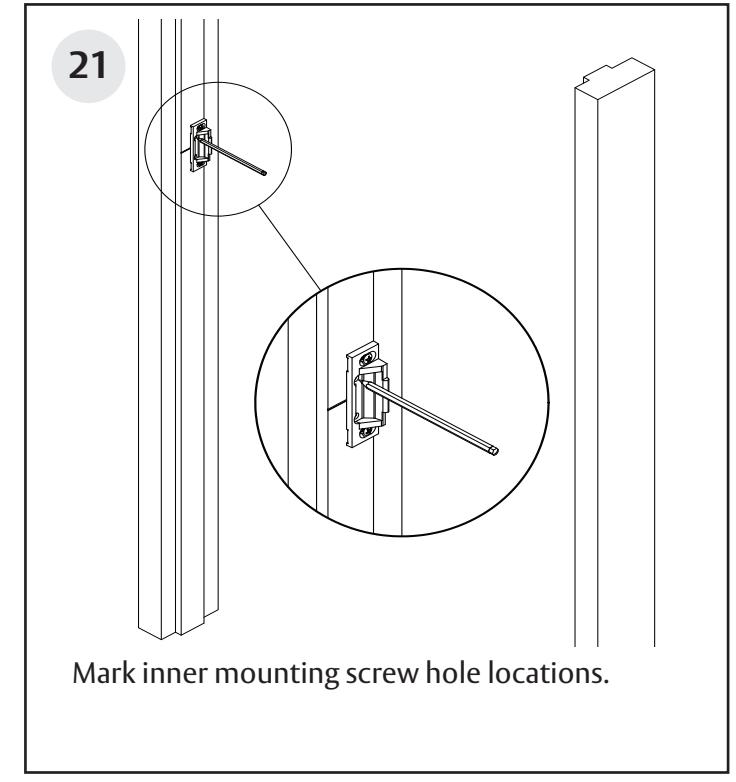

Rim Exit Device for 10T, 55T, 42, & 42T Functions

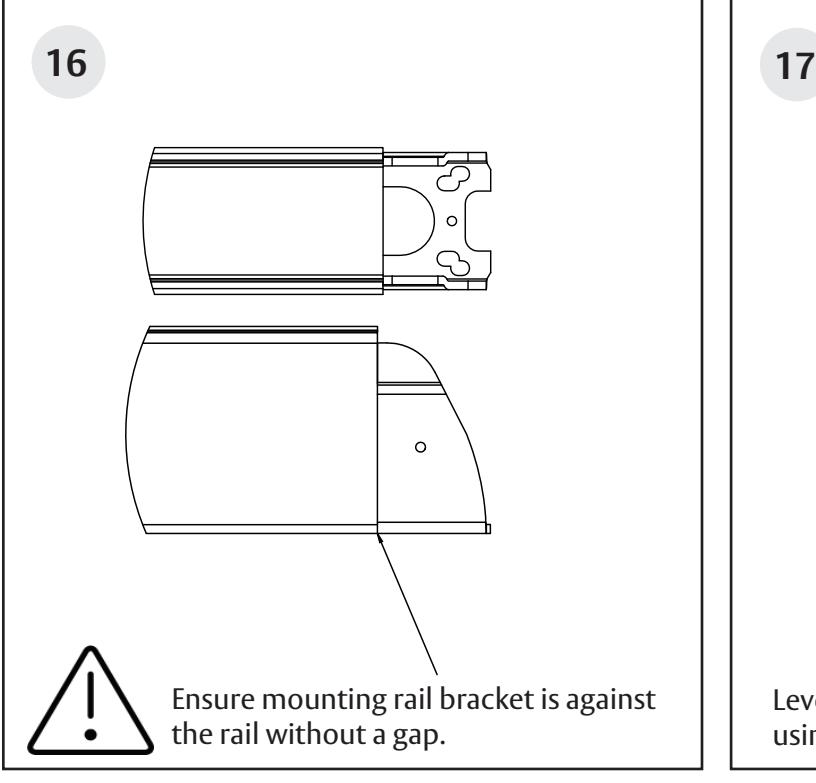

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

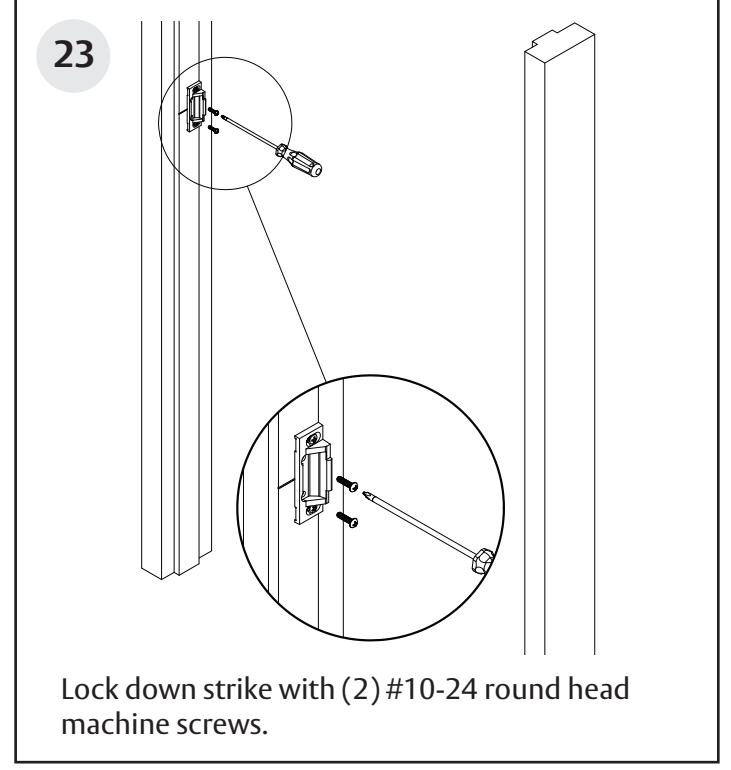

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

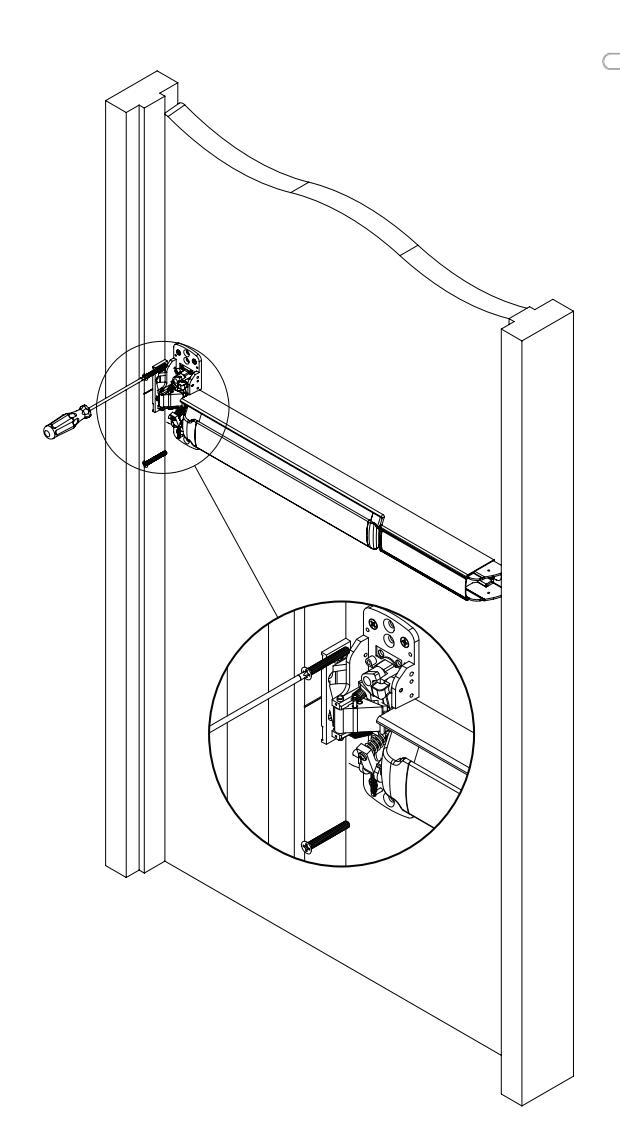

42 Function

14

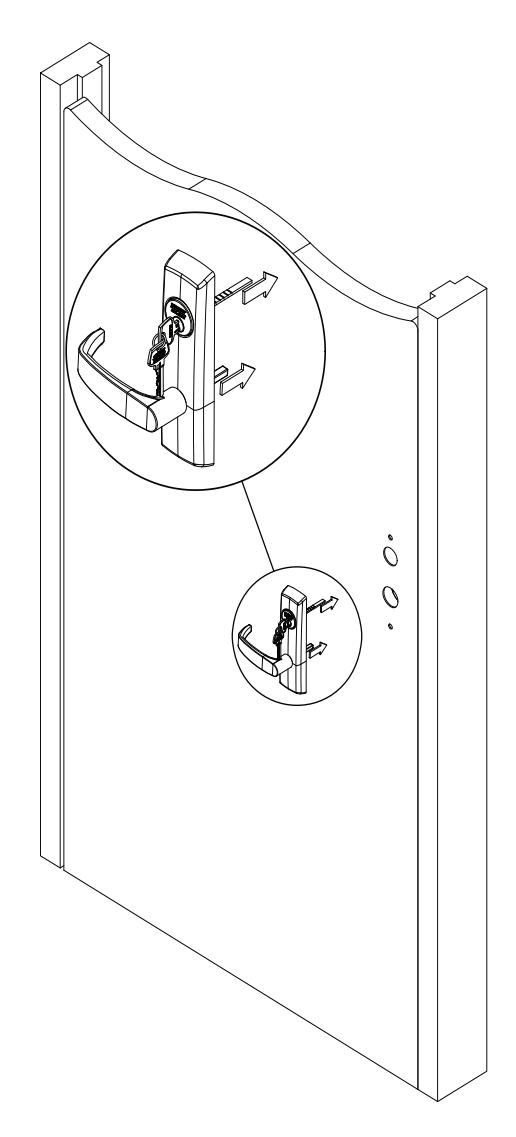

Insert trim. Ensure lever spindle aligns with bell housing hub and rim cylinder tailpiece aligns with upper spindle hub in chassis (if used).

Secure trim with (2) 1/4 - 20 flat head machine screws through chassis. If used, attach rim cylinder through chassis with screws provided with cylinder.

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

24a 42 10T, 55T, & 42T Functions Mount rim cylinder with (2) screws through chassis. 10T, 55T & 42T Function Rim Cylinder Install T33, T34, and T35 Thumbpiece Trim

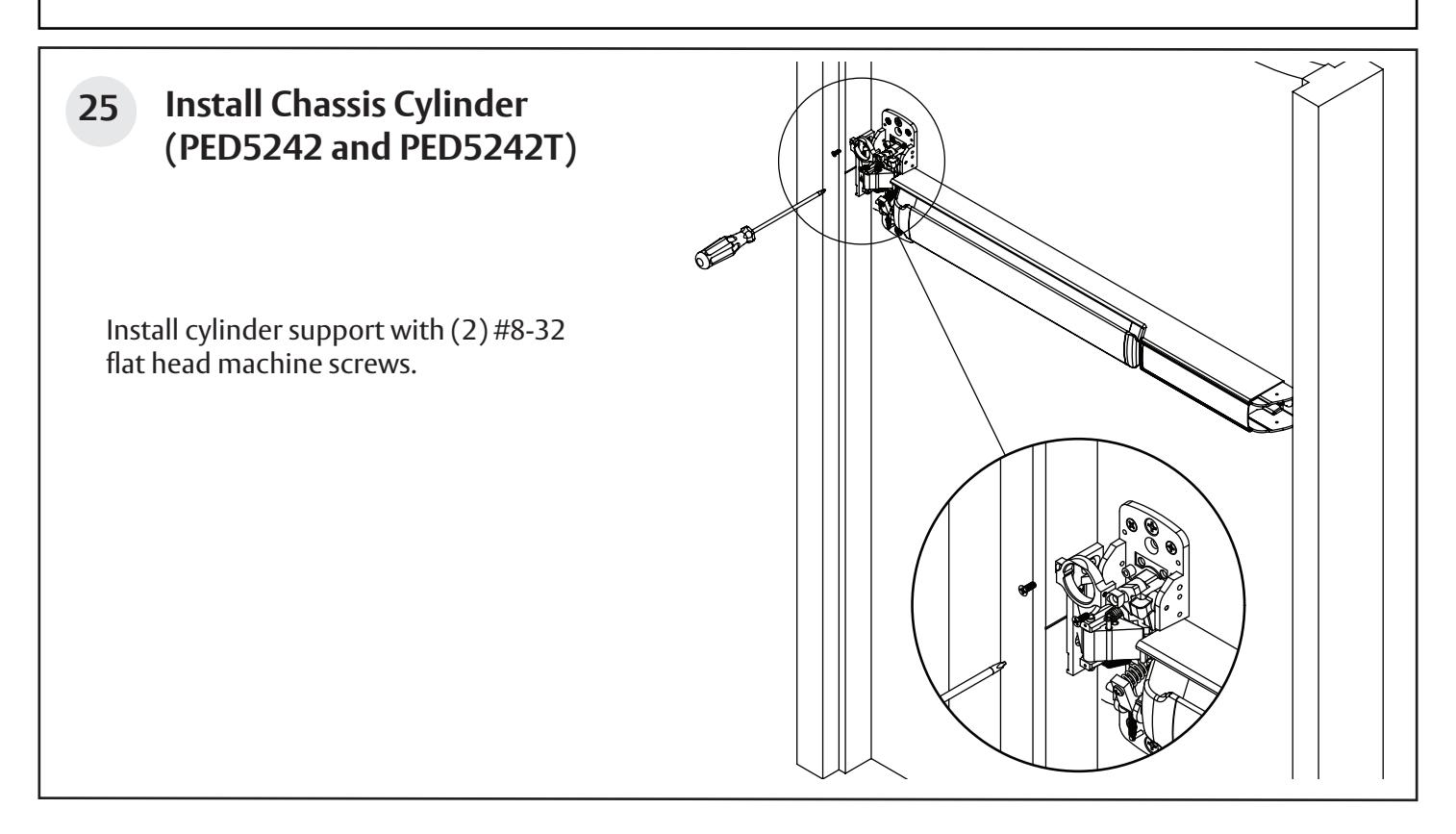

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Installation Instructions

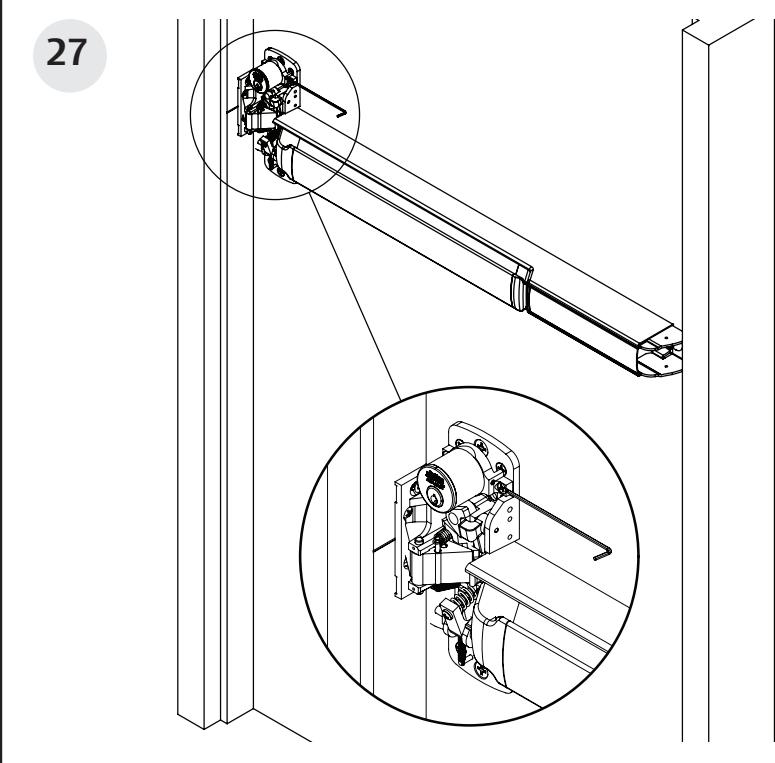

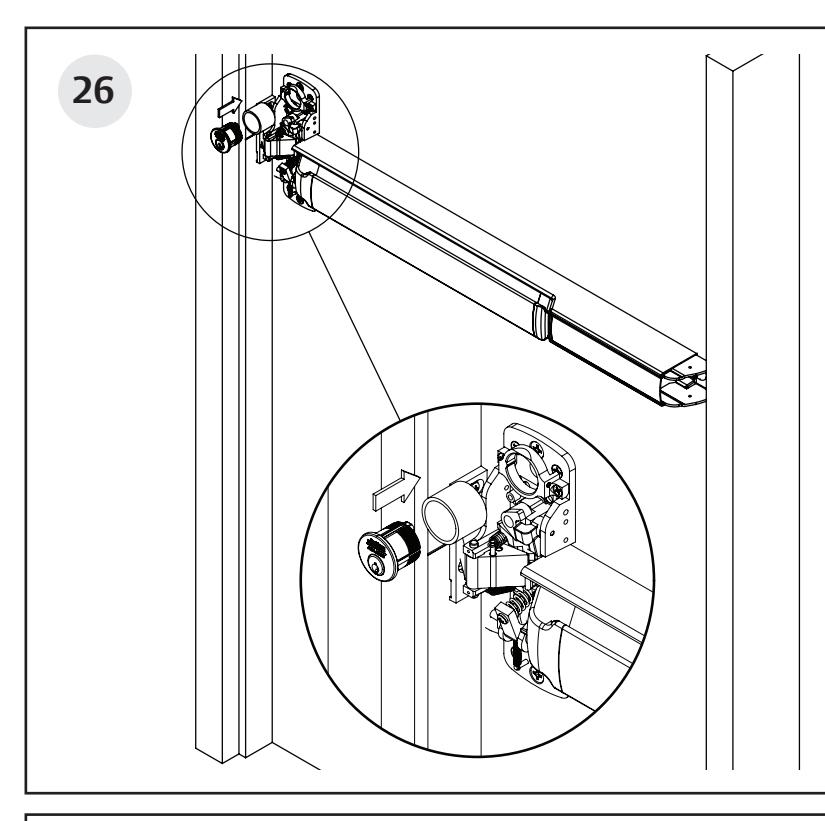

Insert mortise cylinder through blocking ring into cylinder support.

Tighten set screw with 5/64" wrench.

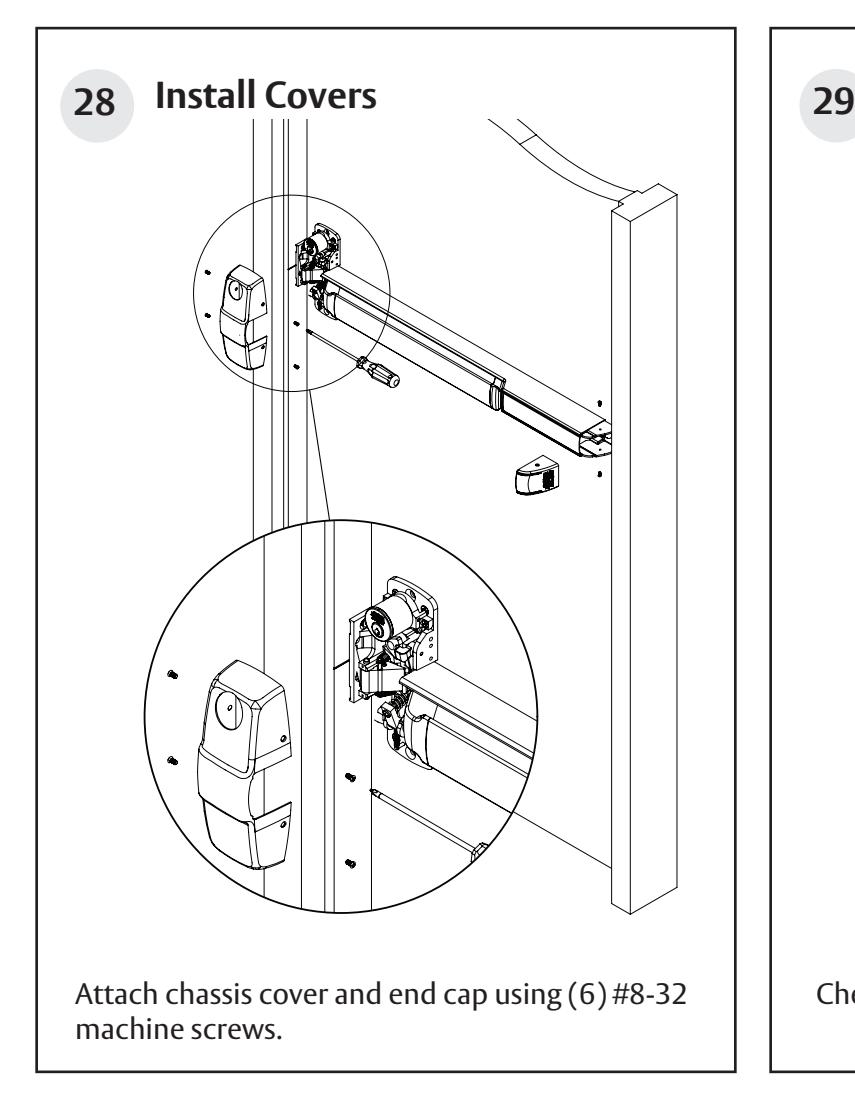

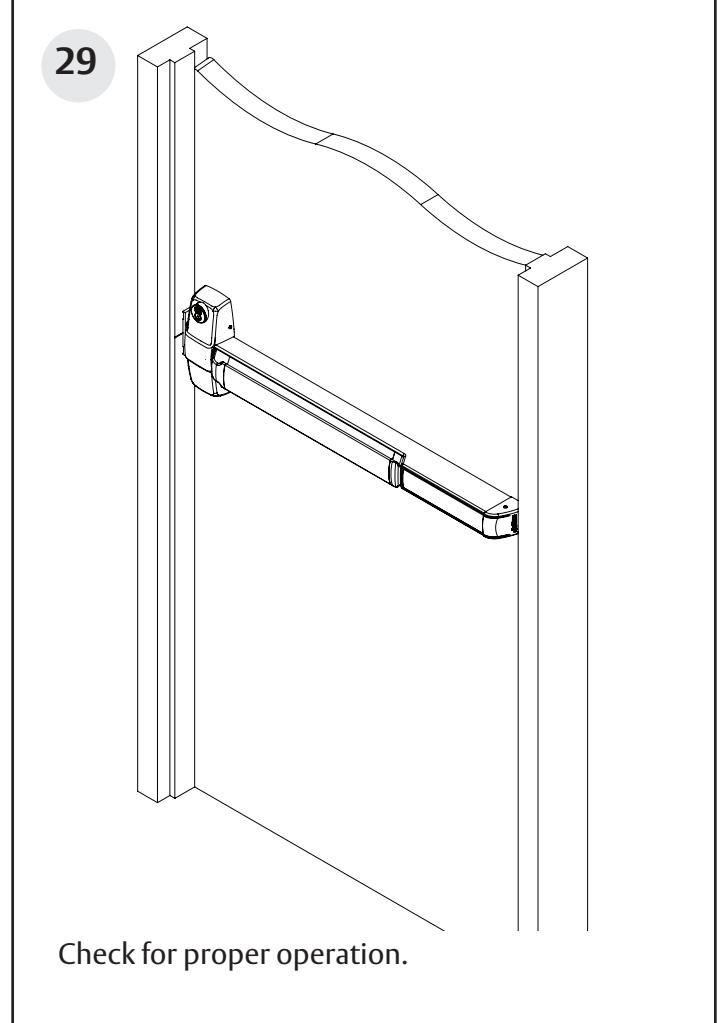

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Rim Exit Device for 10T, 55T, 42, & 42T Functions

Rim Exit Device for 10T, 55T, 42, & 42T Functions
