Corbin Russwin PED4200 and PED5200 and SARGENT PE8500 and PE8800 Narrow and Wide Stile Rim for Aluminum Doors 65…_MEDT40

Open the original PDF document

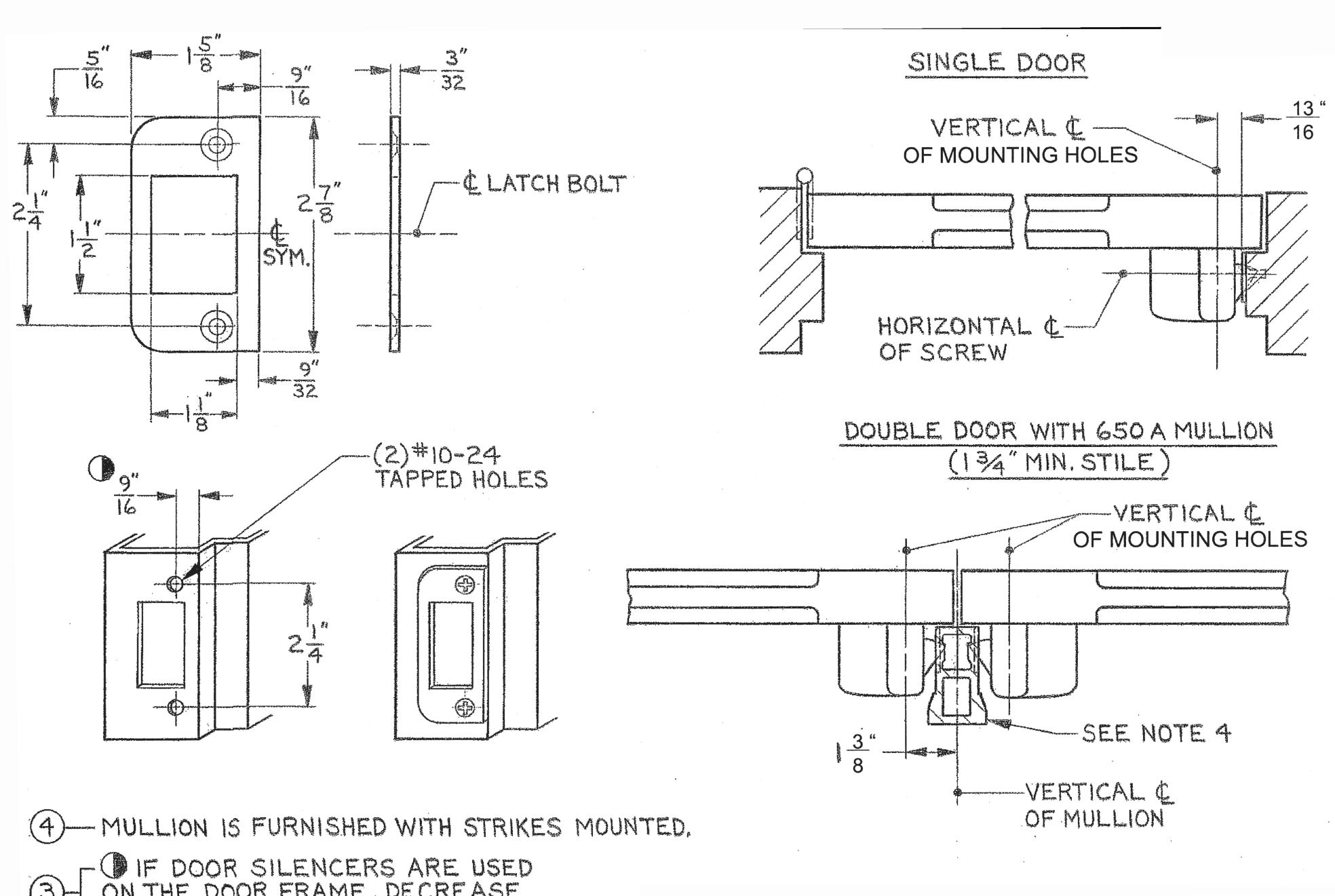

ON THE DOOR SILENCERS ARE USED ON THE DOOR FRAME, DECREASE THIS DIMENSION ACCORDINGLY.
(2)-FRACTIONAL TOLERANCE ± 1/64".
O SEE METAL DOOR TEMPLATES TO MOUNT EXIT DEVICE.

ASSA ABLOY Opening Solutions

TEMPLATE:

658 FLAT STRIKE

RELEASE DATE 5/17/22

TEMPLATE NO. MEDT40
