Corbin Russwin PED4000 and PED5000 Series and SARGENT PE80 Series Master Sheet Reinforcement Chart Template_MEDT23

TAP HOLES FOR HINGE STILE BRACKET WHEN APPLYING EXIT DEVICE REFER TO DEVICE SPECIFIC TEMPATES FOR ADDITIONAL CUTOUTS AND REQUIREMENTS REINFORCEMENTS TO BE ADEQUATE FOR THE DRILLING AND TAPPHING OF #10-24 SCREWS REINFORCEMENTS TO BE ADEQUATE FOR THE DRILLING AND TAPPHING OF #10-24 SCREWS REINFORCEMENTS TO BE ADEQUATE FOR THE OWN YES OUTSIDE THAN IS USED.

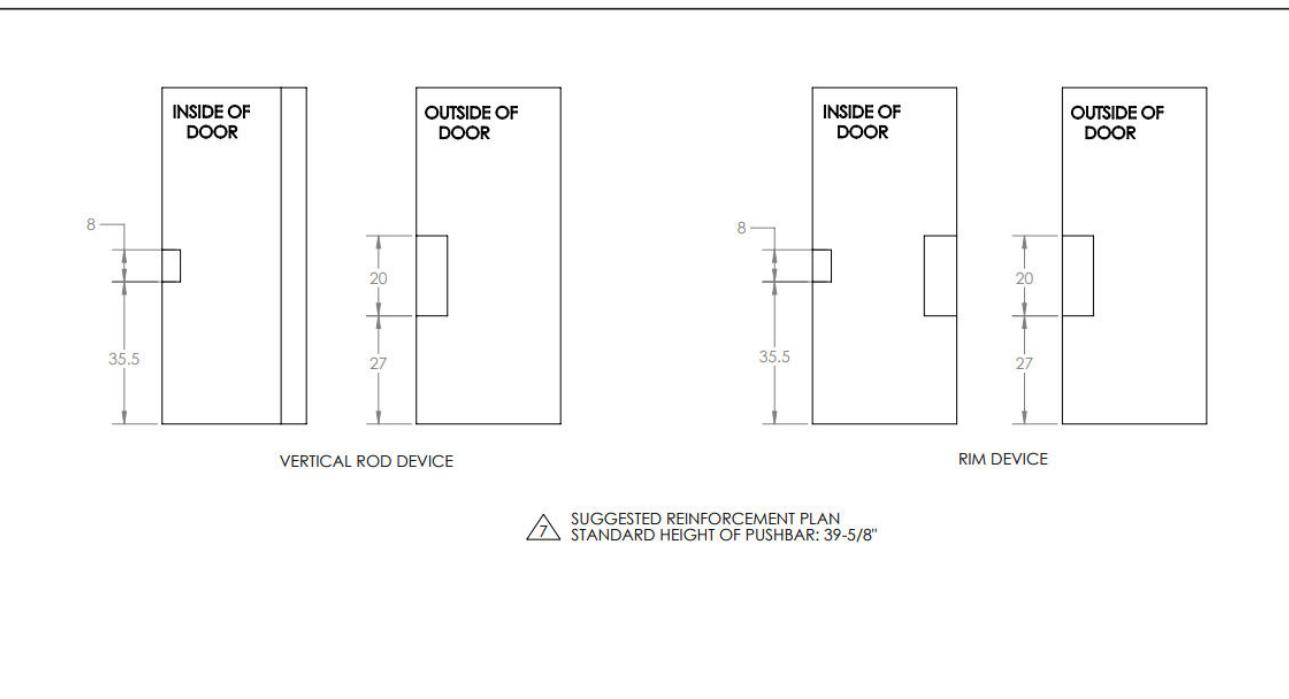

REINFORCEMENTS TO BE ADEQUATE FOR THE DRILLING AND TAPPING OF # 10-24 SCREWS REINFORCEMENTS ON OUTSIDE OF DOOR REQUIRED ONLY IF OUTSIDE TRIM IS USED REINFORCEMENTS TO BE 5" WIDE OR FULL WIDTH OF STILE

NOTES

5. REINFORCEMENTS TO BE 5" WIDE OR FULL WIDTH OF STILE 6. CHOOSE CORRECT HAND OF DOOR PUSHBAR CAN BE MOUNTED AT 38" FROM FINISHED FLOOR FOR ELEMENTARY/ACCESSIBILITY APPLICATIONS

ASSA ABLOY Digering Sulfation Parameters EXIT DEVICES 4/2

EXIT DEVICES MASTER SHEET RELEASE DATE 4/25/22 TEMPLATE NO. MED123
