Corbin Russwin P957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30934

Open the original PDF document

View PDF

Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

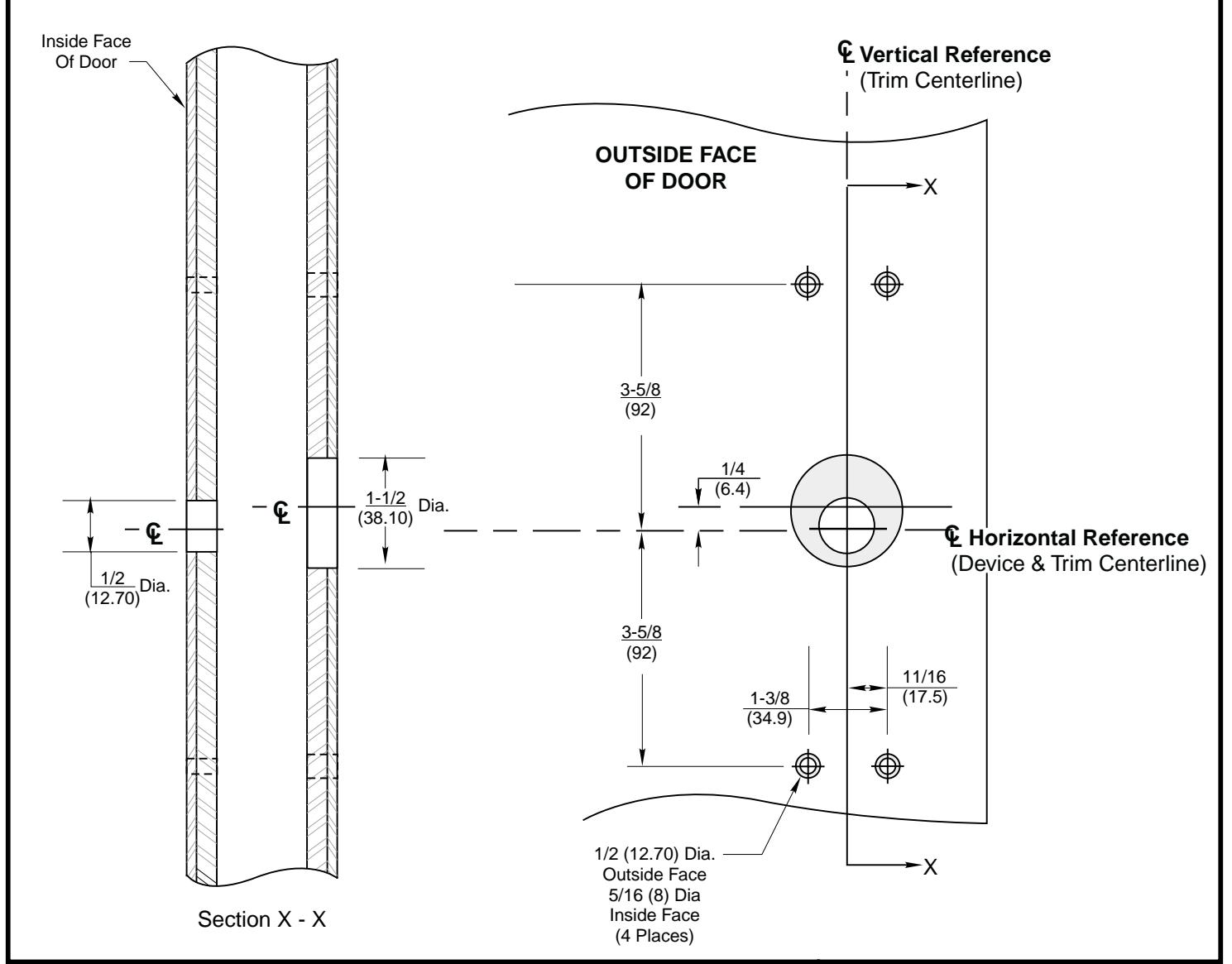

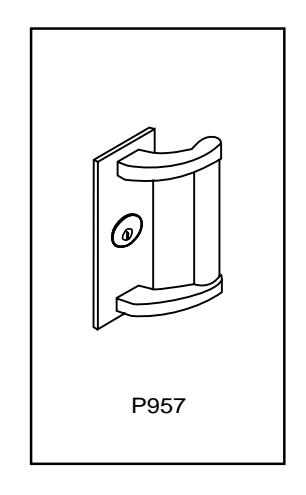

P957 Trim With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices Metal Door Preparation

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

T30934

DATE 9-99
