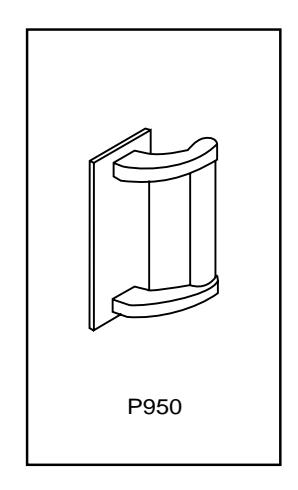

Corbin Russwin P950 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Wood or Composite Door Template_T30933

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.

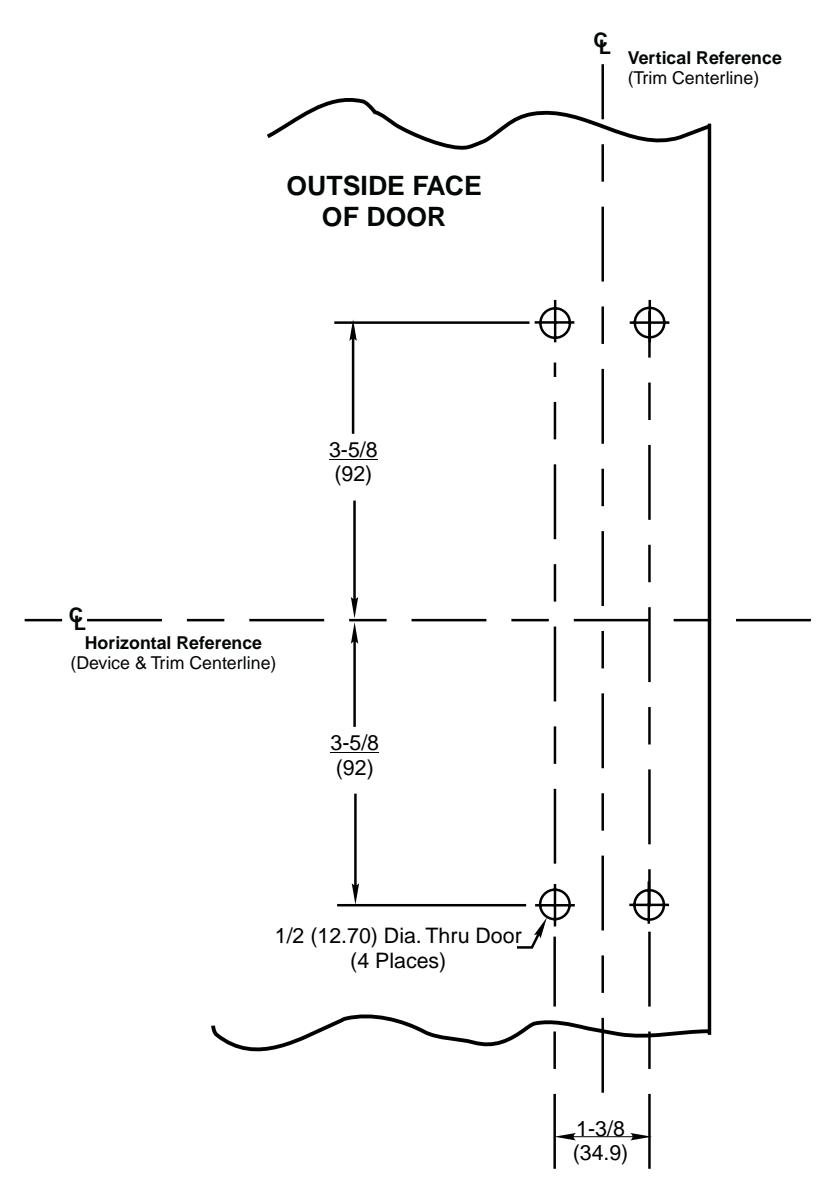

P950 Trim Wood or Composite Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30933 9-99
