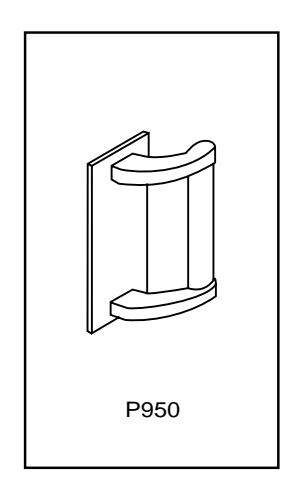

Corbin Russwin P950 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, CVR, SVR Metal Door Template_T30932

Open the original PDF document

View PDF

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

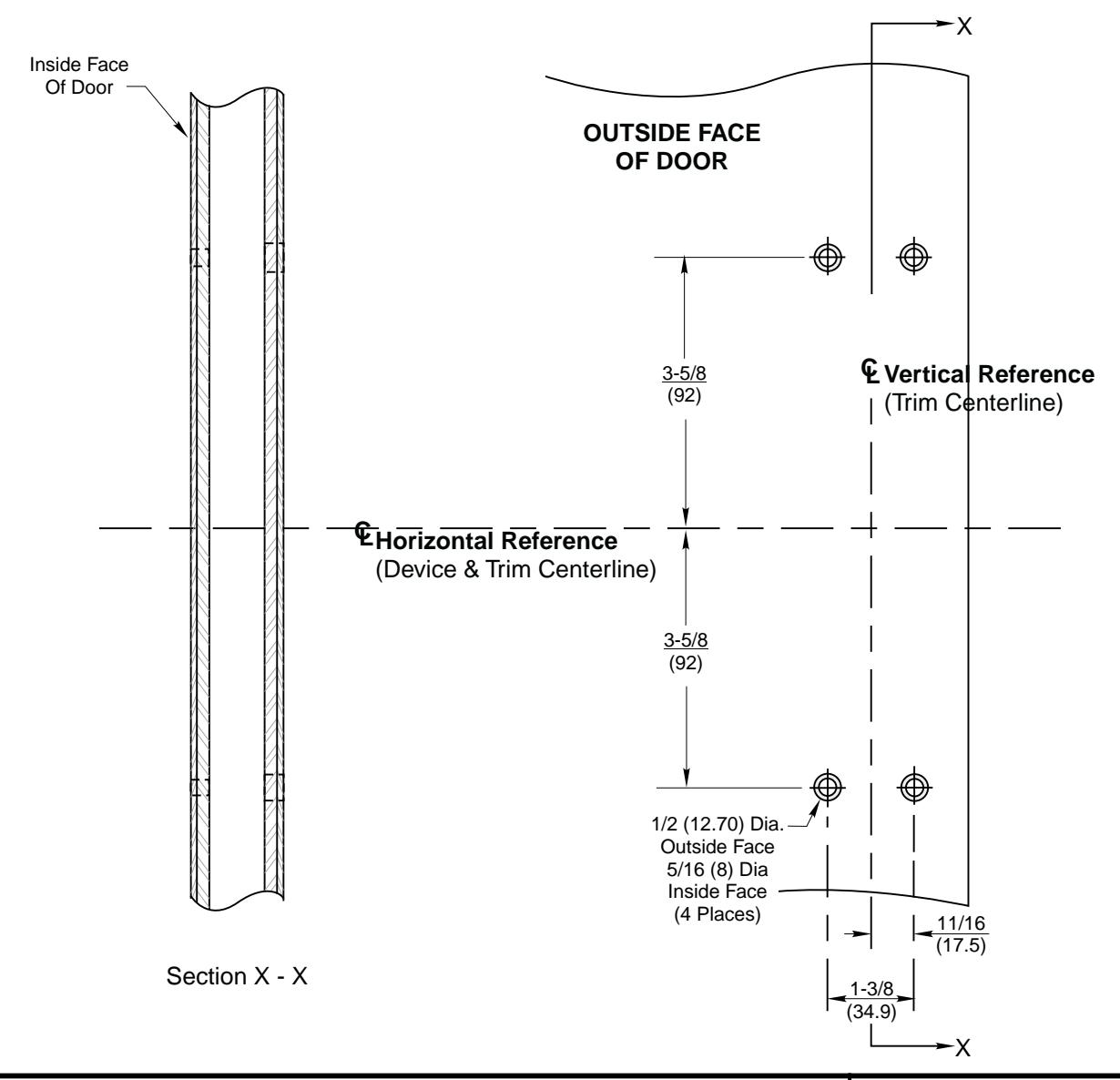

P950 Trim Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim and Vertical Rod Exit Devices

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

T30932 9-99 TEMPLATE NUMBER DATE
