Corbin Russwin Museo Trim Full and Half Dummy Sectional Trim for ML2000 Series Mortise Locks 50 and 70 Functions…_T31163

Notes: 2

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Dimensions given in inches and (mm).

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

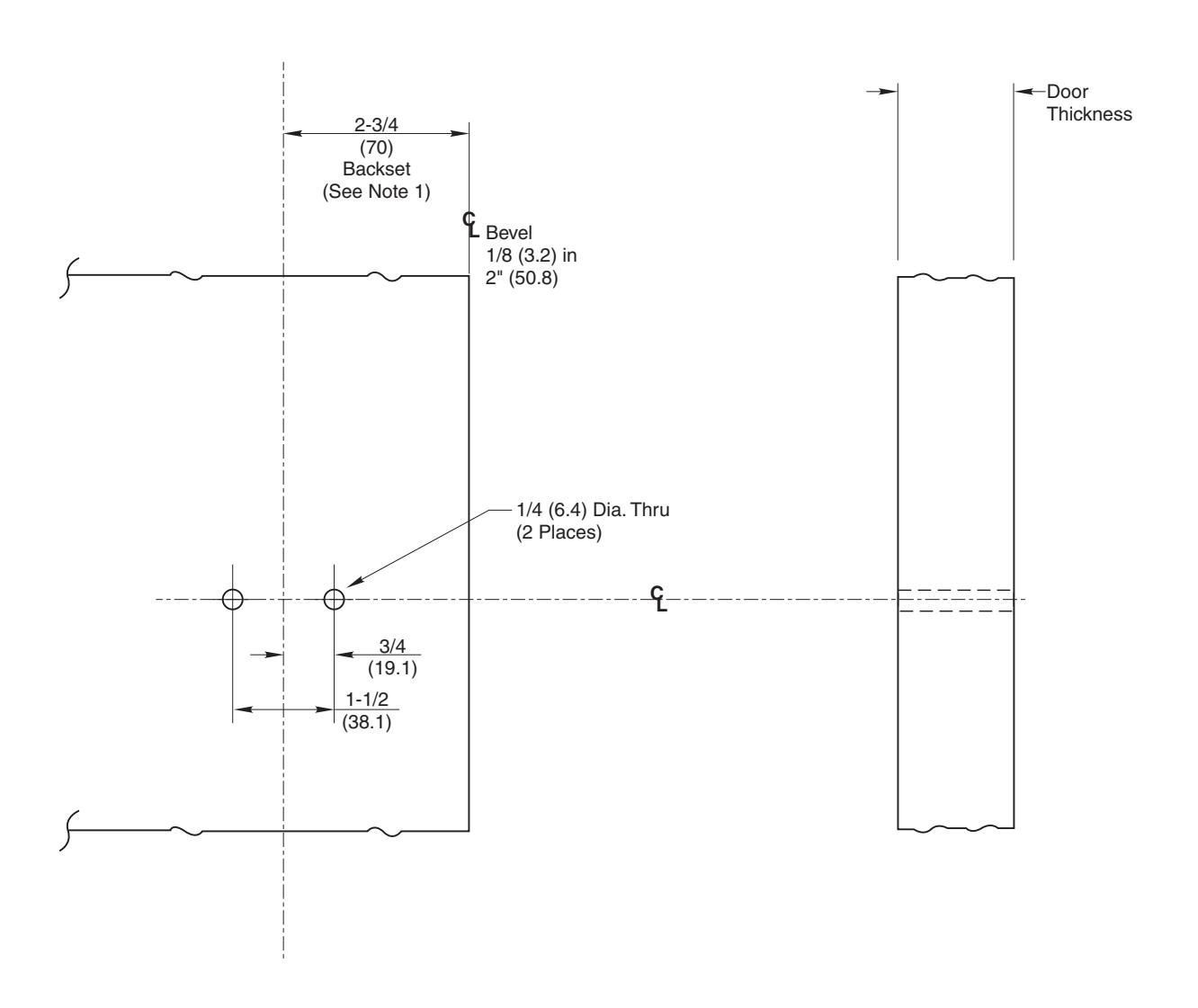

Museo Trim ML2000 Series

Full & Half Dummy Sectional ( 2050 & 2070) ML ML

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

TEMPLATE NUMBER T31163-1

T31163-2 06-17 DATE
