1 Overview
a Description

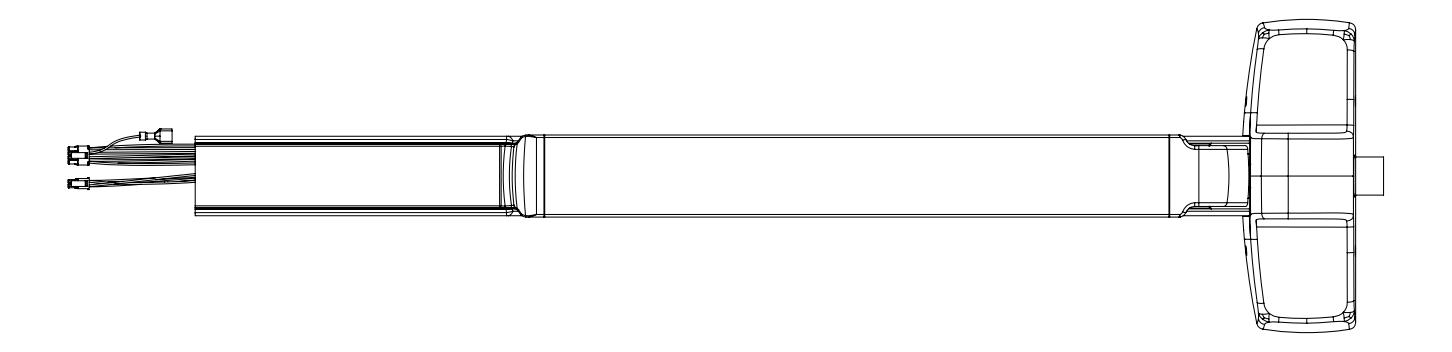

The Corbin Russwin Motorized Latch Retraction (MELR) works with PED4000/PED5000 Series exit devices to provide remote-controlled latch retraction. It is compatible with the following prefixes/options:
- • M91 Latchbolt Monitor Switch: The latch monitor provides tamper resistant latch monitoring. The monitor switch is activated when there is physical movement of the latch.
- • M92 Signal Switch (Request to Exit): This signal switch monitors the touch bar position. Touch bar monitoring can be used to detect egress, sound an alarm, send a signal to a remote location, or de-energize an electromagnetic lock.
- • M93 Outside Exit Trim Lever Monitor Switch
- • 8910PT (Narrow Ecoflex Trim Fail Safe w/o Key Override) / 8930PT (Narrow Ecoflex Trim Fail Secure w/o Key Override)
- • 8903PT (Narrow Ecoflex Trim Fail Safe w/ Key Override) / 8905PT (Narrow Ecoflex Trim Fail Secure w/Key Override)
- • 9910PT (Wide Ecoflex Trim Fail Safe w/o Key Override) / 9930PT (Wide Ecoflex Trim Fail Secure w/o Key Override)
- • 9903PT (Wide Ecoflex Trim Fail Safe with Key Override) / 9905PT (Wide Ecoflex Trim Fail Secure with Key Override)
- Operating Temp: -40°C to 66°C (-40°F to 150.8°F)
Note: The MELR is also compatible with fire rated (A suffix) as well as M52 and M114 mechanical quick code options.
b Functions
The MELR can be configured to work in either of two modes:
- Power Mode (See Section 2): The device is not energized when locked. When electrified, the push rail and latch(es) will retract and remain in the retracted position until power is removed. Power is typically applied through a relay triggered by an access control device.
- Timer Mode (See Section 3): The device is always energized and retraction is triggered by a momentary or maintain switch. In TIMER MODE:
- When the timer circuit is closed using a momentary switch, the device retracts, remains retracted for a set duration, and releases. The duration of the retraction is set through an onboard timer setting.
- When the timer circuit is closed using a maintain switch, the device retracts. The device releases when the contact is opened.
Caution: Disconnect all input power before servicing. Installer must be a trained and experienced service person. Wiring must comply with applicable local electrical codes, ordinances and regulations. Cylinder (M52) or "hex-key" (M114) mechanical dogging cannot be used on fire rated doors.
c Installation Notes
- The MELR rail works only with Corbin Russwin PED4000/PED5000 Series exit devices.
- Always perform mechanical installation using the appropriate installation instructions, prior to electrical wiring.
- If used in conjunction with PED4000/PED5000 Series MELR Motor Kit or PED4000/PED5000 Series MELR Rail Kit, consult factory prior to using these instructions.
- Earth Ground: Required for electrostatic discharge (ESD) protection, unless already grounded through the metal door and frame.
with optional connections
Installation Instructions
1 Overview, continued
d Hinge Requirements
| Without Timer | With Timer | |||
|---|---|---|---|---|
| Application | Wires | Recommended Hinge | Wires | Recommended Hinge |
| MELR | 3 | QC8 | 5 | QC12 |
| M91 MELR | 5 | QC8 | 7 | QC12 |
| M92 MELR | 6 | QC8 | 8 | QC12 |
| M91, M92 MELR | 8 | QC8 | 10 | QC12 |
| M93 MELR | 5 | QC12 | 7 | QC12 |
| ET, M91, M93 MELR | 7 | QC12 | 9 | QC12 |
| ET, M92, M93 MELR | 8 | QC12 | 10 | QC12 |
| ET, M91, M92, M93 MELR | 10 | QC12 | 12 | QC12 |
Note: ET = The Wide/Narrow Ecoflex Trim Fail Secure/Safe, with/without Key Override.
e Wire Gauge Chart
| Wire Gauge Information | ||||||||
|---|---|---|---|---|---|---|---|---|
| Total One-Way | Load Current @ 24VDC | |||||||
|
Length of Wire
Run (ft.) |
1/4A | 1/2A | 3/4A | *1A | 1-1/4A | 1-1/2A | 2A | 3A |
| 100 | 24 | 20 | 18 | 18 | 16 | 16 | 14 | 12 |
| 150 | 22 | 18 | 16 | 16 | 14 | 14 | 12 | 10 |
| 200 | 20 | 18 | 16 | 14 | 14 | 12 | 12 | 10 |
| 250 | 18 | 16 | 14 | 14 | 12 | 12 | 12 | 10 |
| 300 | 18 | 16 | 14 | 12 | 12 | 12 | 10 | - |
| 400 | 18 | 14 | 12 | 12 | 10 | 10 | - | - |
| 500 | 16 | 14 | 12 | 10 | 10 | - | - | - |
| 750 | 14 | 12 | 10 | 10 | - | - | - | - |
| 1,000 | 14 | 10 | 10 | - | - | - | - | - |
| 1,500 | 12 | 10 | - | - | - | - | - | - |
| *When calculating voltage drop, use 1A as the recommended current draw for the MELR | ||||||||
with optional connections
Installation Instructions
1 Overview, continued
f Wire Locations and Positions

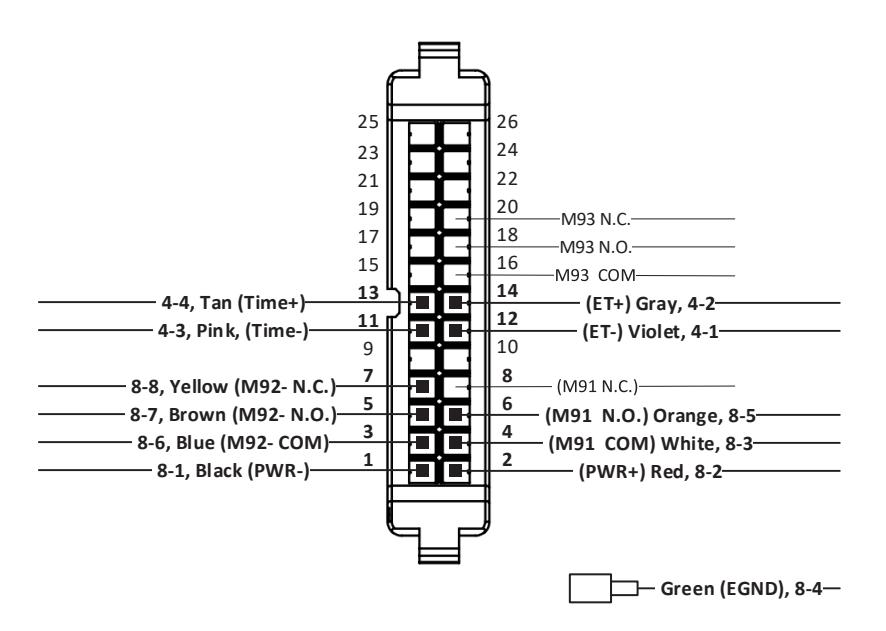

ElectroLynx System Default Wiring Options for MELR QC12 Hinge (12 wires) Pluggable 8-pin &4-pin connectors Default wiring shown. Refer to Appendix A for other wiring options
*If M91NC contact is required, refer to Appendix A-Wiring re-configuration section.
with optional connections
Installation Instructions
1 Overview, continued

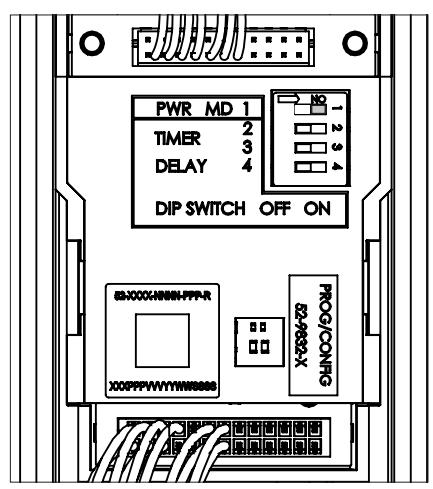

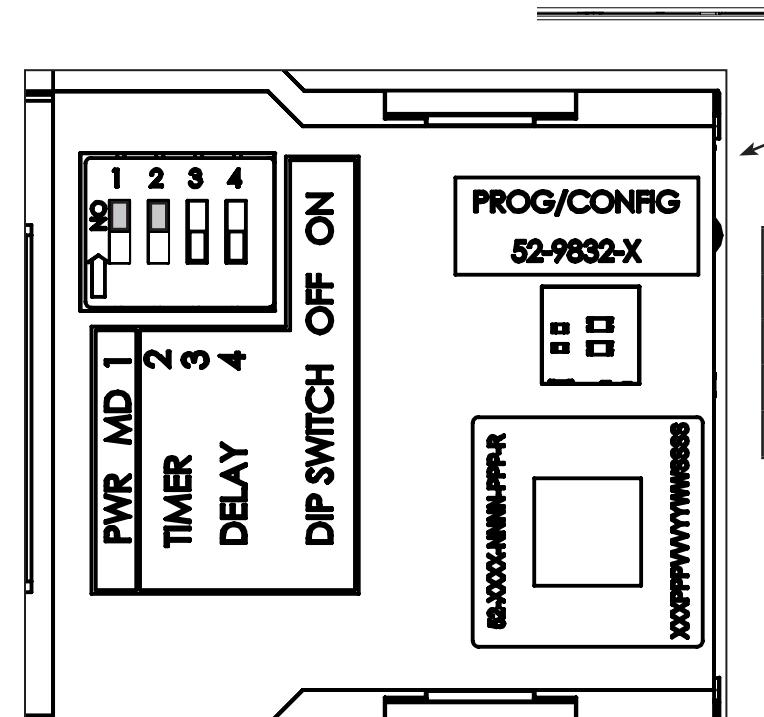

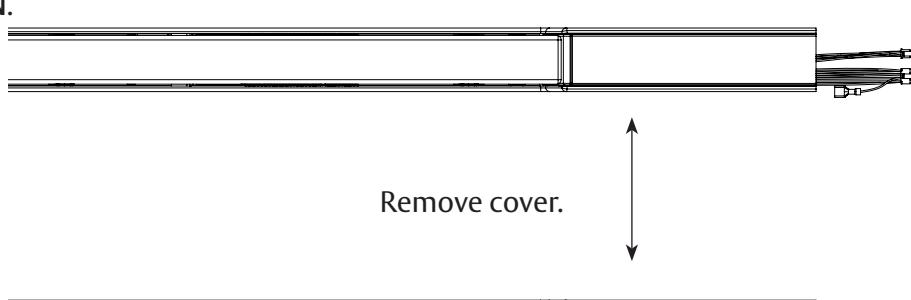

g DIP Switch Settings (4 Position Slide Type)
Factory default ship settings for the DIP Switch are shown below.
Default Setting: POWER MODE set to ON .
Note: Timer Delay settings are inactive with Power Mode ON. If Timer Mode is desired, refer to Timer Mode, Section 3 for Timer Mode Configuration.
Note: DIP Switch settings can be changed using a small flat blade screwdriver with the PCBA Module left in the rail assembly.
| Dip Switch | Default Factory Settings |
|---|---|
| 1. PWR/TMR | ON = Power Mode |
| 2. DLY1 | ON |
| 3. DLY2 | OFF |
| 4. DLY3 | OFF |
with optional connections
Installation Instructions
1 Overview, continued
h ElectroLynx Wiring System

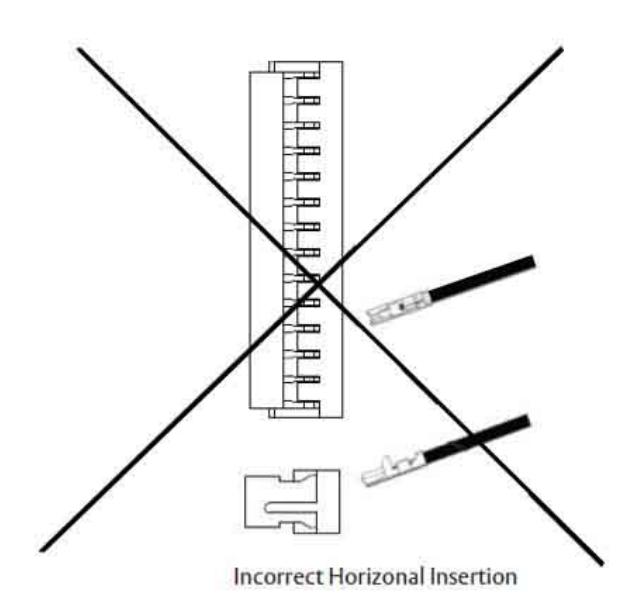

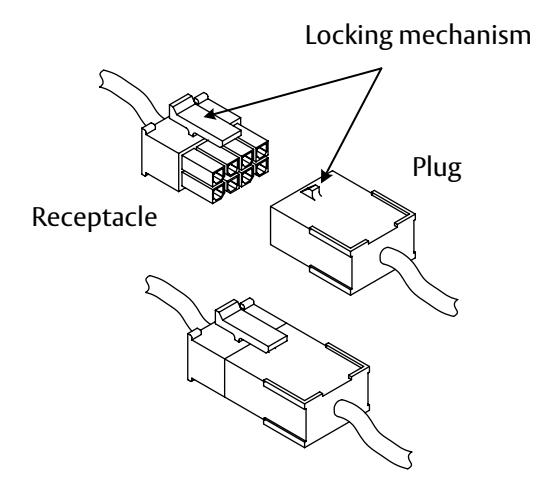

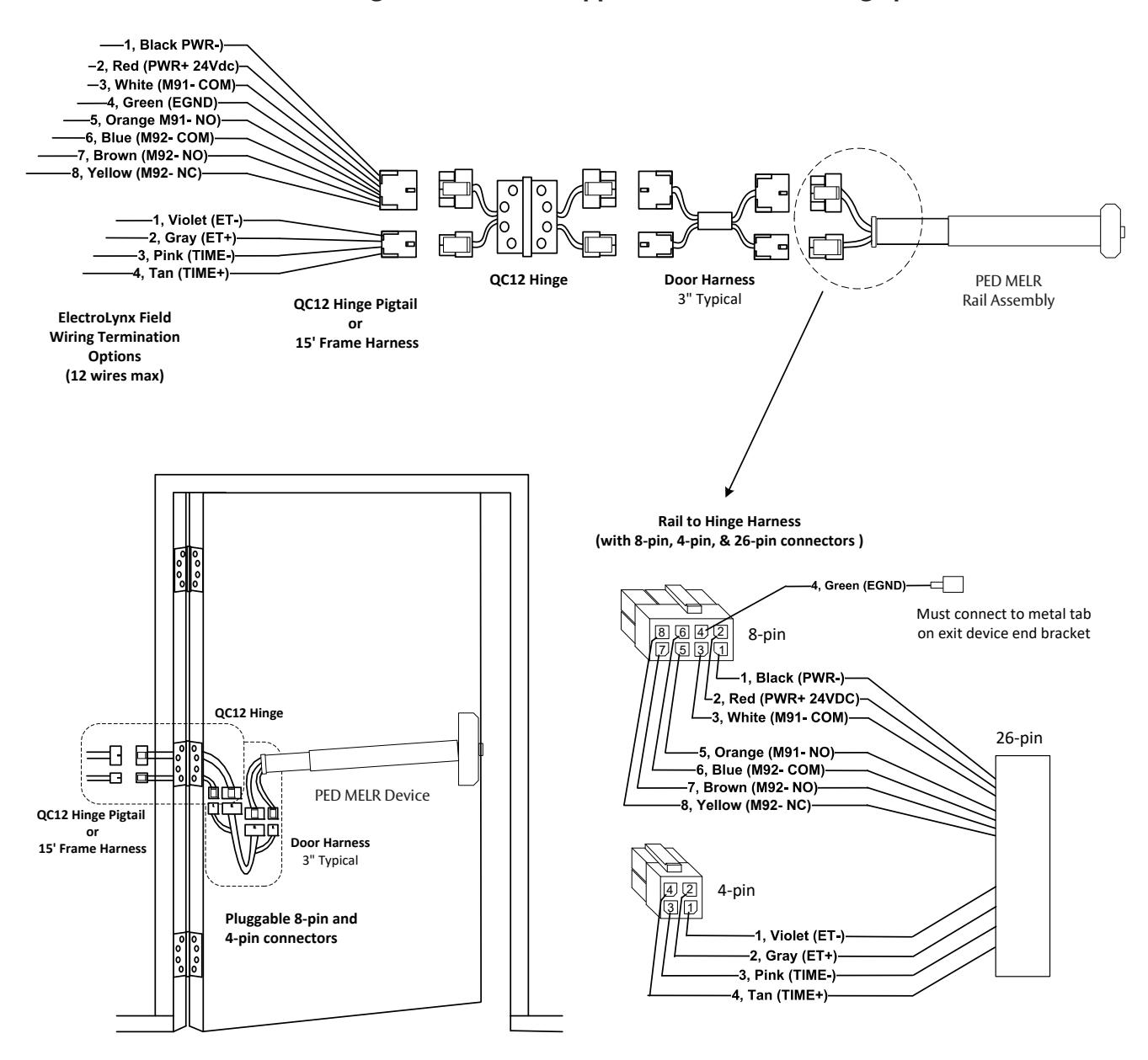

Important: ElectroLynx connectors plug and lock together in only one way. DO NOT force connectors together.
Typical ElectroLynx Wiring Harness Connections
Note: The three inch harness is not included with the product, door, or hinge, and must be ordered separately. (Part number available in Power Mode Wiring section)
with optional connections
Installation Instructions
2 Power Mode Wiring
In this configuration, the device is not energized when locked. When energized with a 24 volt input, the push rail and latch(es) will retract and remain in the retracted position until power is removed. Power is typically applied through a relay triggered by an access control device. For installations using the onboard timer circuit, refer to Section 3: Timer Mode .
a Installation Instructions
How it works: Rail retracts when power is applied and releases when power is removed.
1. Mount PED4000/PED5000 Series exit device using mechanical installation instruction sheet(s) provided.
Note: Ensure proper mechanical function before attempting electrical retraction:
- Verify the push rail can be fully depressed and the latch is fully retracted.
- On vertical rod exit devices, verify the latchbolts do not enter hold-backposition until the push rail is fully depressed.
- Adjust device mechanically, as required, before applying power.

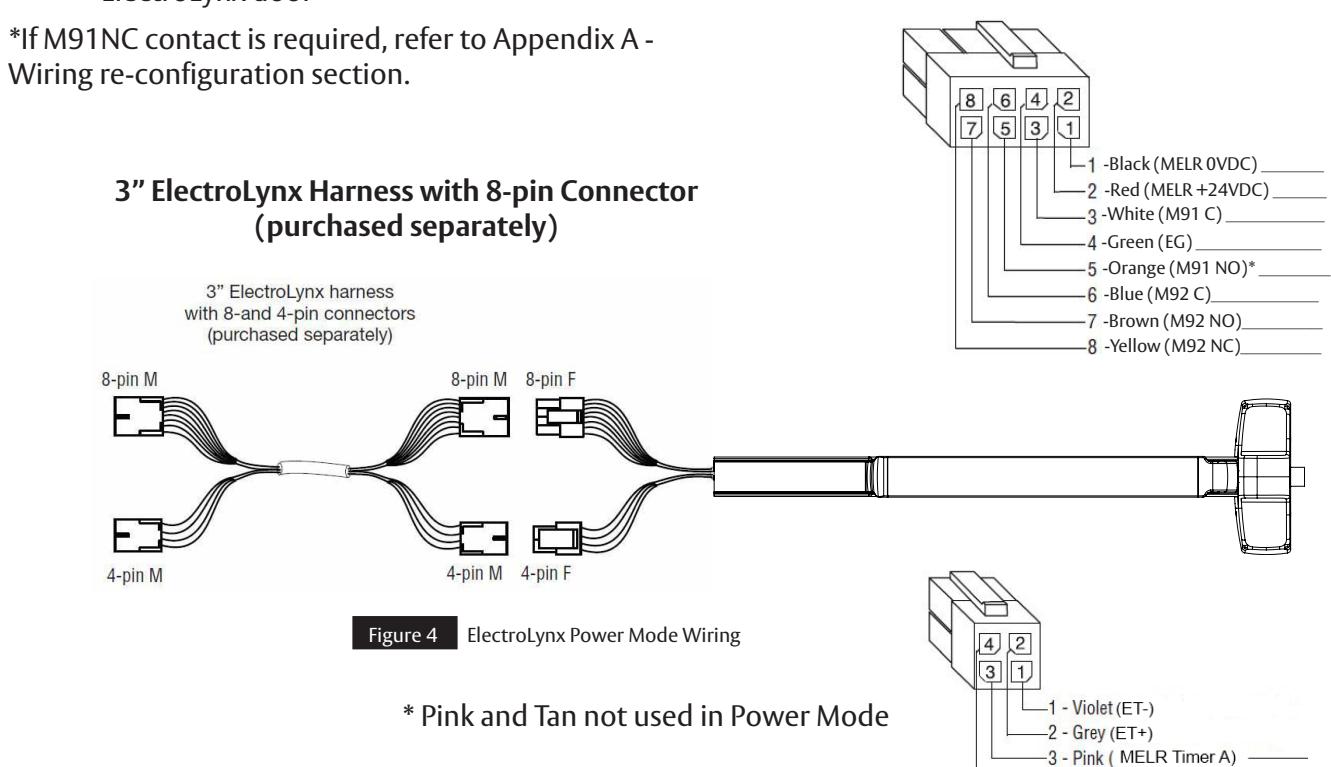

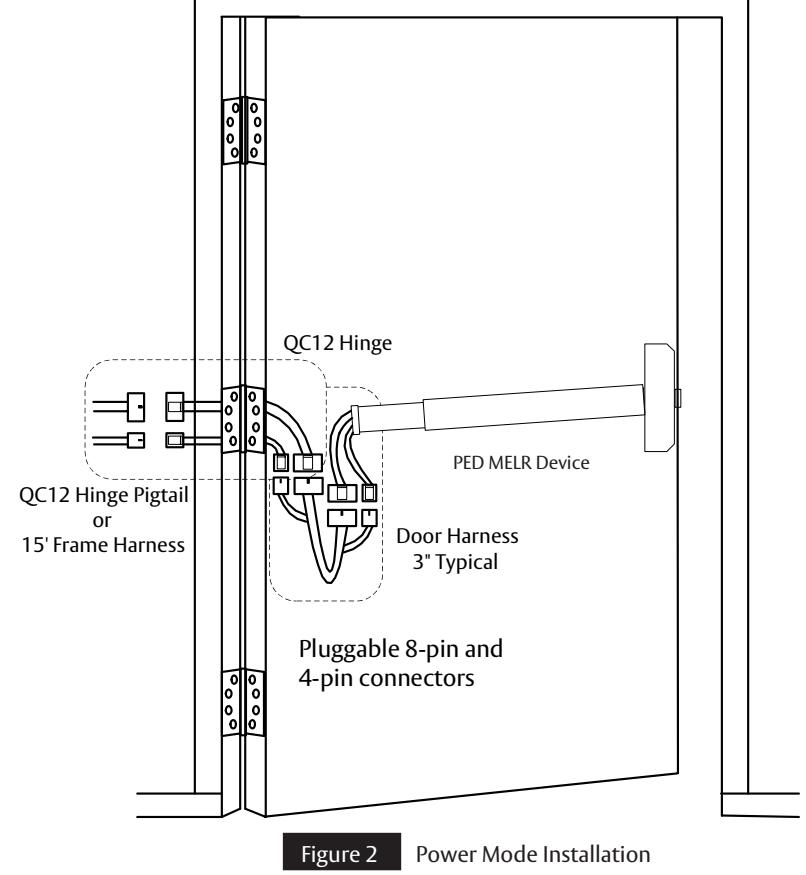

- 2. Connect the ElectroLynx harness in the door see ElectroLynx Power Mode Wiring Figure 4 on page 11.
- a. Plug the 8-pin ElectroLynx connector from the rail into the 3" ElectroLynx harness or splice into non-ElectroLynx harness (Figure 5 on page 12 Non-ElectroLynx Power Mode Wiring). Figure 1
DIP Switch Setting for Power Mode Installation
- b. Feed the 3" harness through the 1" hole in the door and secure the rail to the door using the mounting bracket and two supplied screws. (See Figure 2 on page 10 Power Mode Installation.)

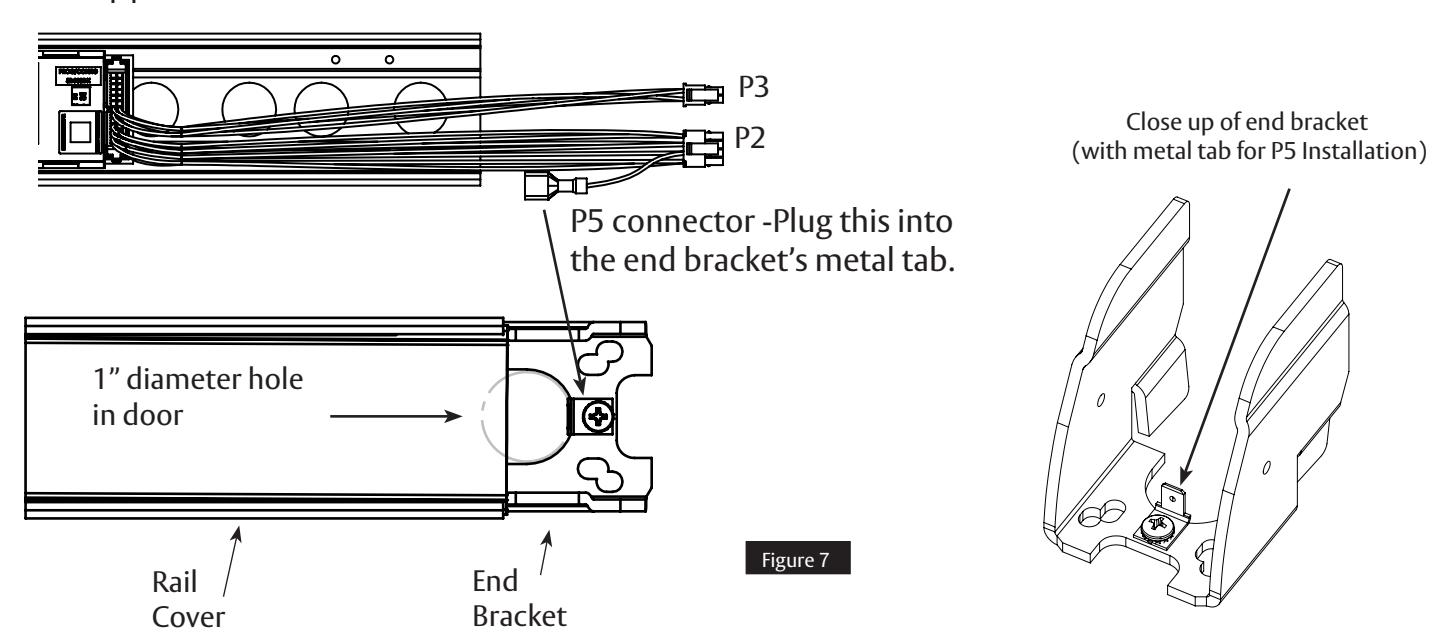

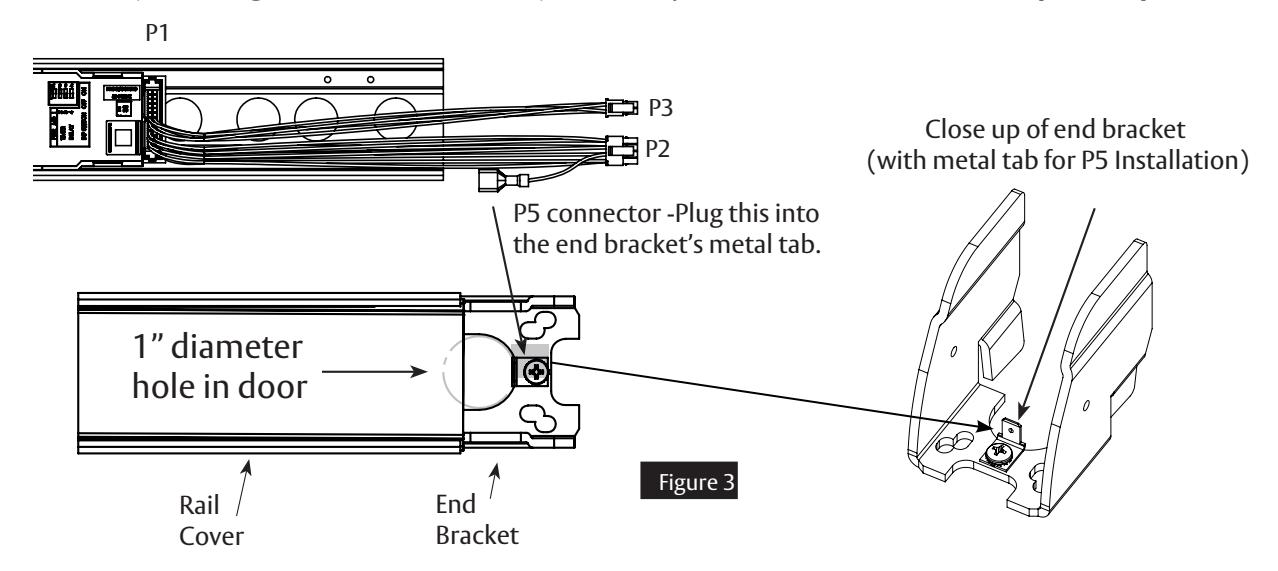

- c. Plug P5 connector into the end bracket metal tab and then tuck wires into rail, end bracket are, and into 1" diameter in door. Then install end bracket cover. (See Figure 3 on page 10)
Note: Do not install the end cap until electrical operation is verified in order to confirm LED signalling. Do not discard the end cap and hardware.
- 3. Ensure DIP switch (position 1 is ON) enables Power Mode (See Figure 1).
- 4. Connect the ElectroLynx harness to the hinge and secure the electric hinge to door.
Notes: Make sure no wires are pinched or damaged in the process. Refer to detailed wiring instructions under Power Mode wiring.
- 5. Apply 24V according to MELR input requirements (See page 11): Confirm that the LED is blinking, that the system fully unlocks, and that all bolts clear the strikes. Troubleshoot the device if issues are observed using the steps outlined at the end of the Power Mode section.
- 6. Store excess wiring under end cap and assemble with provided screws. Avoid pinching wires.
with optional connections
Installation Instructions
2 Power Mode Wiring, continued
a Installation Instructions, continued
M92, MELR (including A suffix for fire rated) PED4000/PED5000 Series Rail with 8-pin & 4-pin Connectors
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
with optional connections
Installation Instructions
2 Power Mode Wiring
MELR Input Requirements
| Switches | M92REX | M91 Latch Bolt |
|---|---|---|
| Contact Rating (Resistive) | 300mA max @30VDC | 300mA max @30VDC |
Voltage: 24VDC
- Filtered and regulated power supply
- Motor operating current: 750mA
- Motor hold current: 300mA
Note: Earth Ground is required for Electrostatic Discharge (ESD) protection unless the metal door and frame are already earth grounded; otherwise, earth ground wiring is required at pin 4 (Figure 7 on page 16 ElectroLynx Power Mode Wiring).
b ElectroLynx Opening Installation
This is the simplest installation method, requiring the installer to plug the ElectroLynx connectors from the exit device to the harness to the hinge and then to the pigtail, which is connected to the access control system.
- MELR exit device
- 3" ElectroLynx connector harness (not supplied with MELR device)
- McKinney QC ElectroLynx hinge (type of hinge depends on the application)
- ElectroLynx door
with optional connections
Installation Instructions
2 Power Mode Wiring, continued
c ElectroLynx Opening Installation
Standard door with standard electric hinge: Molex® connectors with flying leads can be purchased separately.
| MOLEX BOTH ENDS | MOLEX TO PINS | |
|---|---|---|
| 3 INCH | QC-C003 | QC-C003P |
| 6 INCH | QC-C006 | QC-C006P |
| 12 INCH | QC-C012 | QC-C012P |
Molex with 12-pin Connector Pinned
To identify part numbers and order harness(es), visit the McKinney website, www.mckinneyhinge.com, and search the catalog for ElectroLynx.
If Molex pinned connectors are not available, remove the ElectroLynx connector from the MELR Exit Device and wire nut the MELR wires to the wires from the electric hinge (color coordinating wire colors is recommended).

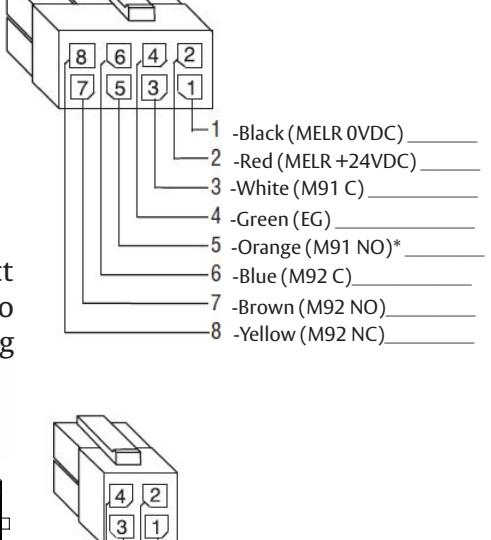

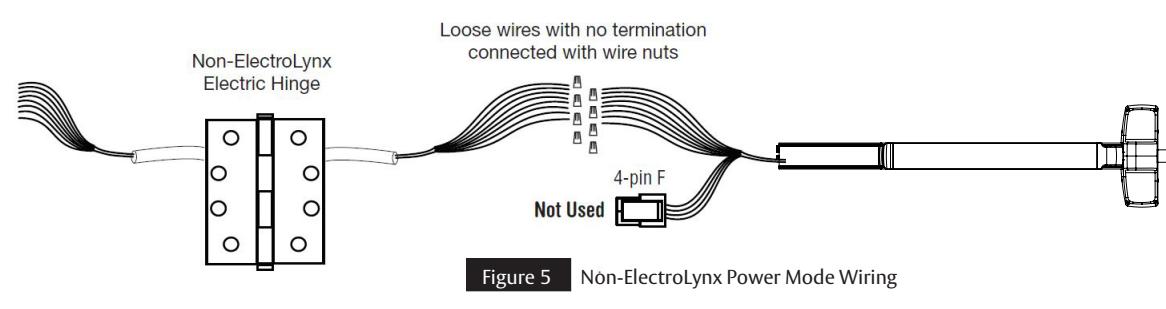

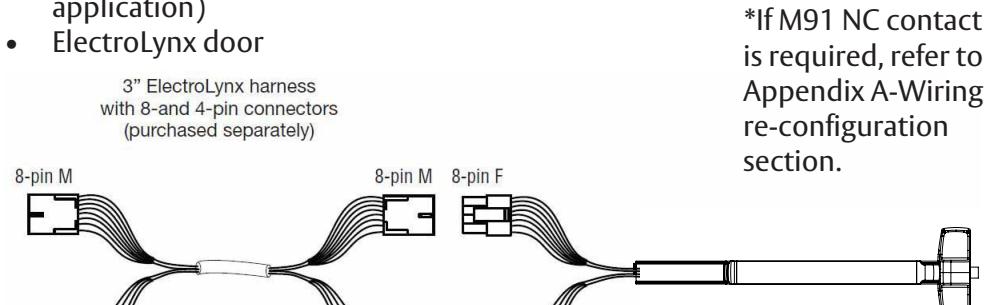

Non-ElectroLynx Power Mode Wiring MELR Wires with ElectroLynx Connector Removed
2 -Red (MELR +24VDC) ______ 3 -White (M91 C) ___________ 4 -Green (EG) ______________ 5 -Orange (M91 NO)* ________
1 -Black (MELR 0VDC) _______
- 6 -Blue (M92 C)____________
- 8 -Yellow (M92 NC)_________ 7 -Brown (M92 NO)_________

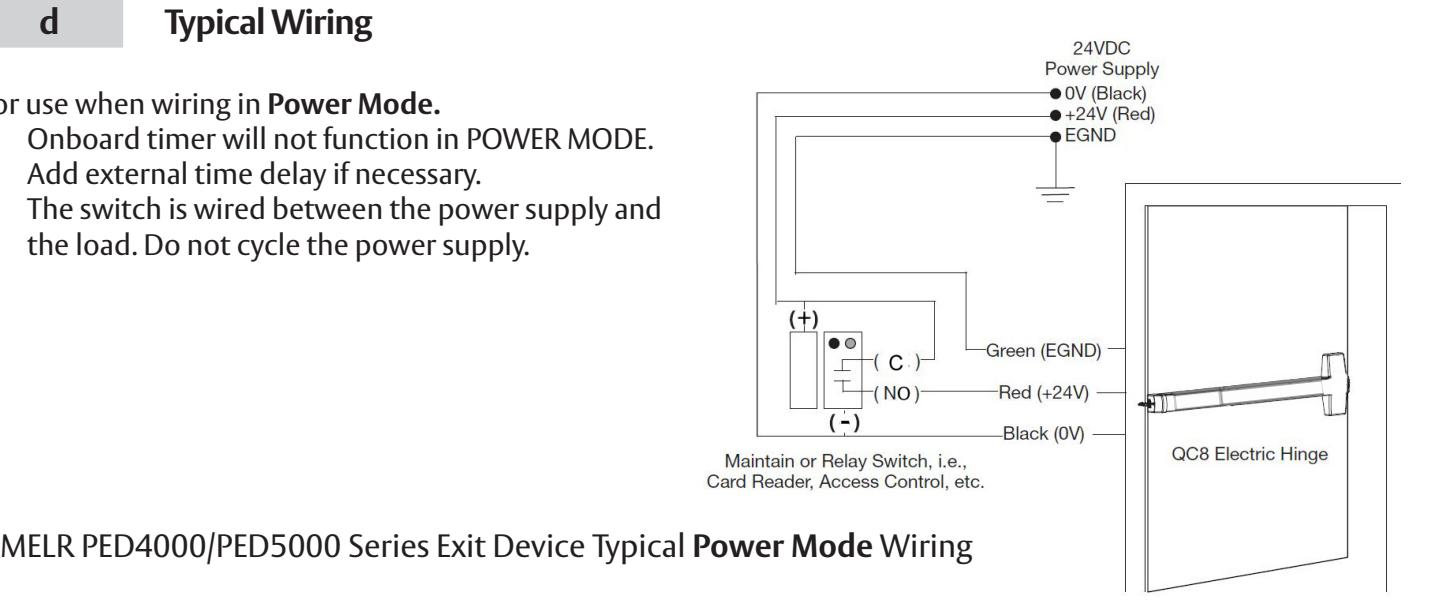

d Typical Wiring
For use when wiring in Power Mode.
- Onboard timer will not function in POWER MODE. Add external time delay if necessary.
- The switch is wired between the power supply and the load. Do not cycle the power supply.
with optional connections
Installation Instructions
2 Power Mode Wiring, continued
e LED Signalling Chart
| Signal | Cause | Troubleshoooting |
|---|---|---|
| Dark / Unlit | Controller microprocessor is not active | Confirm connections and incoming power |
| Steady/Flashing | Normal operation | Check that POWER MODE switch is set |
| Solid Light | Input voltage is dropping out of operating range | Check wire run and power supply output |
| 2 Flashes Followed by Pause | Retractor sensor,mechanical or hall board problem | Call 800-810-WIRE for assistance |
| 3 Flashes Followed by Pause |
f Troubleshooting
Prior to electrical troubleshooting, confirm that the mechanical system properly functions; i.e., that the push bar fully retracts all latches and the door opens freely. Refer to applicable Corbin Russwin PED4000/ PED5000 Series Exit Device product instruction sheet to correct mechanical installation issues.
Important: ALWAYS disconnect power before making any mechanical adjustments to the system.
The push rail does not move when 24V input is applied:
- Check inputs to confirm proper voltage and wiring orientation (See Figure 1 on page 9: ElectroLynx Power Mode Installation).
- Remove end cap from rail and confirm that LED is blinking steadily when power is applied. If not, refer to LED signaling.
Note: When configured in Power Mode , power is released to lock the device (LED will not blink when power is released).
• Confirm DIP switch position 3 is set to ON.
The push rail does not fully retract or push rail retracts completely and holds but does not open door:
-
Verify mechanical installation and correct as necessary:
- Is excessive force required to depress the push bar?
- Are latches fully clearing the strikes when mechanically cycled?
The push rail retracts and unlocks electrically but does not relock:
- Physically disconnect power from rail and confirm that input is off.
- Check for mechanical interference (e.g., warped door, lack of shims, misalignment of rail, etc.).
- Was a PED4000/PED5000 Series motor kit installed? Verify the rail assembly.
Rail behaves abnormally (multiple cycles, clicking, delayed retraction, etc.):
• Remove end cap from rail and confirm that LED is blinking steadily when power is applied. If not, refer to LED signaling.
Note: When configured in Power Mode , power is released to lock the device - LED will not blink when power is released.
with optional connections
Installation Instructions
2 Power Mode Wiring, continued
f Troubleshooting, continued
For applications using automatic operator(s): Door(s) fail to unlock before doors begin to open:
• Adjust timing of operator to allow 850ms for the rail to fully retract.
M91 switch wiring: The design requires normally open functionality and the circuit is normally closed (or vice versa):
• M91C NO contact is default, if NC contact is required refer to Appendix A Wiring Re-configuration section.
For additional installation assistance, please contact 1-800-810-WIRE (9473). When calling, please provide the following information to improve our service (provide what you can):
- Your name and contact number
- Corbin Russwin PED4000/PED5000 Series Exit Device product type (e.g. PED5210 MELR M92)
- Location and identification of the affected opening (e.g., site, building, and door number)
- Corbin Russwin order number (located on product box), if available
- Power supply manufacturer and rated output (i.e., voltage and current)
- Method of operation (e.g., Power Mode )
- The number of devices connected to the power supply
- Symptoms of problem (i.e., observed behavior)
with optional connections
Installation Instructions
3 Timer Mode
In this configuration, the device is always energized with a 24 volt input, and a timer circuit is opened or closed to control rail retraction. A momentary or maintain switch is typically used to perform this operation. For installations where the power input is cycled to retract the device, refer to Section 2: Power Mode.
a Installation Instructions
How it works: Rail retracts when timer input circuit is closed.
1. Mount PED4000/PED5000 Series exit device using mechanical installation instruction sheet(s) provided.
Note: Ensure proper mechanical function before attempting electrical retraction:
- Verify the push rail can be fully depressed and the latch is fully retracted.
- On vertical rod exit devices, verify that the latchbolts do not enter hold-back position until the push rail is fully depressed.
- Adjust device mechanically, as required, before applying power.

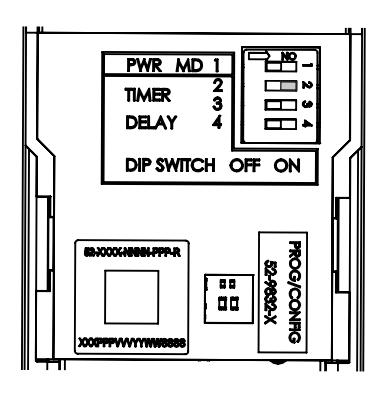

DIP Switch Setting for Timer Mode Installation
Figure 6
- 2. Ensure DIP Switch switch (position 1 is OFF for Timer Mode) disables Power Mode (Figure 6). Set to OFF to disable.
-
3. Connect the ElectroLynx harness in the door (Figure 9 ElectroLynx
Timer Mode
Installation):
- —Plug the 8-pin and 4-pin ElectroLynx connectors from the rail into the 3" ElectroLynx harness or splice into a non-ElectroLynx harness (Figure 8).
- —Feed the 3" harness through the 1" hole in the door and secure the rail to the door using the mounting bracket and two supplied screws (Figure 7 Timer Mode Installation).
Note: Do not install the end cap until electrical operation is verified in order to confirm LED signaling. Do not discard the end cap and hardware.
MELR Input Requirements
| Switches | M92REX | M91 Latch Bolt |
|---|---|---|
| Contact Rating (Resistive) | 300mA max @30VDC | 300mA max @30VDC |
Voltage: 24VDC
- Filtered and regulated power supply
- Motor operating current: 750mA
- Motor hold current: 300mA
Note: Earth Ground is required for Electrostatic Discharge (ESD) protection unless the metal door and frame are already earth grounded; otherwise, earth ground wiring is required at pin 4 (Figure 10 ElectroLynx Timer Mode Wiring).
with optional connections
Installation Instructions
3 Timer Mode, continued
a Installation Instructions, continued
- 4. Connect the ElectroLynx harness to the hinge:
- —Plug the door harness's 8 pin and 4-pin connectors into the hinge's ElectroLynx connector.
- —Secure the electric hinge to the door.
Note: Make sure no wires are pinched or damaged in the process. Refer to detailed wiring instructions under Timer Mode wiring.
P1
- 5. Plug P5 connector into the end bracket metal tab and then tuck wires into rail, end bracket are, and into 1" diameter in door. Then install end bracket cover.
-
6. Apply 24V according to MELR input requirements:
- Confirm that the LED is blinking and close the timer input circuit to retract the device. When the system retracts electrically, confirm that it fully unlocks and that all bolts clear the strikes. Troubleshoot the device if issues are observed using the steps outlined at the end of the Timer Mode section.
- 7. Store excess wiring under end cap and assemble with provided screws. Avoid pinching wires.
with optional connections
Installation Instructions
3 Timer Mode, continued
b ElectroLynx Opening Installation

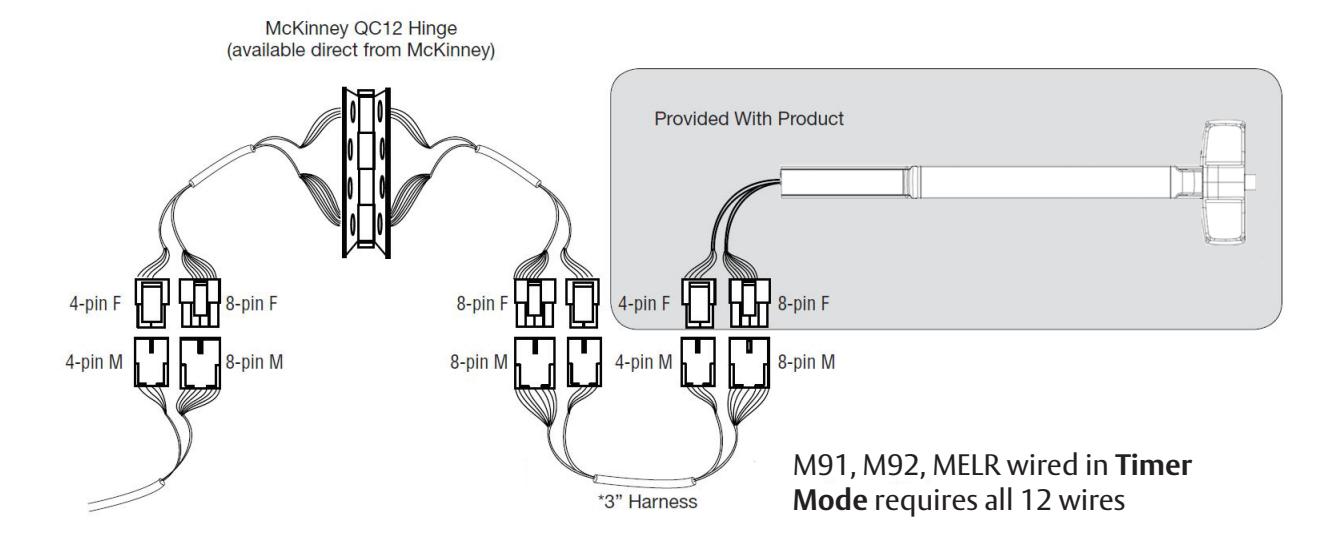

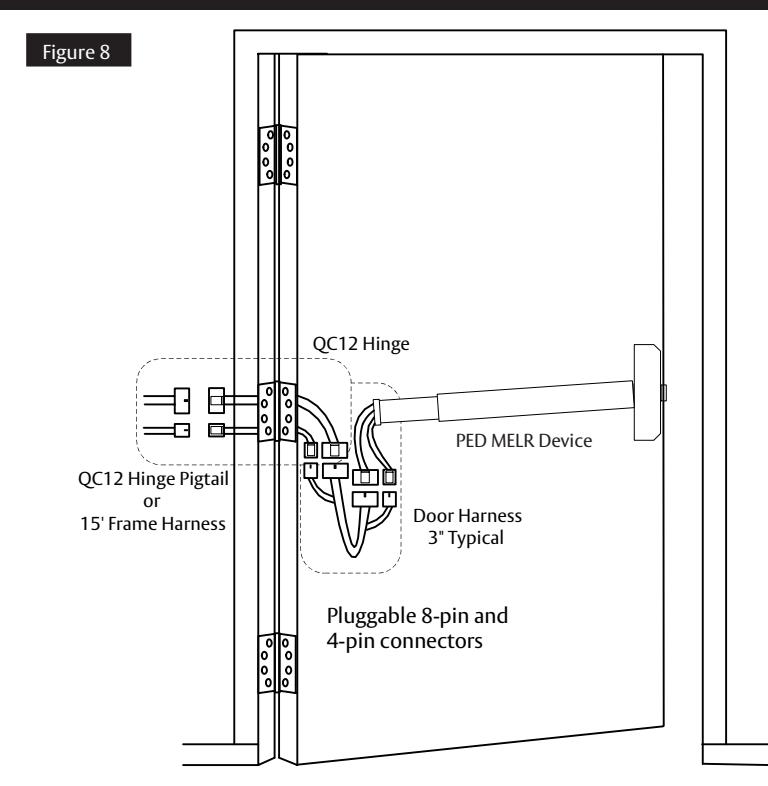

This is the simplest installation method, requiring the installer to plug the ElectroLynx connectors from the exit device to the harness to the hinge and then to the pigtail, which is connected to the access control system.
Requirements
4-pin M
- MELR exit device
- 3" ElectroLynx connector harness (not supplied with MELR device)
- McKinney QC ElectroLynx hinge (type of hinge depends on the application)
-1 - Violet (ET-) -2 - Grey (ET+)
-3 - Pink ( MELR Timer A)
4 - Tan (MELR Timer B)
17
Figure 9 ElectroLynx Timer Mode Installation
4-pin M 4-pin F
with optional connections
Installation Instructions
3 Timer Mode, continued
c Non-ElectroLynx Opening Installation

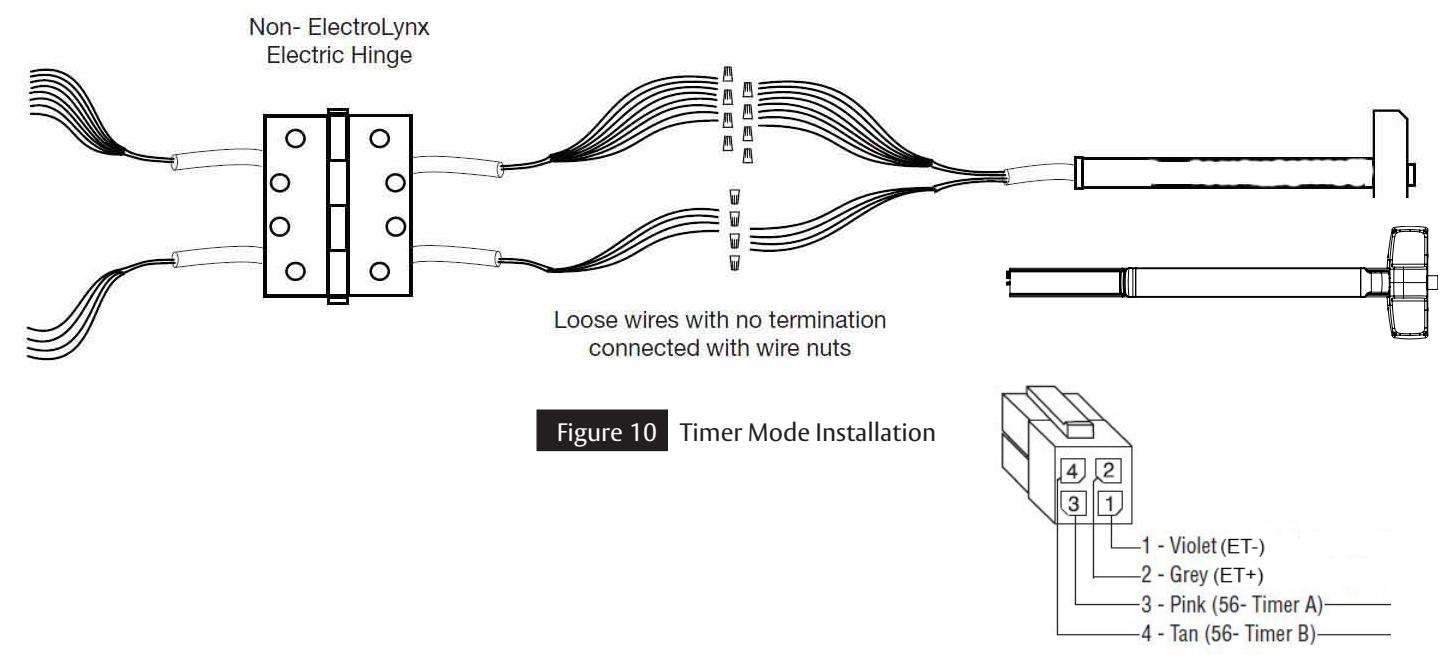

Standard door with standard electric hinge: Remove the ElectroLynx connector from the MELR Exit Device and wire nut the MELR wires to the wires from the electric hinge (color coordinating wire colors is recommended).
| MOLEX BOTH ENDS | MOLEX TO PIN OUT | |
|---|---|---|
| 3 INCH | QC-C003 | QC-C003P |
| 6 INCH | QC-C006 | QC-C006P |
| 12 INCH | QC-C012 | QC-C012P |
To identify part numbers and order harness(es), visit the McKinney website, www.mckinneyhinge.com, and search the catalog for ElectroLynx.
1 -Black (MELR 0VDC) _______ 2 -Red (MELR +24VDC) ______ 3 -White (M91 C) ___________ 4 -Green (EG) ______________ 5 -Orange (M91 NO)* ________ 6 -Blue (M92 C)____________ 7 -Brown (M92 NO)_________
8 -Yellow (M92 NC)_________
* If M91 NC contact is required, refer to Appendix A-Wiring re-configuration section.
Non-ElectroLynx Timer Mode Connection MELR Wires with ElectroLynx Connector Removed
with optional connections
Installation Instructions
3 Timer Mode, continued

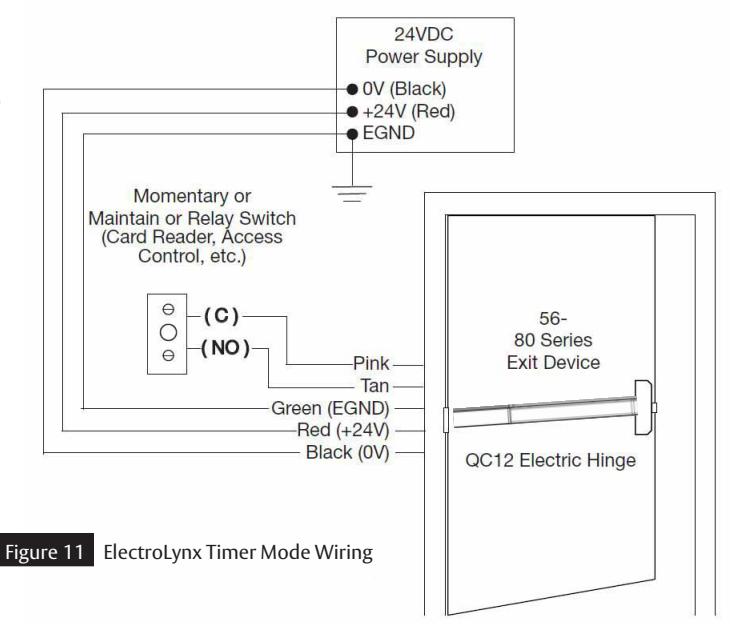

d Typical Wiring
For use when wiring in Timer Mode (using the onboard timer). If more than 20 seconds timed delay is necessary, an external timer delay relay is required (not provided).
Note: 24V supply is constant in Timer Mode . Refer to settings in Section 3-g Configuration Instructions DIP Switch Settings (for M91and timer duration).
e Timer Mode Adjustment (Onboard Timer)
How it works: The 24 volt input is always energized and the system retracts when the timer input circuit is closed.
- When the timer circuit is closed utilizing a momentary switch, the device retracts, remains retracted for a set duration, and releases. The duration of the retraction is set using an onboard timer setting (0 - 20 second timer adjustment).
- The countdown begins when the rail is first retracted.
- When the timer circuit is closed using a maintain switch, the device retracts.
- The device releases when the circuit is re-opened.
Notes:
- 24V supply is constant in Timer Mode . The duration of retraction is determined by whichever is longer: the maintain switch closure or the onboard timer delay.
- If more than 20 seconds delay is necessary (exceeding the maximum setting), an external timer delay relay is required (not provided).
- Refer to settings in Section 3-g (Fig. 18-20) for DIP Switch timer delay settings.
with optional connections
Installation Instructions
3 Timer Mode, continued
f Configuration Instructions DIP Switch Settings (for M91 and timer duration)
For MELR applications using the optional M91 latchbolt monitor switch (M91, MELR).

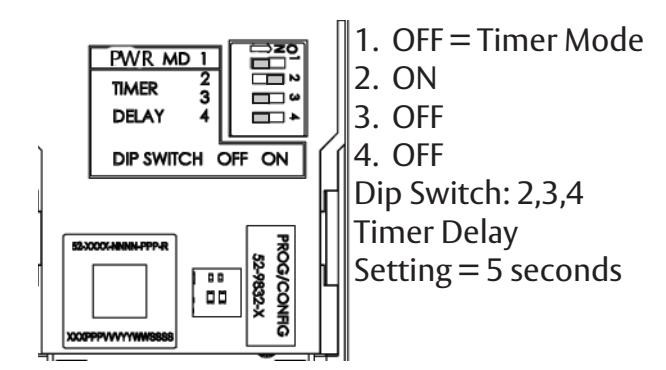

- Dip Switch Settings 1. OFF = Timer Mode
- 2. ON
- 3. OFF
- 4. OFF
Dip Switch: 2,3,4 Timer Delay Setting = 5 seconds
| Time | 2 | 3 | 4 |
| 0 Sec | OFF | OFF | OFF |
| 2 Sec | OFF | OFF | ON |
| 3 Sec | OFF | ON | OFF |
| 4 Sec | OFF | ON | ON |
| 5 Sec | ON | OFF | OFF |
| 10 Sec | ON | OFF | ON |
| 15 Sec | ON | ON | OFF |
| 20 Sec | ON | ON | ON |
Dip switch 2, 3, 4 are used to configure the timer delay in timer mode. Timer Delay Settings = 5 seconds
MELR Timer Mode
g LED Signaling Chart
| Signal | Cause | Troubleshoooting |
|---|---|---|
| Dark / Unlit | Controller microprocessor is not active | Confirm connections and incoming power |
| Steady/Flashing | Normal operation | Check that TIMER MODE switch is set |
| Solid Light | Input voltage is dropping out of operating range | Check wire run and power supply output |
| 2 Flashes Followed by Pause | Retractor sensor, mechanical, or hall board problem | Call 800-810-WIRE for assistance |
| 3 Flashes Followed by Pause |
h Timer Mode Troubleshooting
Prior to electrical troubleshooting, confirm that the mechanical system properly functions; i.e., that the push bar fully retracts all latches and the door opens freely. Refer to applicable Corbin Russwin PED4000/PED5000 Series Exit Device product instruction sheet to correct mechanical installation issues.
Important: ALWAYS disconnect power before making any mechanical adjustments to the system.
The push rail does not move when 24V input is applied:
- Check inputs to confirm proper voltage and wiring orientation. When configured for Timer Mode , 24V must be applied and the timer circuit must be closed to cycle the device
- Remove end cap from rail and confirm that LED is blinking steadily when power is applied. If not, refer to LED signaling.
with optional connections
Installation Instructions
3 Timer Mode, continued
i Timer Mode Troubleshooting
The onboard timer duration adjustment is not working:
- Remove power when making adjustments to timer delay settings (DIP Switches).
- When a momentary signal is applied to the timer circuit, the circuit must be reopened for the timer to function.
The push rail does not fully retract or push rail retracts completely and holds but does not open door:
-
Verify mechanical installation and correct as necessary:
- Is excessive force required to depress the push bar?
- Are latches fully clearing the strikes when mechanically cycled?
The push rail retracts and unlocks electrically but does not relock:
- Confirm that the Timer Mode contact is opened (the rail will remain depressed until the contact is opened and the delay has expired).
- Physically disconnect power from rail (while electrically retracted) to verify if the issue is mechanical.
- Check for mechanical interference (e.g., warped door, lack of shims, misalignment of rail, etc.).
- Was a motor kit installed? Verify the rail assembly.
Rail behaves abnormally (multiple cycles, clicking, delayed retraction, etc.):
- If a momentary contact is applied to the timer circuit, adjust the onboard timer to a longer duration.
- Remove end cap from rail and confirm that LED is blinking steadily when power is applied. If not, refer to LED signaling.
For applications using automatic operator(s): Door(s) fail to unlock before doors begin to open:
- Adjust timing of operator to allow 850ms for the rail to fully retract.
- If a momentary contact is applied to the timer circuit, adjust the onboard timer to a longer duration to prevent the device from locking prior to operator actuation.
M91switch wiring: The design requires normally open functionality and the circuit is normally closed (or vice versa):
• M91 C, NO contact is default, if NC contact is required refer to Wiring Re-configuration section.
For additional installation assistance, please contact 1-800-810-WIRE (9473). When calling, please provide the following information to improve our service (provide what you can):
- Your name and contact number.
- Corbin Russwin PED4000/PED5000 Series Exit Device product type (e.g. PED5210 MELR M92).
- Location and identification of the affected opening (e.g., site, building, and door number).
- Corbin Russwin order number (located on product box), if available.
- Power supply manufacturer and rated output (i.e., voltage and current).
- Method of operation (e.g., Timer Mode ).
- The number of devices connected to the power supply.
- Symptoms of problem (i.e., observed behavior).
with optional connections
Installation Instructions
4
Appendix A: Harness Wiring Reconfiguration
PED Series Exits MELR PCBA to QC12 Hinge Side Harness
26-pin connector to 8 & 4-pin ELynx connectors
12 + 4 = 16 total wiring selections
PED Series Exits MELR ElectroLynx QC12 Factory Default Ship Configuration
| T | 1 | ||
|---|---|---|---|
| 26-1 | PWR- | Black | 8-1 |
| 26-2 | PWR+ (24VDC) | Red | 8-2 |
| 26-4 | м91 сом | White | 8-3 |
| Quick Conn | EGND | Green | 8-4 |
| 26-6 | M91 N.O. | Orange | 8-5 |
| 26-3 | м92 сом | Blue | 8-6 |
| 26-5 | M92 N.O. | Brown | 8-7 |
| 26-7 | M92 N.C. | Yellow | 8-8 |
| 26-12 | ET- | Violet | 4-1 |
| 26-14 | ET+ | Gray | 4-2 |
| 26-11 | TIME- (Timer A) | Pink | 4-3 |
| 26-13 | TIME+ (Timer B) | Tan | 4-4 |
| 26-8 | M91 N.C. | No wire | |
| 26-16 | м93 сом | No wire | |
| 26-18 | M93 N.O. | No wire | |
| 26-20 | M93 N.C. | No wire | |
LEGEND - PED4000/PED5000 Series Exits MELR
M91 Latch Monitor Switch (Form C) in Chassis
M92 Push Bar Switch (Form C) in Rail
EGND Earth Ground connection to metal rail, required
Power Mode Retracts push bar/latch when 24VDC power is applied, releases when power is removed Timer Mode Device is powered, a momentary closure from external switch across Time+ to Timeretracts push bar/latch for dip switch setting of 0 to 20sec, or remains retracted until switch is opened then push bar/latch releases after (0-20sec)
ET Electrified Exit Trim (Fail Safe or Fail Secure) Ecoflex 10 to 28VDC
M93 ET Outside Lever Monitor Switch (Form C)
Type: 12/24VDC, Continuous Duty
with optional connections
Installation Instructions
4 Appendix A: Harness Wiring Reconfiguration, continued
a Wire Configuration

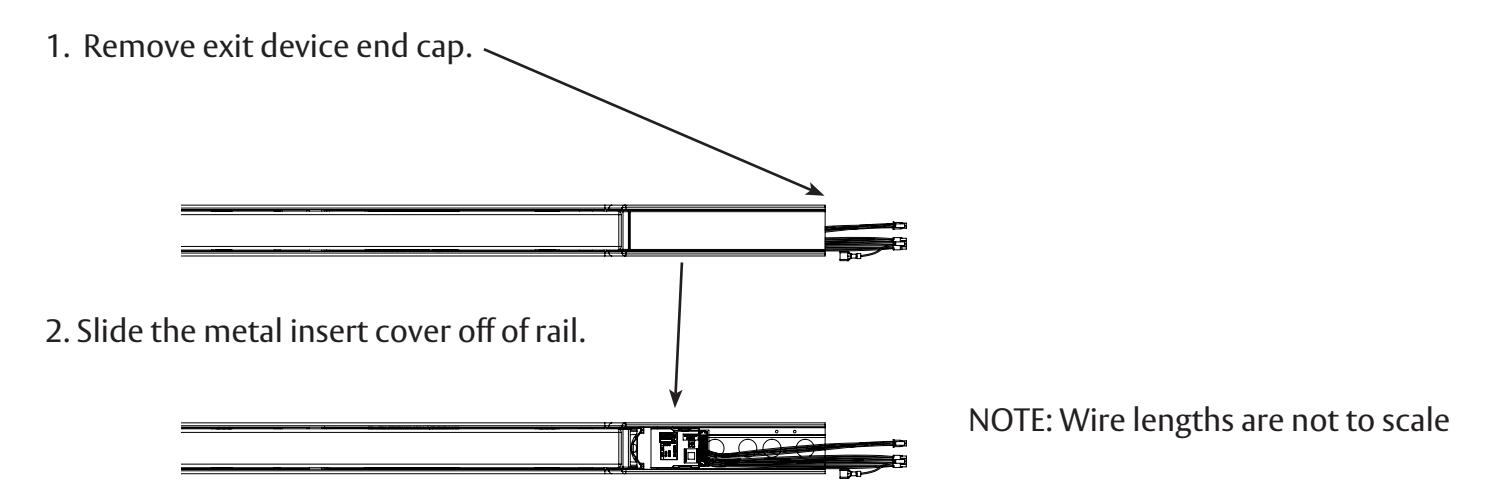

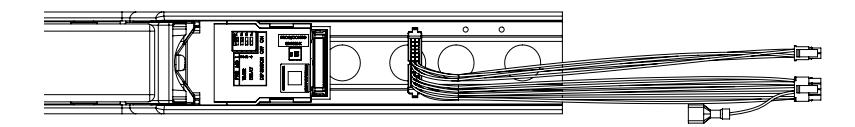

3. Unplug the harness 26-pin connector from mating PCBA 26-pin connector.
The factory ships the rail to hinge side harness with 12 default wires terminated from the 26-pin connector to 8-pin & 4-pin connectors.
There are a total of 16 wiring choices (4 additional wiring choices):
- M91 N.C.
- M93 COM
- M93 N.O.
- M93 N.C.
See page 22 for wire table.
with optional connections
Installation Instructions
4 Appendix A: Harness Wiring Reconfiguration
b If the M91 N.C. contact is required instead of M91N.O. (26-6, Orange wire):

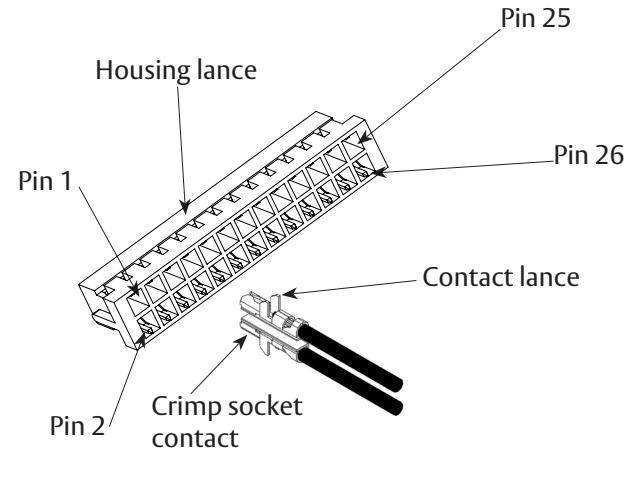

- 1. Use small tool with pointed tip and position it at orange wire on 26 pin connector position 6, as shown in Figure 12 .
- 2. Lift up plastic lance, as shown in Figure 12, slowly pull orange crimped terminal/wire assembly out of connector.

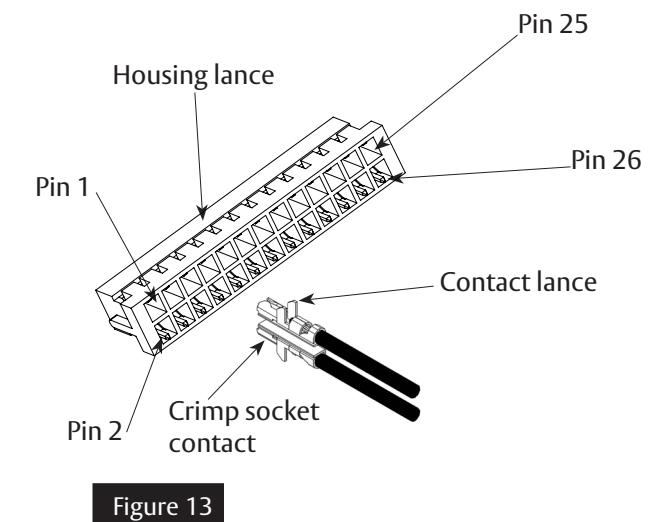

- 3. Refer to Figure 13 and install crimped terminal/orange wire assembly into the new M91 N.C. location 26-8 (26-pin connector position 8) .
Figure 12
with optional connections
Installation Instructions
4 Appendix A: Harness Wiring Reconfiguration, continued
c Inserting crimped contact/wire assembly into new connector position.

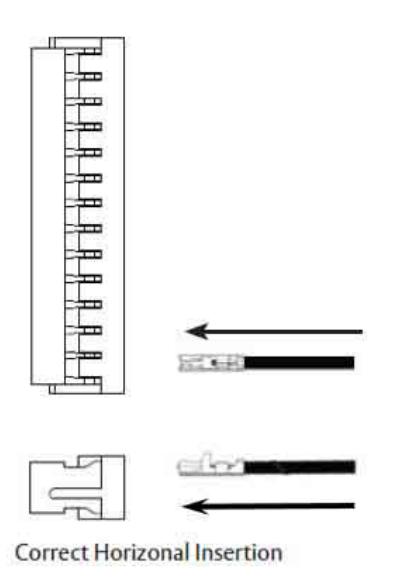

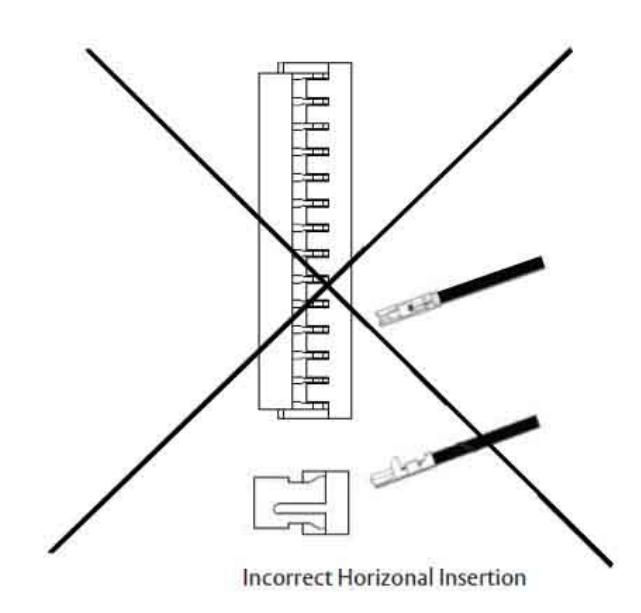

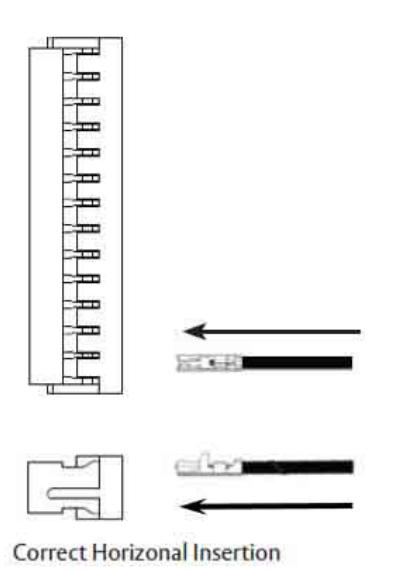

Follow correct Horizontal Insertion view when inserting crimped terminal/wire into socket (26-pin connector), as shown below.
Figure 12 Insert female pins into male housing
Do not tilt crimped terminals during insertion.
with optional connections
Installation Instructions
4 Appendix A: Harness Wiring Reconfiguration, continued
d Inserting crimped contact/wire assembly into new connector position.
If the M93 COM and M93 N.O. (or M93 N.C.) contact is required for your application, select 2 of the 12 wires that are not being used.
Example: If Timer A (pink wire 26-11), and Timer B (tan wire 26-13) aren't being used, move wire assemblies to M93 COM (pink wire to 26-16) and tan wire to 26-18 for M93 N.O. (or tan wire to 26-20 for M93 N.C.).
- 1. Use small tool with pointed tip to remove pink and tan crimped terminal/wire assemblies from 26 pin connector positions 26-11 and 26-13, as shown in Figure 14.
- 2. Lift up plastic lance, as shown in Figure 14, slowly pull pink and tan crimped terminal/wire assemblies out of connector.
- 3. Refer to Figure 15 and install crimped contact/wire assemblies into the new locations.
- 4. Insert pink wire into 26-16 (M93 COM).
- 5. Insert tan wire into 26-18 for (M93 N.O.), or 26-20 for (M93 N.C.) .
Figure 14
with optional connections
Installation Instructions
4 Appendix A: Harness Wiring Reconfiguration, continued
d Inserting crimped contact/wire assembly into new connector position, continued
Follow correct Horizontal Insertion view when inserting crimped terminal/wire into socket (26-pin connector), as shown below.
Figure 15
Do not tilt crimped terminals during insertion.
Insert female pins into male housing
Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com
Copyright © 2023 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent - www.assaabloydss.com/patents. HID, iCLASS, and Edge are trademarks or registered trademarks of HID Global Corporation.
