Making a Quiet Exit

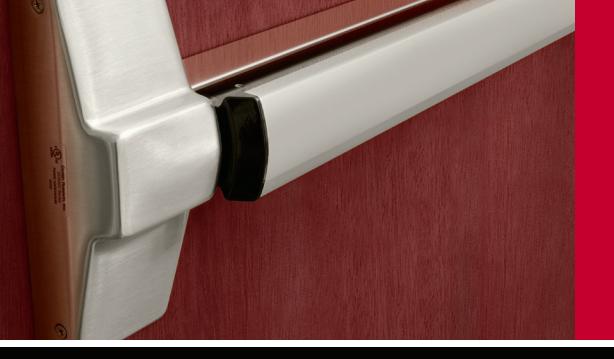

The Motorized Electric Latch Retraction (MELR) exit device from Corbin Russwin seamlessly integrates into an existing Wiegand compatible access control system, providing remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. The MELR is easily installed in new applications and available as retrofit assemblies for field updates. It features a maintenance-free design with few moving parts and uses 86% less power during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.

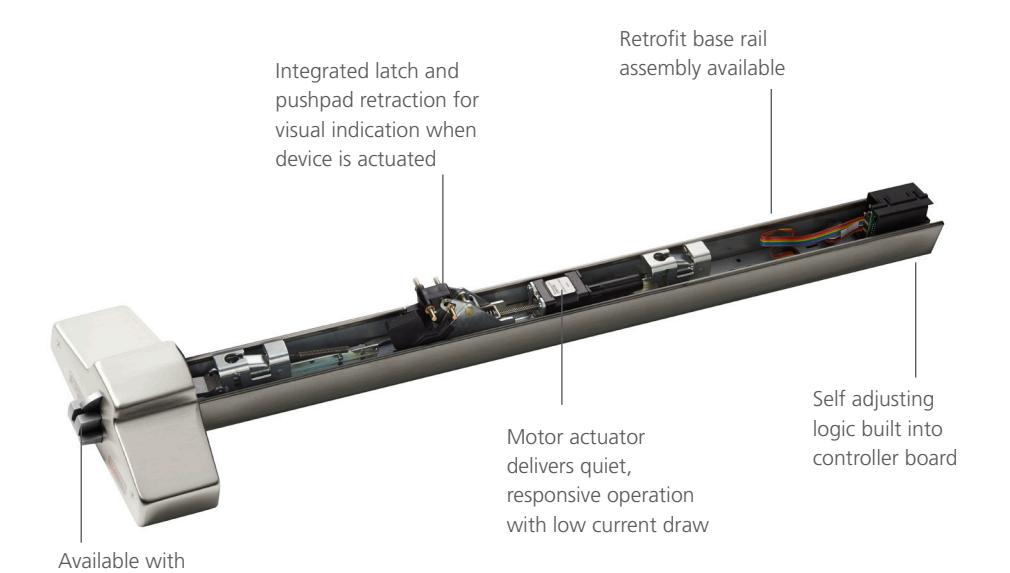

Motorized Electric Latch Retraction (MELR)

for Access 600 RNE1 and SELP 10 ED5000 Series Exit Devices

FEATURES

• Available option on all Access 600 RNE1 and SE LP10 ED5000 Series exit devices
• Continuous or intermittent use
• Digital timer (0-20 seconds) no costly external timer required
• Diagnostic LED to ease field service
• Available for 34" 48" doors
• .65A during retraction and .2A maintained in dogged hold position
• 24 VDC regulated/filtered power supply required
• UL Listed for Class II circuitry
• Available for panic and fire exit hardware
• Compatible with latchbolt monitor, touch bar monitor, trim monitor, photoluminescent rail, hex key, and cylinder dogging
• 5 year manufacturers warranty

BENEFITS

• Responsive, quiet retraction perfect for any environment sensitive to noise that demands consistent performance
• Hands free operation for convenient egress
• Self-adjusting retraction reduces installation time and improves performance
• Low current draw
• Uses standard electric hinge special power transfer device NOT required

APPLICATIONS

• Offices
• Convention Halls
• Schools
• Healthcare Facilities
• Theaters
• Libraries

Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 www.corbinrusswin.com

Securebolt® – a square latchbolt delivering the greatest resistance against unauthorized entry
