FE6600 and BL6600 Series
M19SN/M19VN - Secured Indicator Rose Kit
Multi-Point Lock
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
FE6600 and BL6600 Series
Multi-Point Lock
Installation Instructions
1 M19VN/M19SN Occupancy Indicator Figure 1 Inside of door Centerline of lockbody 2-1/2" Template layout on door edge Outside of door
Fold here according to door hand and bevel
FE6600 and BL6600 Series
Multi-Point Lock
Installation Instructions
2 Changing Indicator Slides
- 1. Remove Phillips screw.
- 2. Remove backplate, hub plate, and slide.
- 3. Replace with alternate slide.
- 4. Reassemble hub plate and back plate.
- 5. Secure with Phillips screw.
Note:
Ensure proper orientation of VAC/OCC Slide.

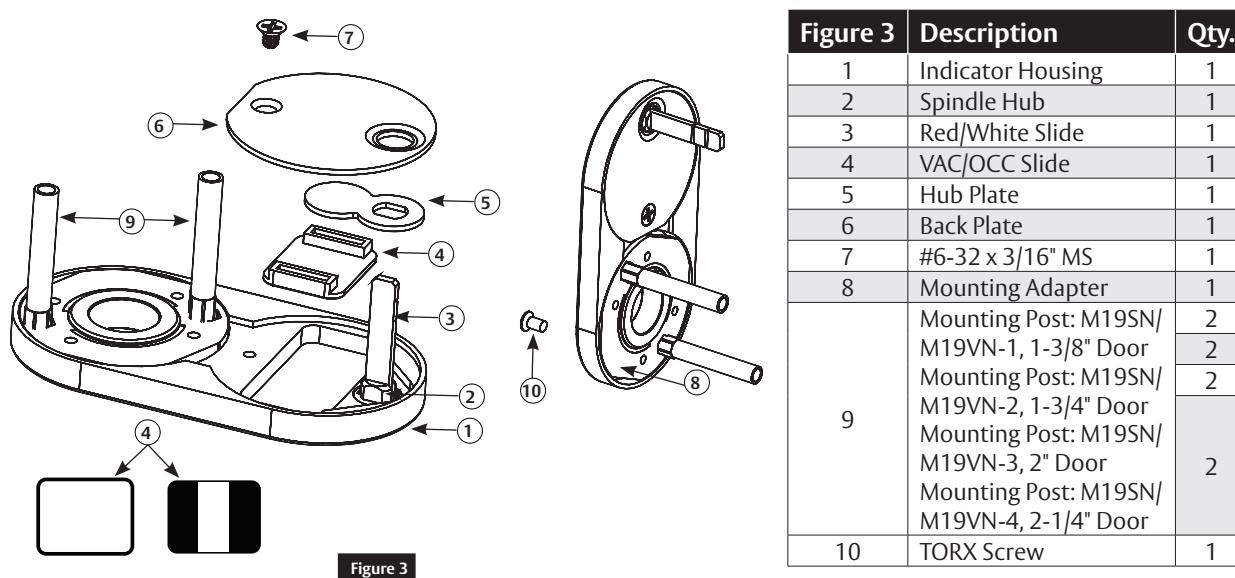

| 1 | Indicator Housing | 1 |
| 2 | Spindle Hub | 1 |
| 3 | Red/White Slide | 1 |
| 4 | VAC/OCC Slide | 1 |
| 5 | Hub Plate | 1 |
| 6 | Back Plate | 1 |
| 7 | #6-32 x 3/16" MS | 1 |
| 8 | Mounting Adapter | 1 |
| 9 | Mounting Post: M19SN/ | 2 |
| M19VN-1, 1-3/8" Door | 2 | |
| Mounting Post: M19SN/ | 2 | |
|
M19VN-2, 1-3/4" Door
Mounting Post: M19SN/ M19VN-3, 2" Door Mounting Post: M19SN/ M19VN-4, 2-1/4" Door |
2 | |
| 10 | TORX Screw | 1 |
