Corbin Russwin Inspire Trim for TL3700 Series Template_T31185

Notes:

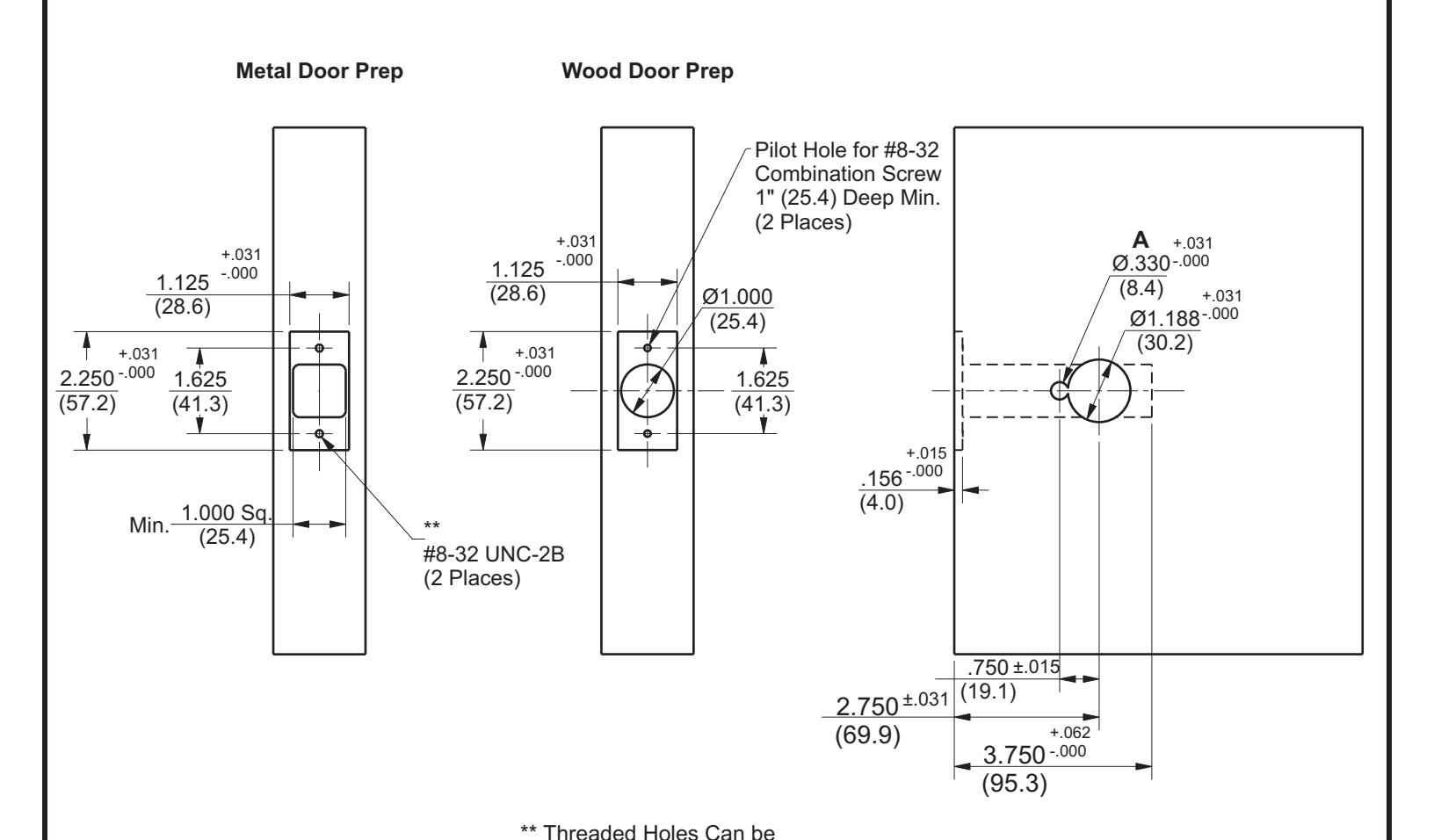

• Backset is measured from centerline of bevel which is centerpoint of door thickness. Non-beveled door shown.
• 2. Dimensions given in inches and (mm).

Series Function	Hole A Required
TL3710
TL3720	•
TL3780

RESPONSIBILITY

Template Cross Reference

T30638

T30543

T30476

T31186

T31187

SF & SFR Strike

Full Dummy Trim

Half Dummy Trim

ANSI Strike

Strike Box

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

TL3700 Series Inspire™ Trim

omitted on Wood Doors.

ASSA ABLOY www.corbinrusswin.com SUPERSEDES DO NOT SCAL

TEMPLATE NUMBER T31185 DO NOT SCALE DRAWING

Tolerances

Inches

.005

.010

.015

(mm)

(.127)

(.254)

(.381)
